Home >> GMC >> 1985 >> C 1500 Truck 2WD V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection

Engine Control Module: Testing and Inspection

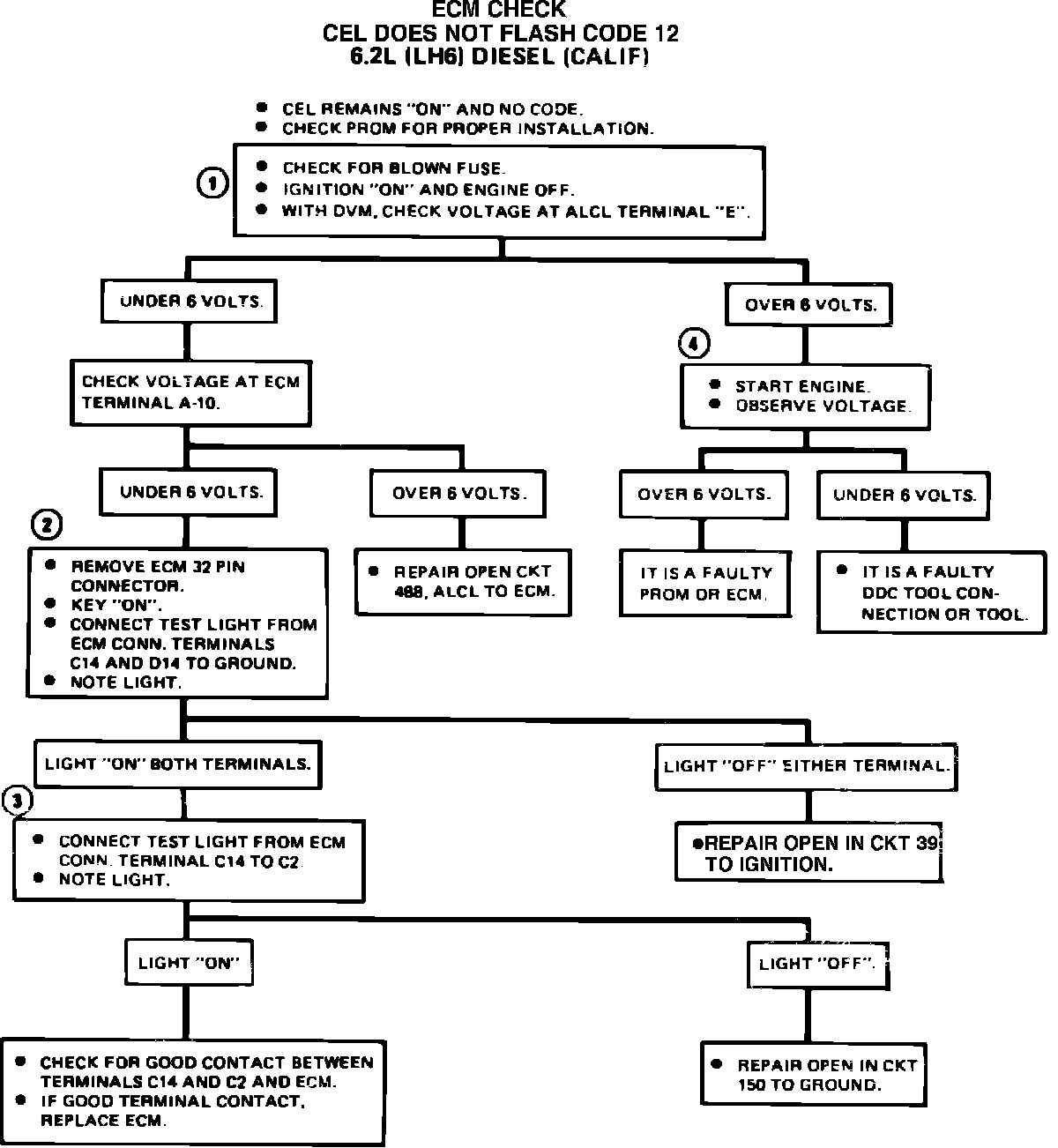

Fig. 24 ECM check. 1985:
