GMC
>>
1991
>>
C 2500 Truck 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Terminal Voltage Specifications
Computer Terminal Voltage Specifications

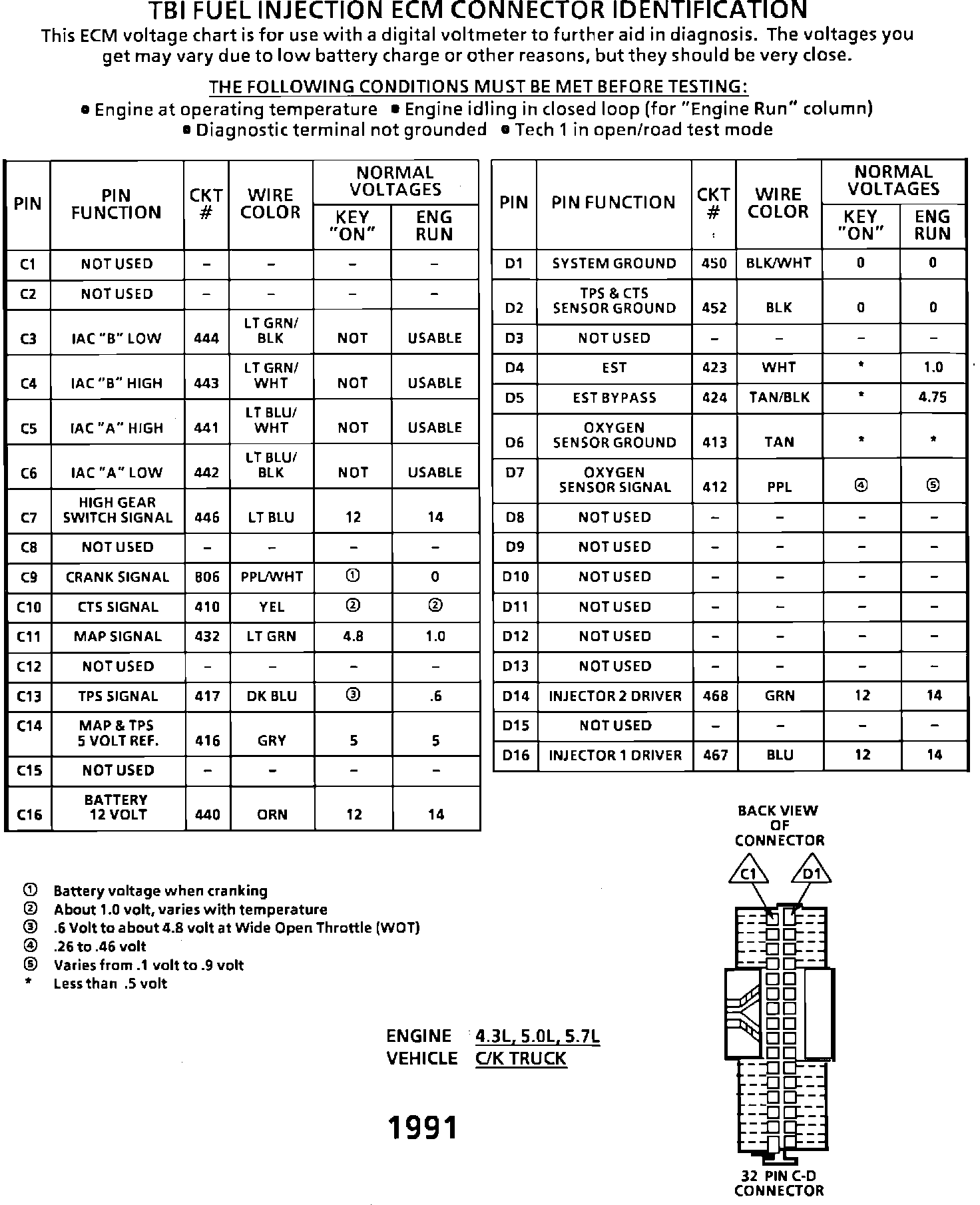

ECM Connector End View Except 4L80-E Transmission (Part 1 Of 2):

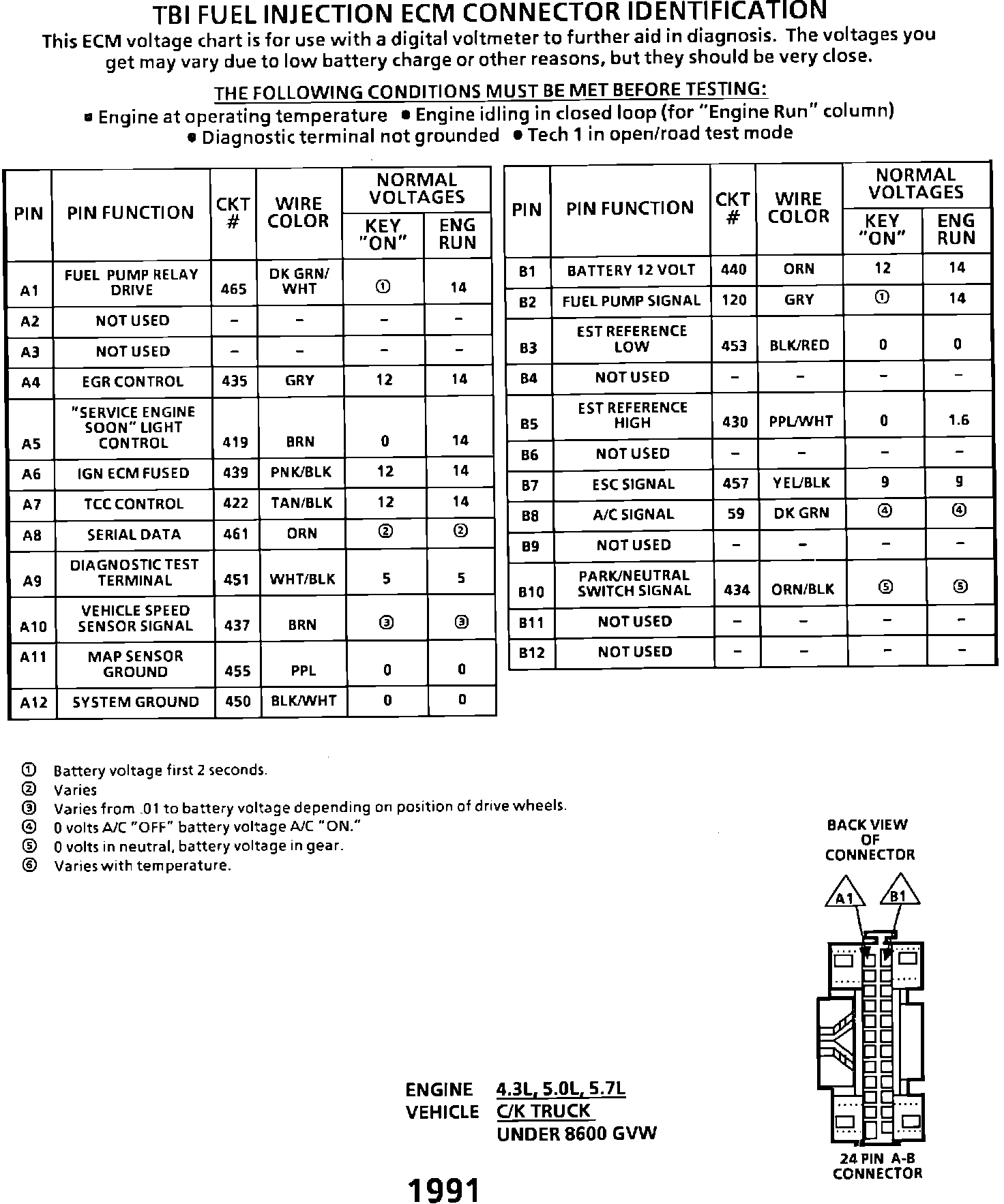

ECM Connector End View Except 4L80-E Transmission (Part 2 Of 2):
