LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
1991
>>
K 2500 Truck 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Command Control - Throttle Body Fuel Injection
>>
PCM
PCM

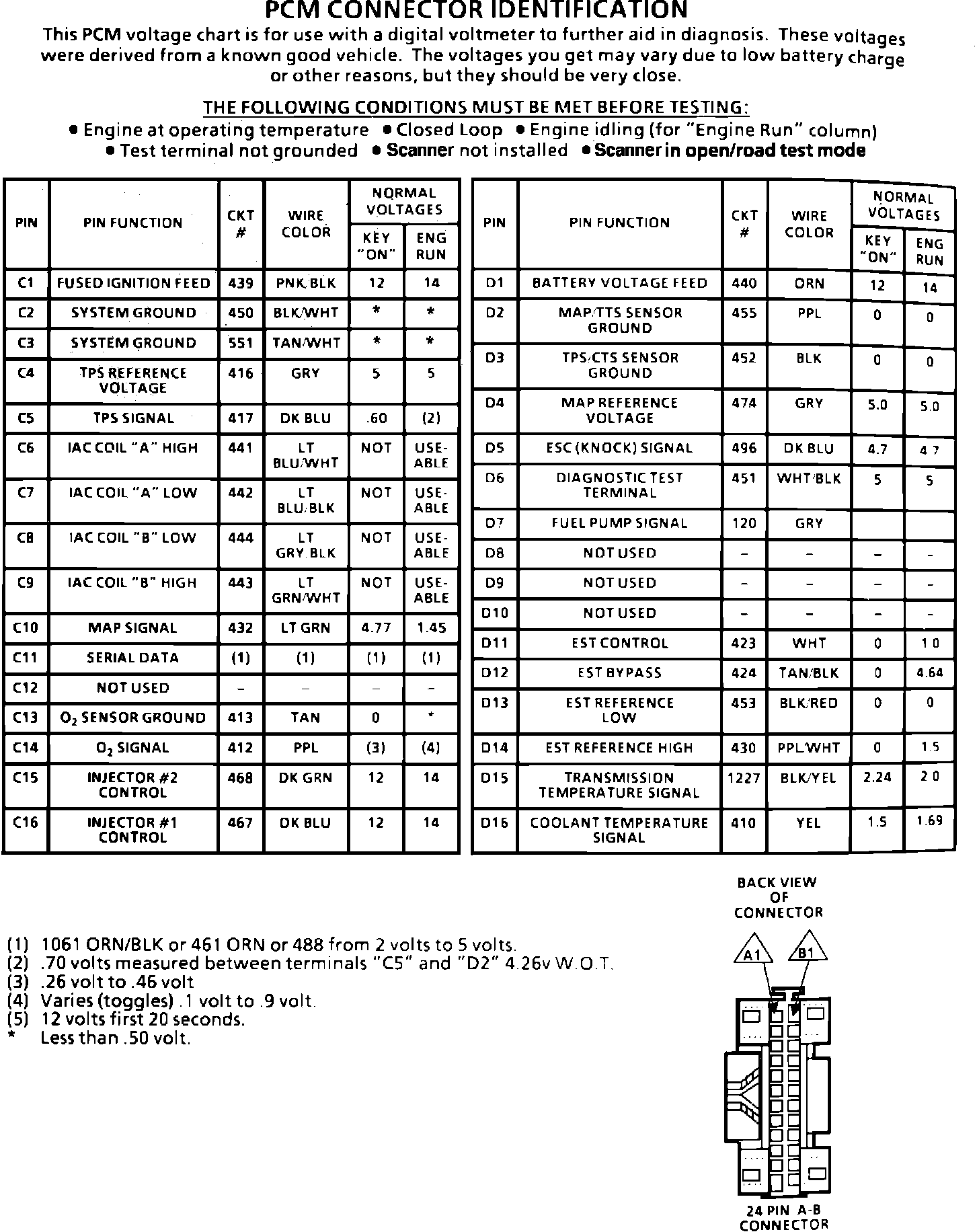

PCM Terminal Identification And Voltage Specification Part 1 Of 2:

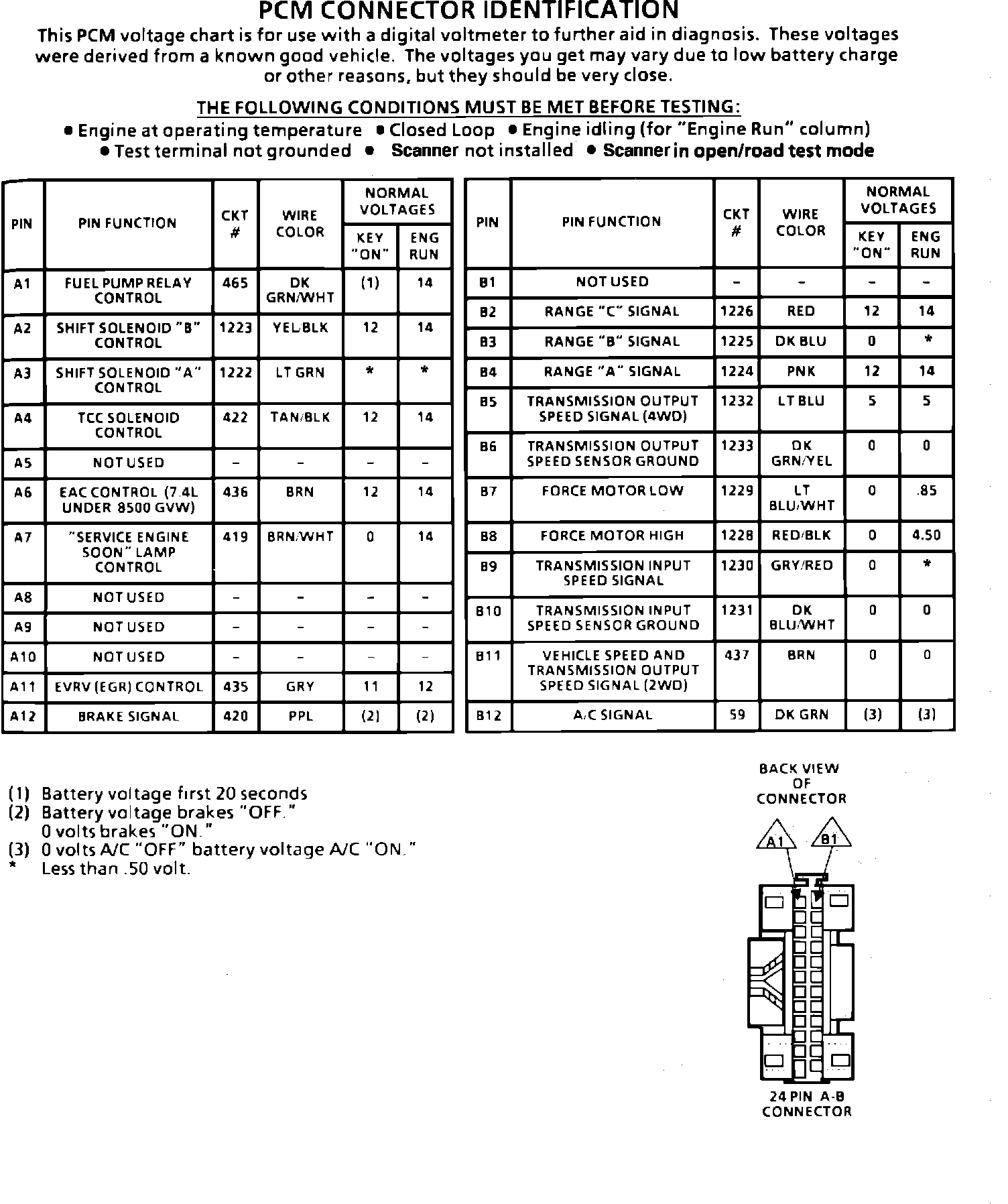

PCM Terminal Identification And Voltage Specification Part 2 Of 2:
