K 2500 Truck 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Terminal Voltage Specifications
Computer Terminal Voltage Specifications

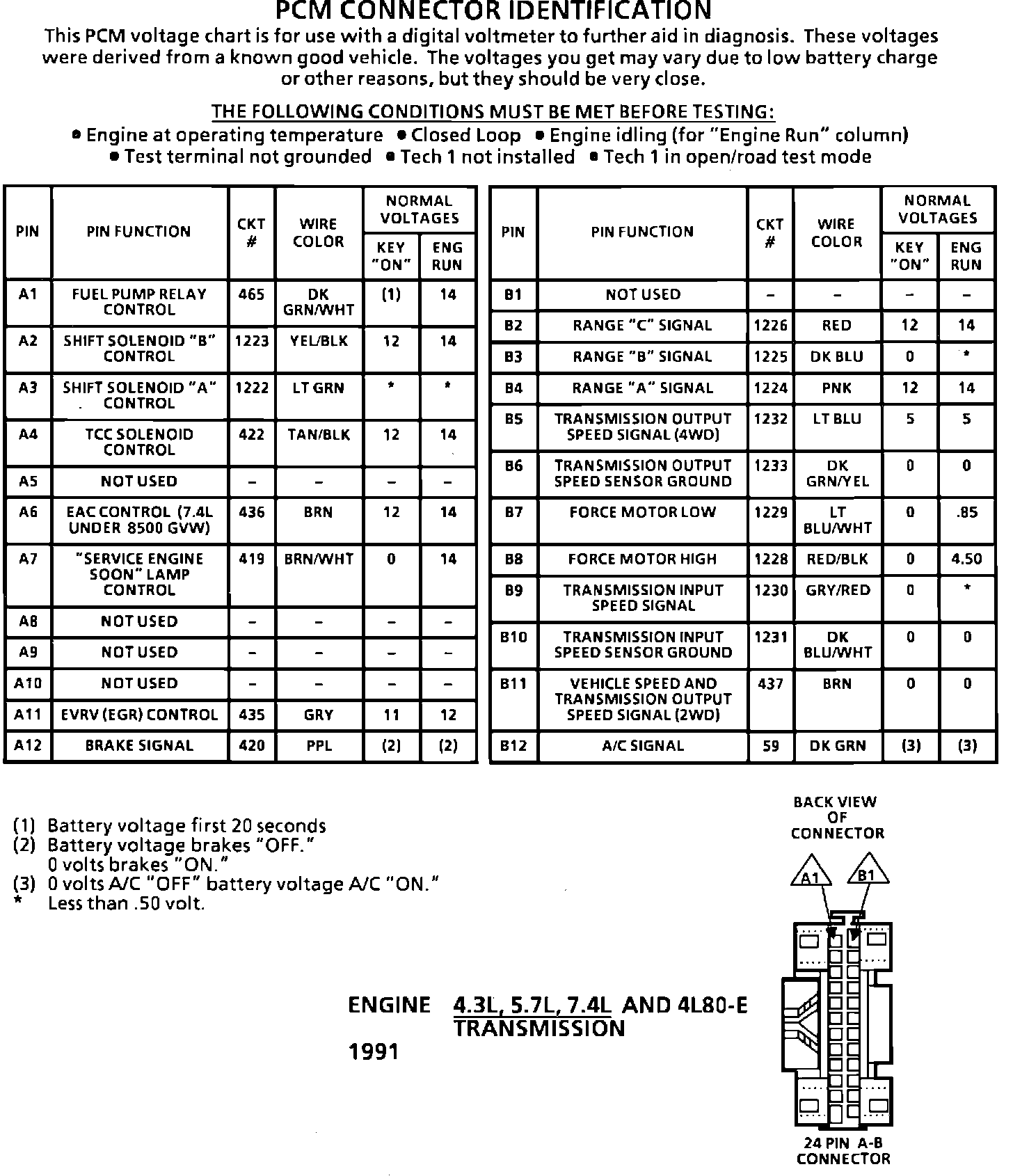

PCM Connector End View Equipped W/4L80-E Trans (Part 1 Of 2):

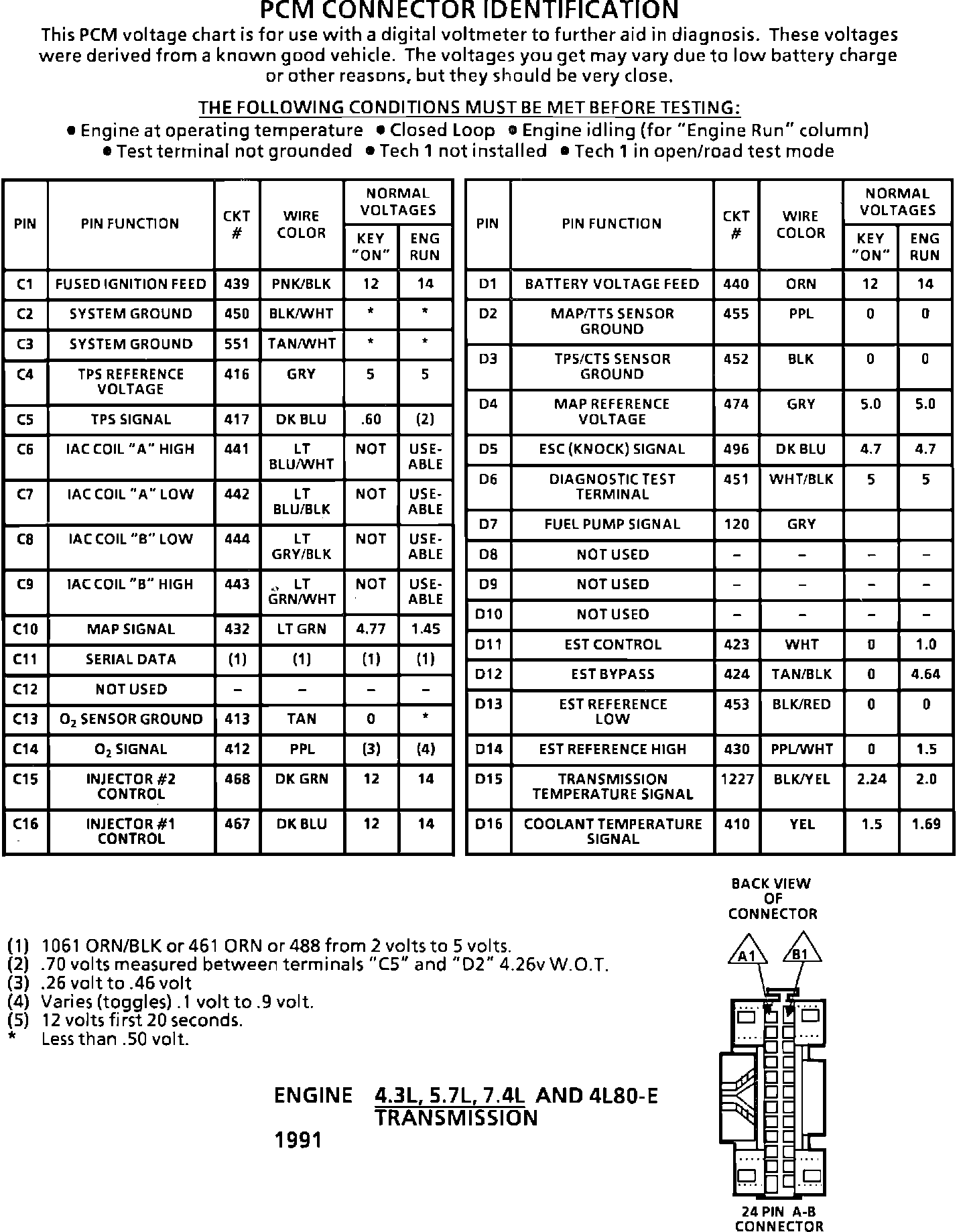

PCM Connector End View Equipped W/4L80-E Trans (Part 2 Of 2):
