Safari Van AWD V6-262 4.3L VIN Z TBI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Command Control - Throttle Body Fuel Injection
Computer Command Control - Throttle Body Fuel Injection

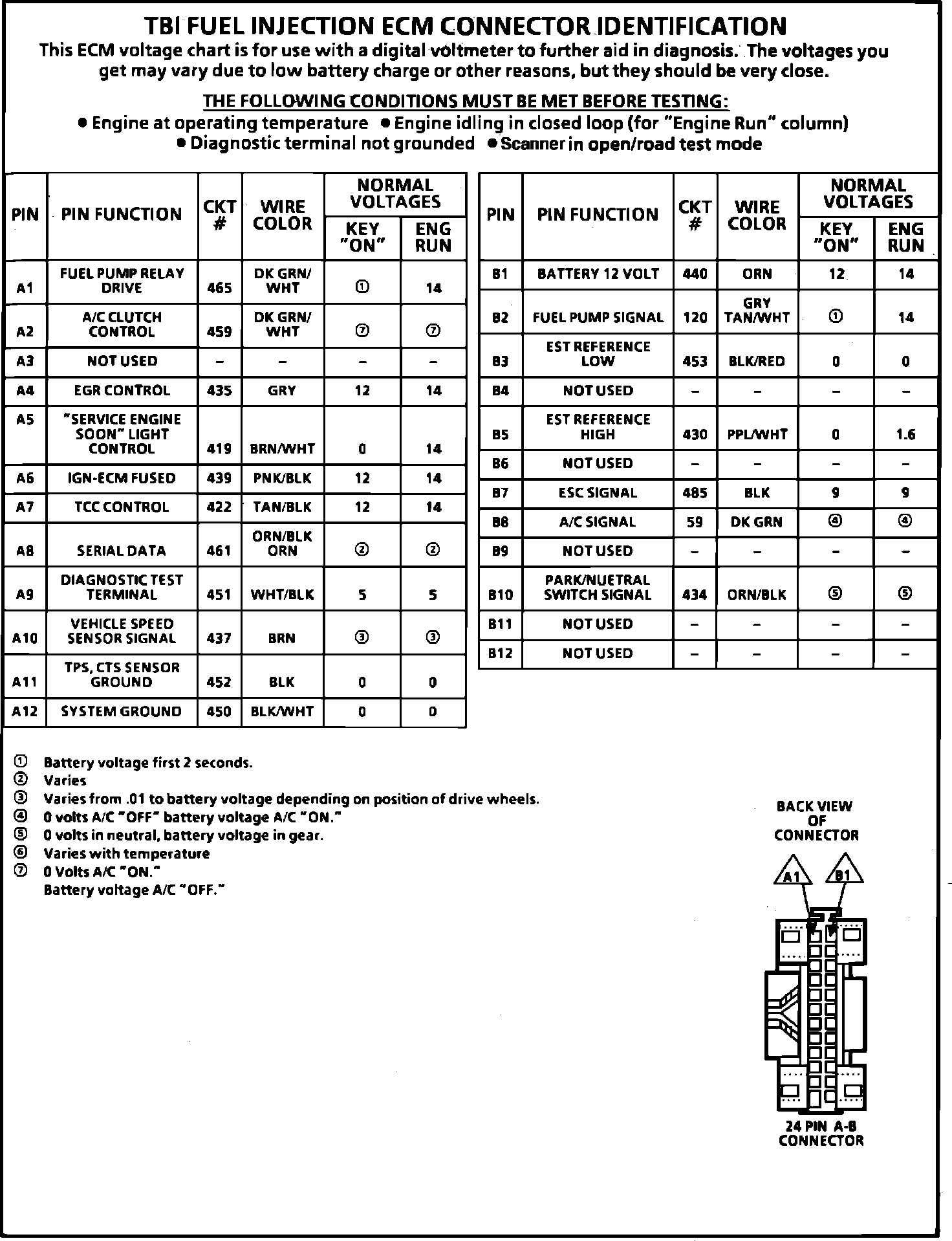

ECM Terminal Identification And Voltage Specification Part 1 Of 2:

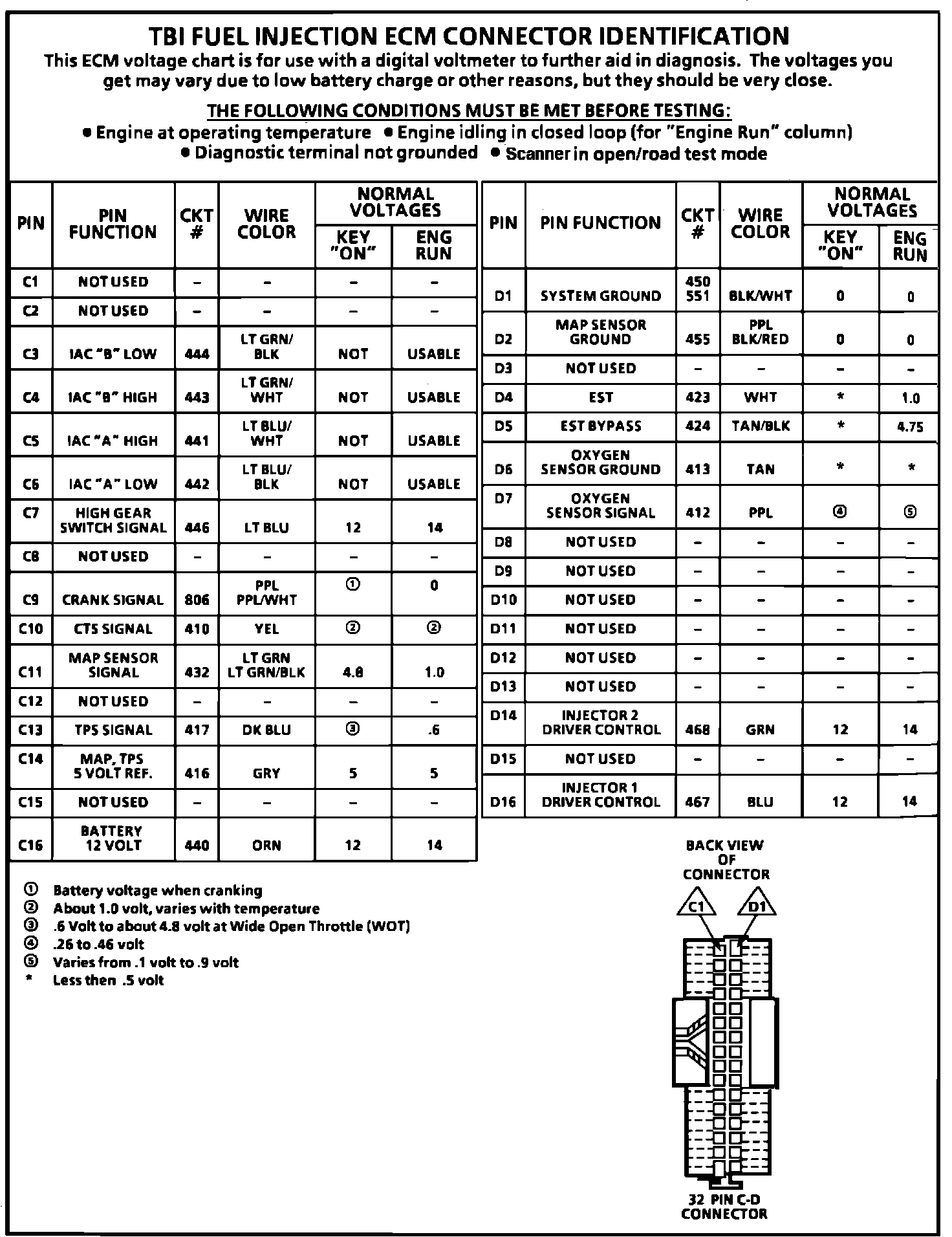

ECM Terminal Identification And Voltage Specification Part 2 Of 2:
