Safari Van AWD V6-262 4.3L VIN Z TBI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Terminal Voltage Specifications
Computer Terminal Voltage Specifications

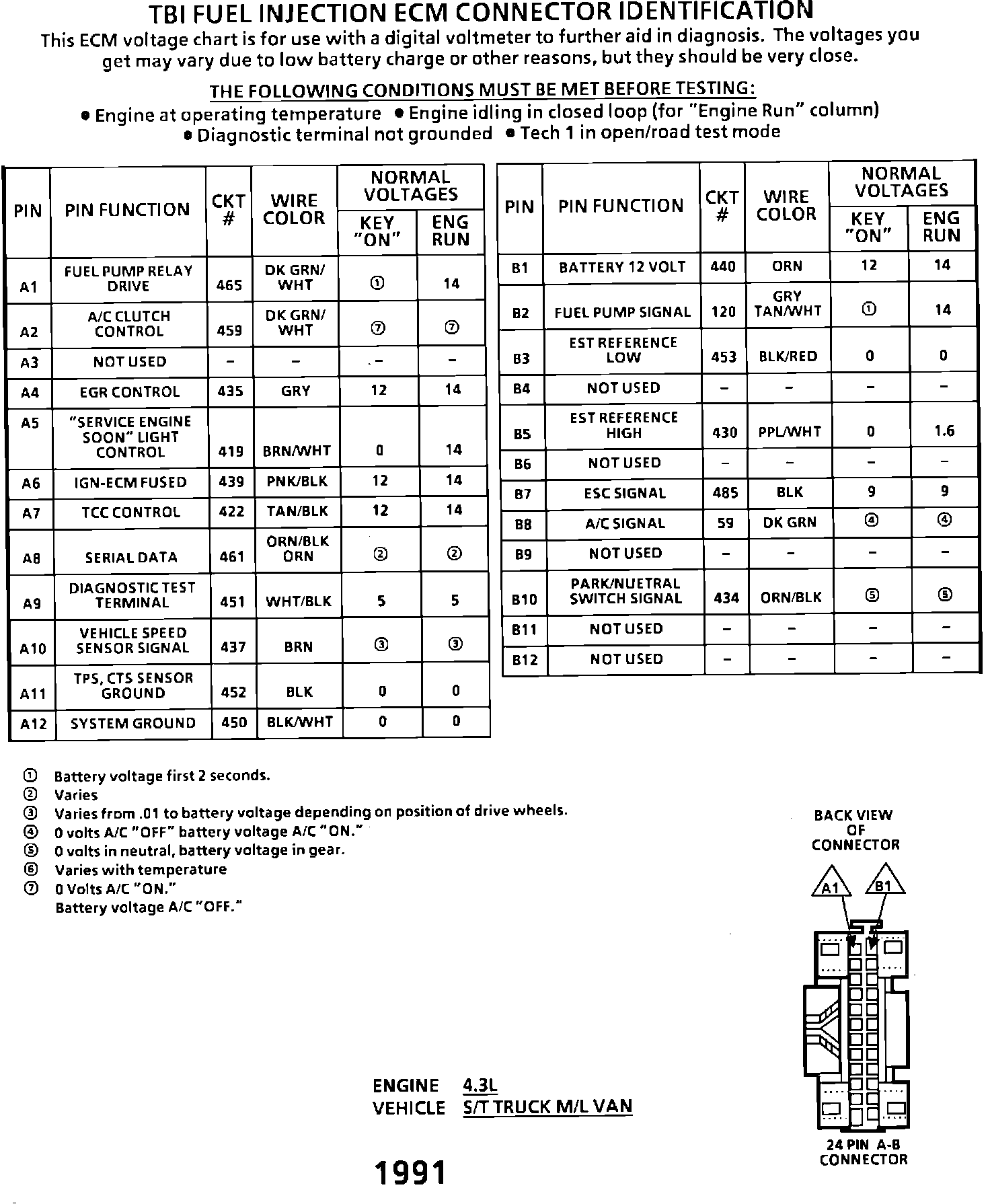

ECM Connector Terminal End View (Part 1 Of 2):

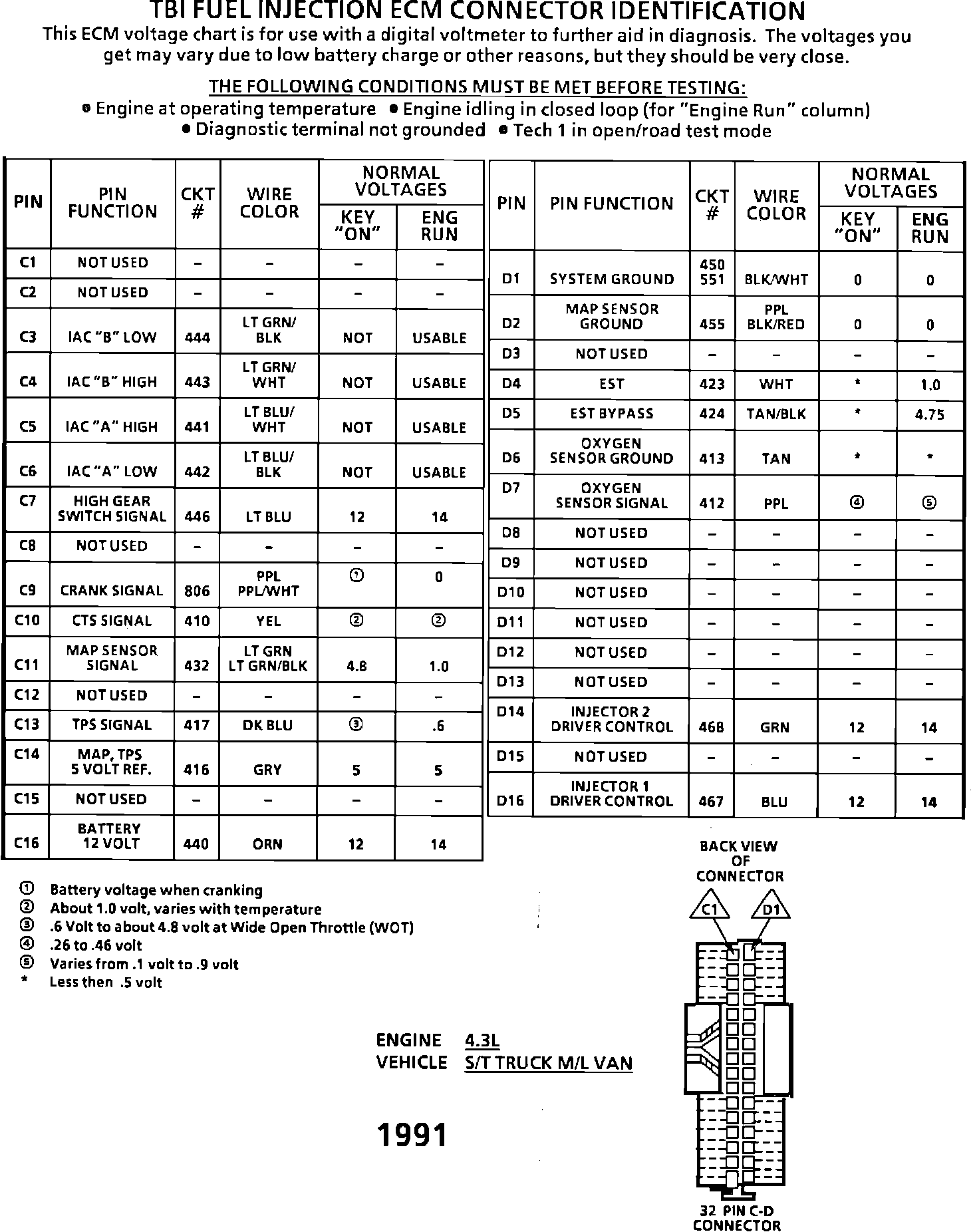

ECM Connector Terminal End View (Part 2 Of 2):
