Home >> GMC >> 1995 >> Yukon 2WD V8-393 6.5L DSL Turbo VIN S >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Powertrain Control Module

Powertrain Control Module

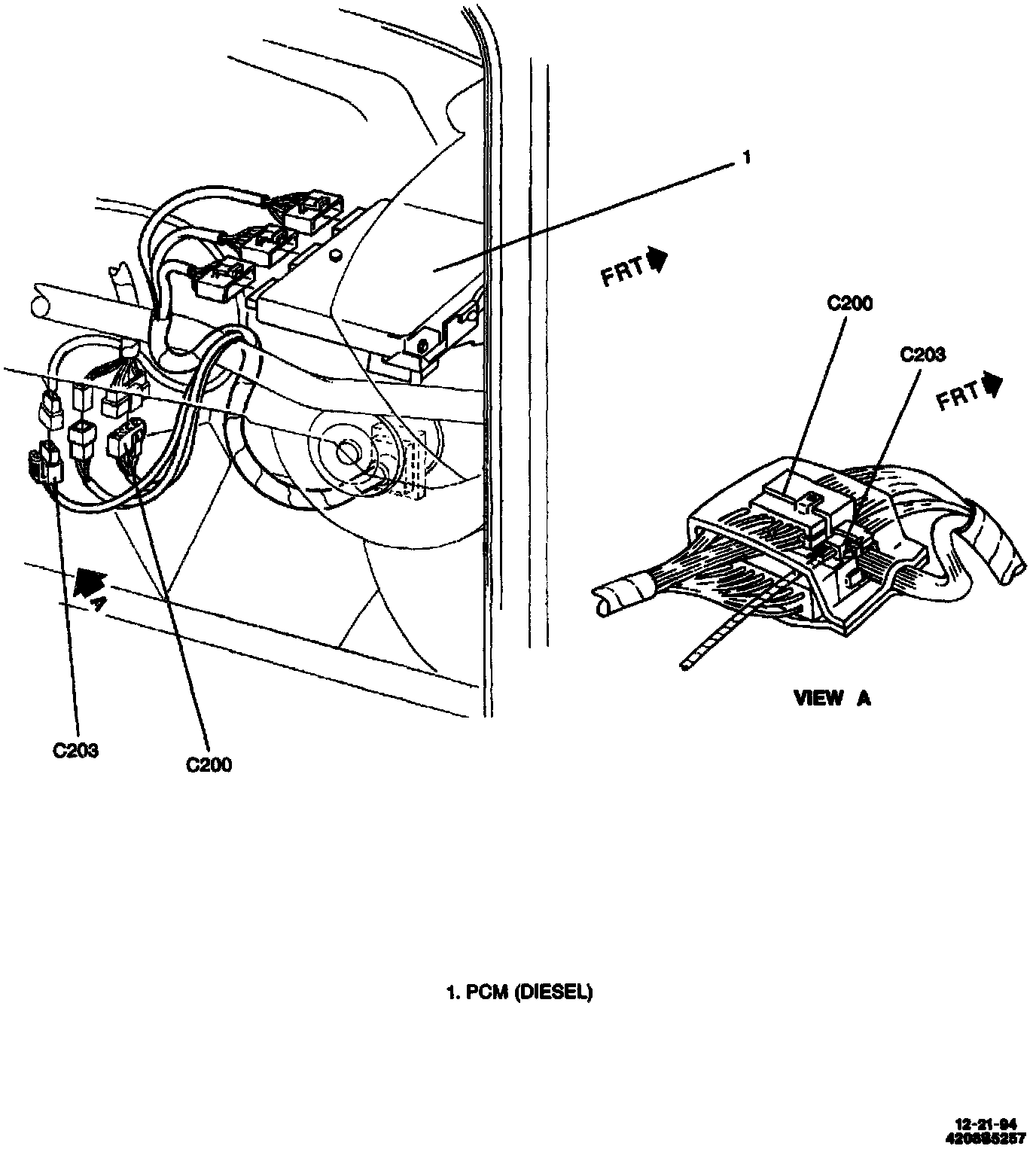

Powertrain Control Module (PCM):

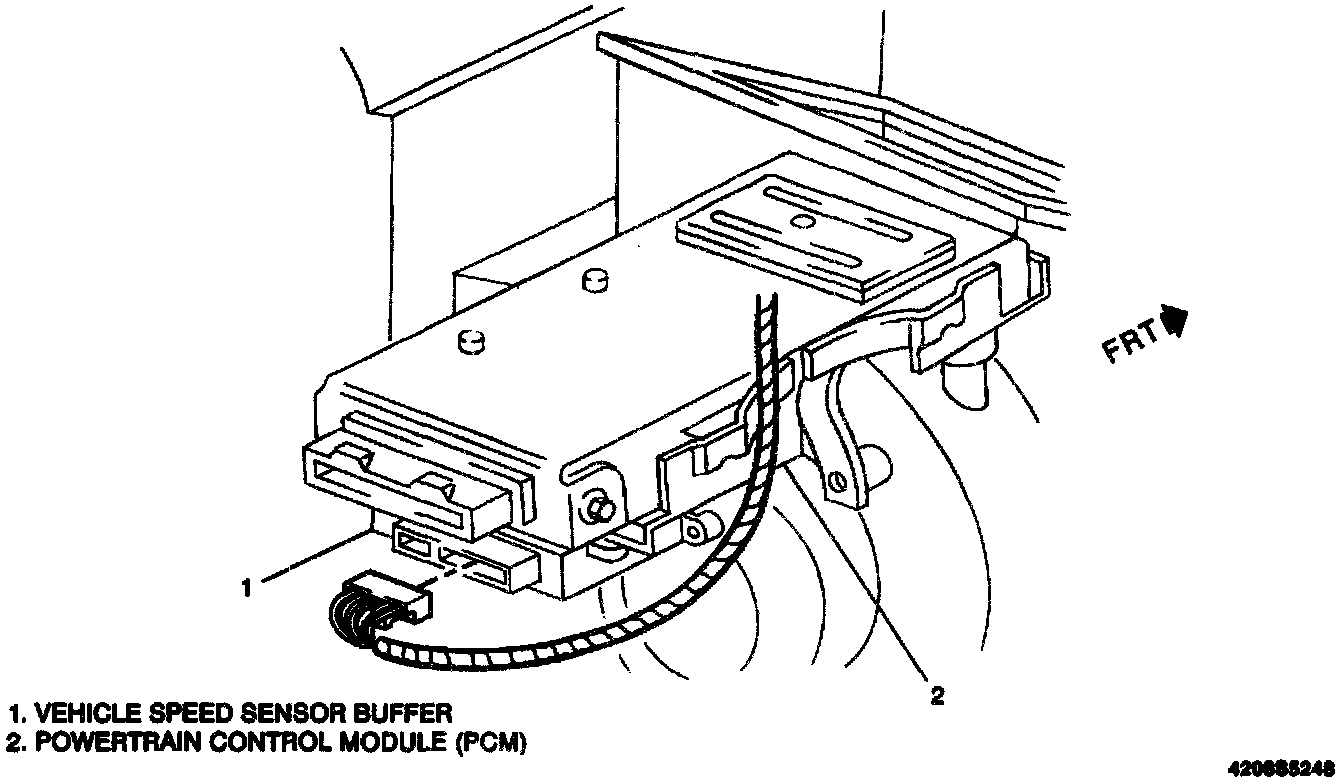

Vehicle Speed Sensor Buffer:
