Home >> Geo >> 1996 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module >> Connector C2

Connector C2

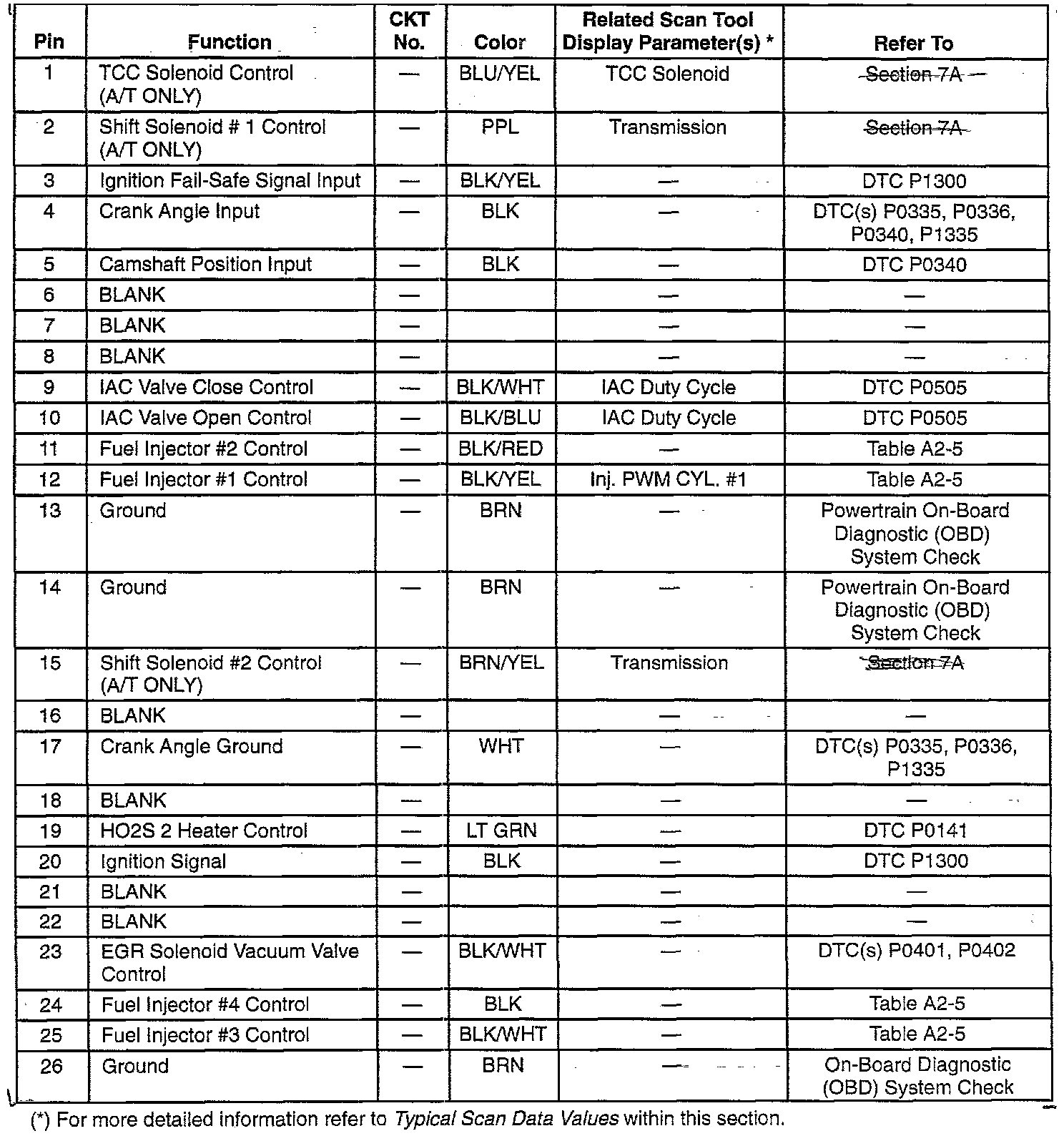

PCM Connector View:



Pins 1 Through 26:
