Engine Control Module: Testing and Inspection

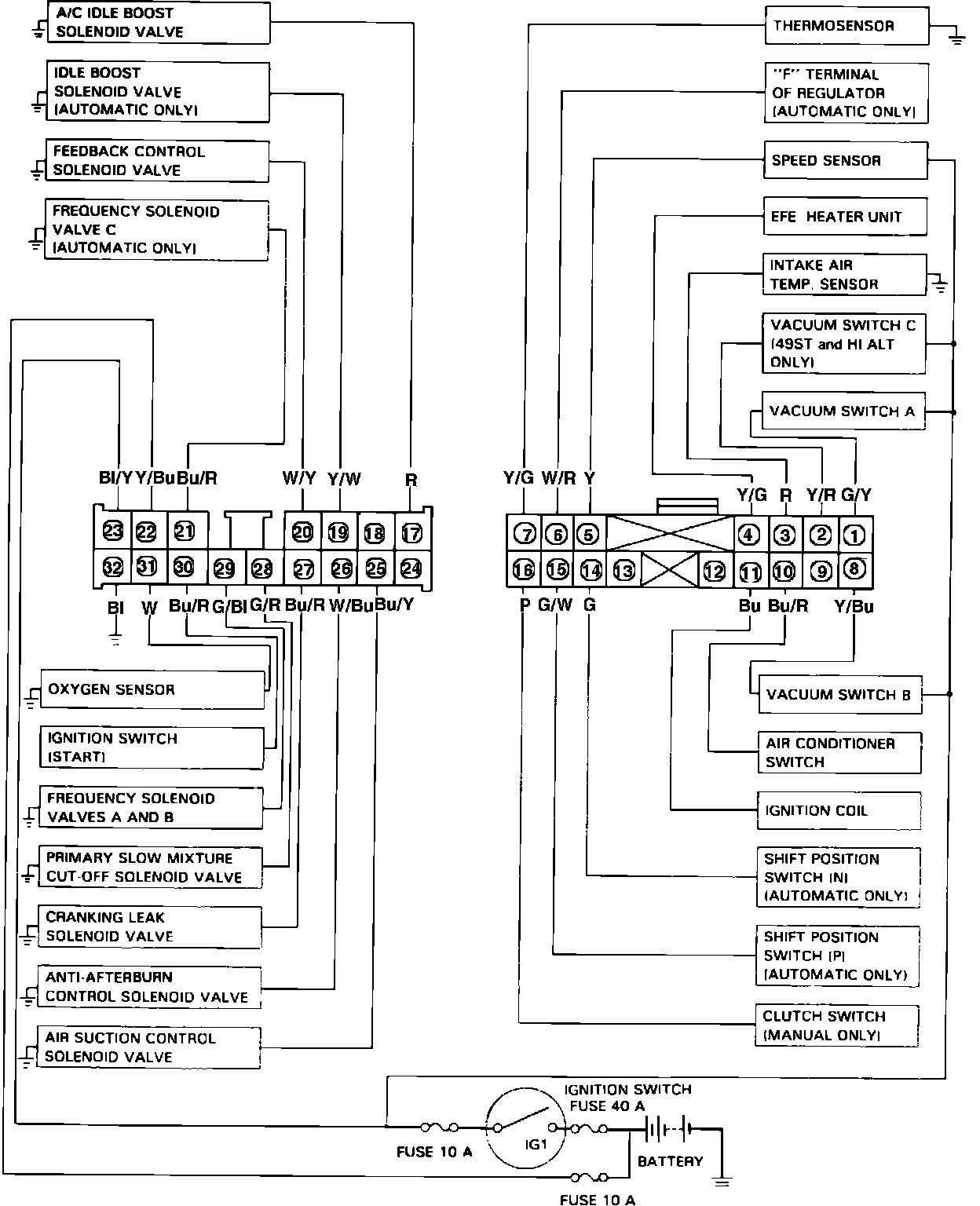

Fig. 14 Control Unit Connector Wiring Schematic.:

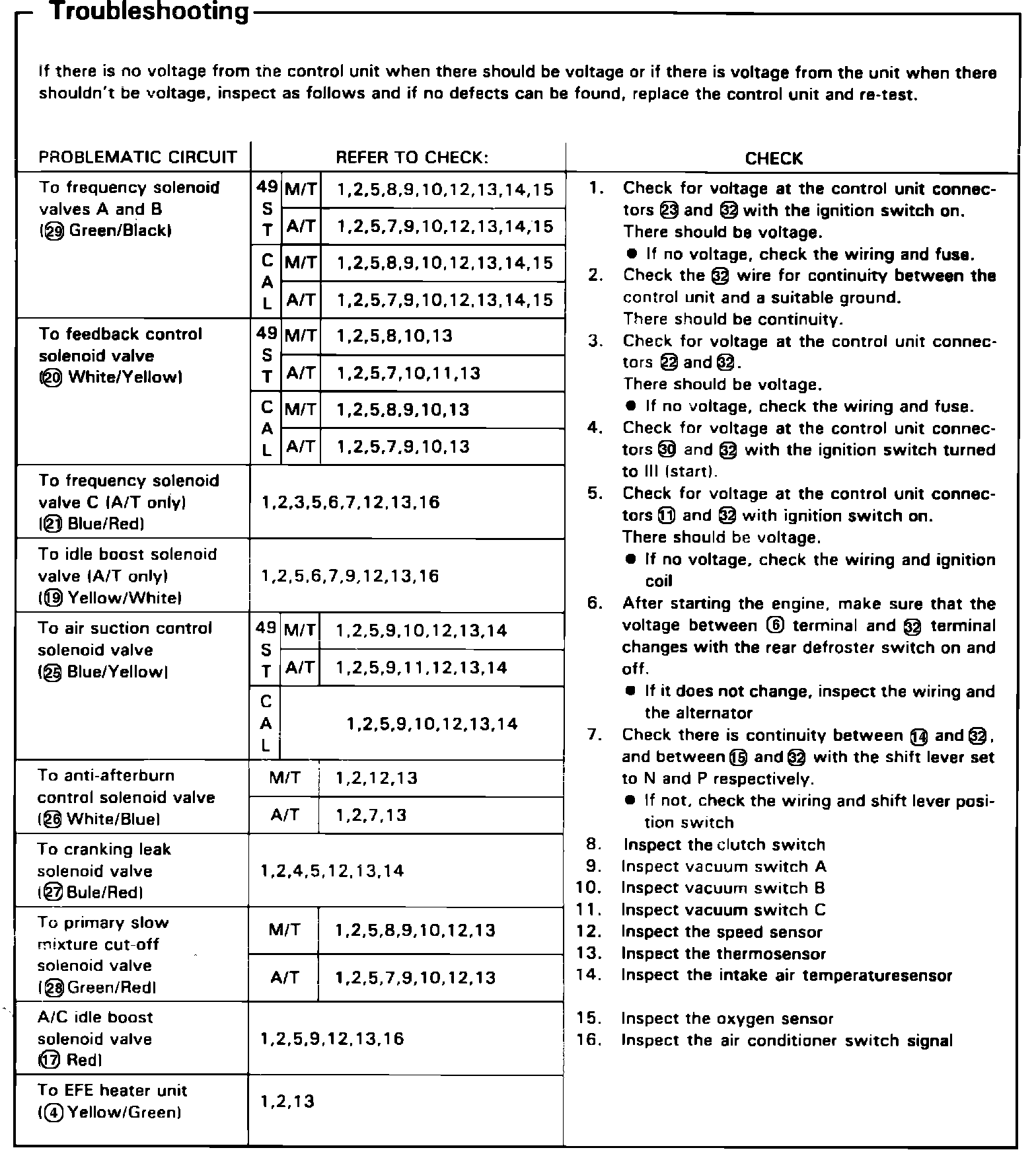

Fig. 15 Control Unit Troubleshooting Chart.:

Refer to control unit wiring schematic and troubleshooting chart, Figs. 14 and 15, then perform checks as necessary.
