Home >> Honda >> 1998 >> Accord LX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

Engine Control Module

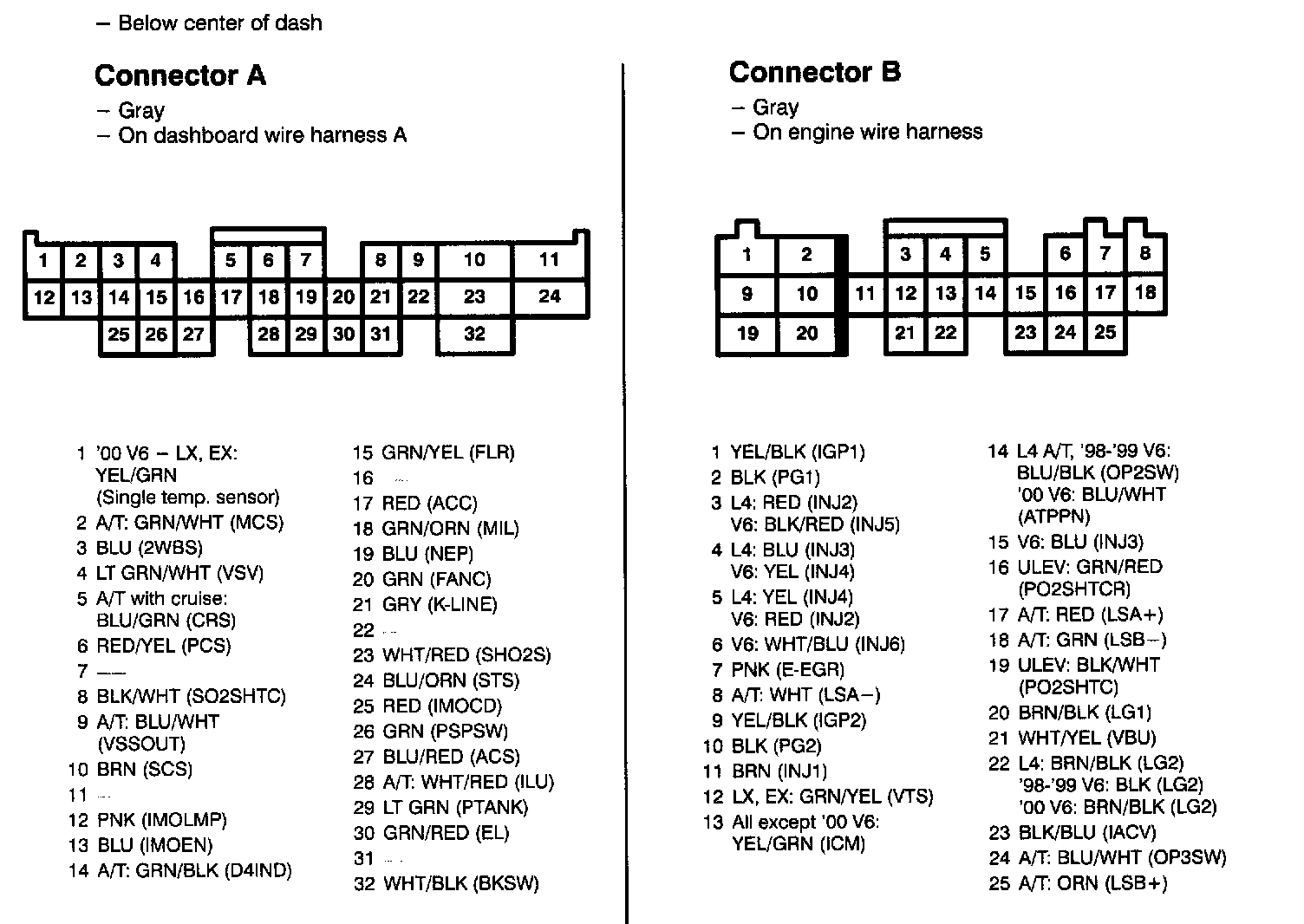

Part 1 Of 2:

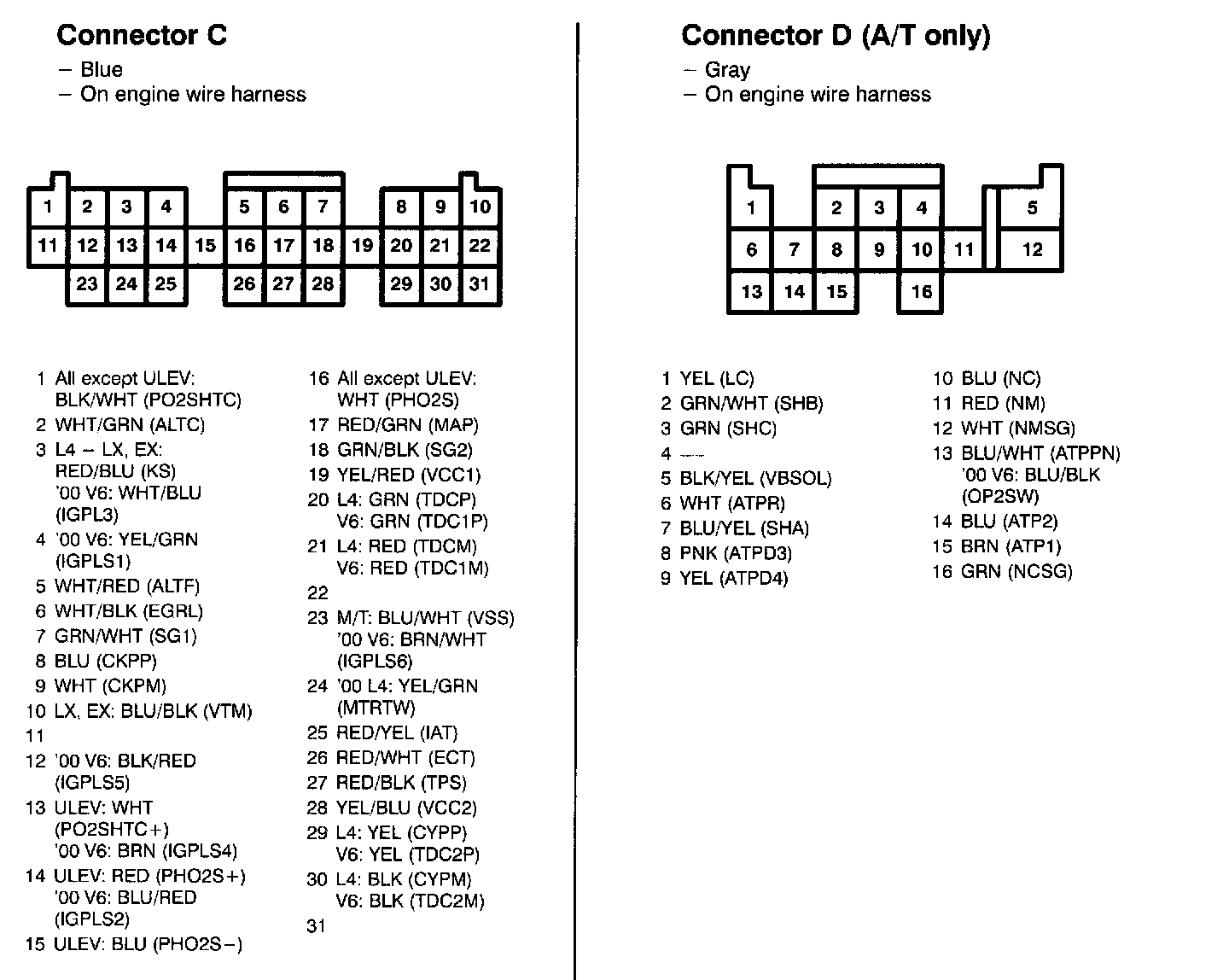

Part 2 Of 2:
