Accord EX Coupe V6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

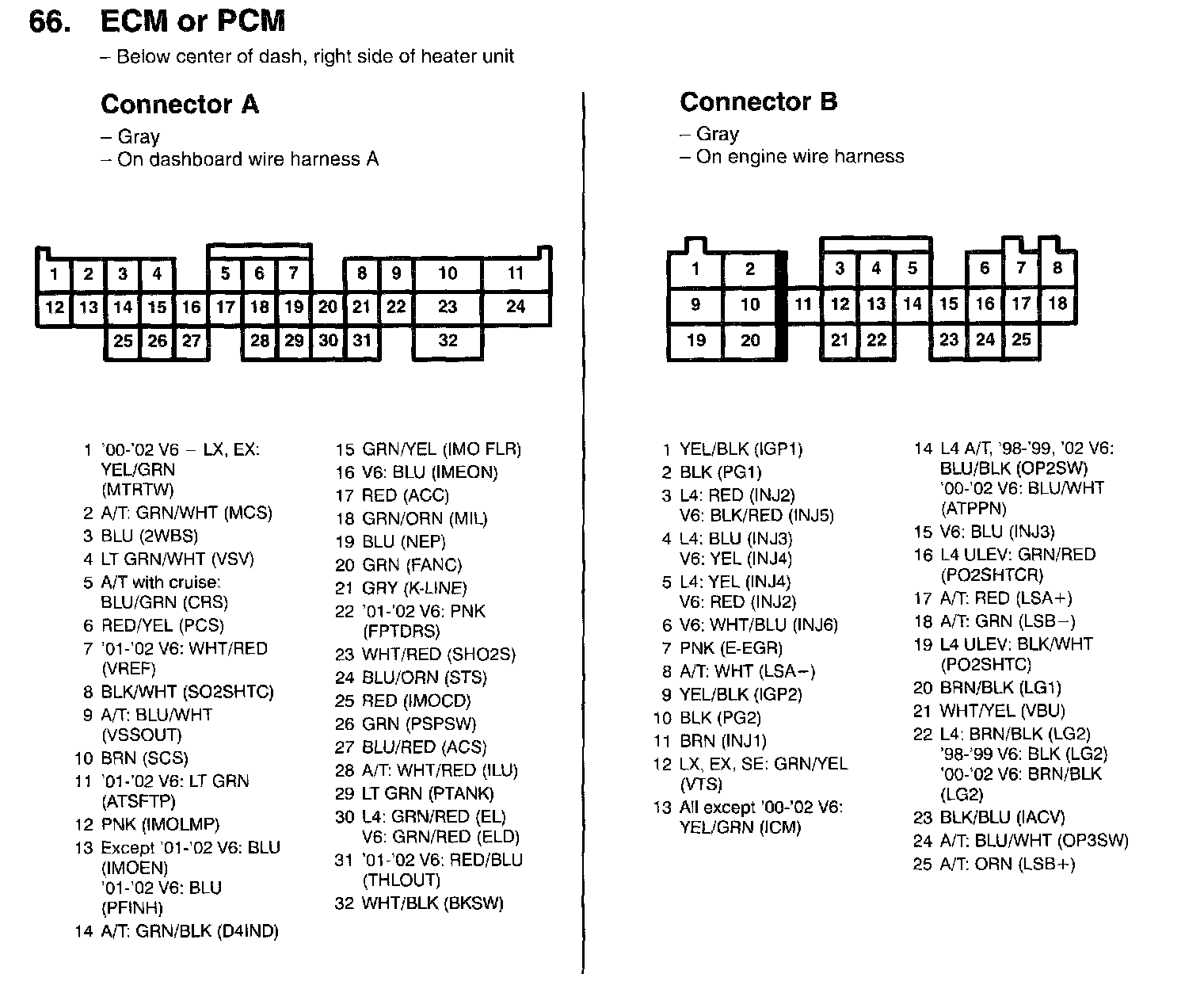

66. ECM Or PCM Connectors A, B:

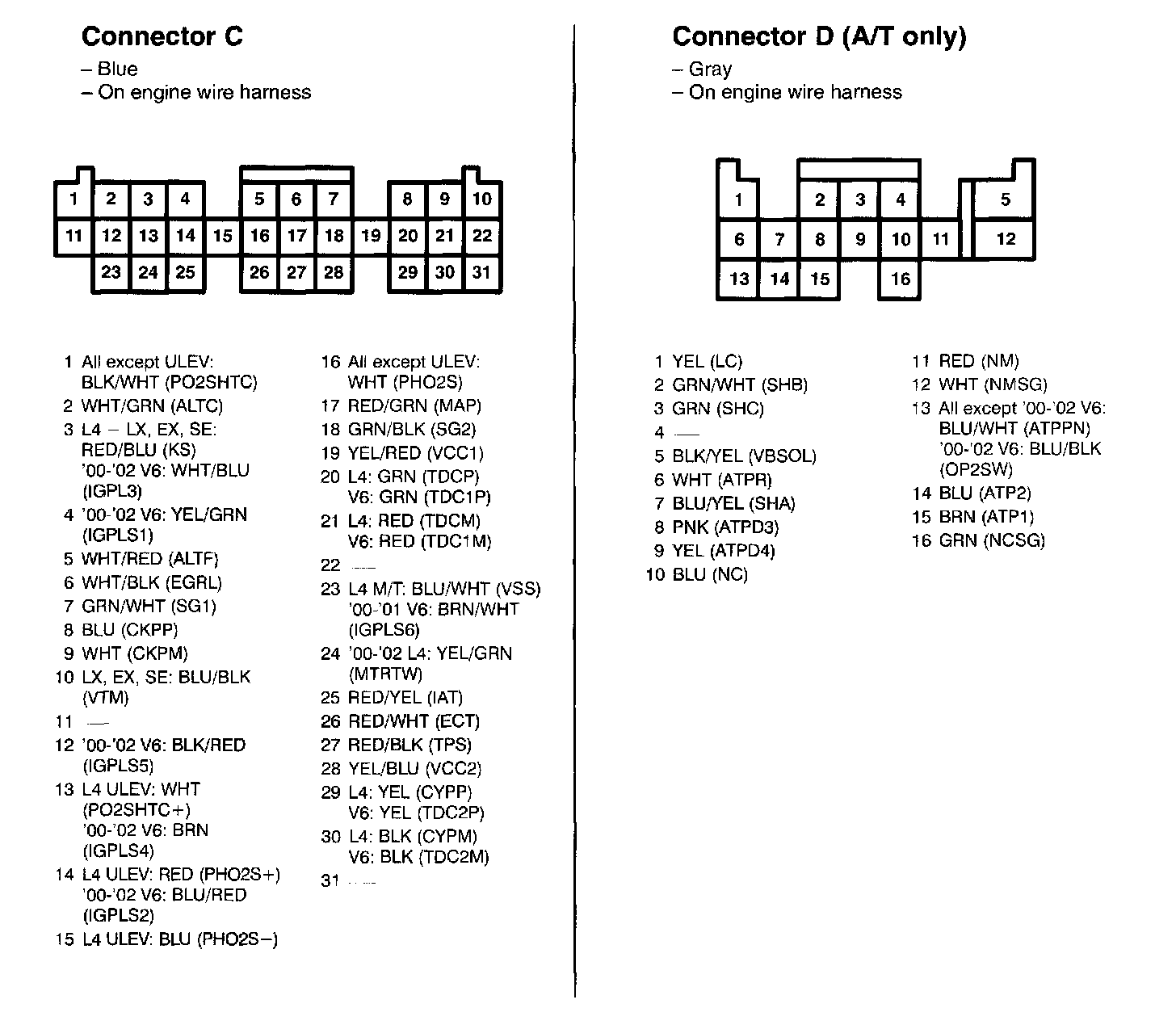

66. ECM Or PCM Connector C - D (A/T Only):
