Powertrain Control Module Terminal Arrangement

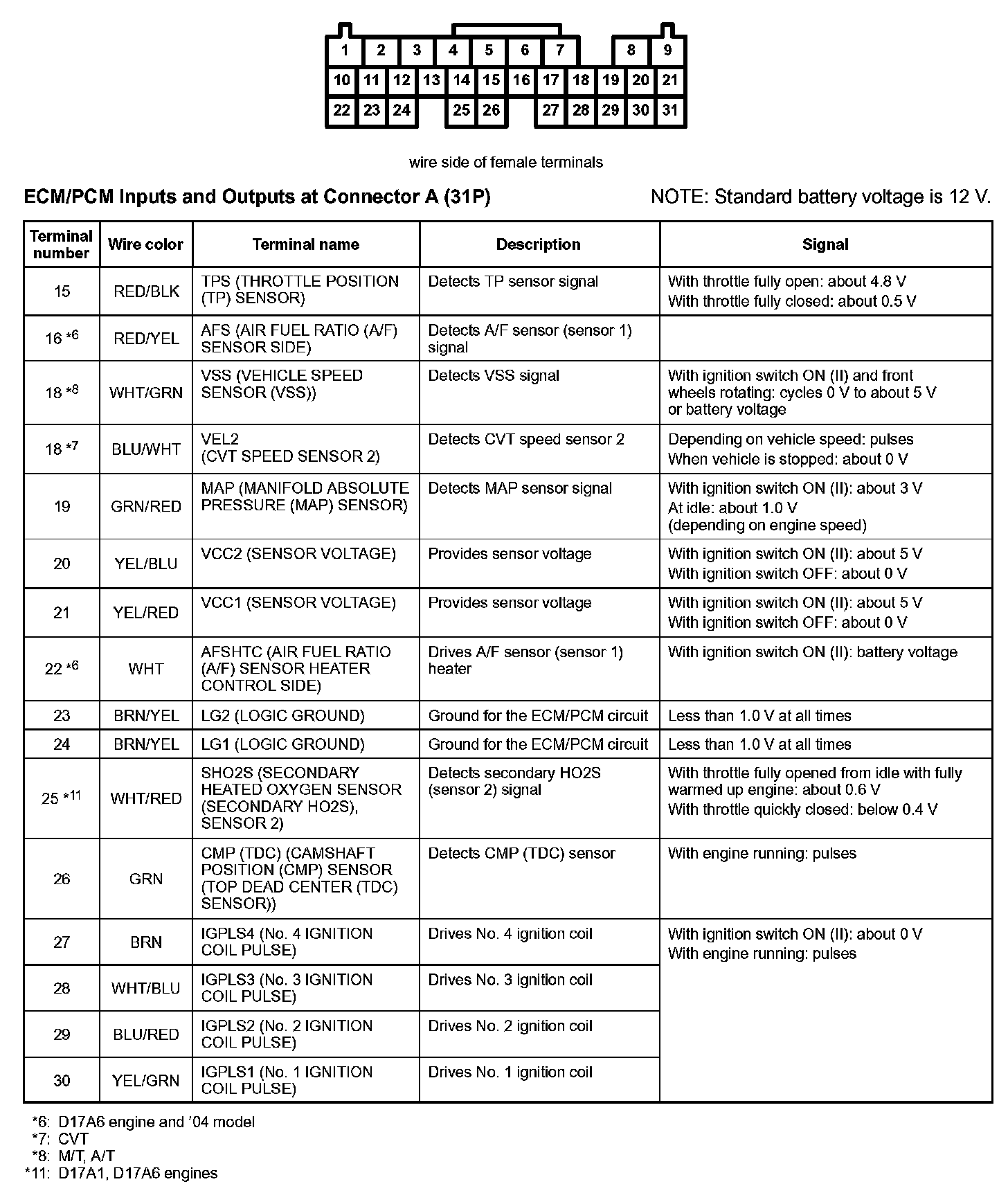

ECM/PCM Inputs And Outputs At Connector A (31P):

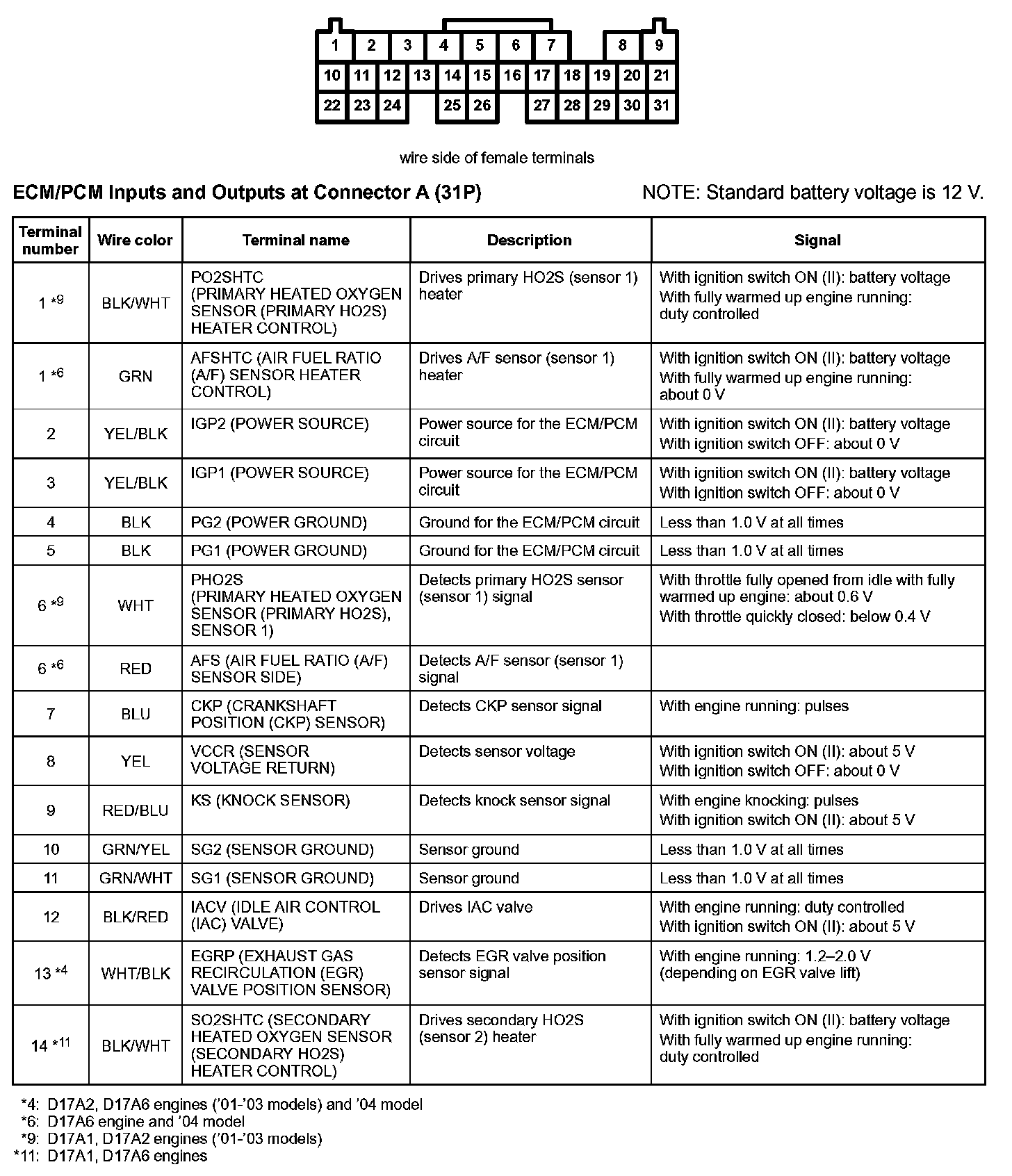

ECM/PCM Inputs And Outputs At Connector A (31P):

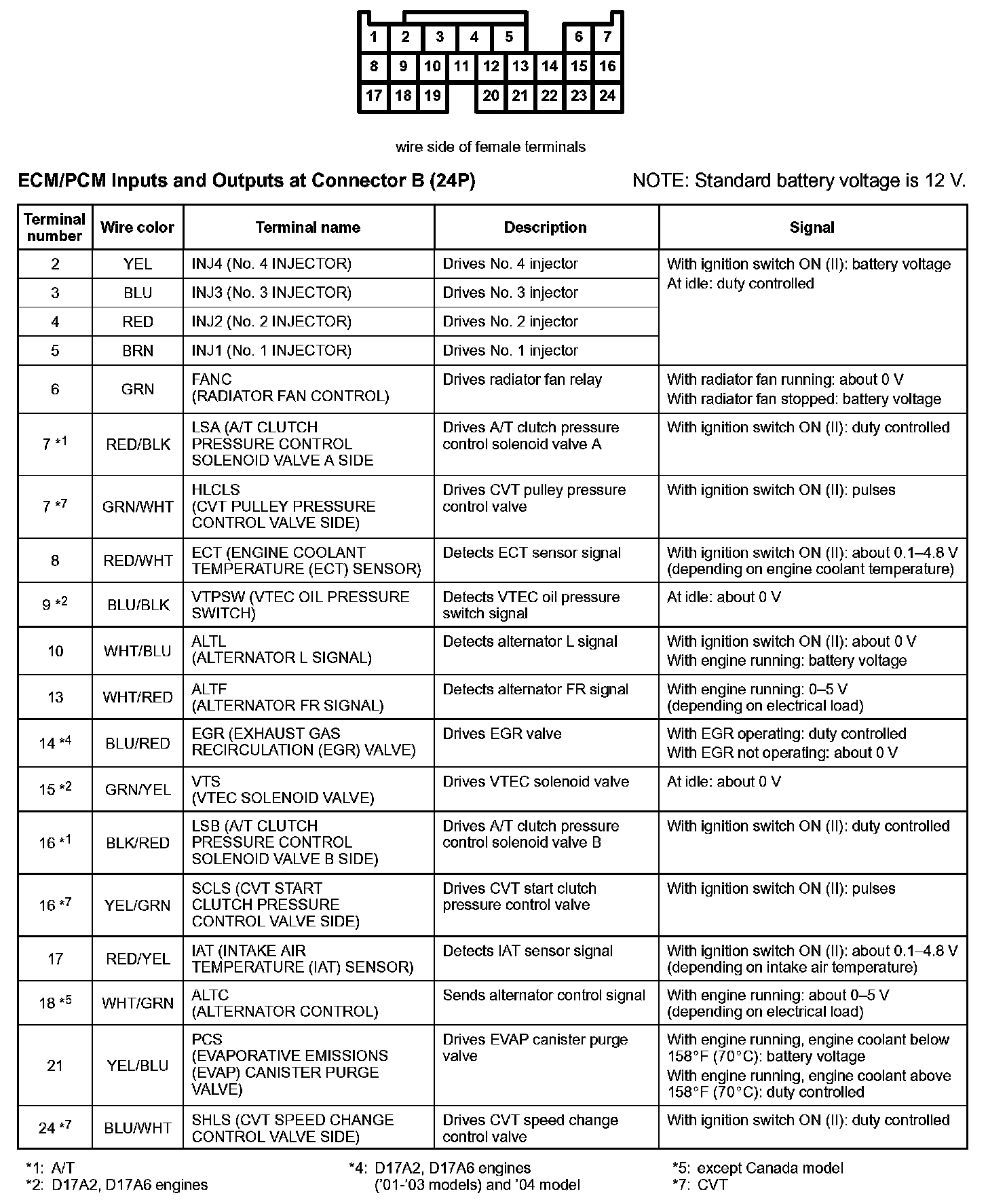

ECM/PCM Inputs And Outputs At Connector B (24P):

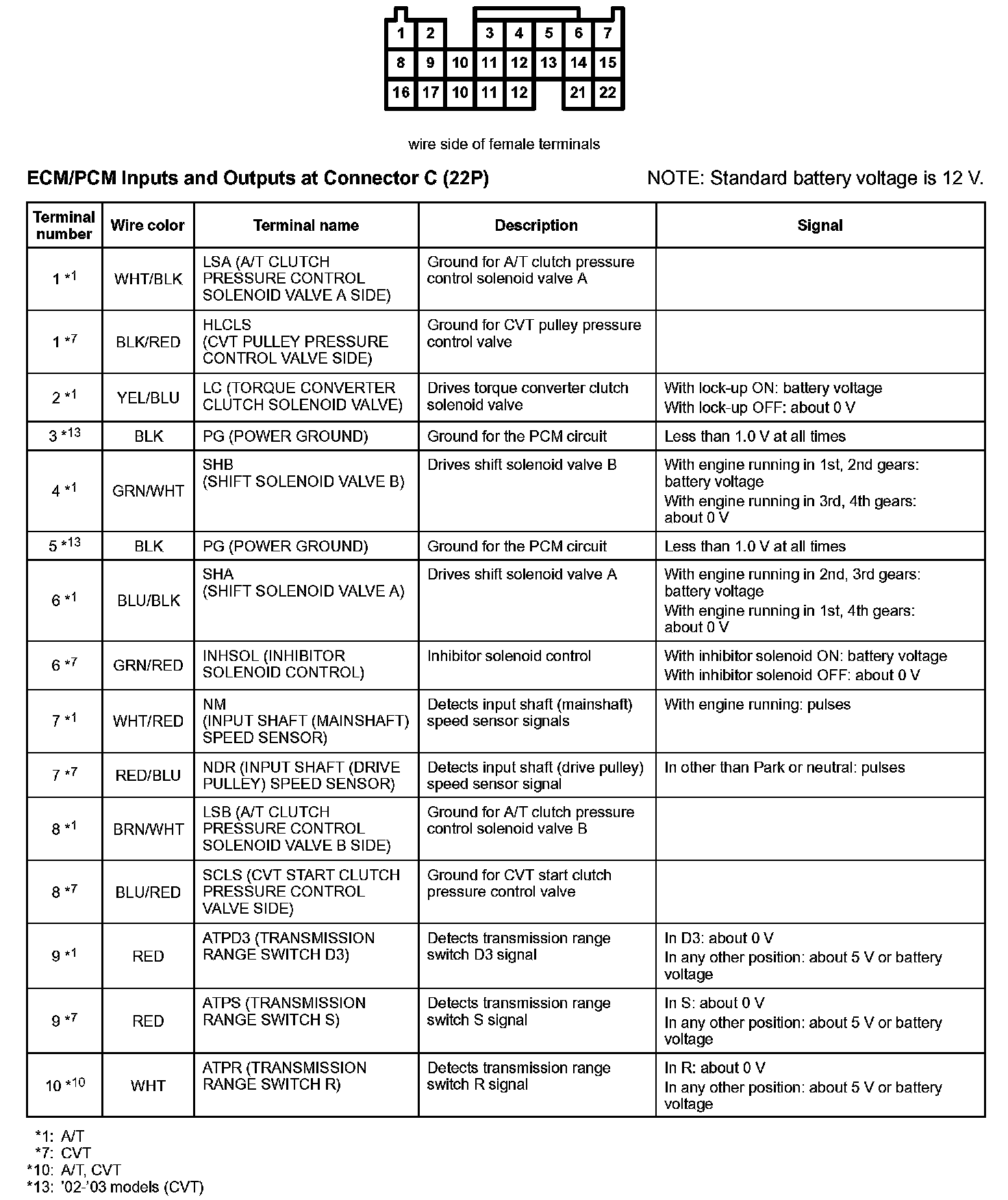

ECM/PCM Inputs And Outputs At Connector C (22P):

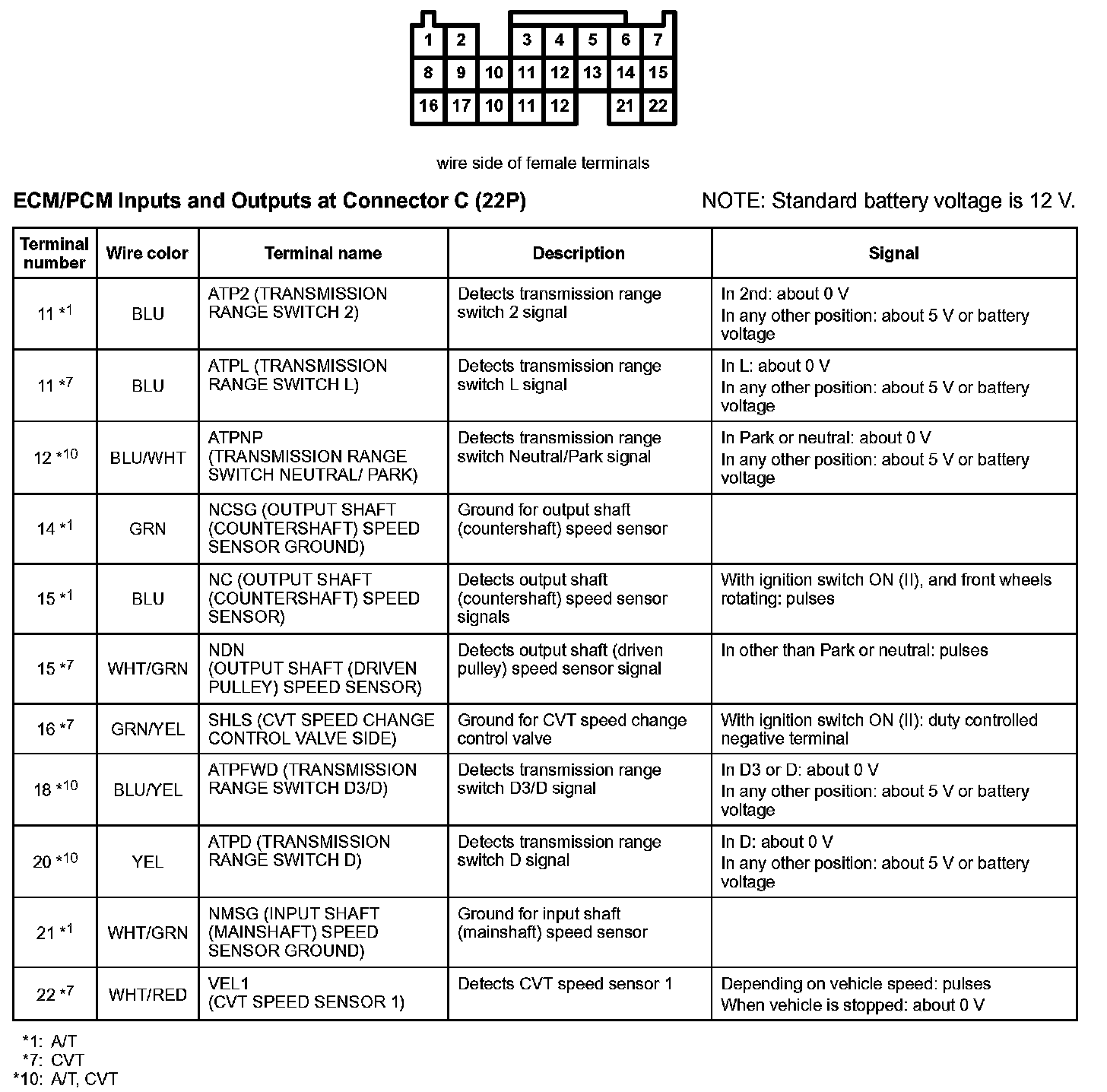

ECM/PCM Inputs And Outputs At Connector C (22P):

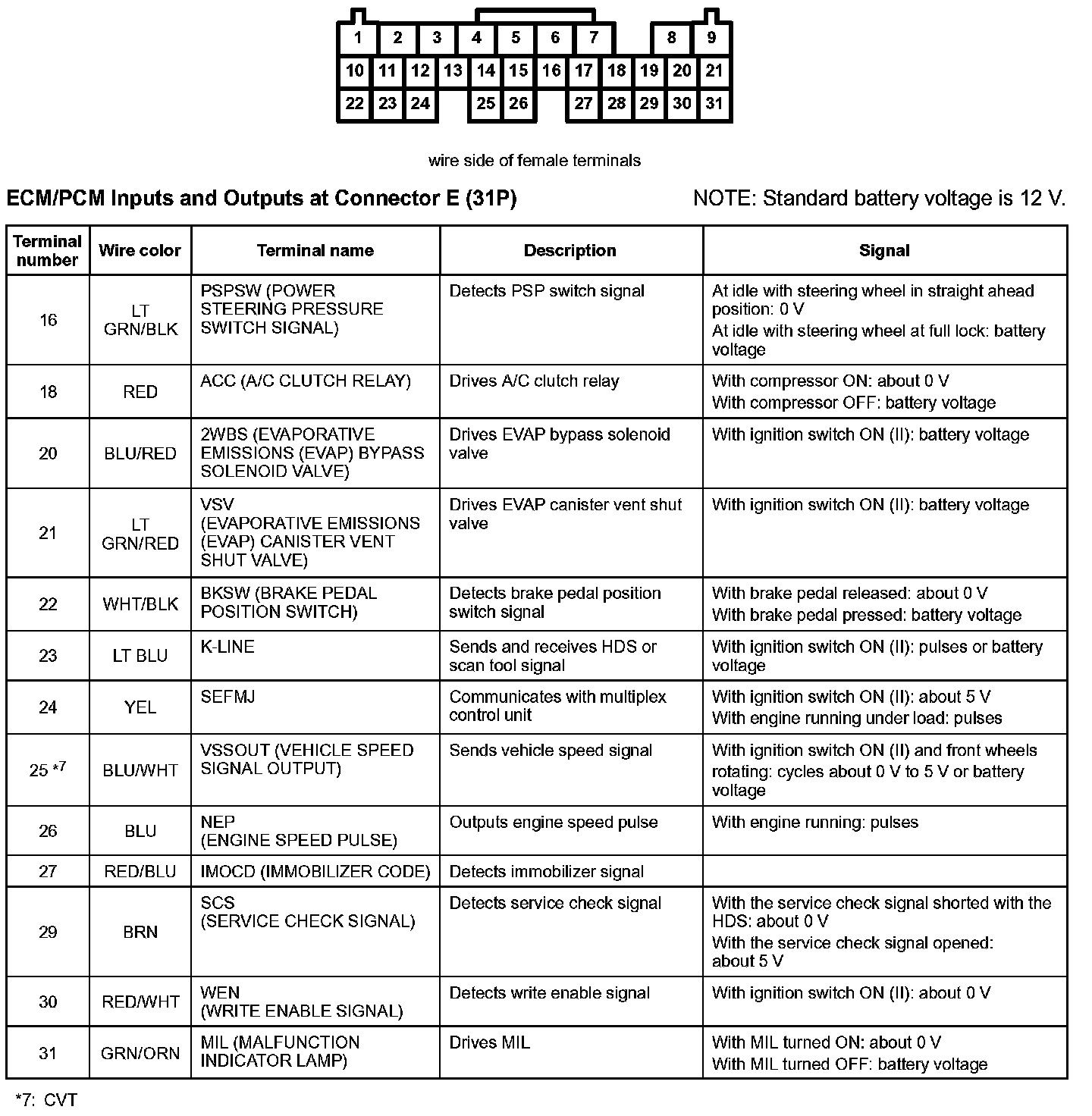

ECM/PCM Inputs And Outputs At Connector E (31P):

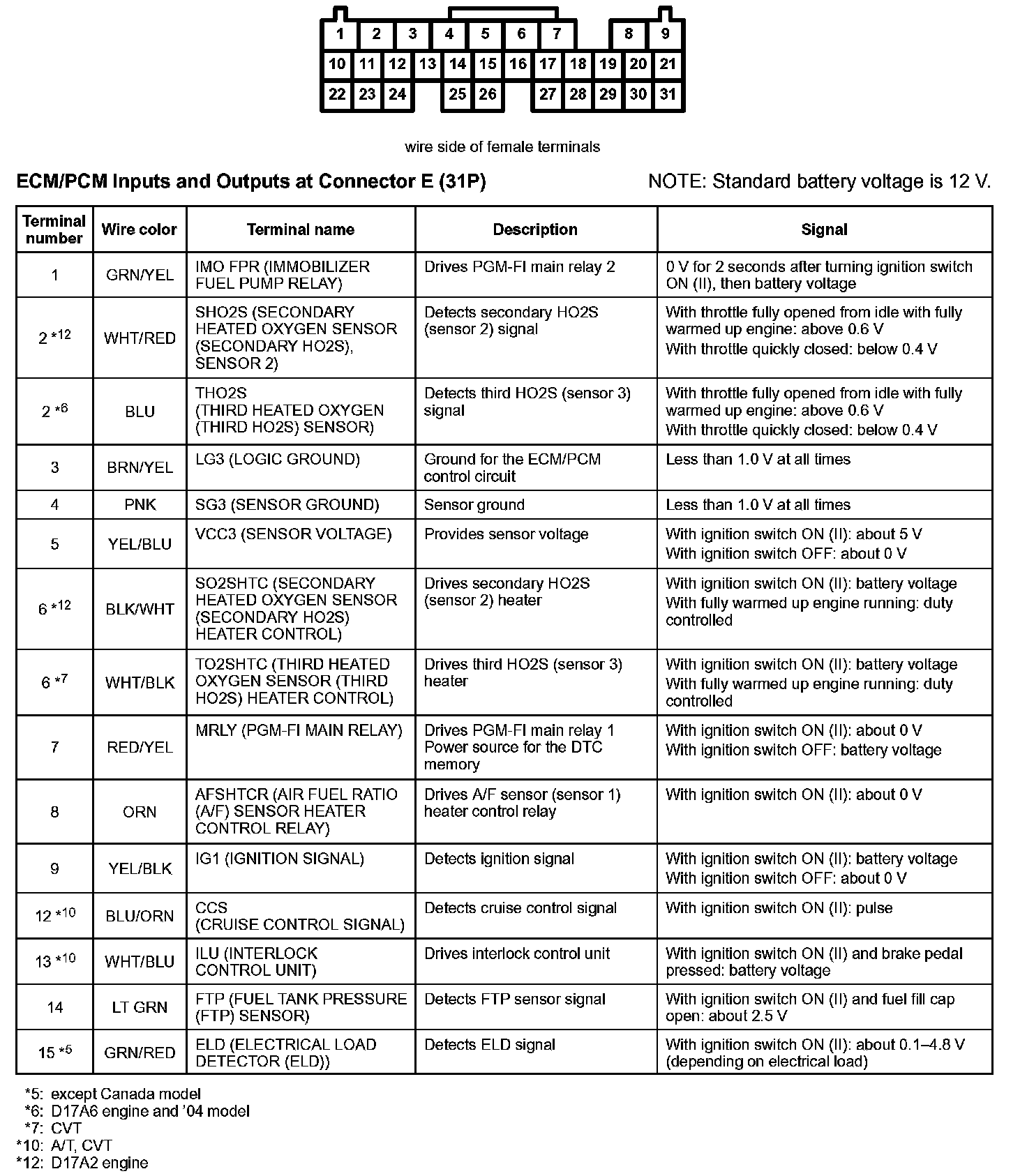

ECM/PCM Inputs And Outputs At Connector E (31P):
