Engine Control Module: Testing and Inspection

ENGINE CONTROL MODULE (ECM)
Check the internal control module ROM/RAM error.




CIRCUIT DIAGRAM




HARNESS INSPECTION PROCEDURE

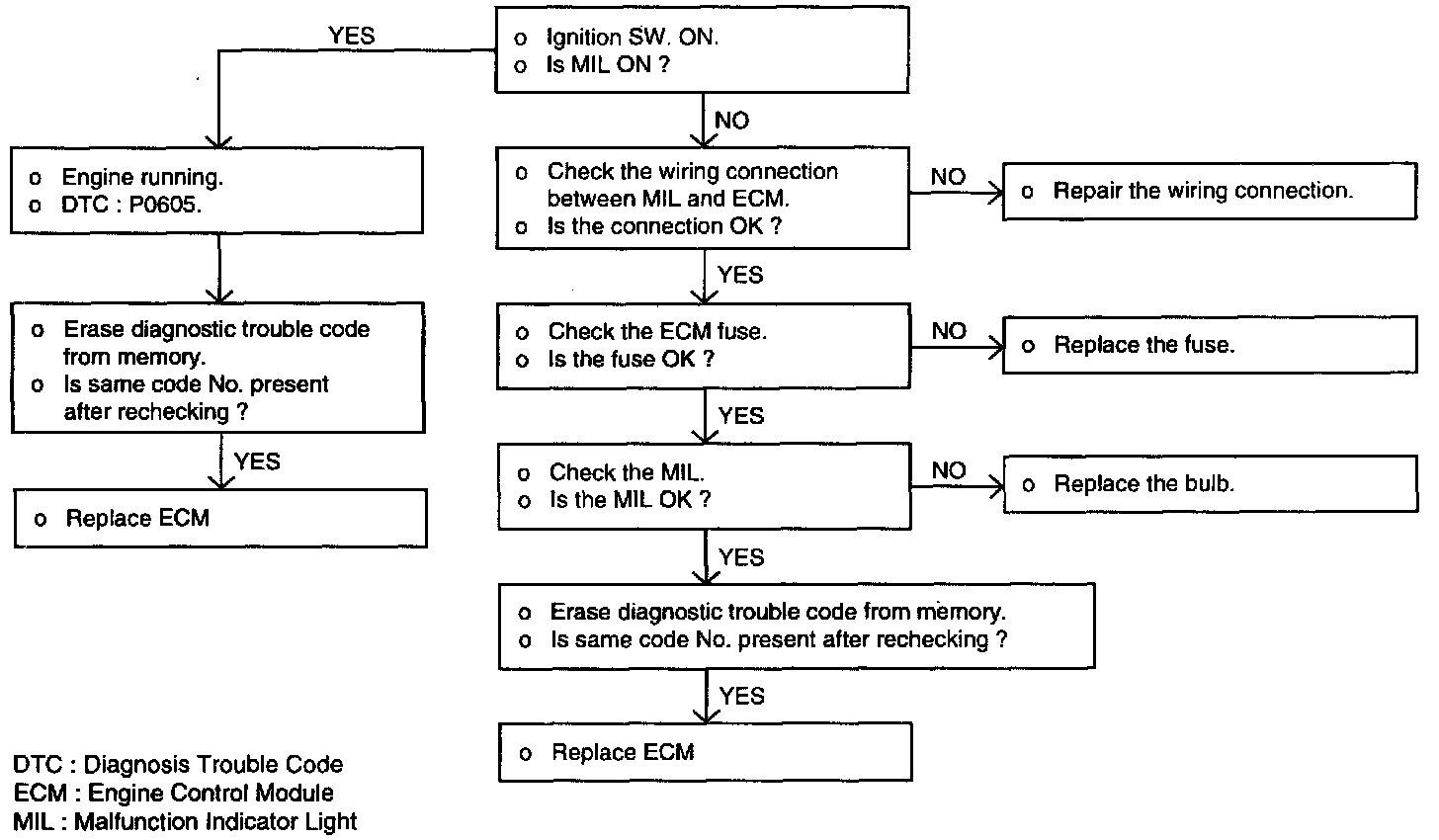

TROUBLESHOOTING PROCEDURES

HINT: If the ground wire of the ECM is not connected securely to ground, the ECM will not operate correctly. If you replace ECM ROM without further diagnosis, the problem may reoccur.
