Engine Control Module: Testing and Inspection

VCM Connector C1 - View And Pinout No. 1 - 3:

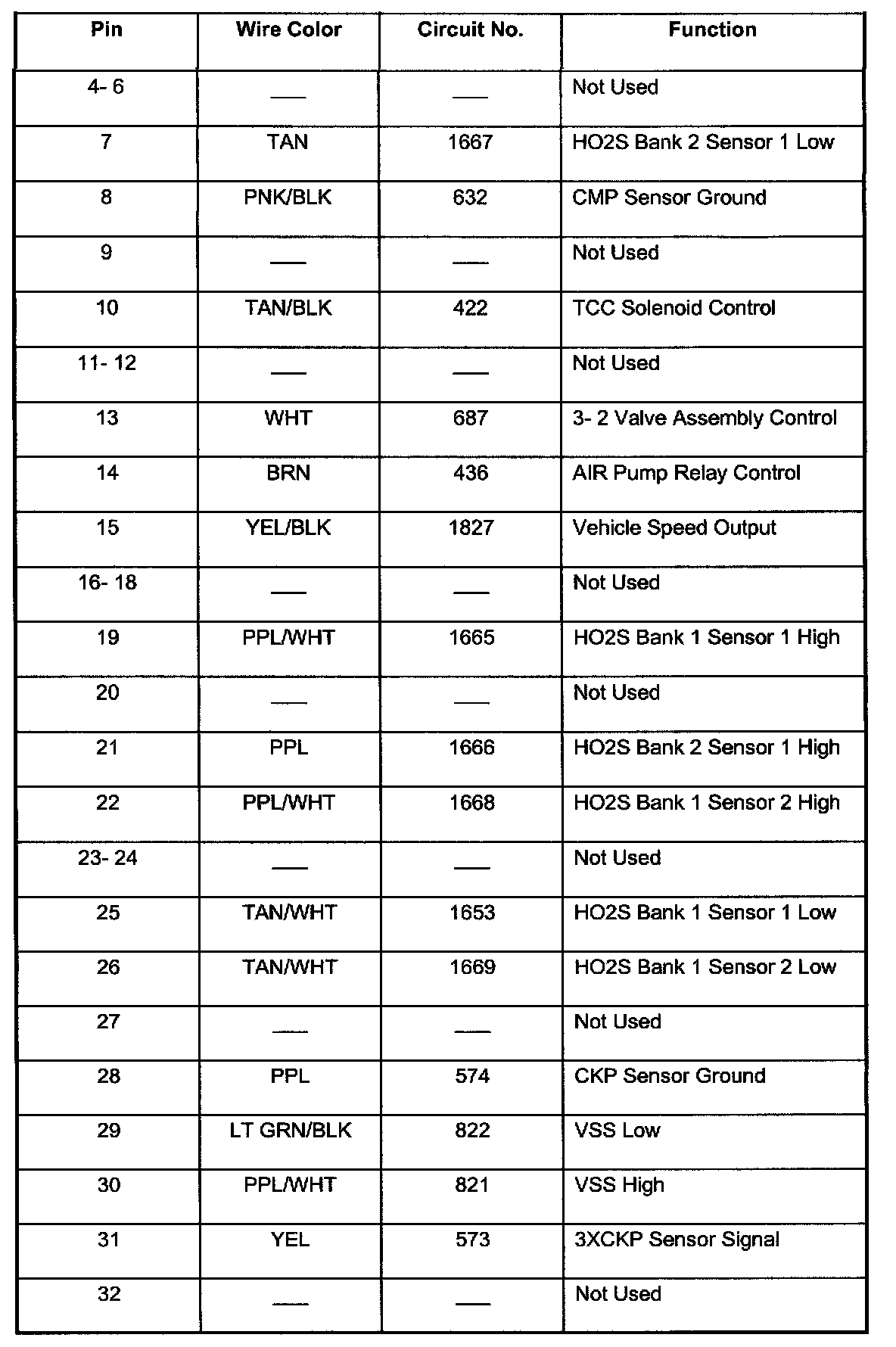

VCM Connector C1 - Pinout No. 4 - 32:

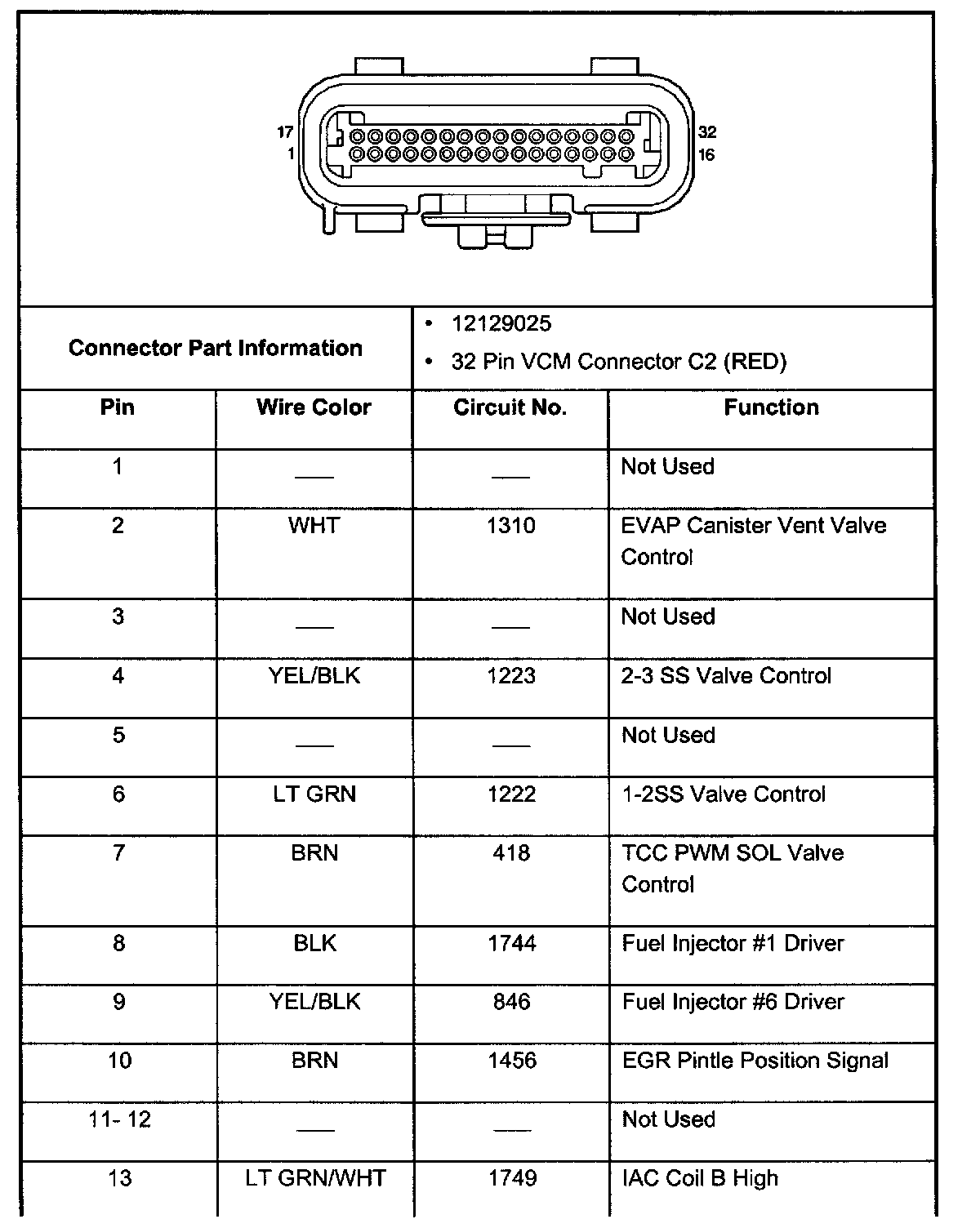

VCM Connector C2 - View And Pinout No. 1 - 13:

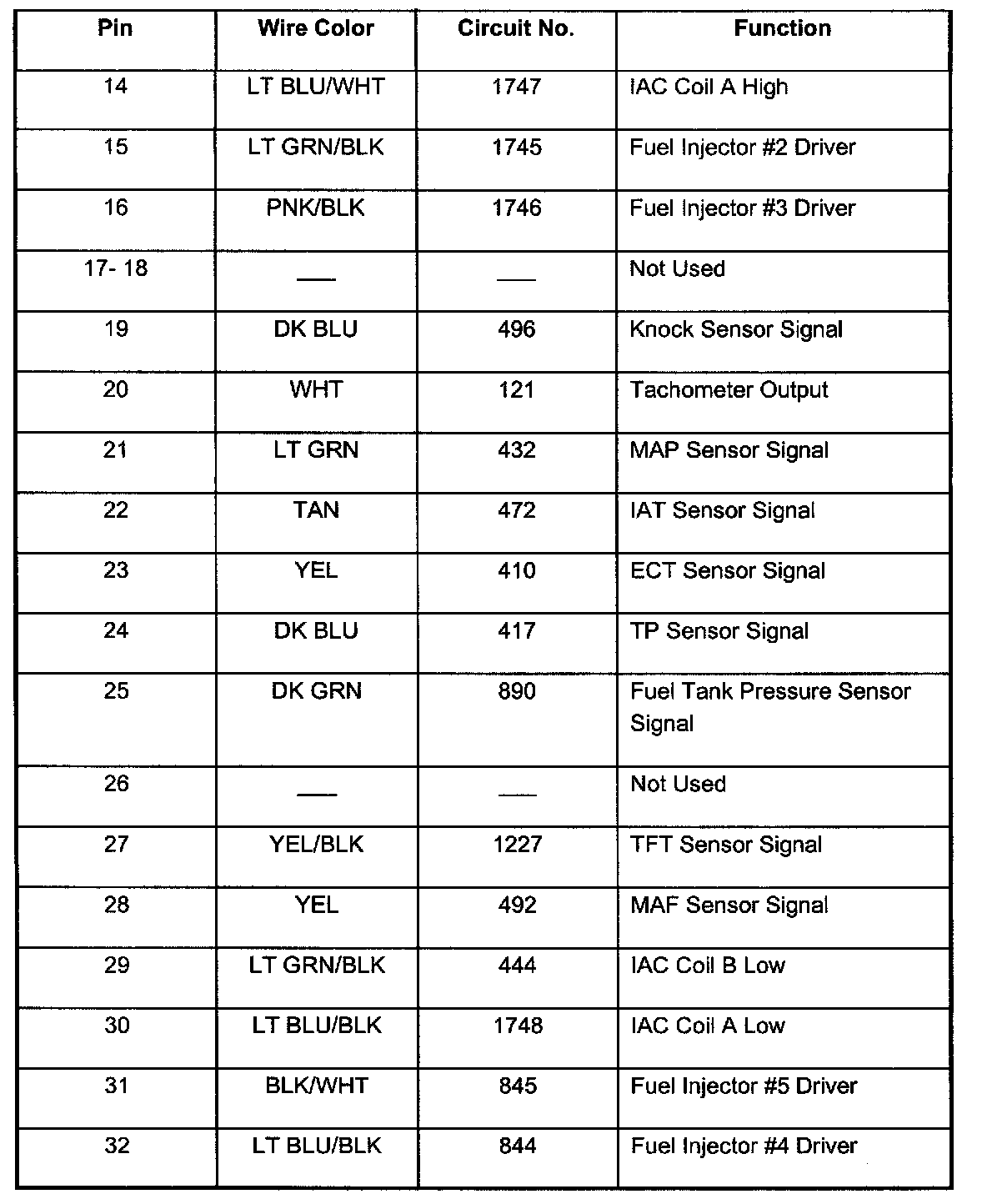

VCM Connector C2 - Pinout No. 14 - 32:

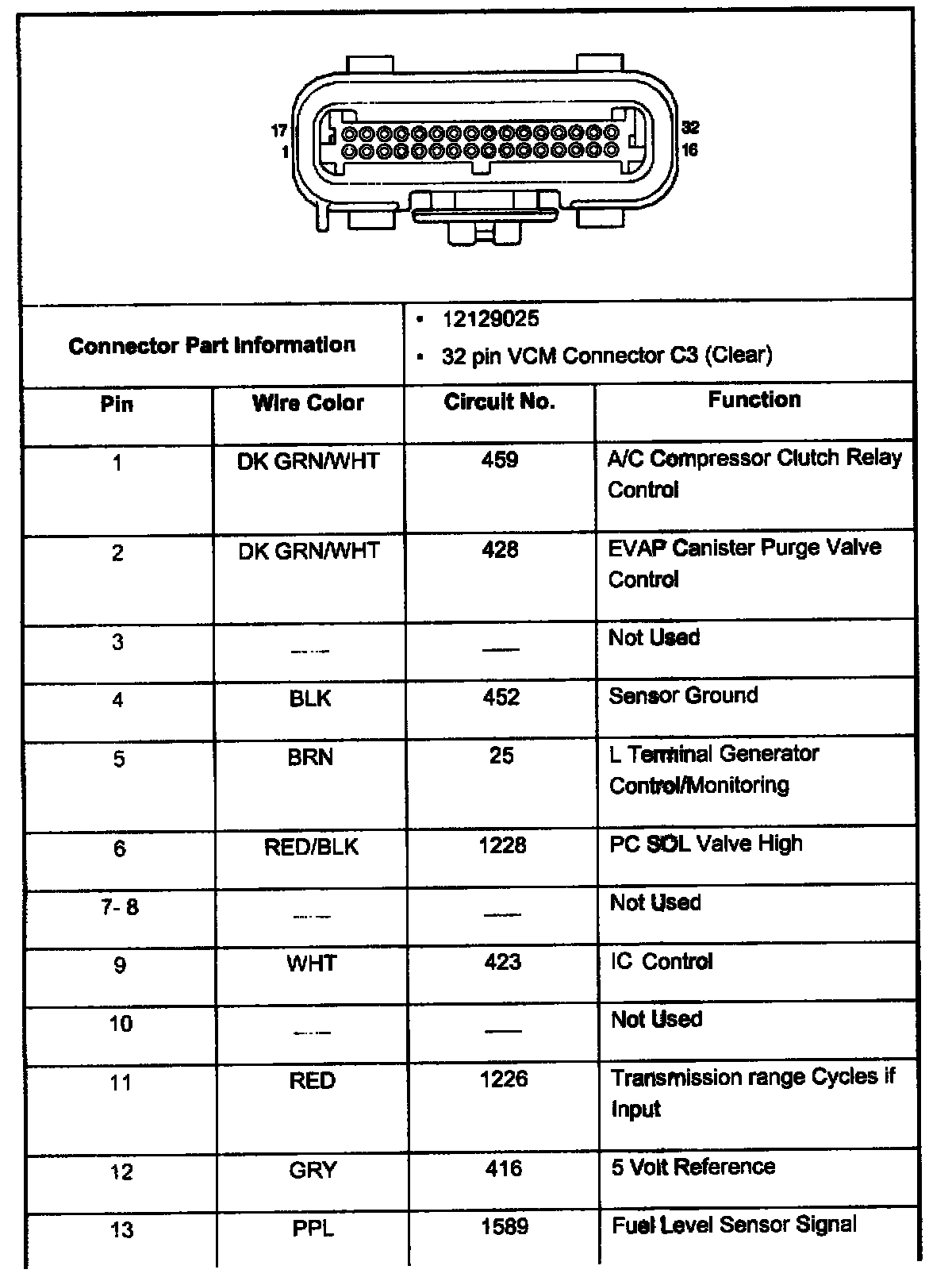

VCM Connector C3 - View And Pinout No. 1 - 13:

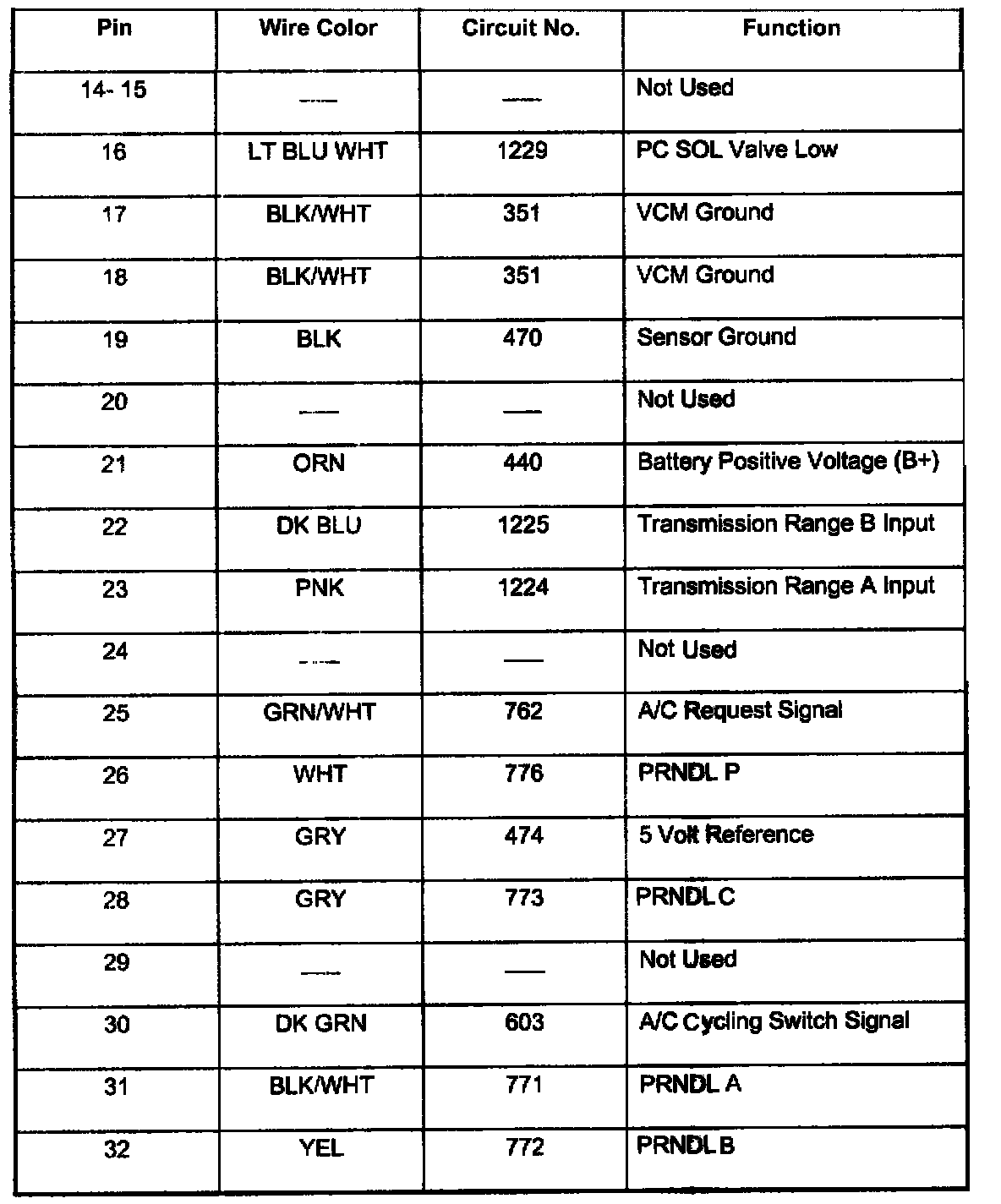

VCM Connector C3 - Pinout No. 14 - 32:

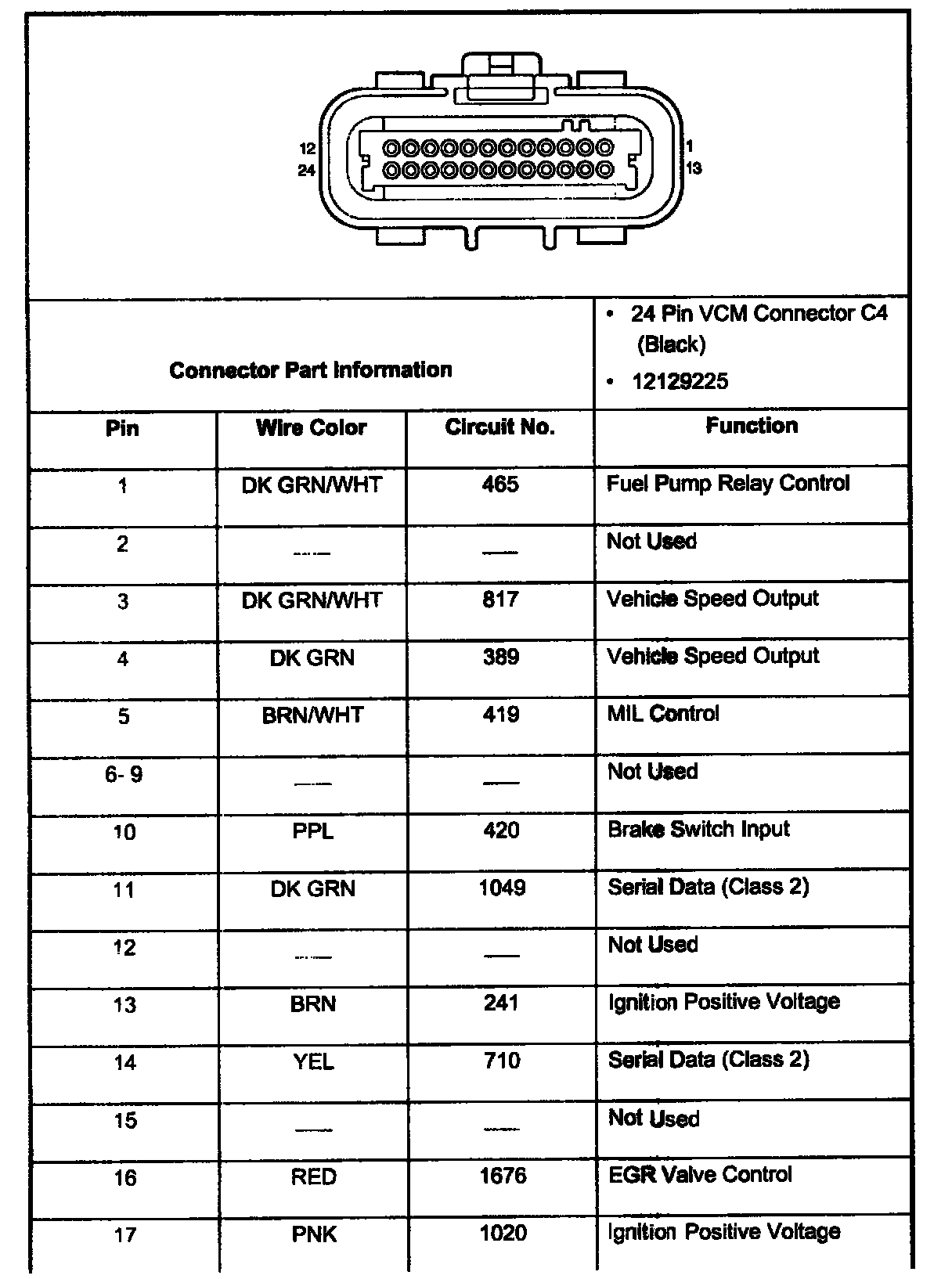

VCM Connector C4 - View And Pinout No. 1 - 17:




VCM Connector C4 - Pinout No. 18 - 24:
