Connector Views
Connector Views

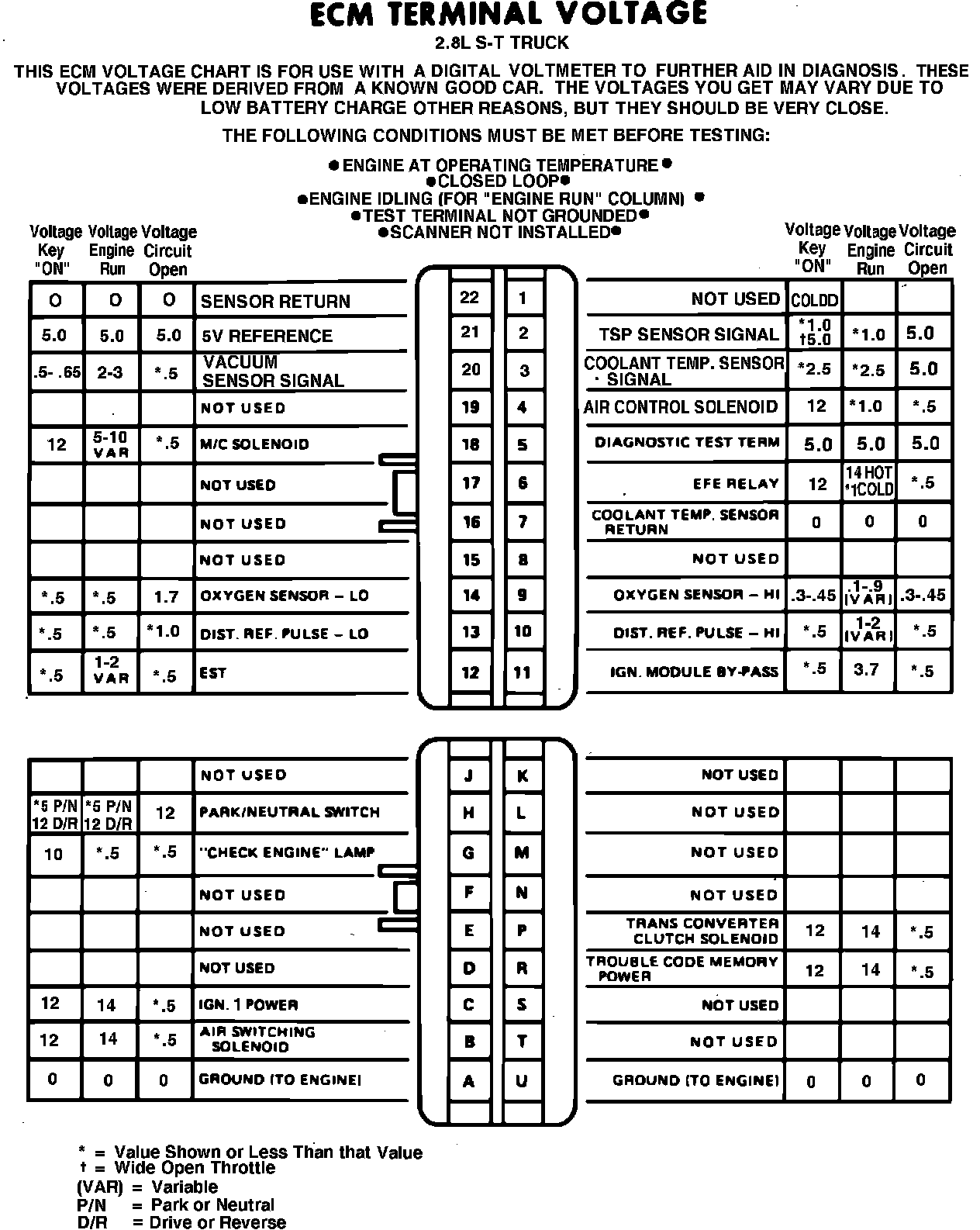

Fig. 5 ECM terminal identification & voltage specifications. 1984-85 V6-173:
