Engine Control Module: Description and Operation

Electronic Control Assembly (ECA):

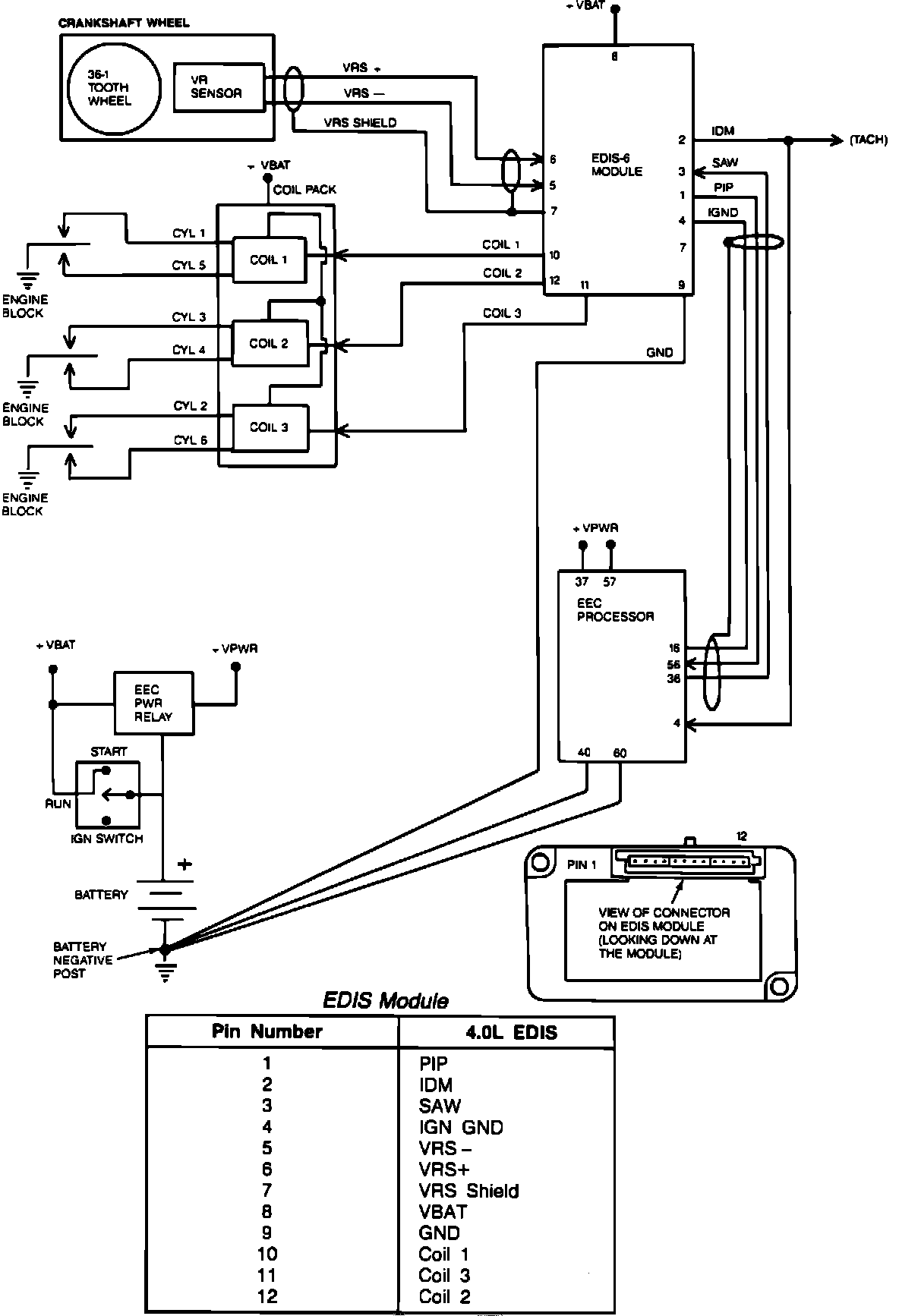

EDIS Block Diagram:

PURPOSE
This computerized fuel, ignition and emission control system is referred to as EEC-IV (Electronic Engine Control). The central component of this system is the Electronic Control Assembly (ECA), a microprocessor containing specific calibrations designed to optimize fuel economy and driveability while maintaining low emissions.

LOCATION
Behind right side kick panel.

OPERATION
The Electronic Control Assembly (ECA) is a microprocessor containing specific calibrations. Based on information received from a number of sensors and other electronic components (switches, relays, etc.), and values programmed into its memory, the ECA generates output signals to control various relays, solenoids and other actuators.
