Home >> Mazda >> 1991 >> Navajo 4WD V6-4.0L OHV >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module

Engine Control Module

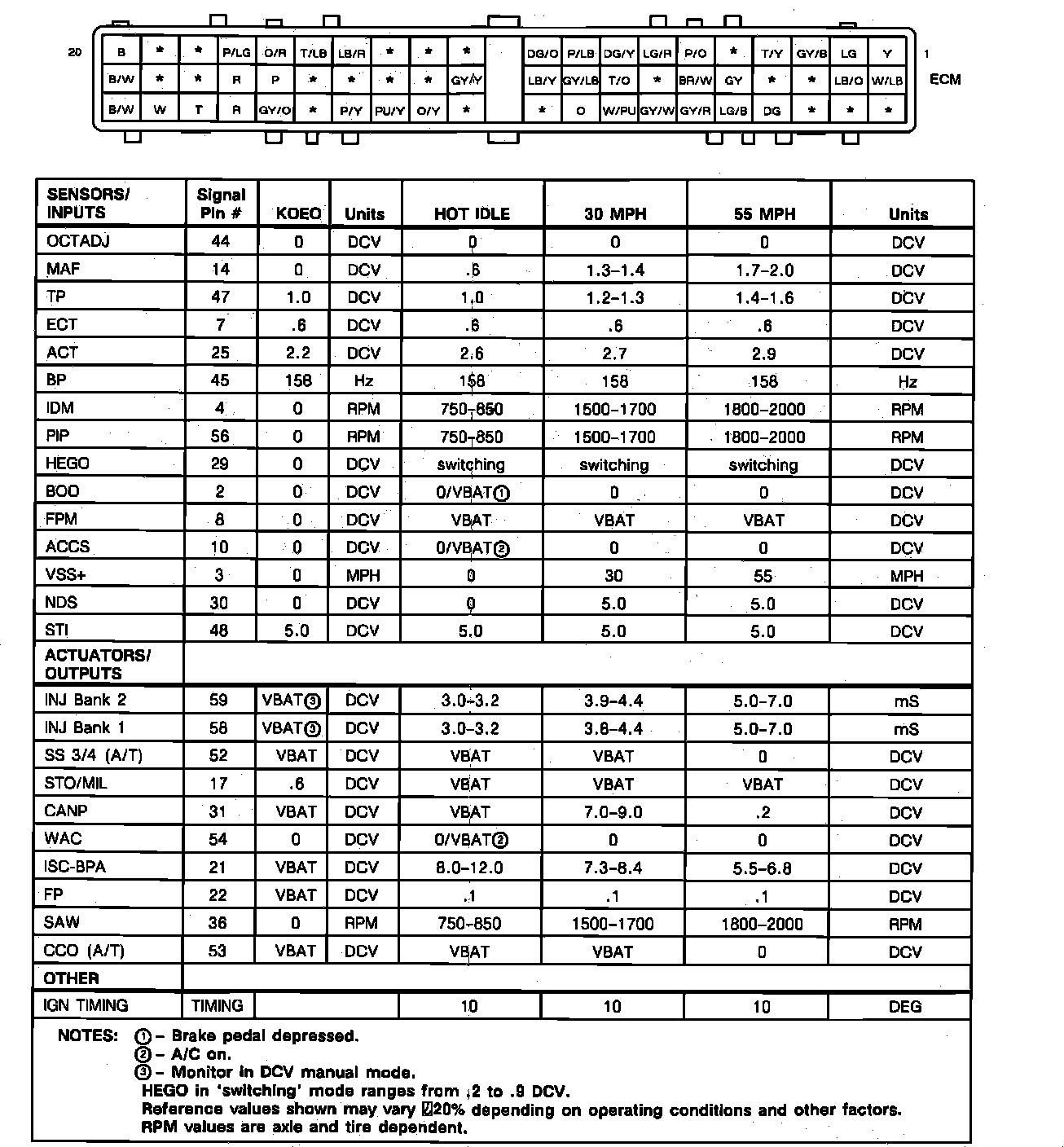

Electronic Engine Control Module Terminal (Unit Side):
