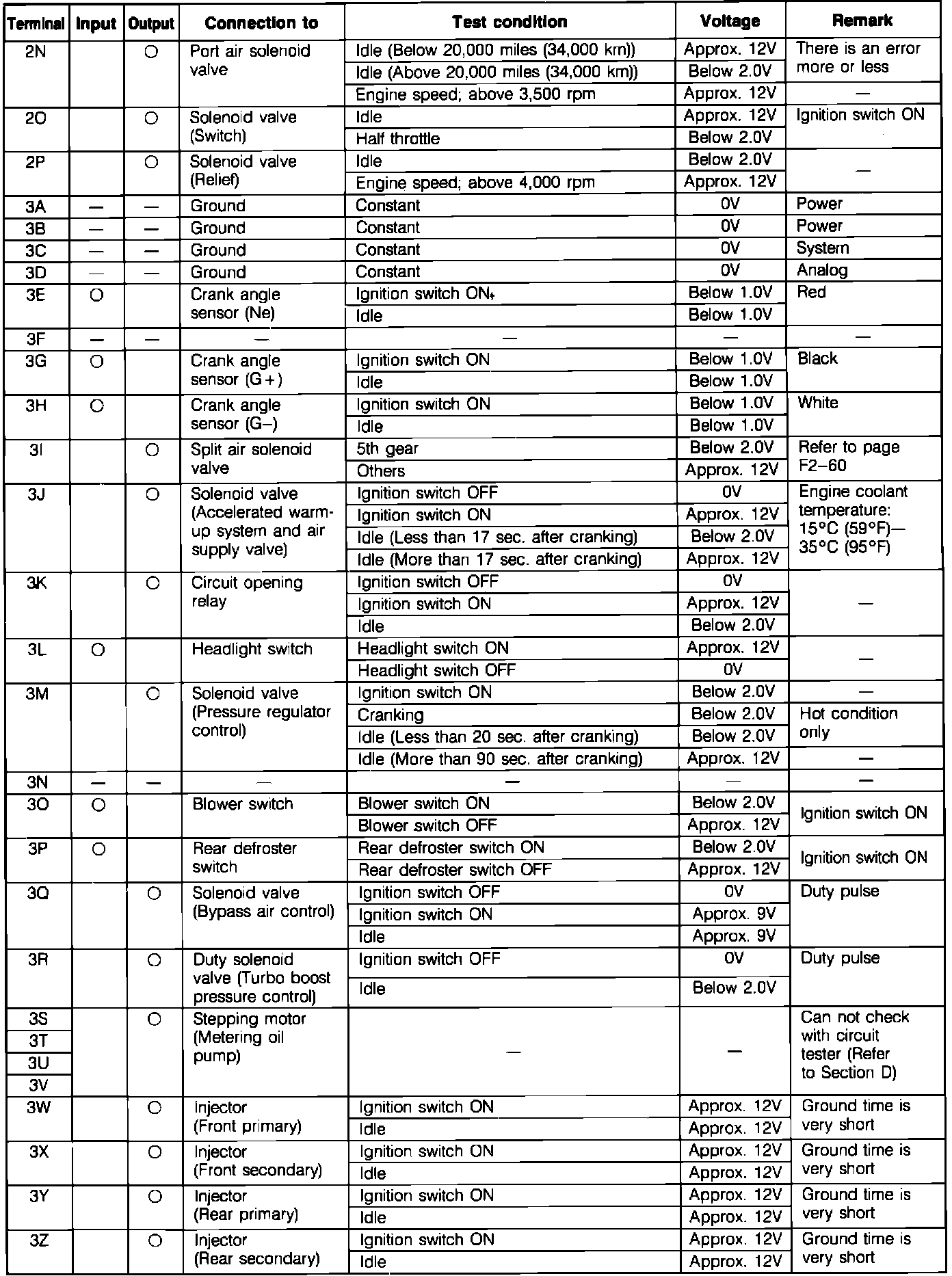

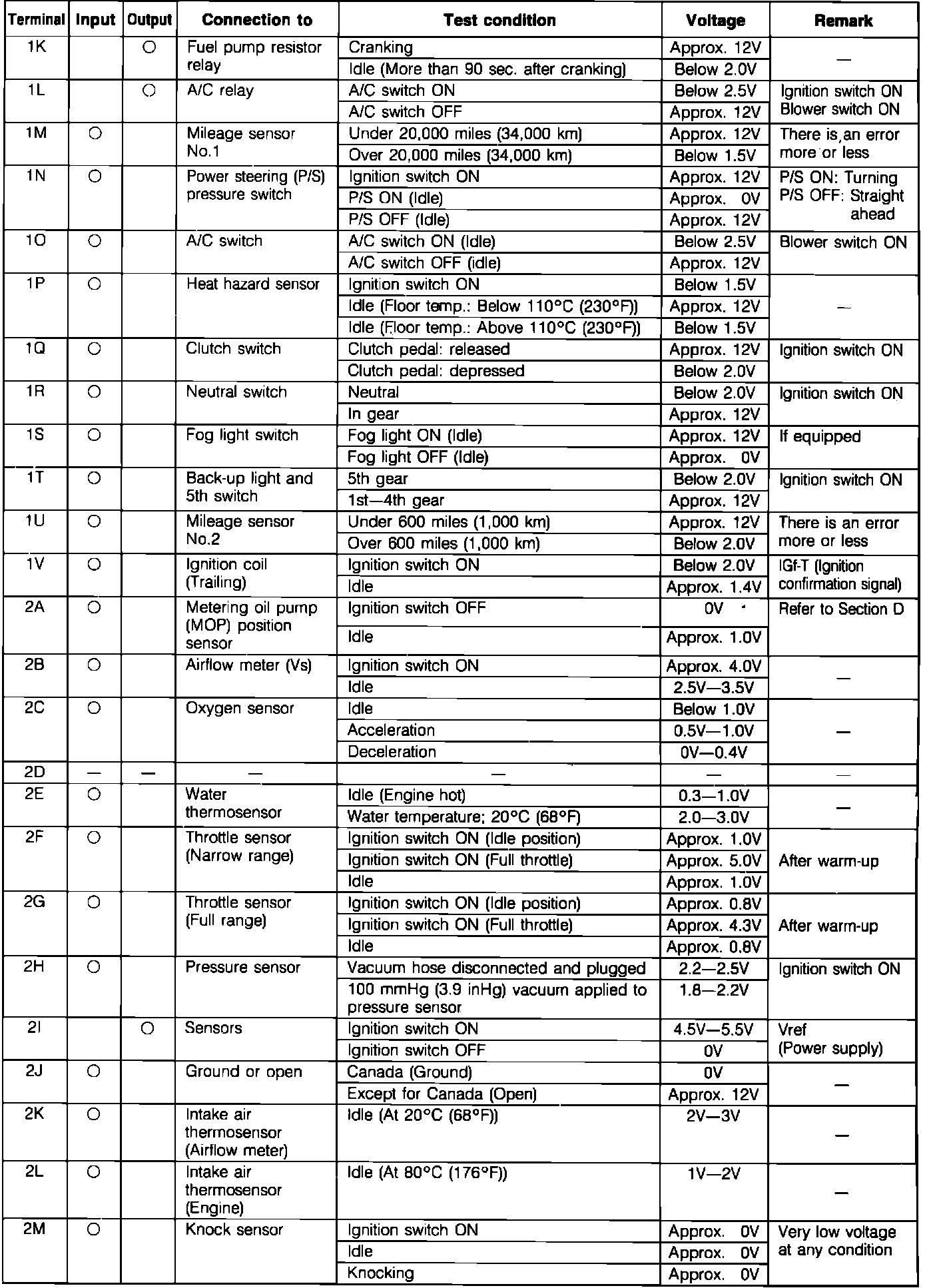

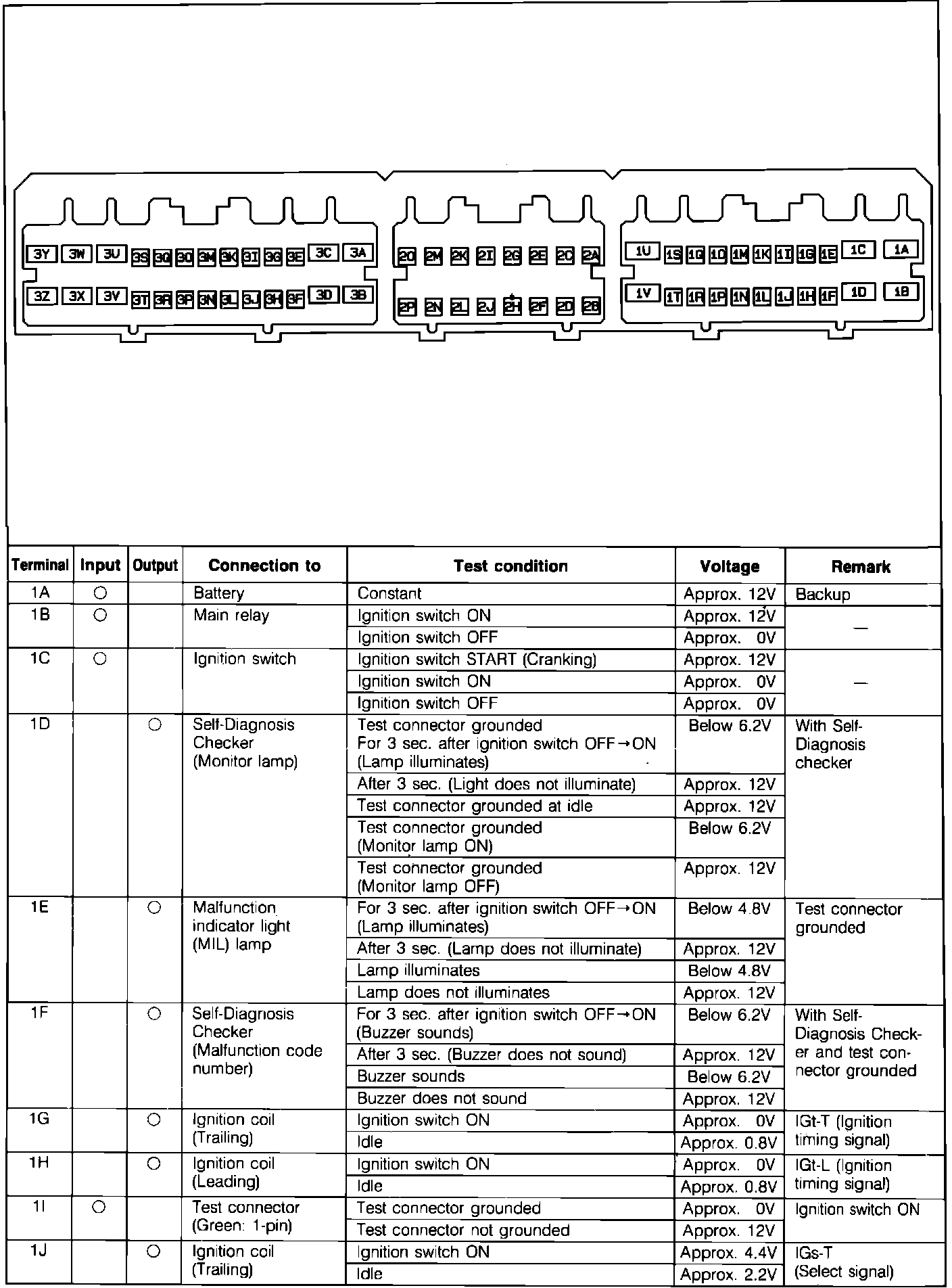

Engine Control Unit. ECU Pin Voltage Chart:
Engine Control Unit. ECU Pin Voltage Chart:
Engine Control Unit. ECU Pin Voltage Chart:
