Engine Control Module
Engine Control Module

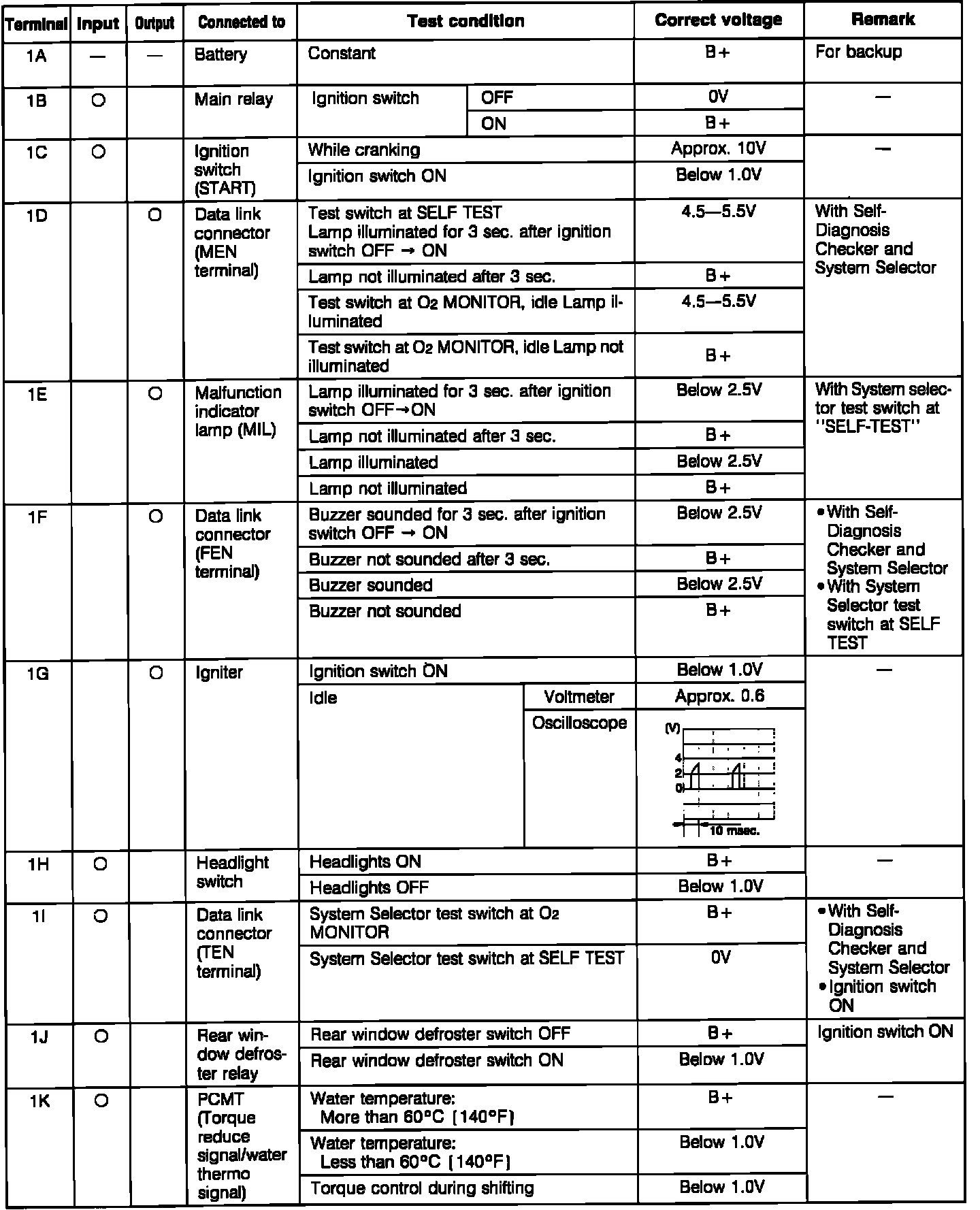

PCME Pin Voltage Chart (Part 1):

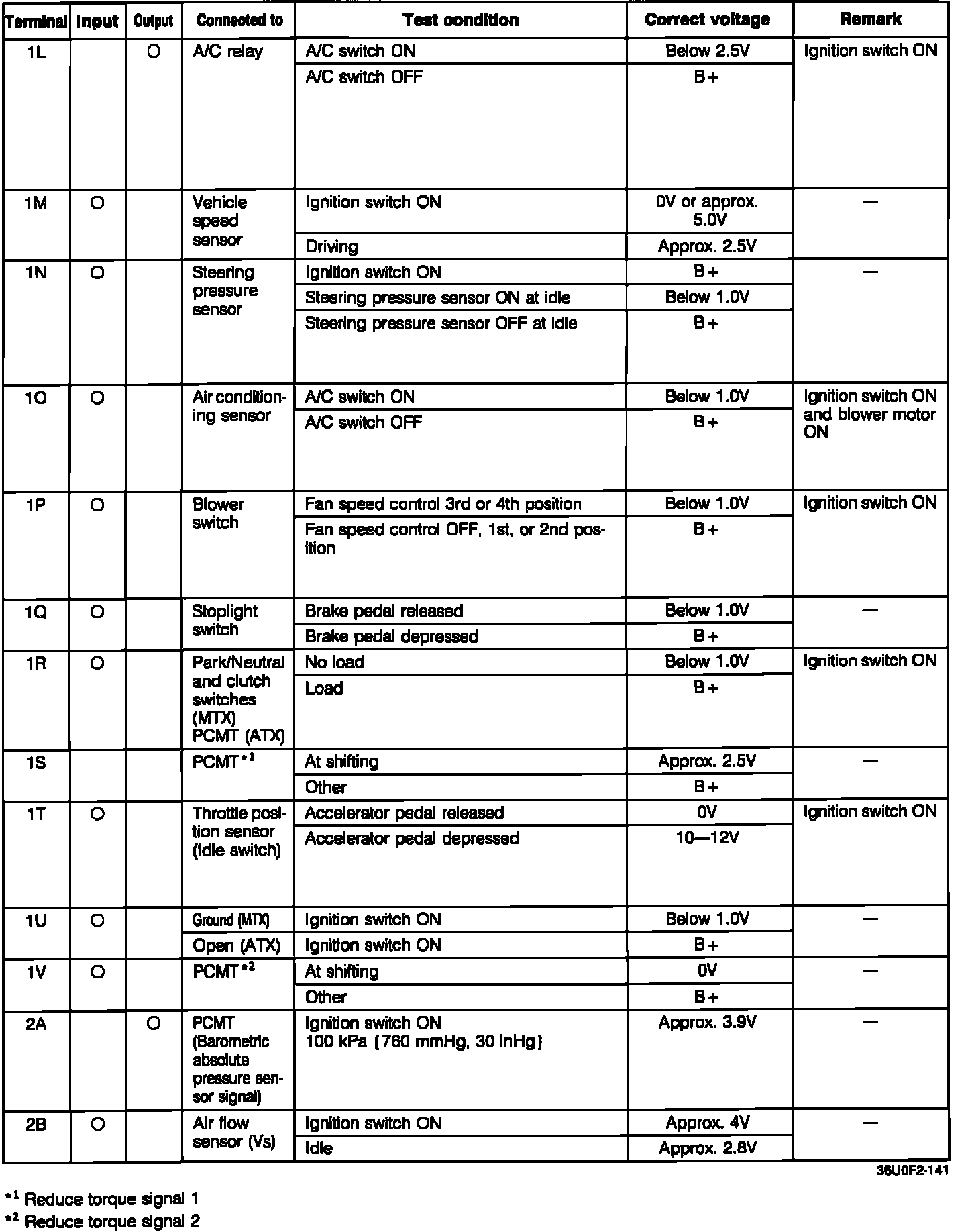

PCME Pin Voltage Chart (Part 2):

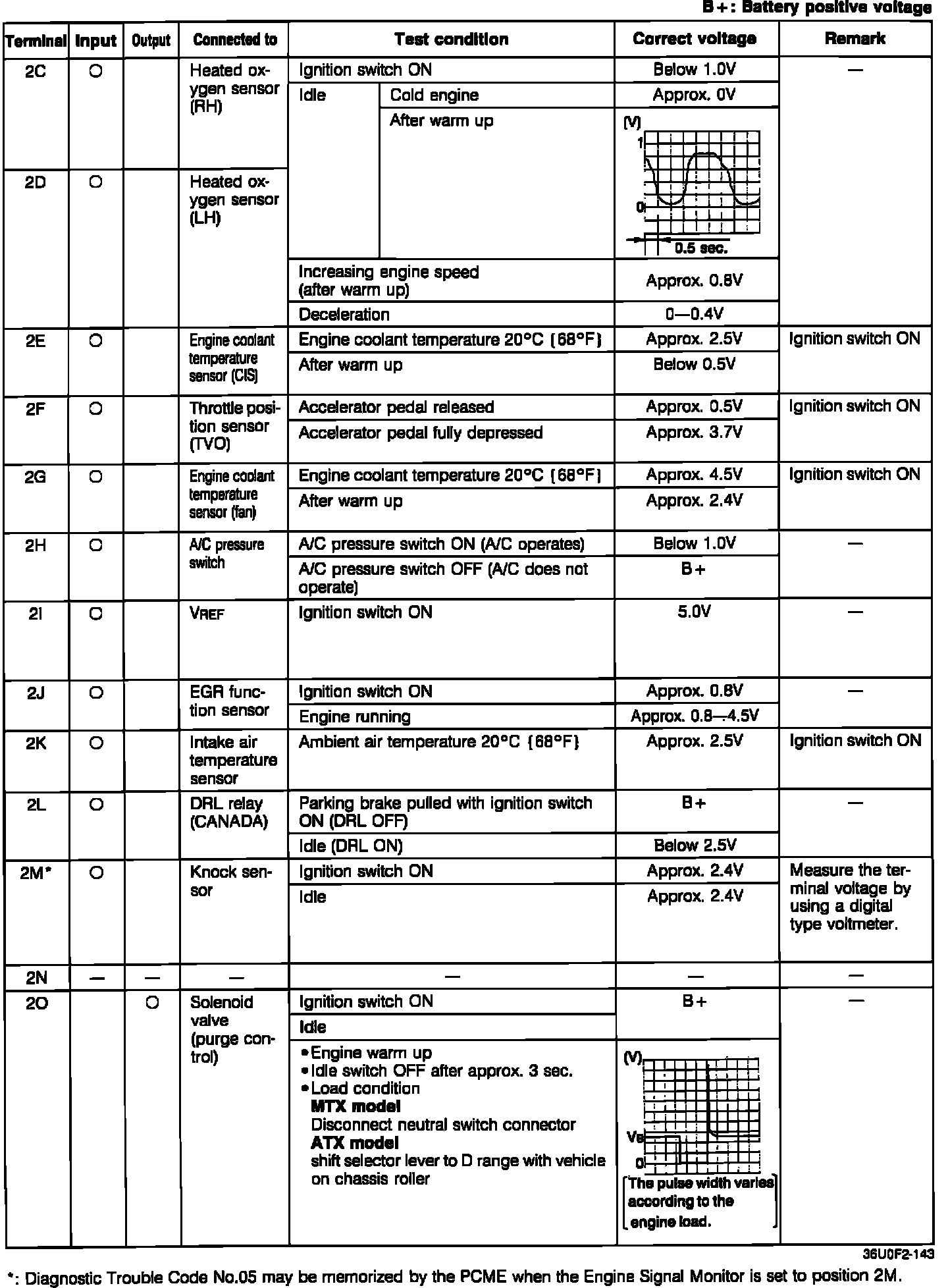

PCME Pin Voltage Chart (Part 3):

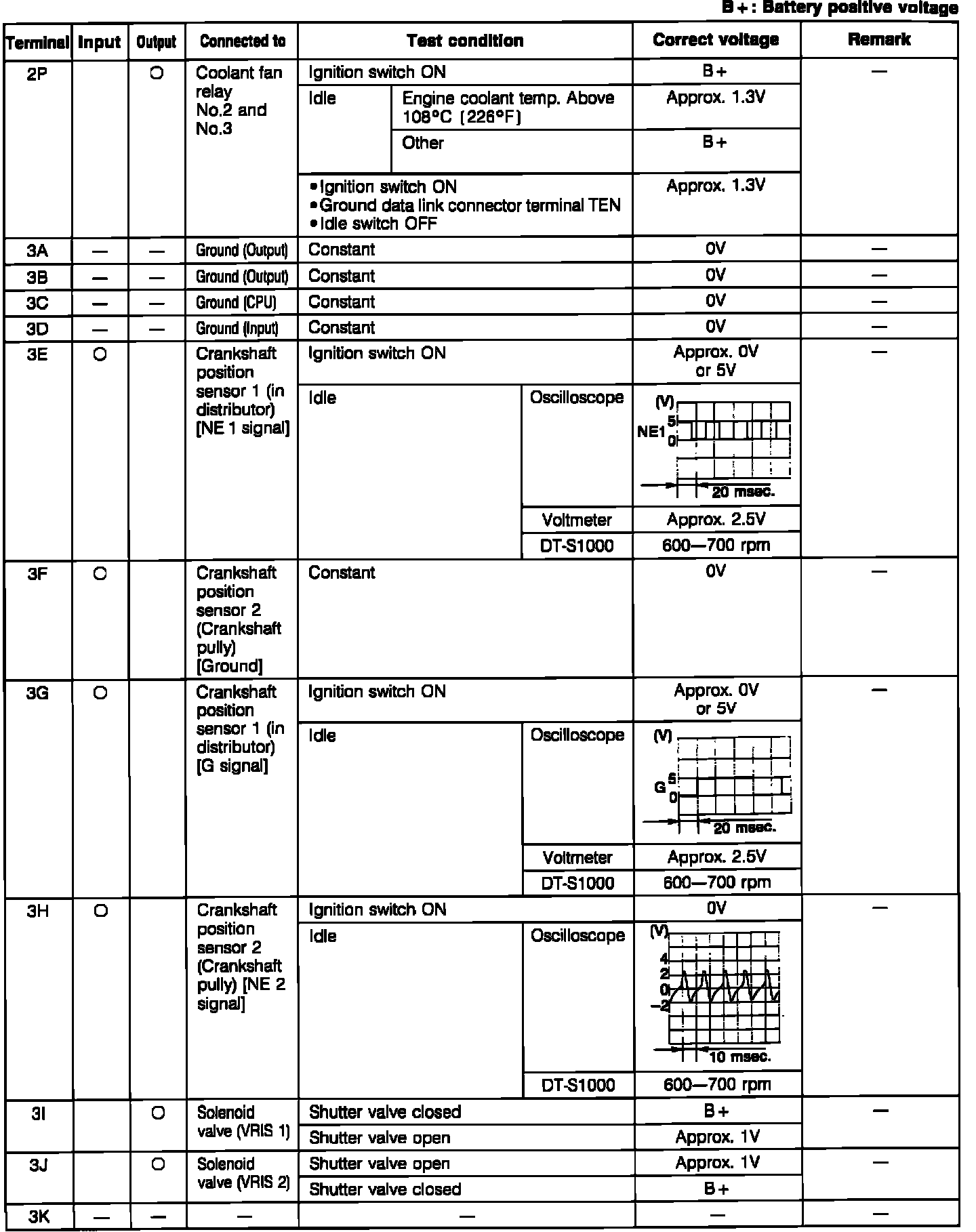

PCME Pin Voltage Chart (Part 4):

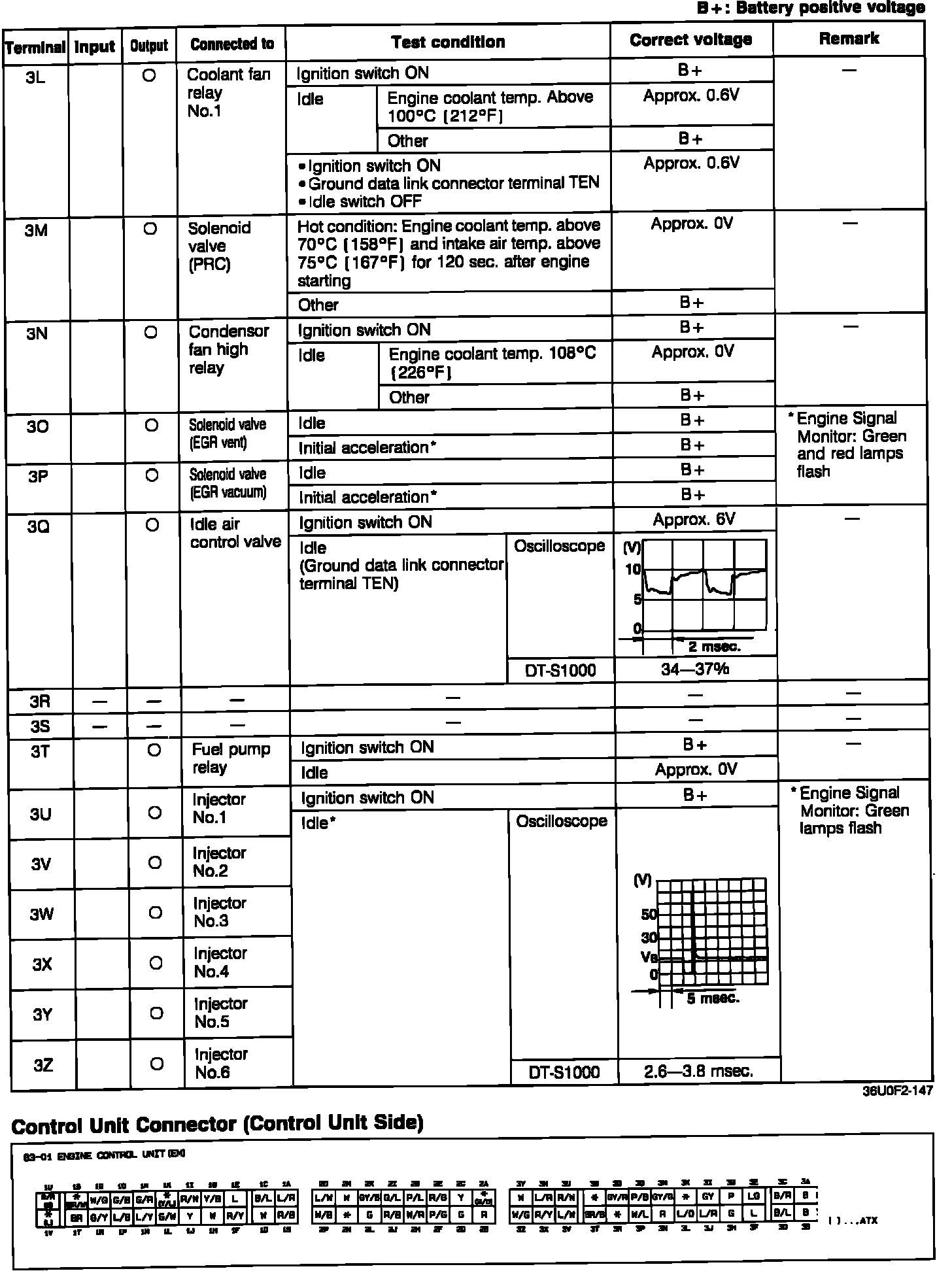

PCME Pin Voltage Chart (Part 5):
