Engine Control Module: Diagrams

View: Engine Control Module Terminal Layout:






Connector End View


Part 1 Of 2:






Part 2 Of 2:

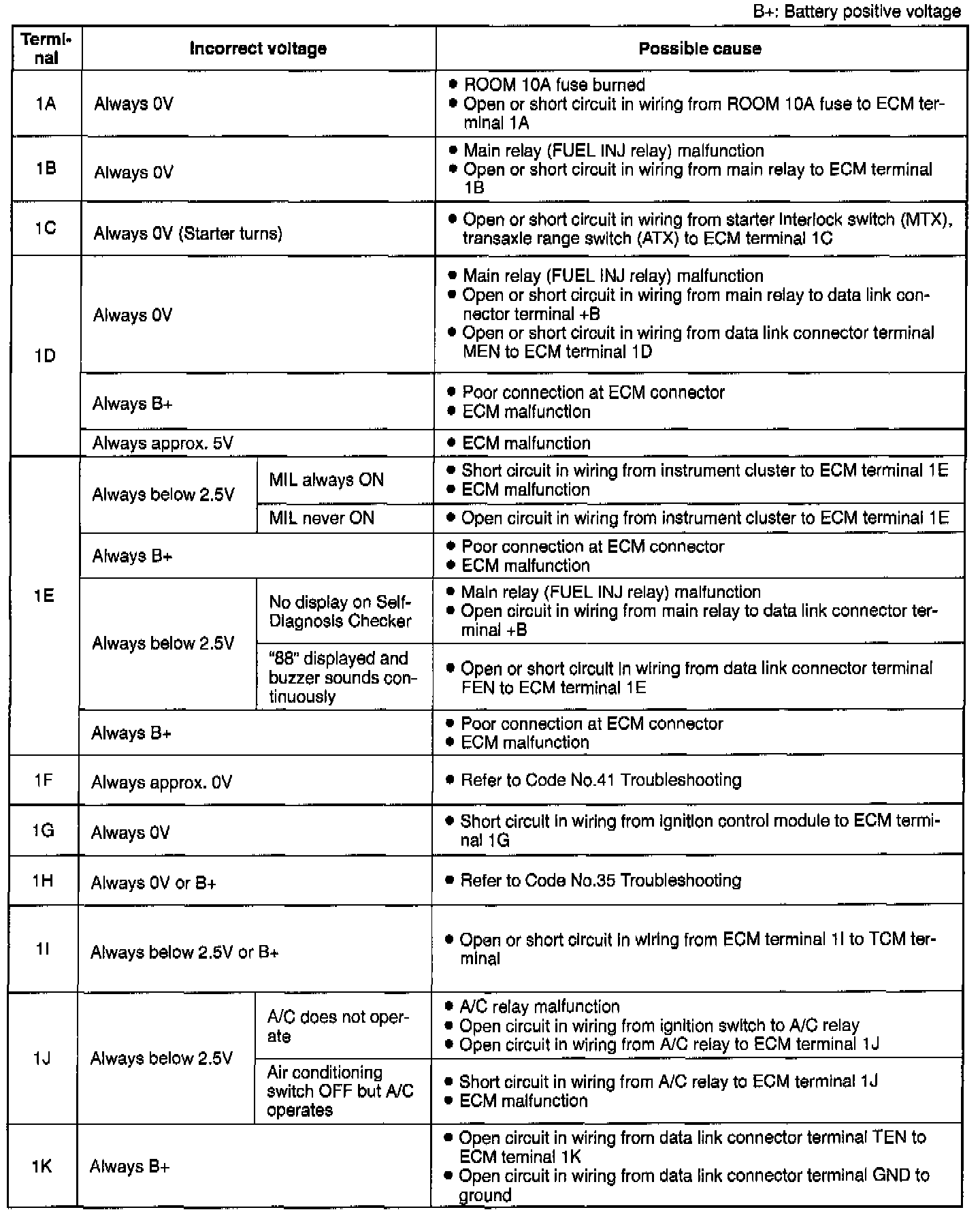

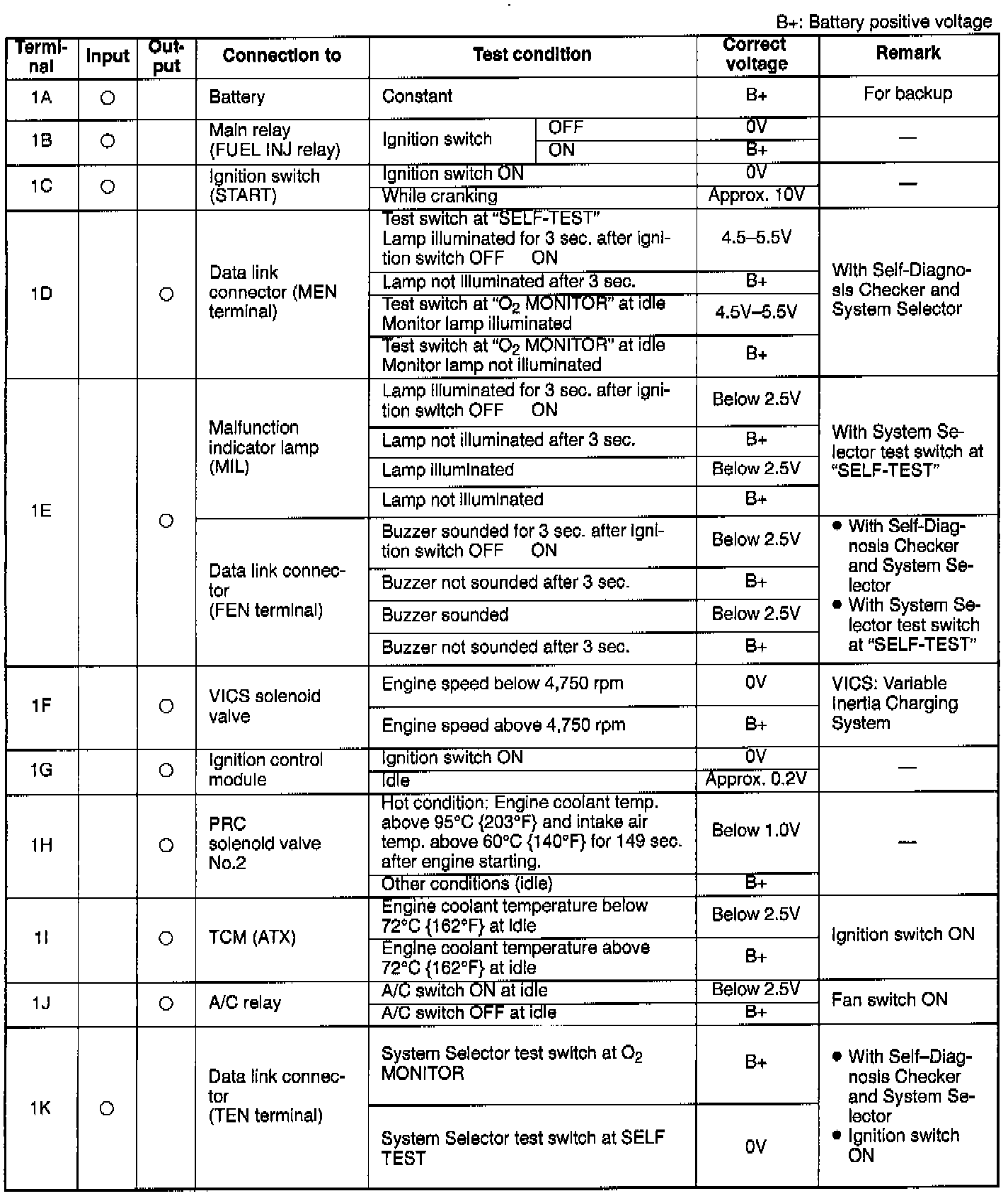

Terminal 1A to 1K


Part 1 Of 2:






Part 2 Of 2:

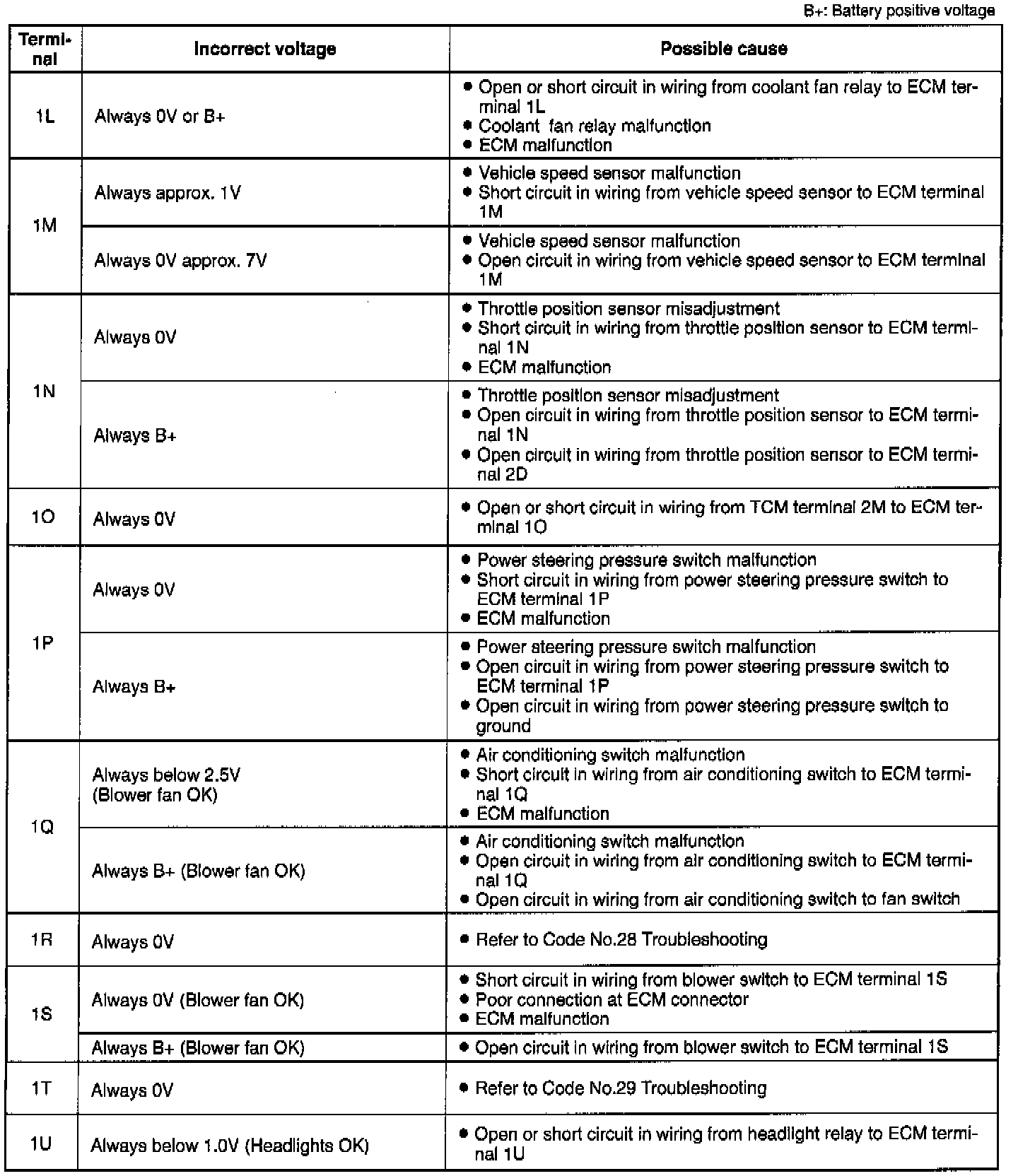

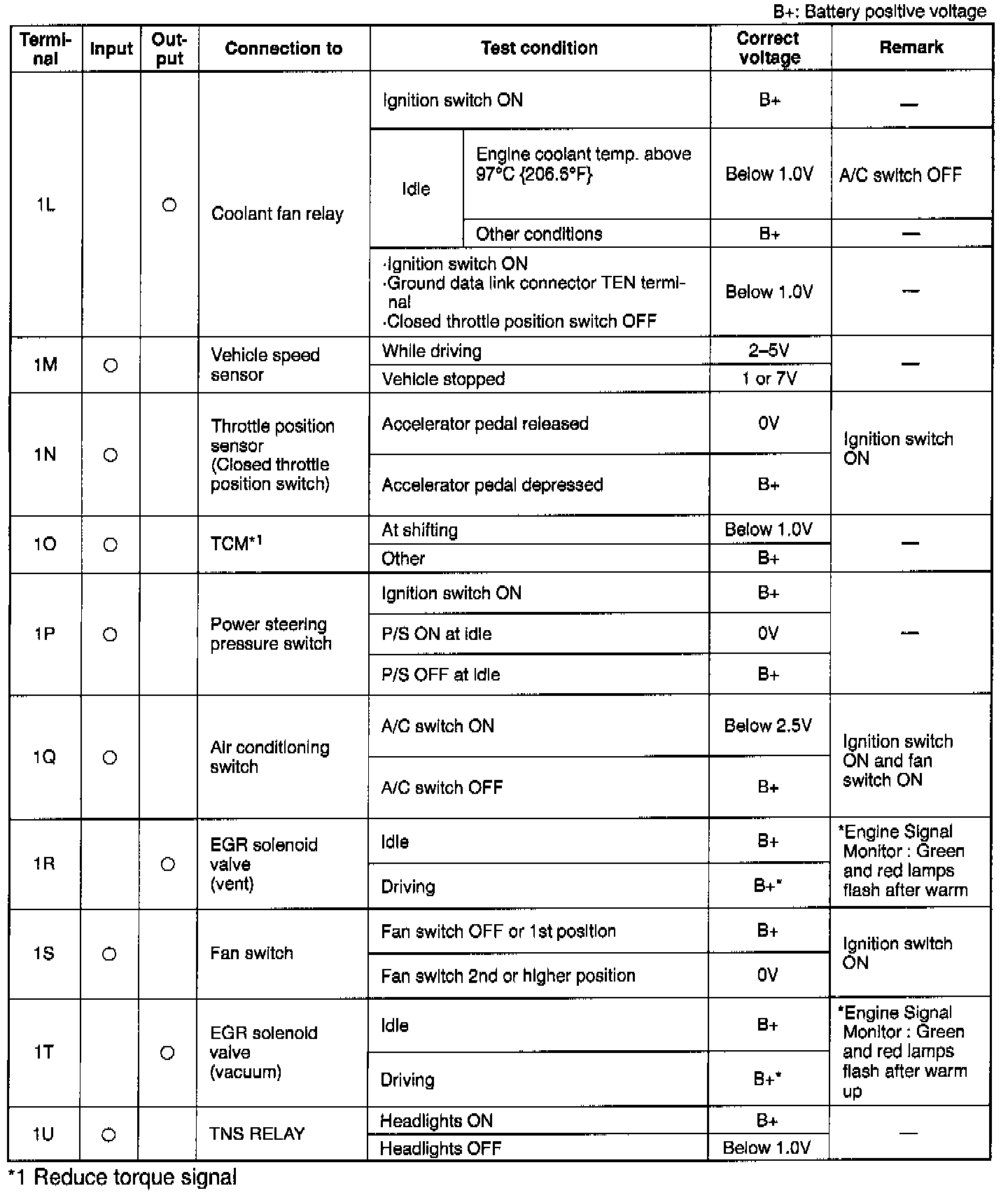

Terminal 1L to 1U


Part 1 Of 2:






Part 2 Of 2:

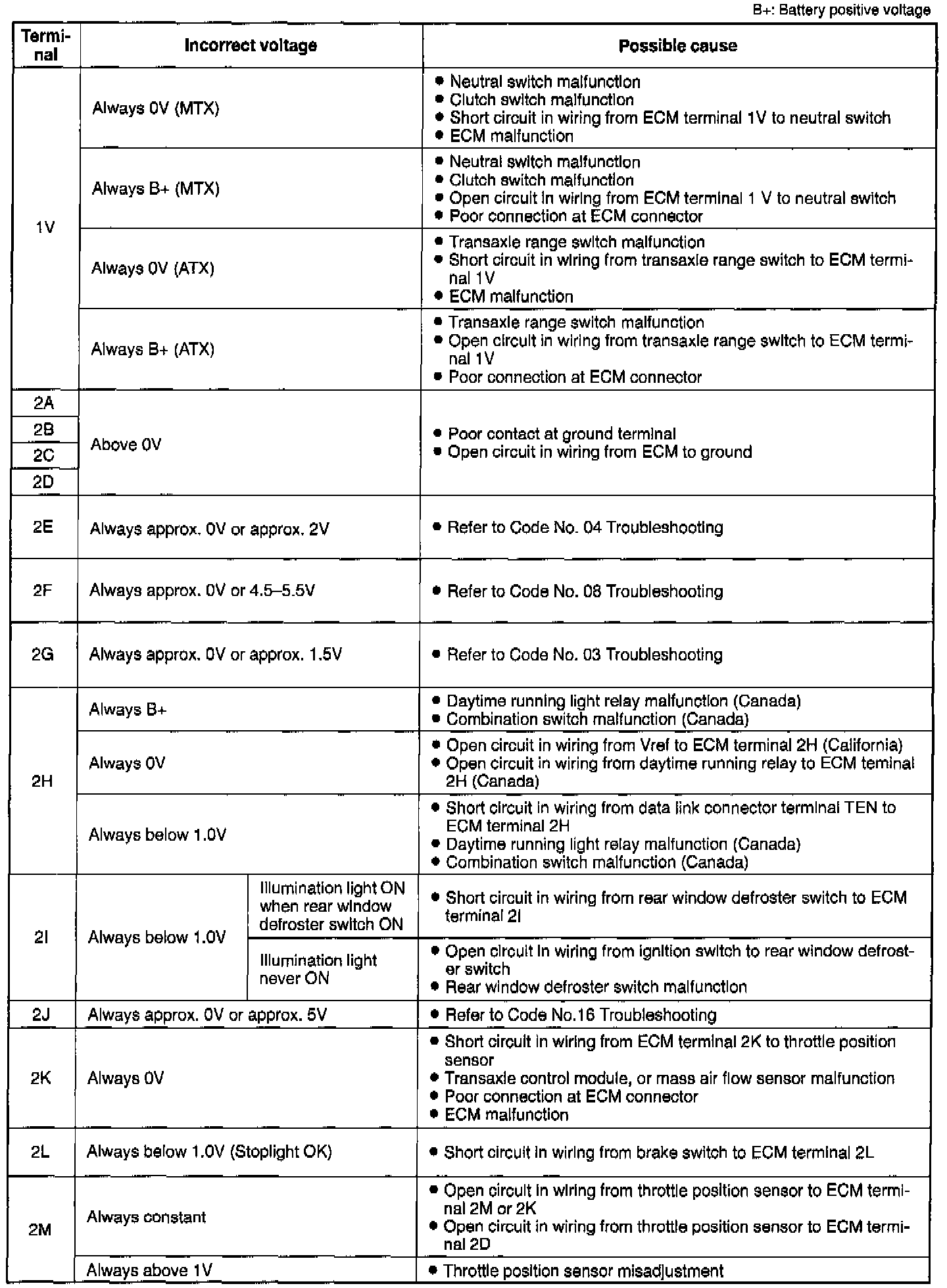

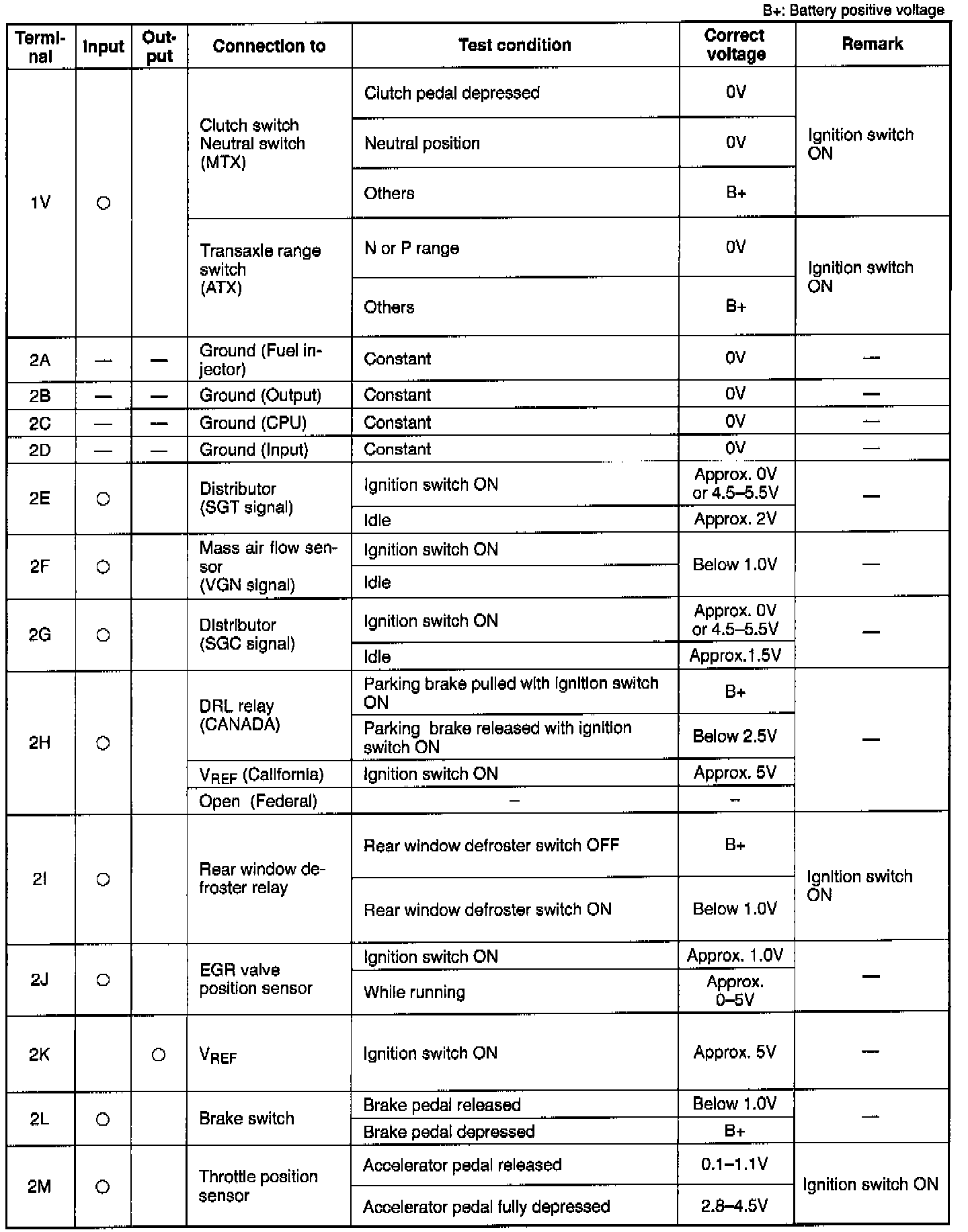

Terminal 1V to 2M


Part 1 Of 2:






Part 2 Of 2:

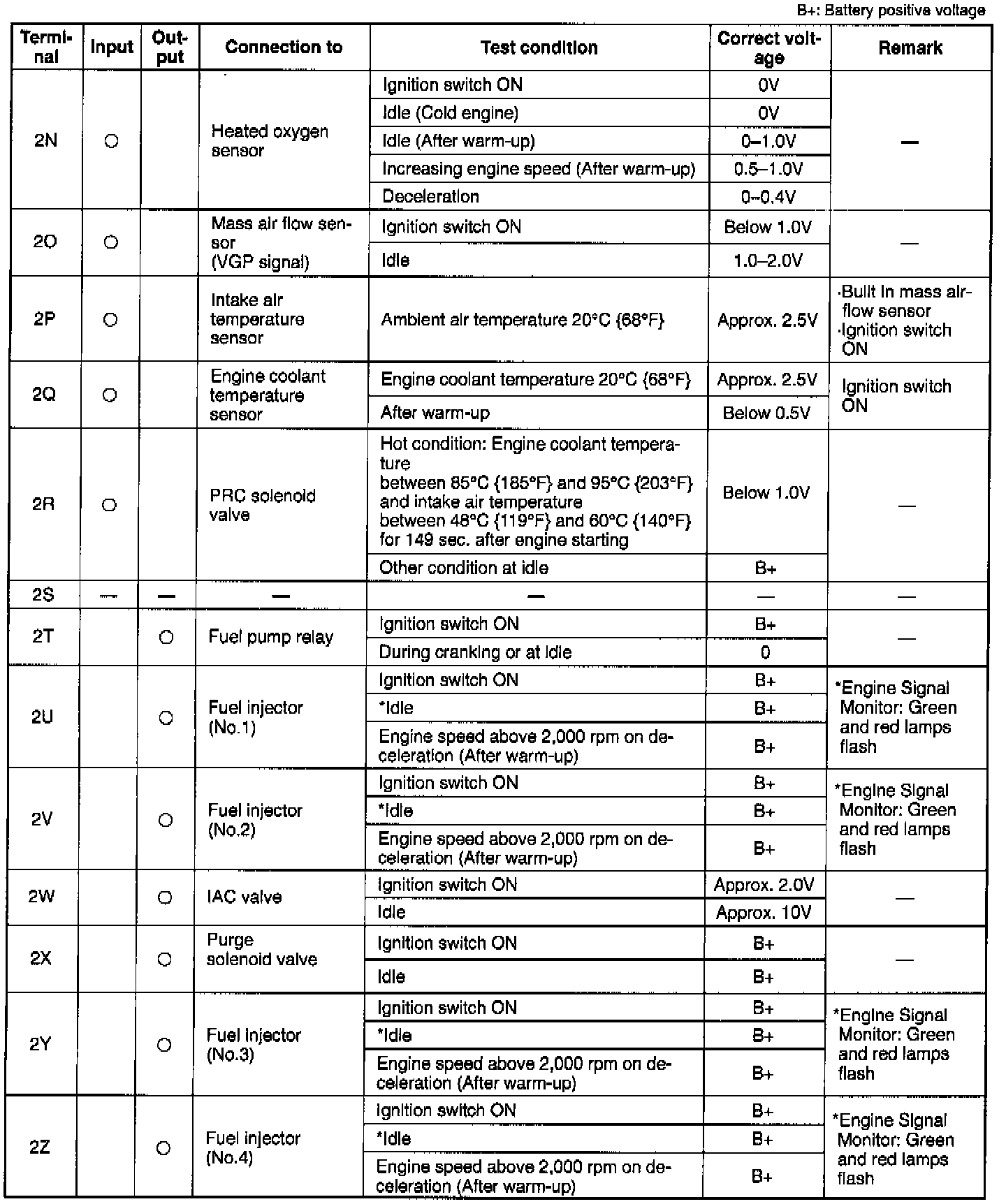

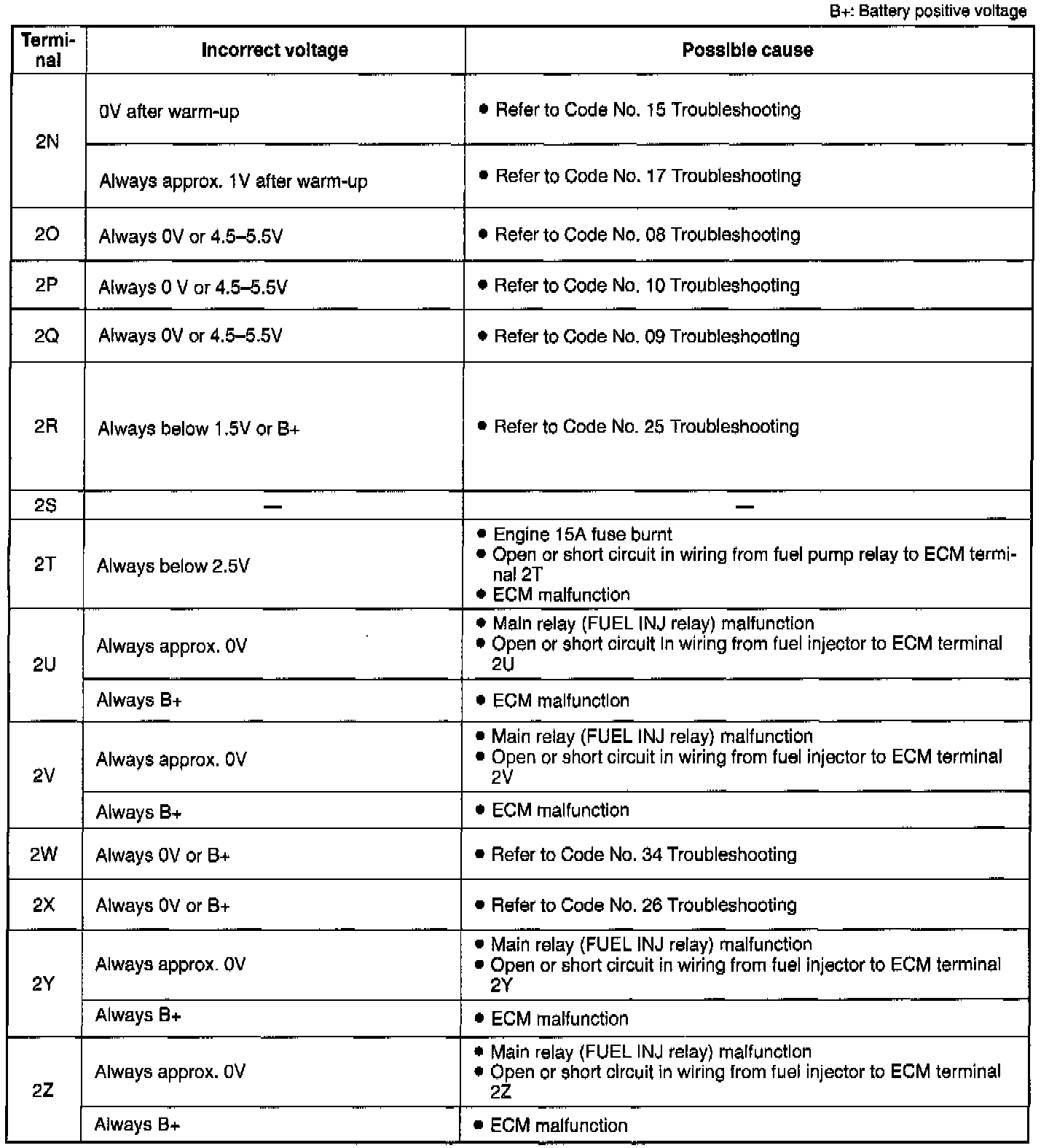

Terminal 2N to 2Z
