Home
>>
Mazda
>>
1998
>>
B4000 SE Cab Plus 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Automatic
Automatic

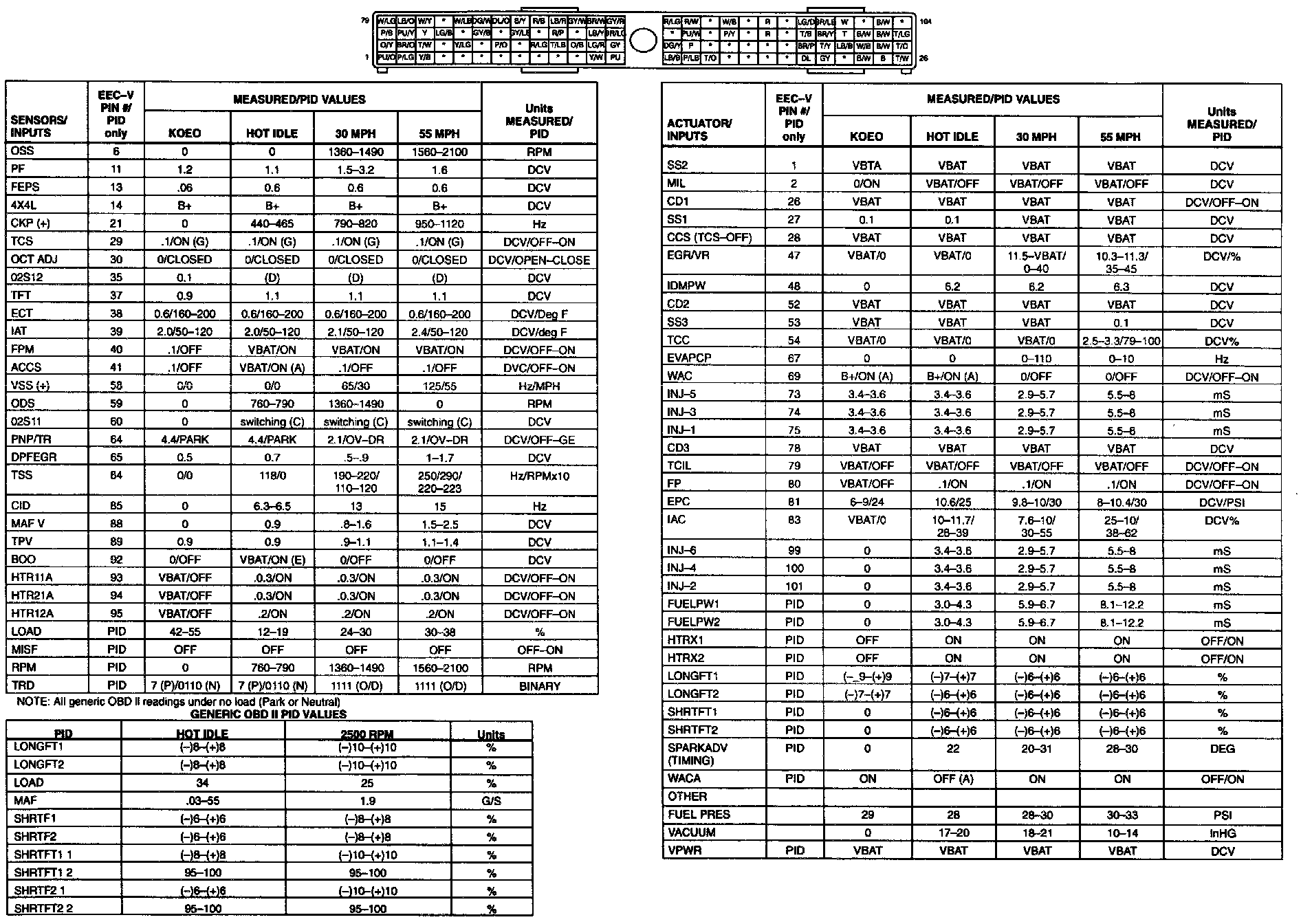

Powertrain Control Module Terminal (Unit Side):
