Body Control Module: Locations

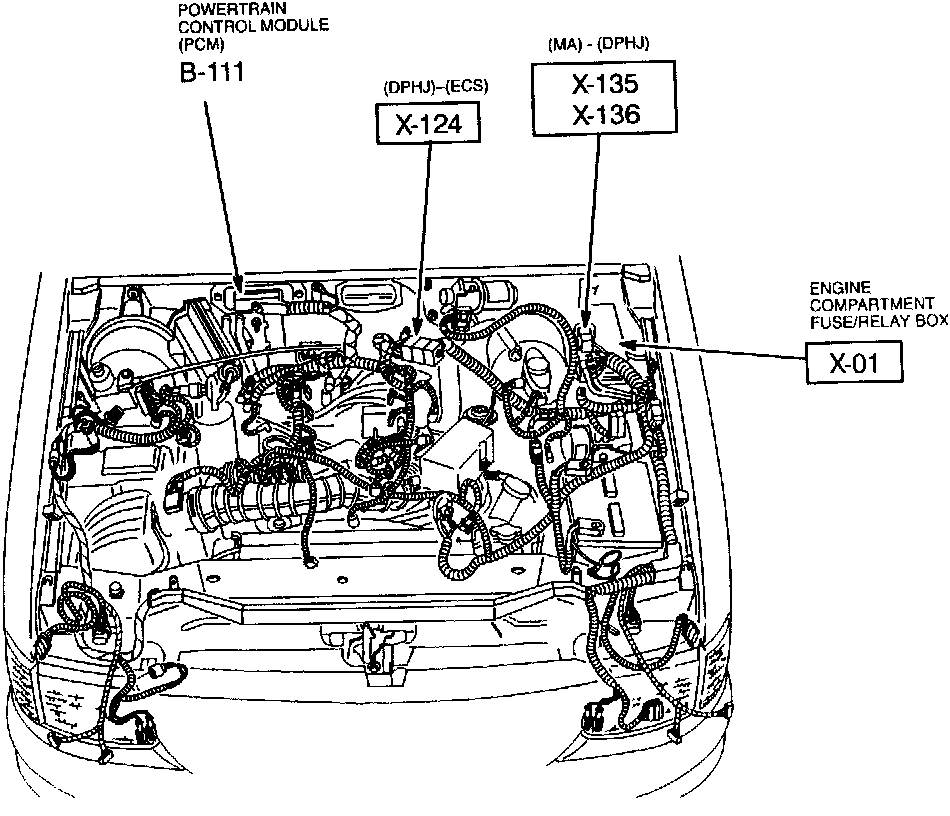

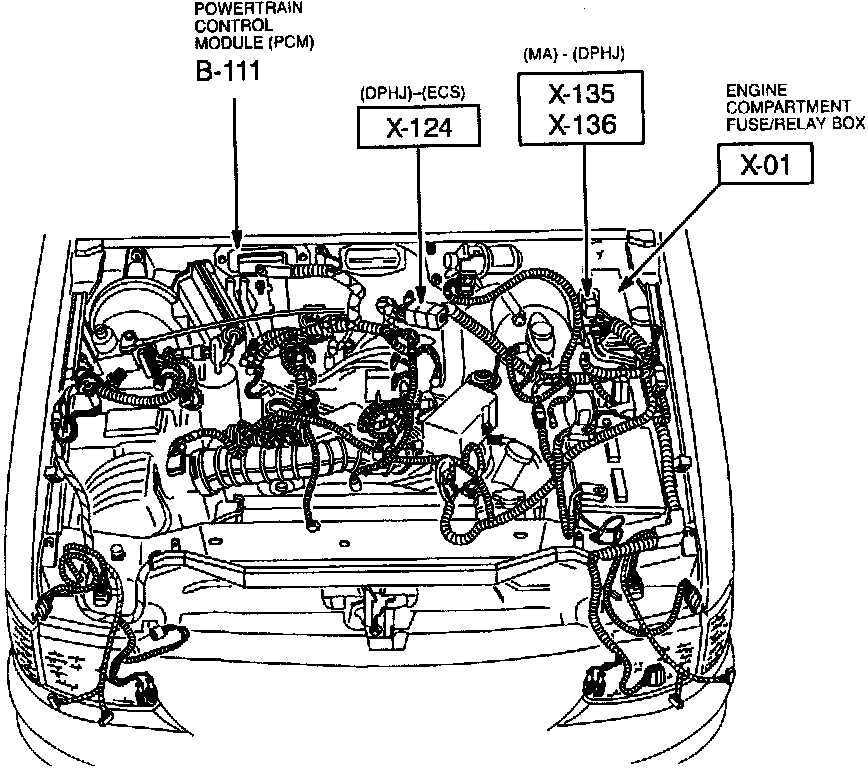

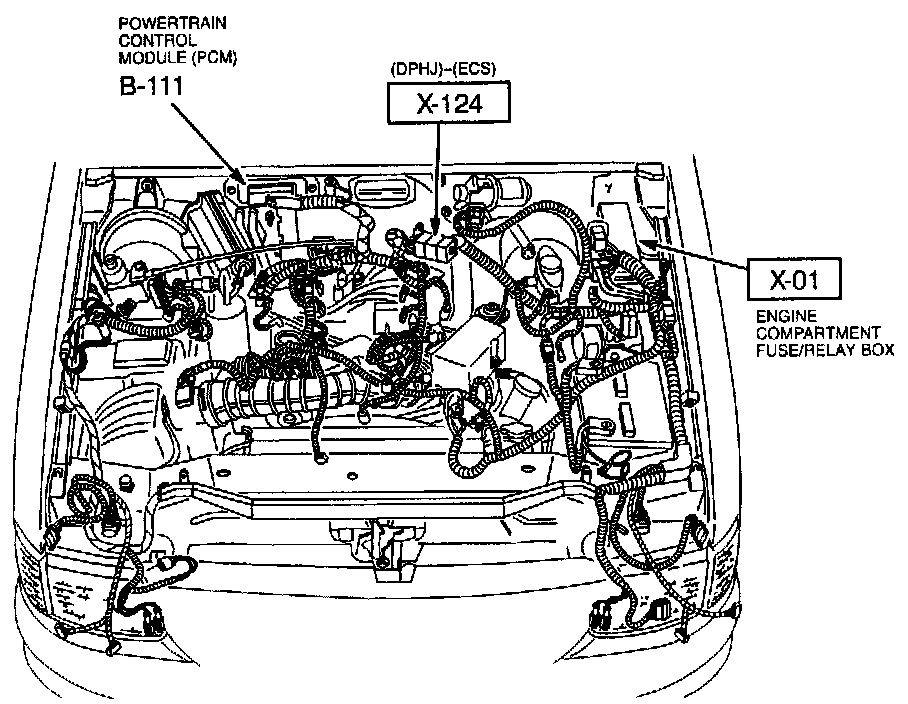

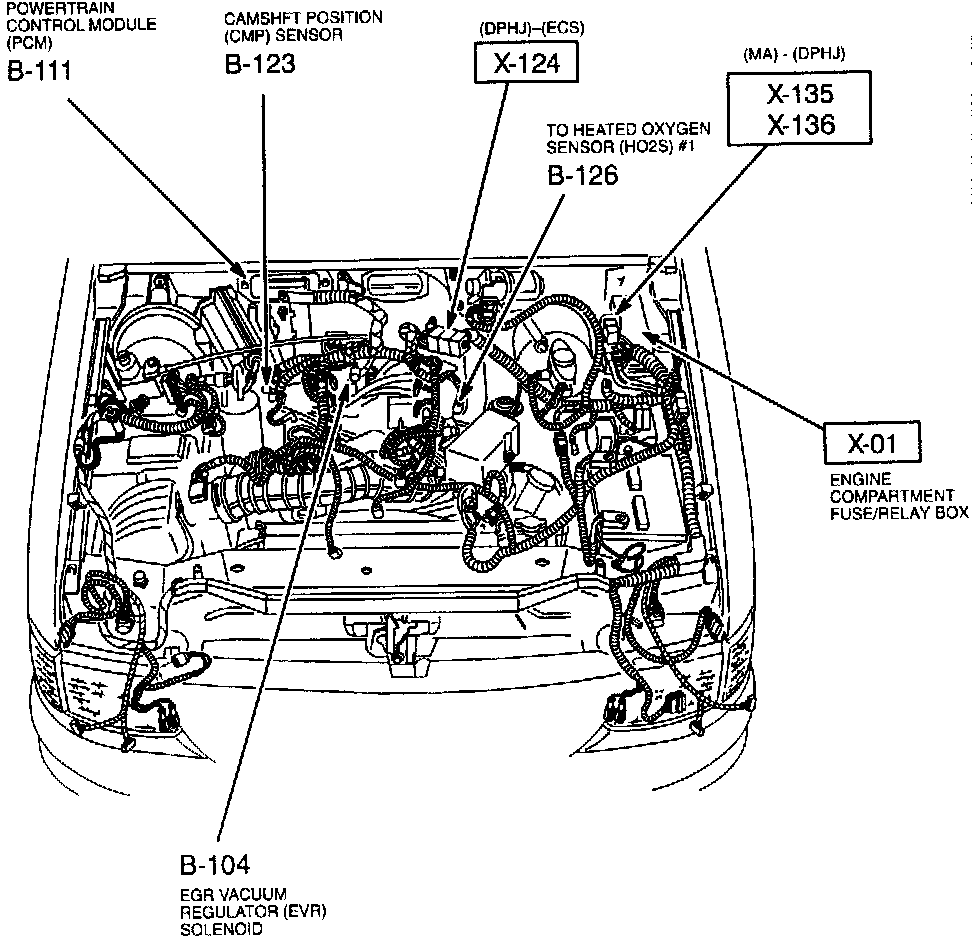

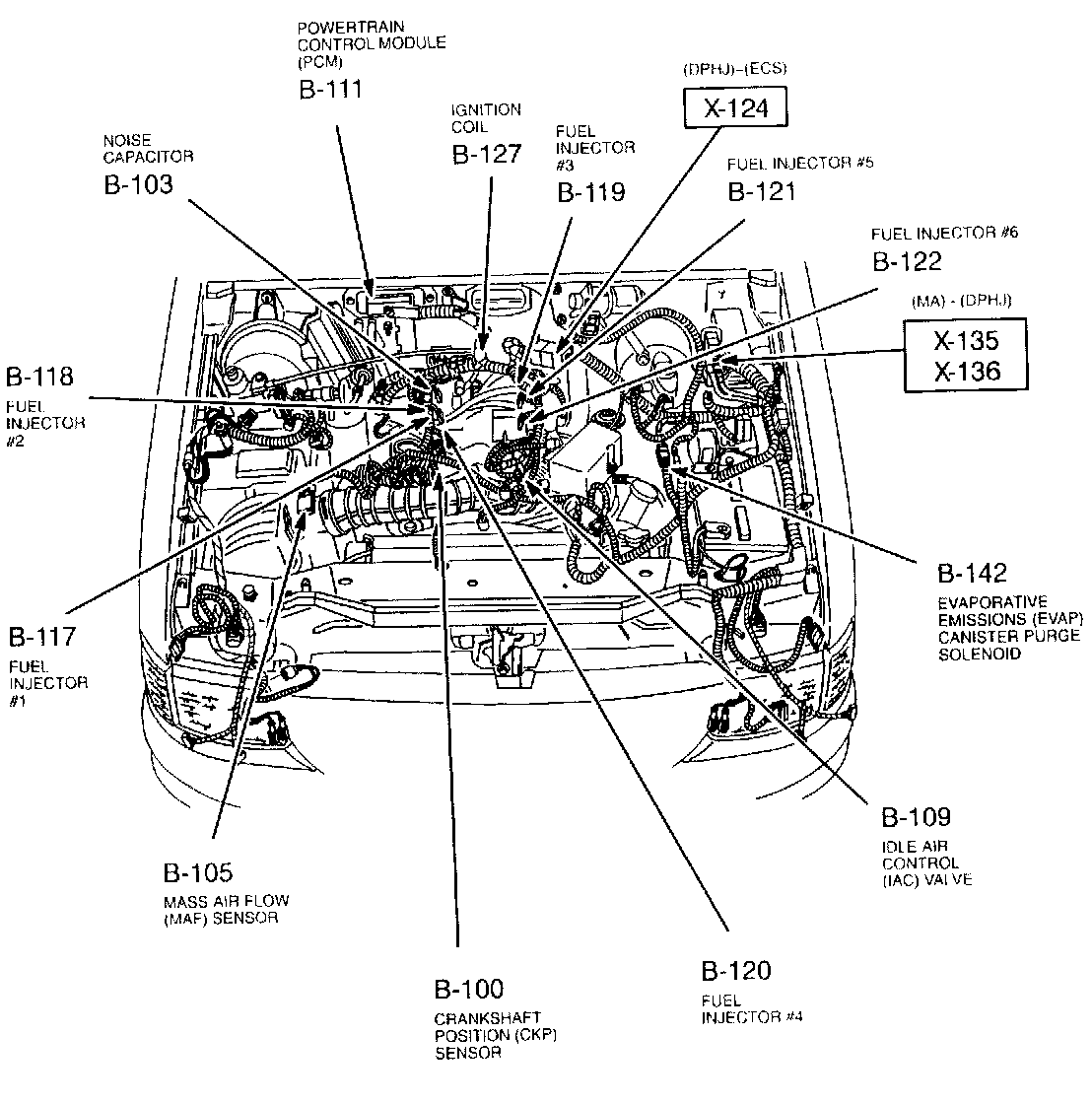

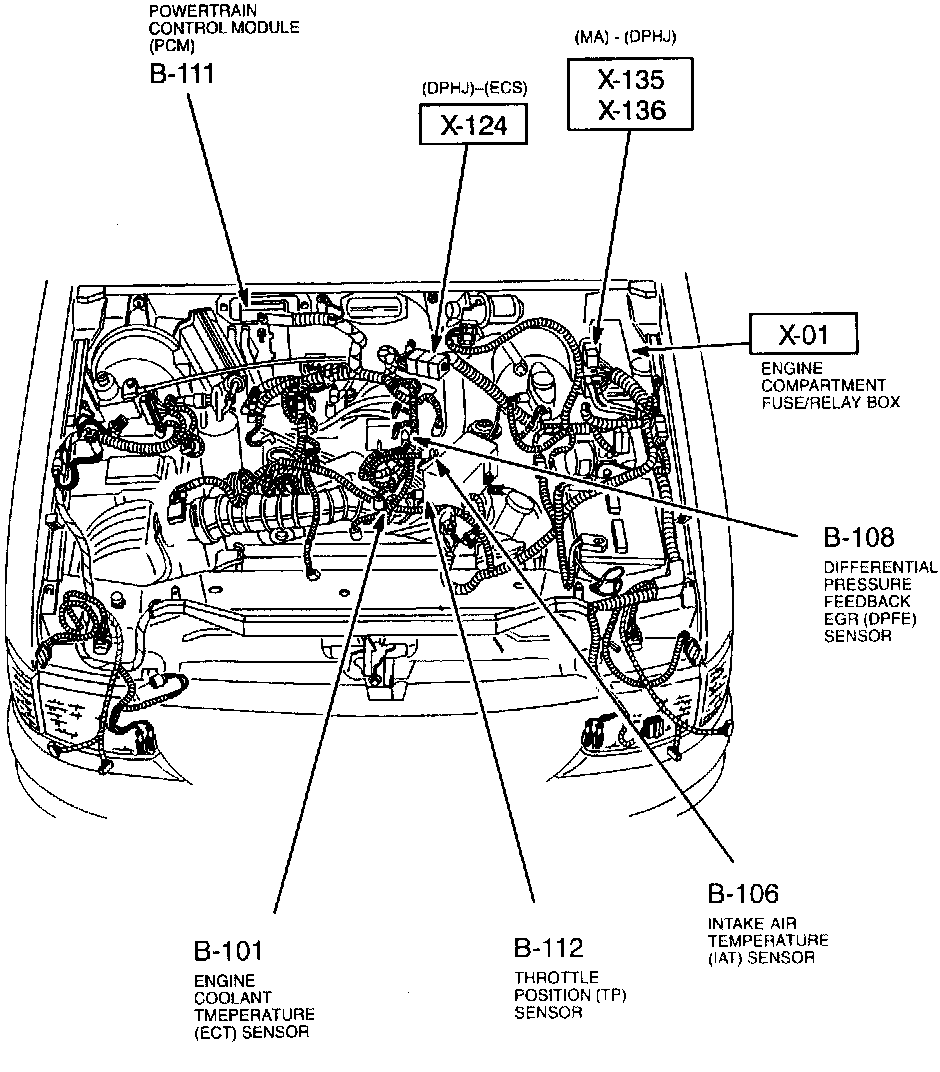

Connector Locations: Engine Compartment

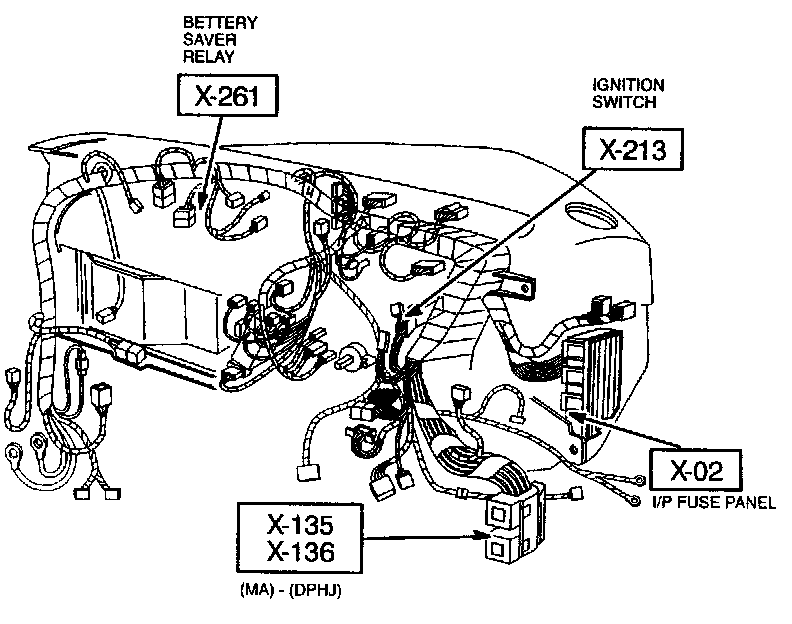

Connector Locations: Overall Vehicle and Dashboard
