Engine Control Module: Diagrams

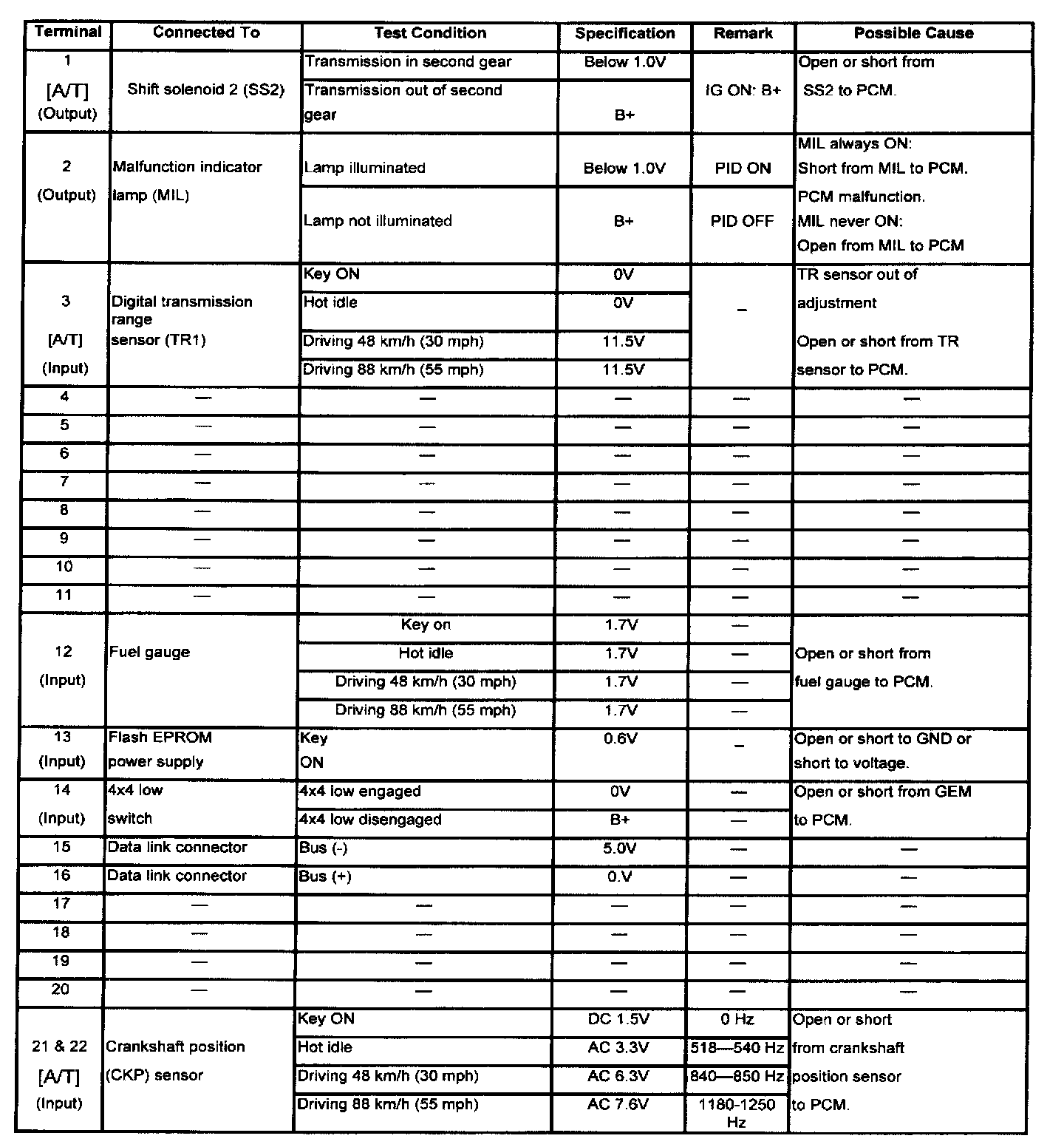

Terminal 1 - 22:

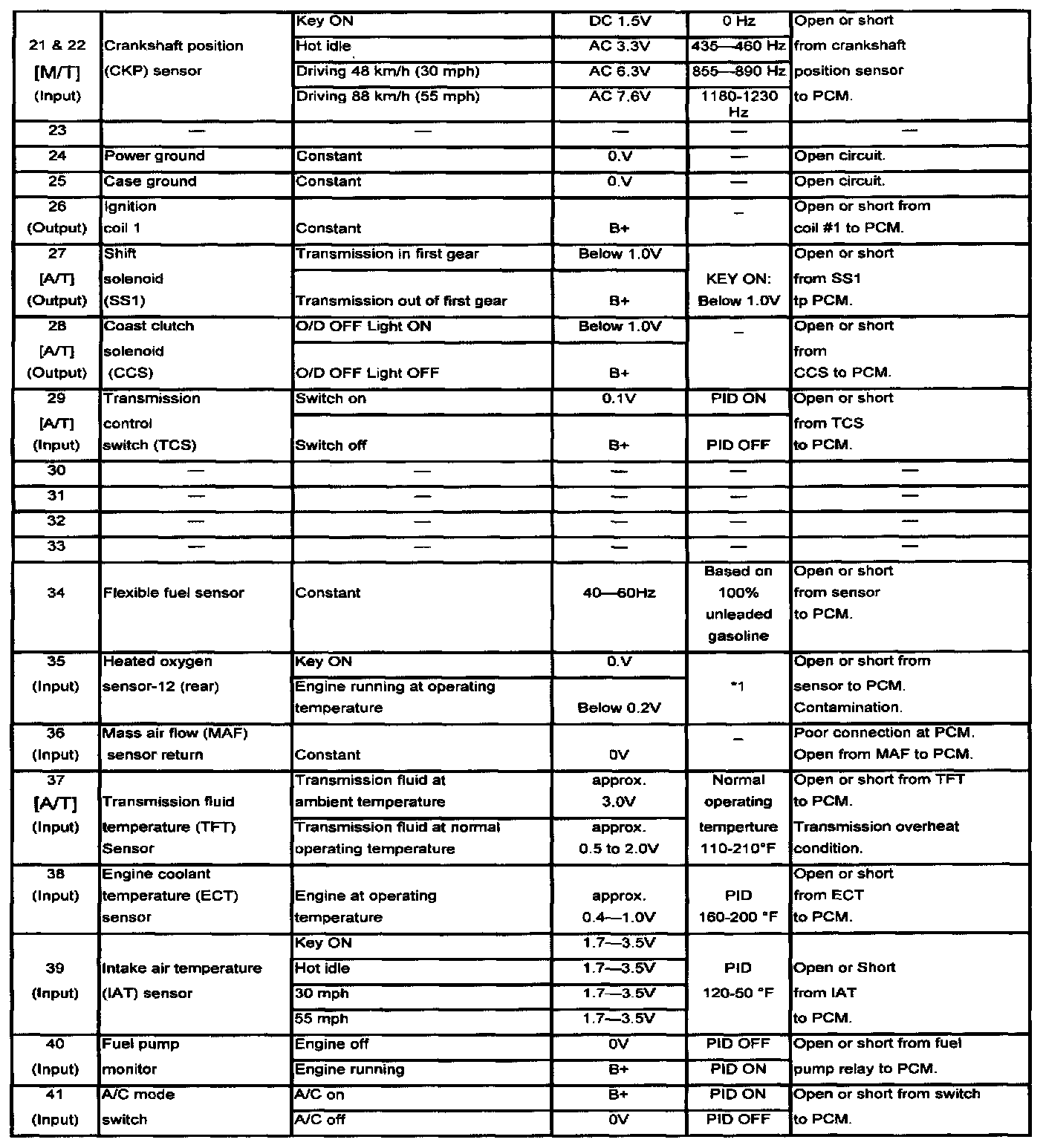

Terminal 21 - 41:

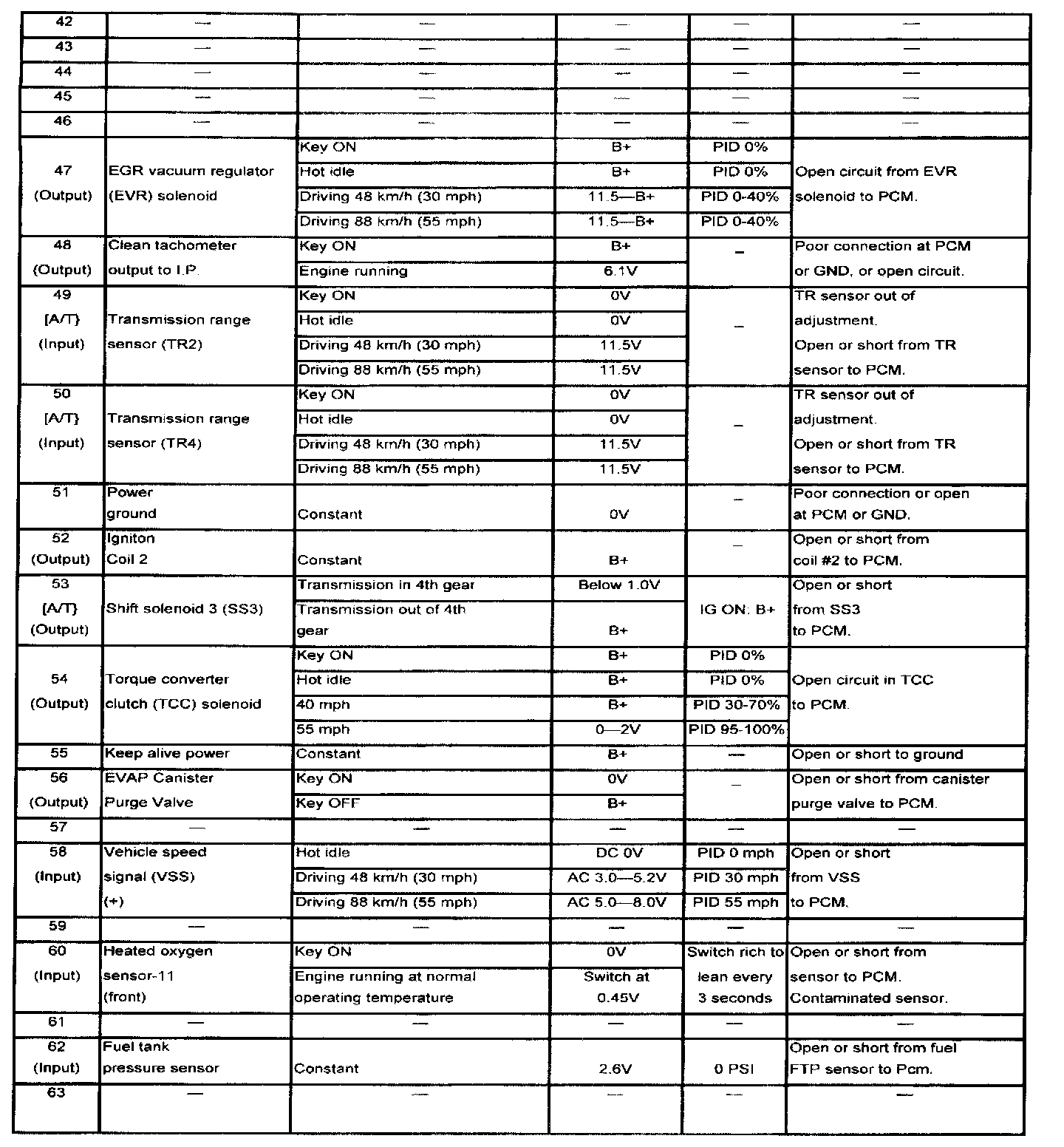

Terminal 42 - 63:

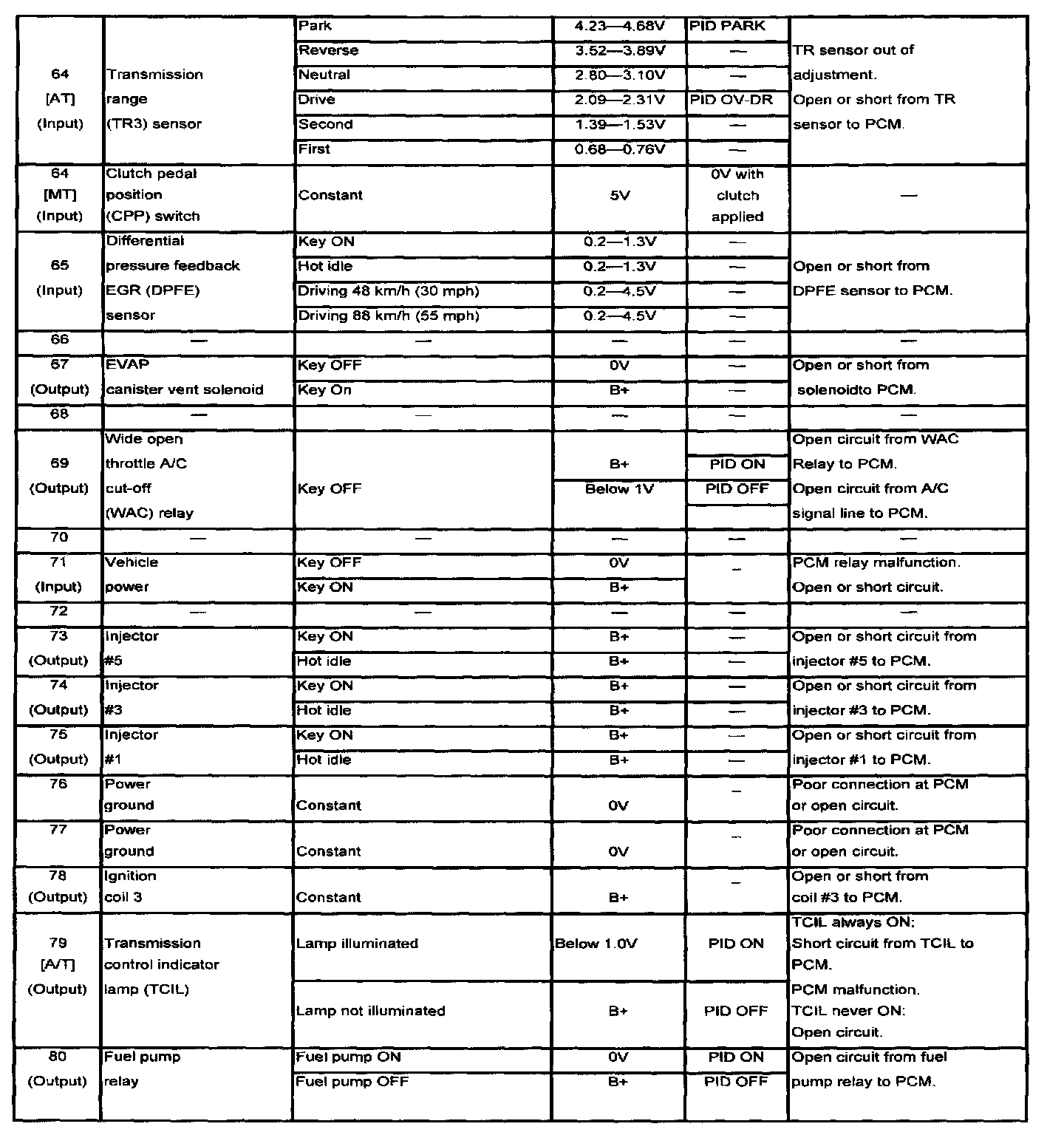

Terminal 64 - 80:

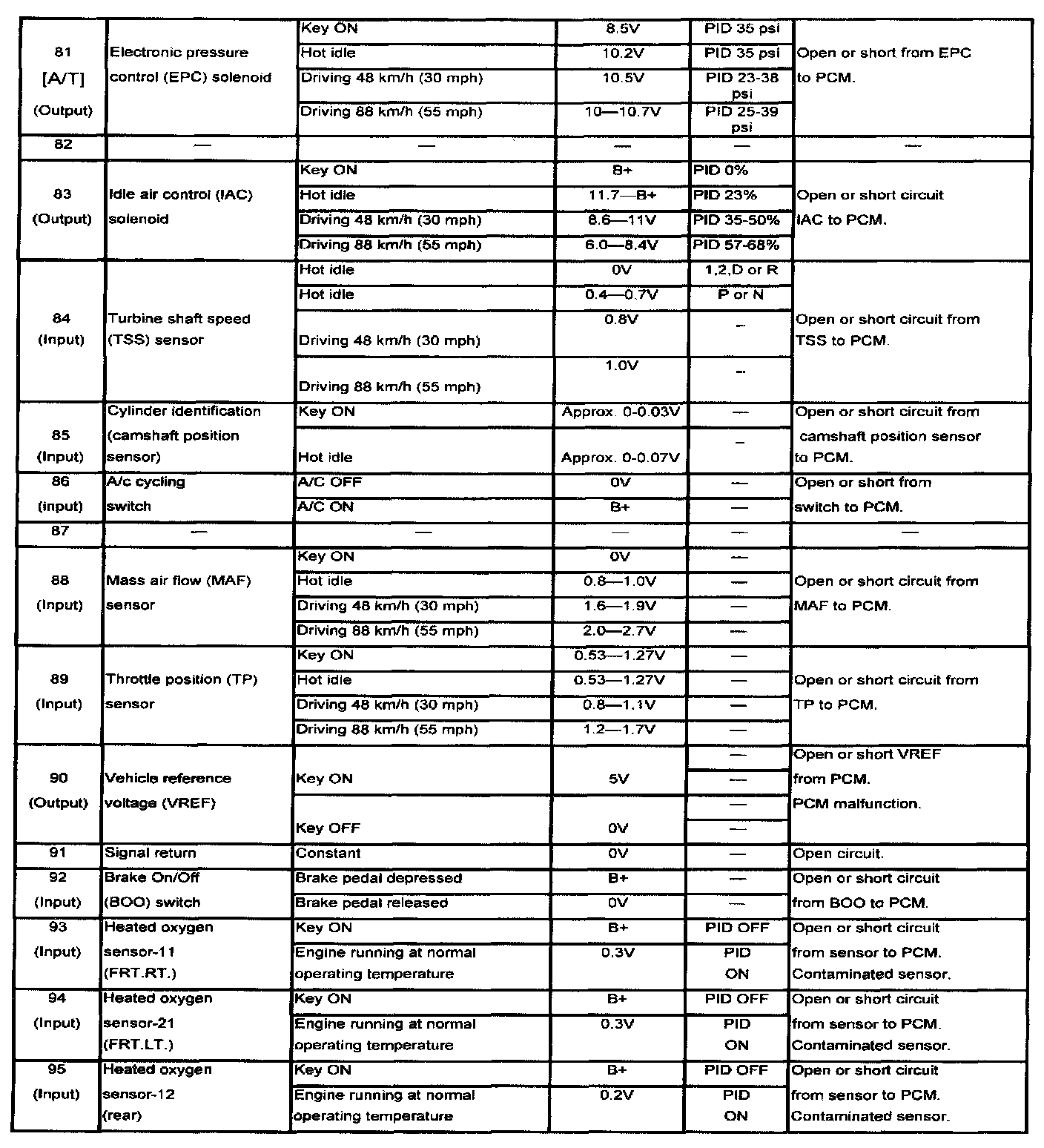

Terminal 81 - 95:

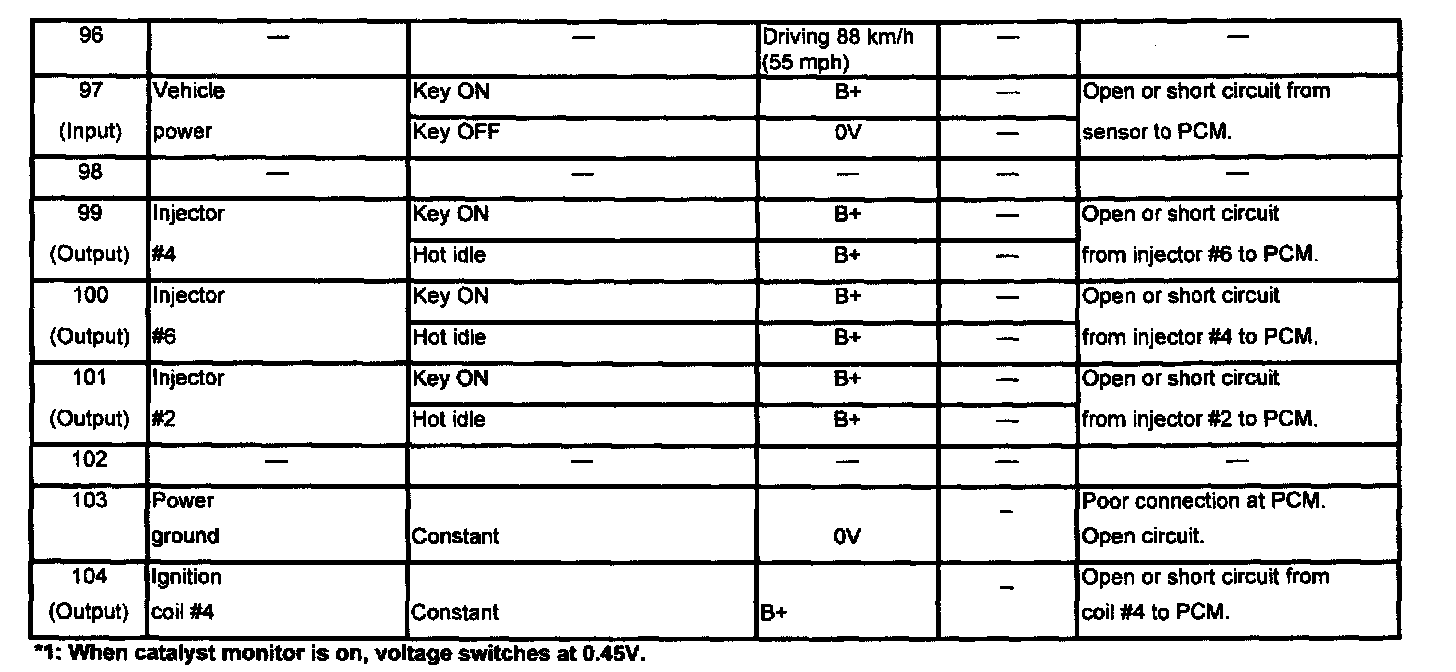

Terminal 97 -104:
