Connector Views

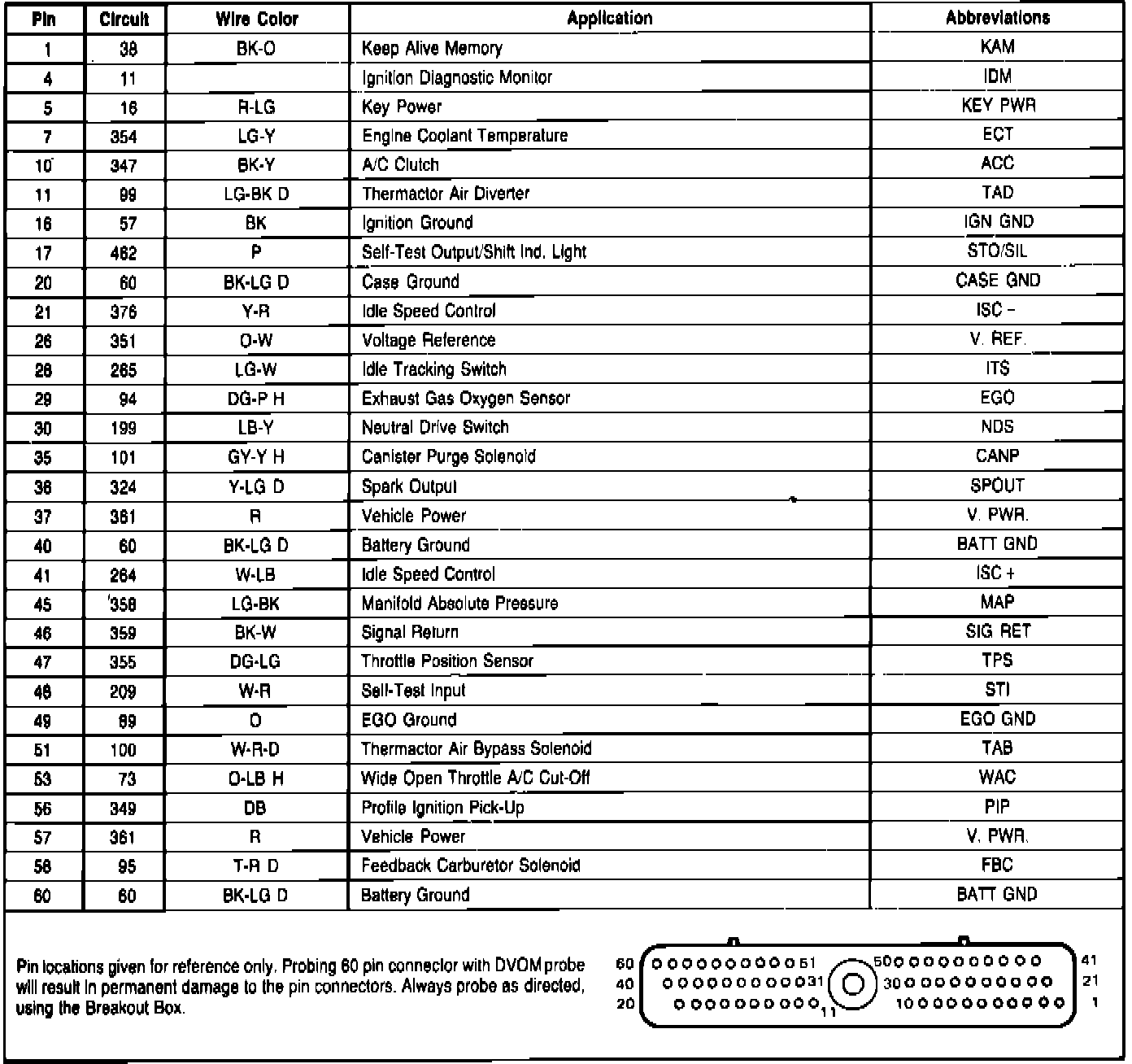

Fig. 161 EEC-IV module connector pin usage. 1985 4-140 overhead cam engine W/feedback carburetor:
