Home >> Mercury >> 1996 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Electronic Climate Control Module

Electronic Climate Control Module

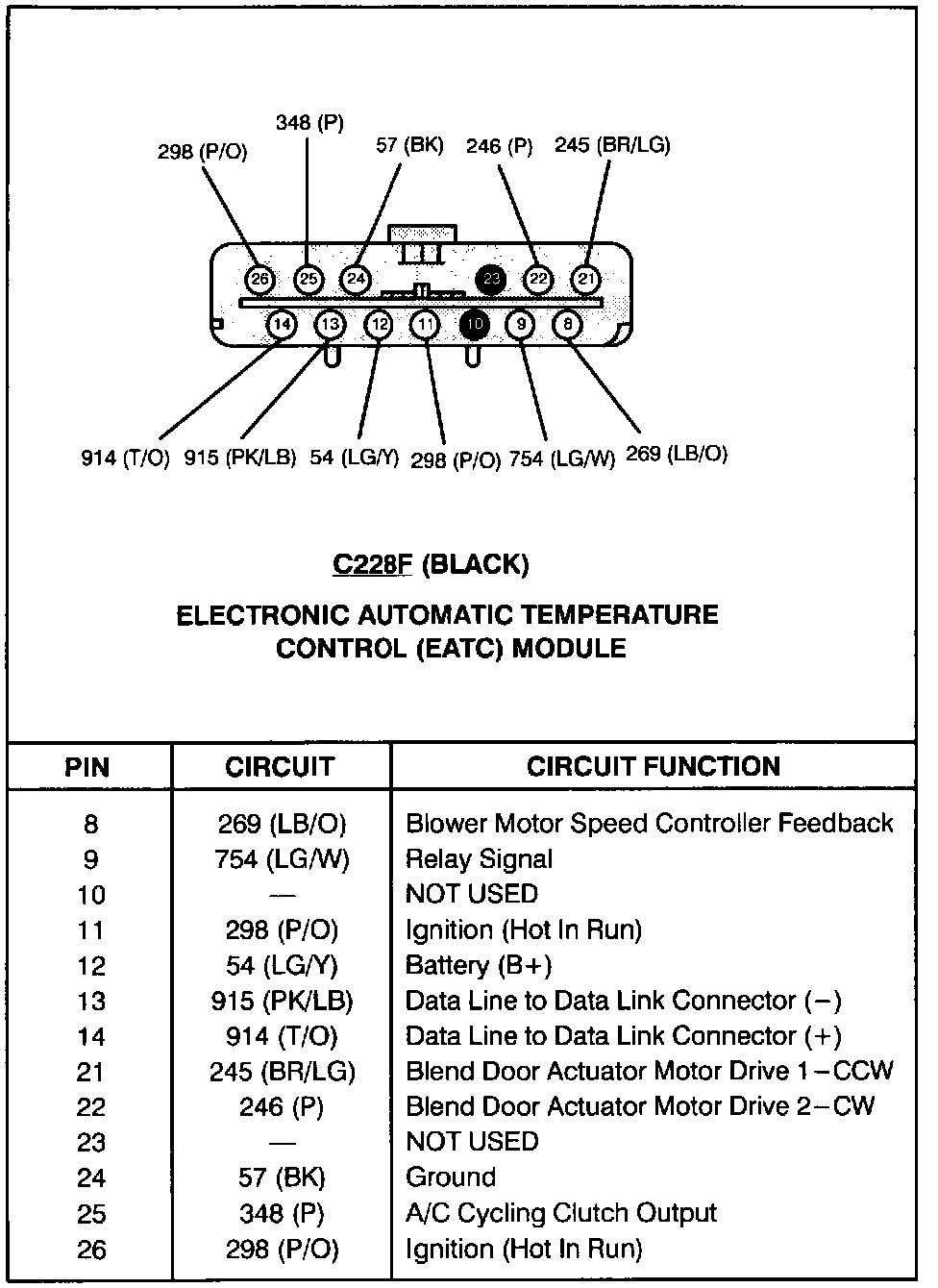

Electronic Automatic Temperature Control Module-C228:

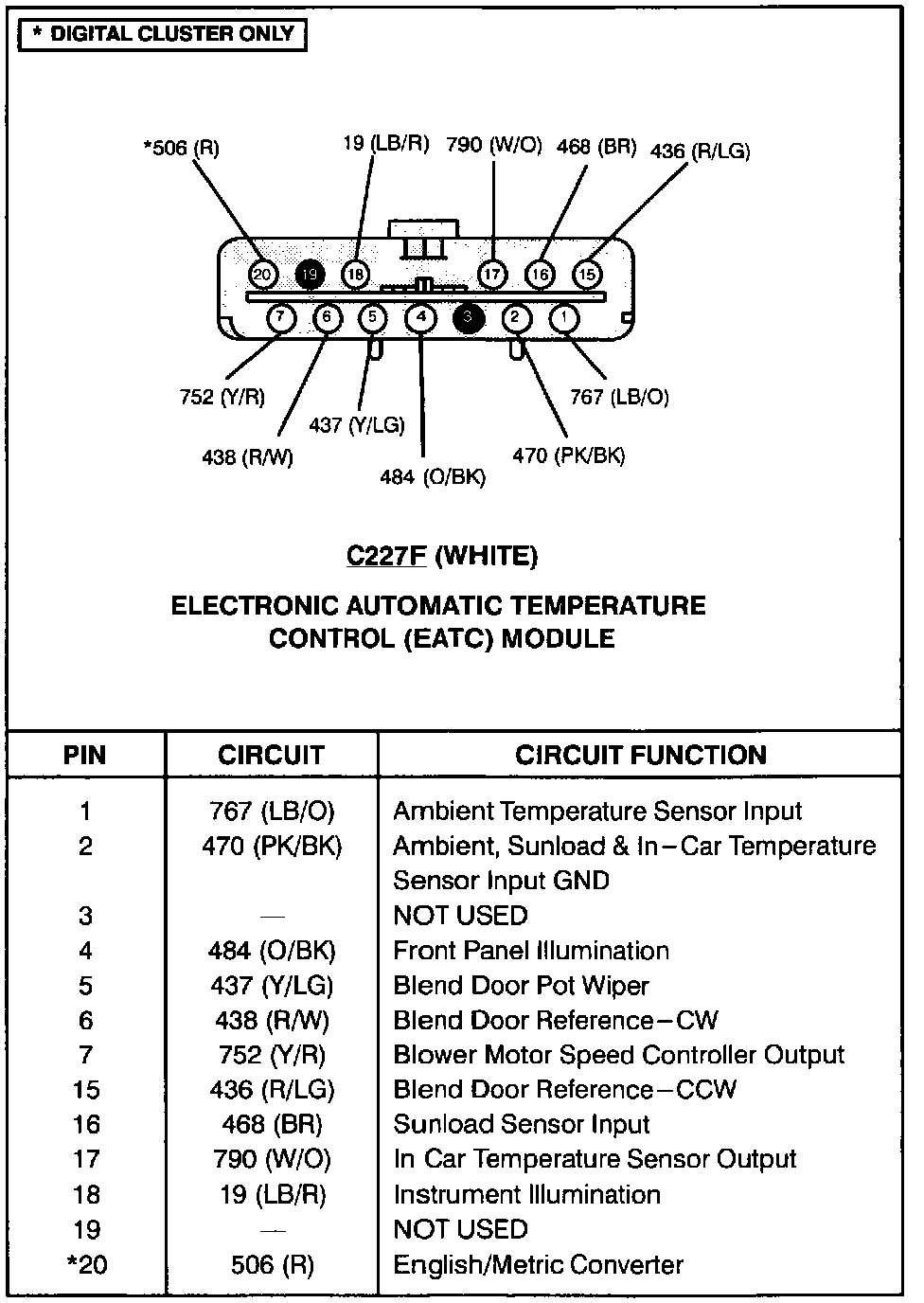

Electronic Automatic Temperature Control Module-C227:
