Home >> Mercury >> 1996 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

Connector Views

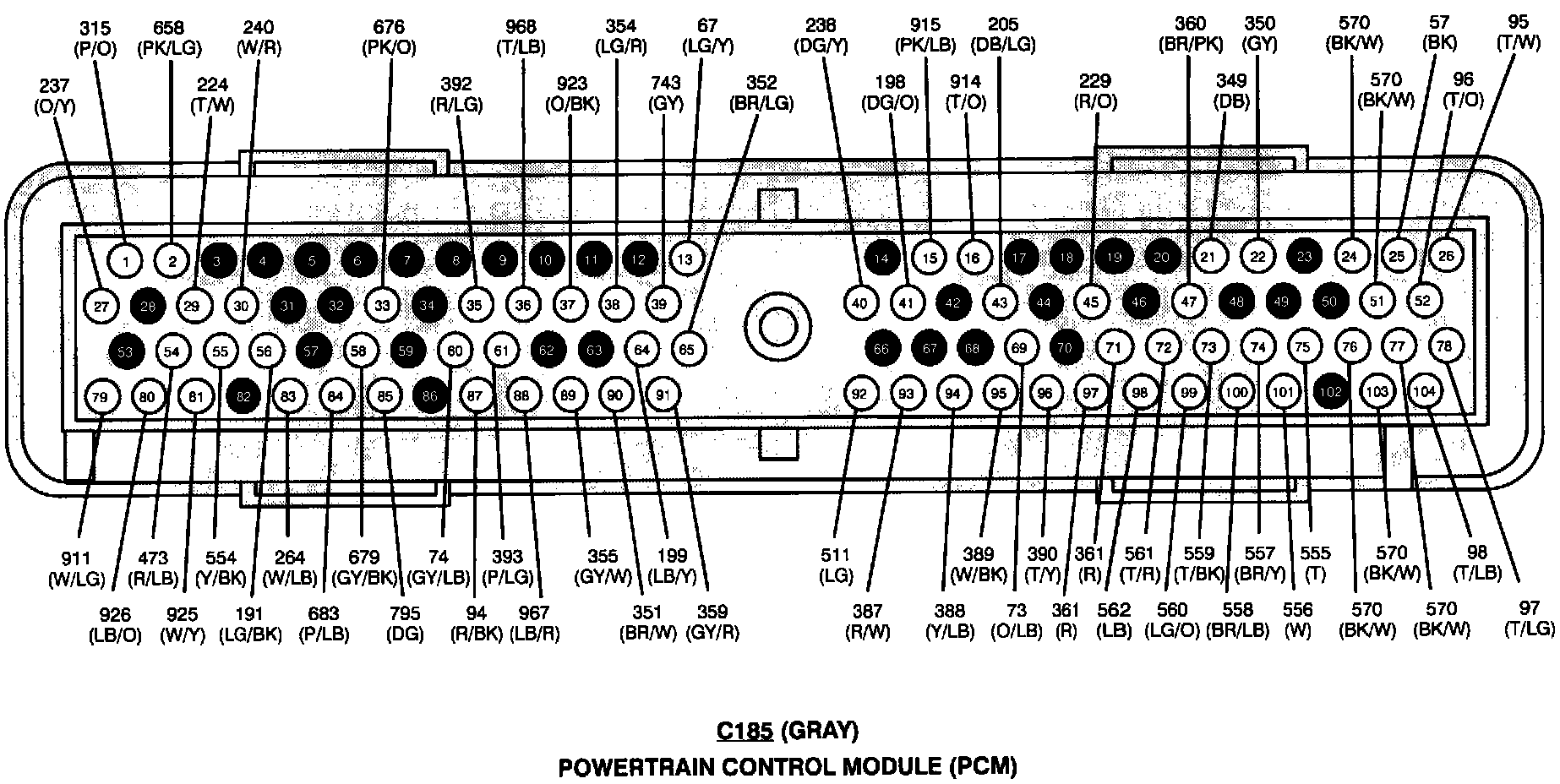

Power Train Control Module (Part 1 Of 2):

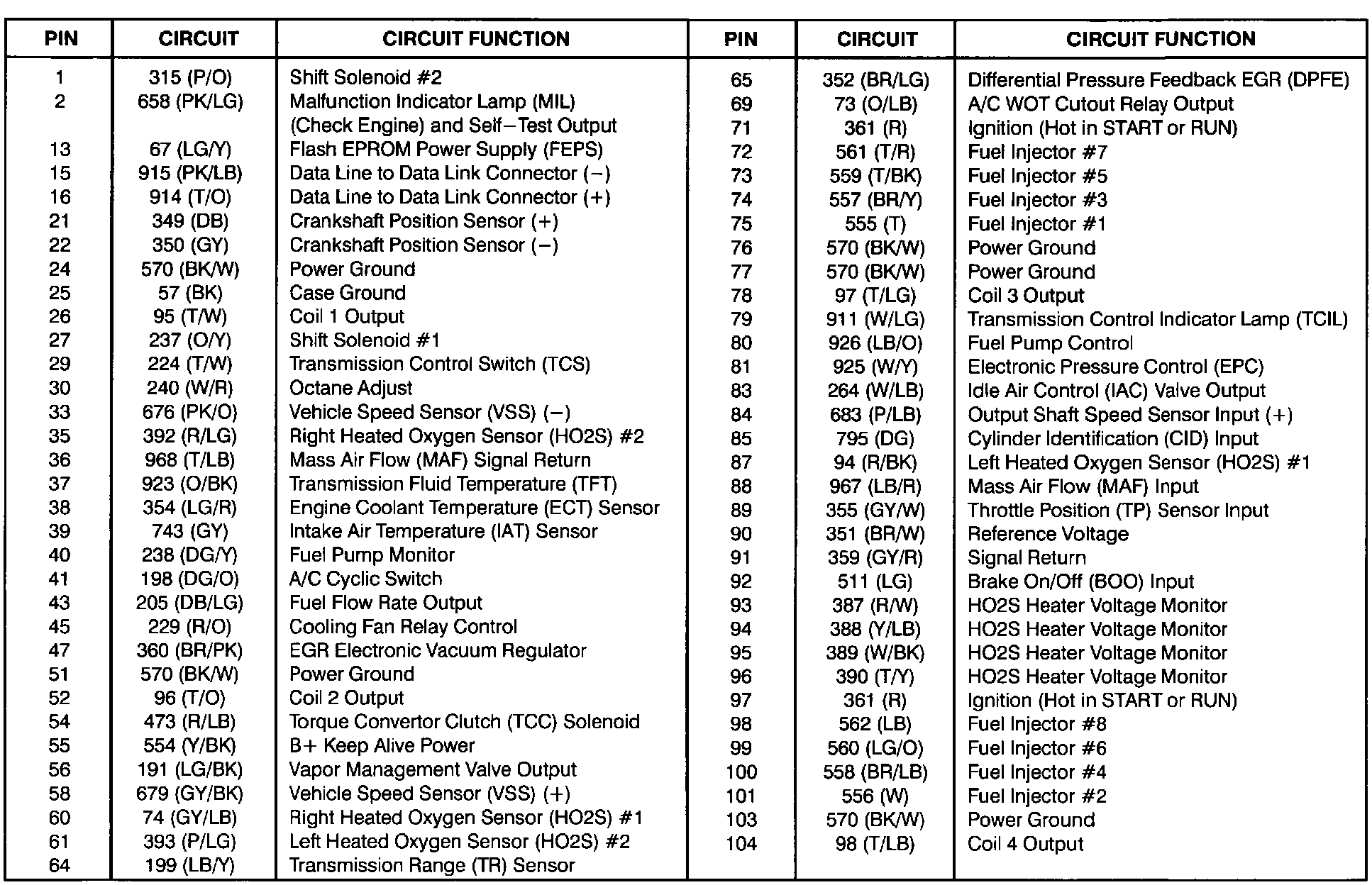

Power Train Control Module (Part 2 Of 2):
