Mercury
>>
1996
>>
Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

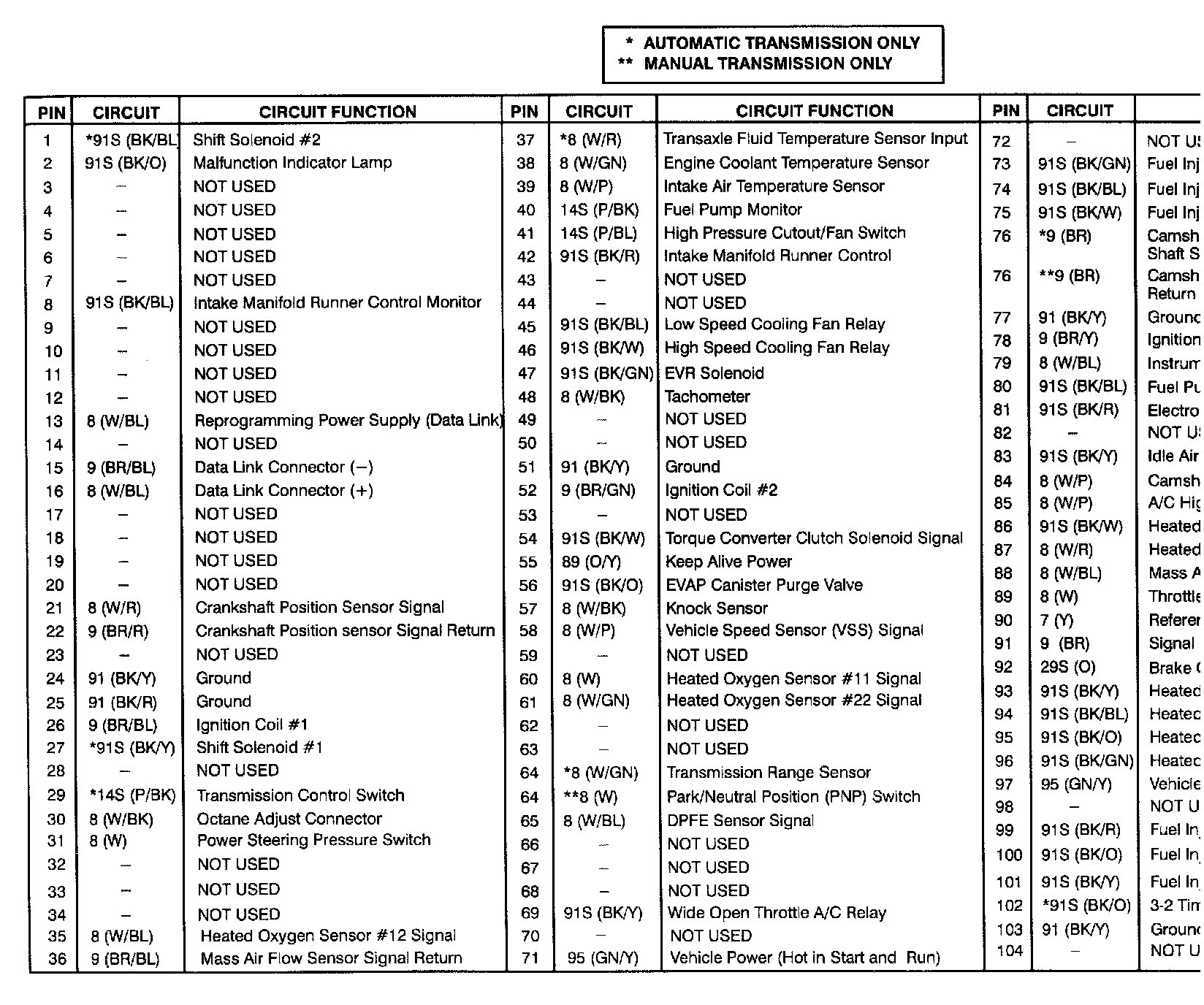

��Connector Legend:

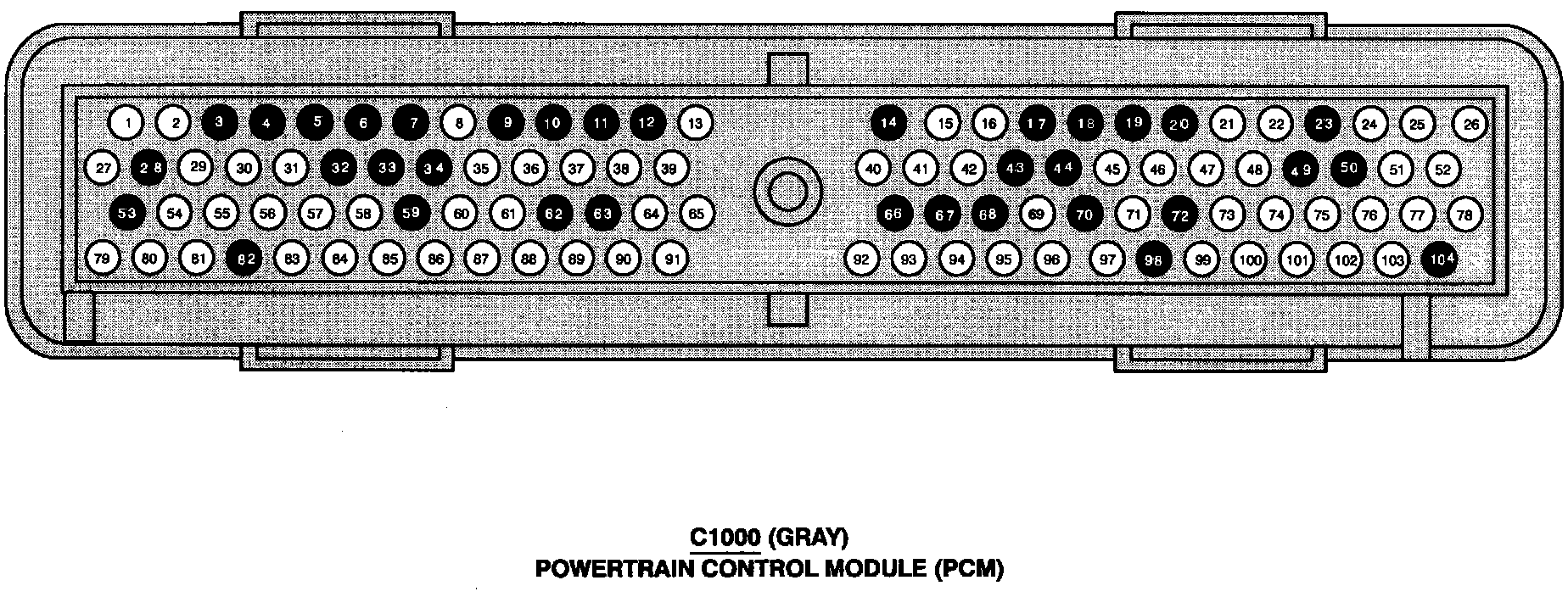

Powertrain Control Module Connector:
