Home >> Mercury >> 2002 >> Villager V6-201 3.3L SOHC VIN T SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Smart Entry Control Timer Module

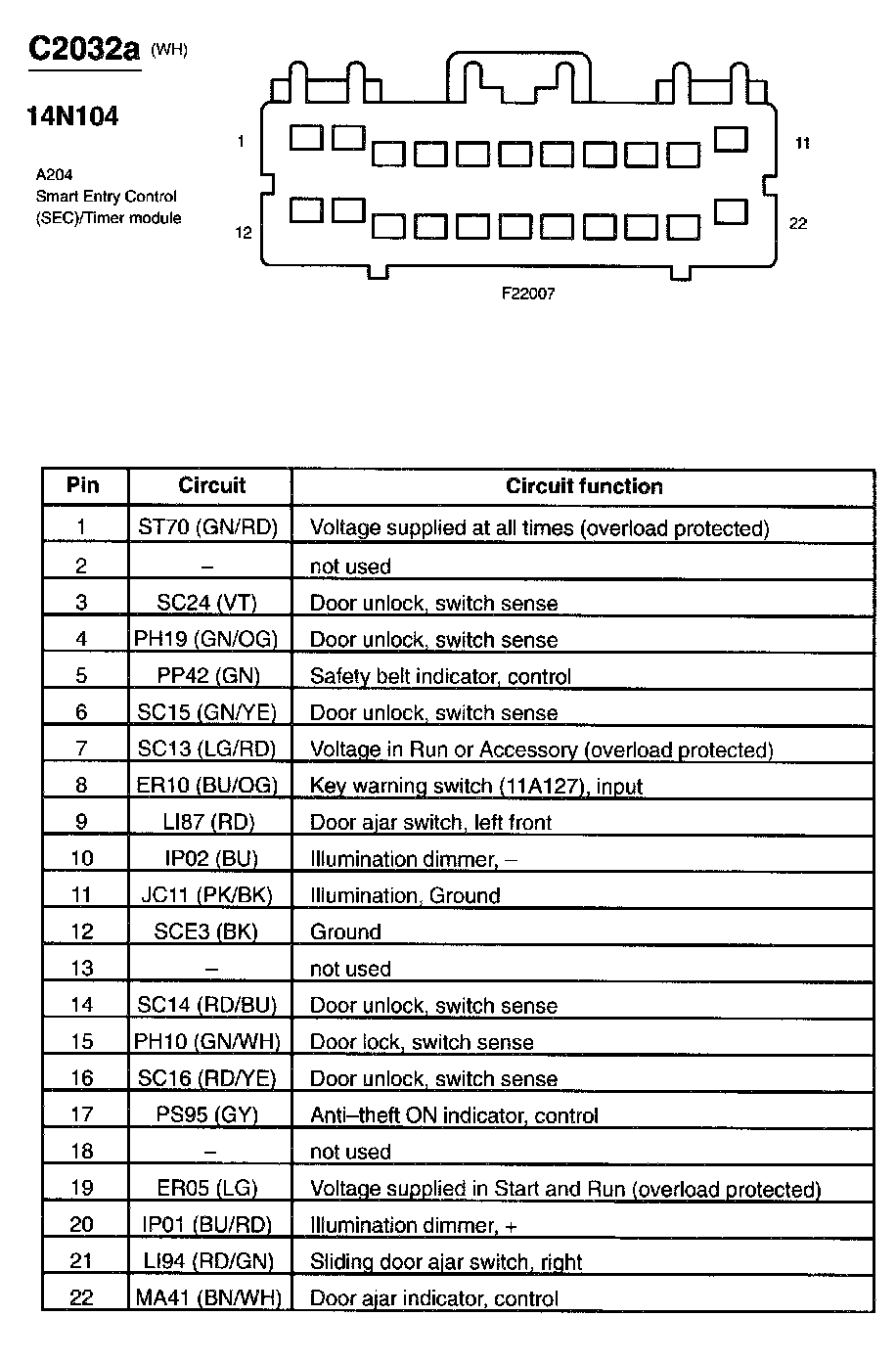

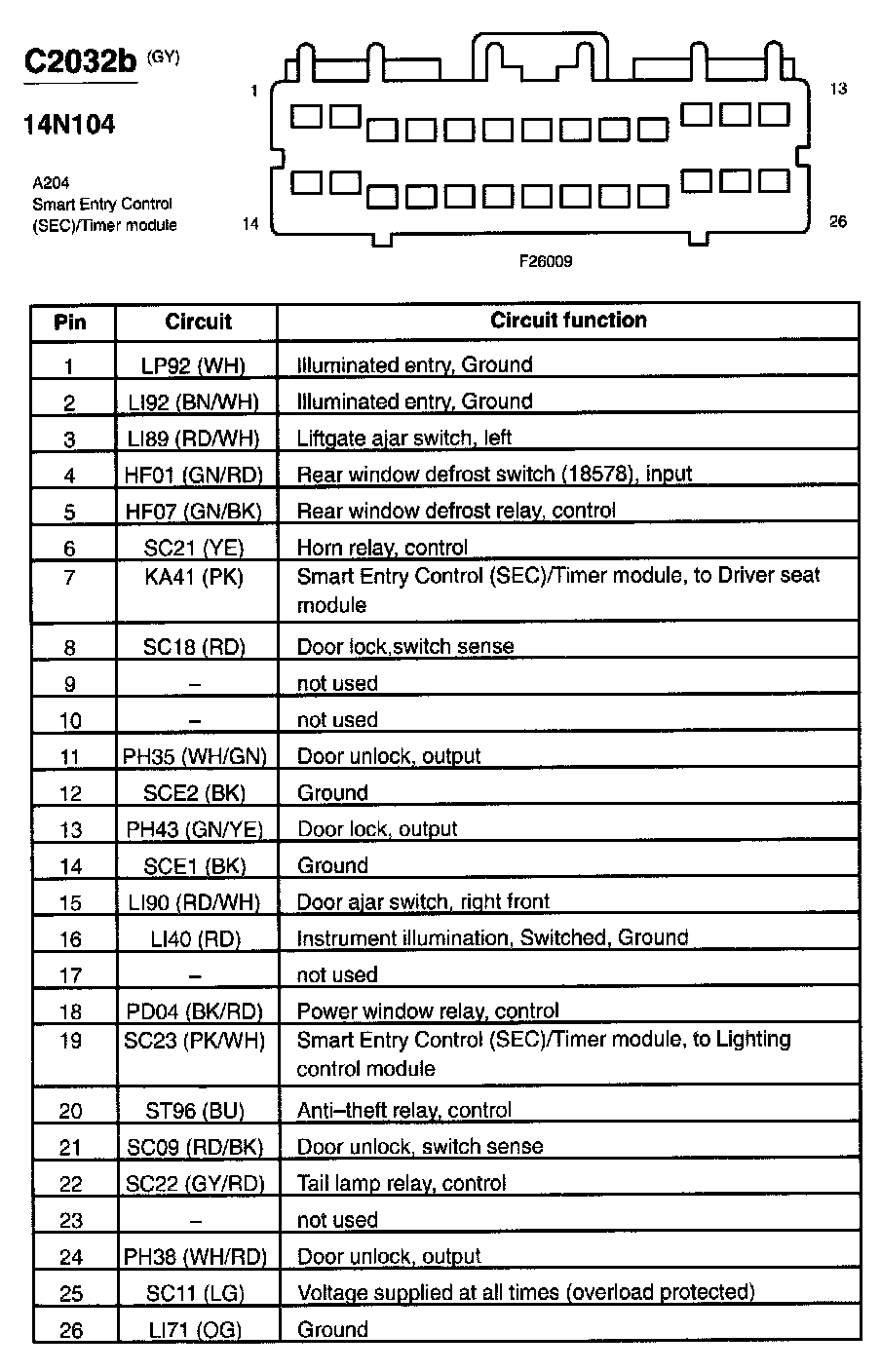

Smart Entry Control Timer Module
