LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
1998
>>
Montero 4WD V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module
Terminal Voltage Check Chart

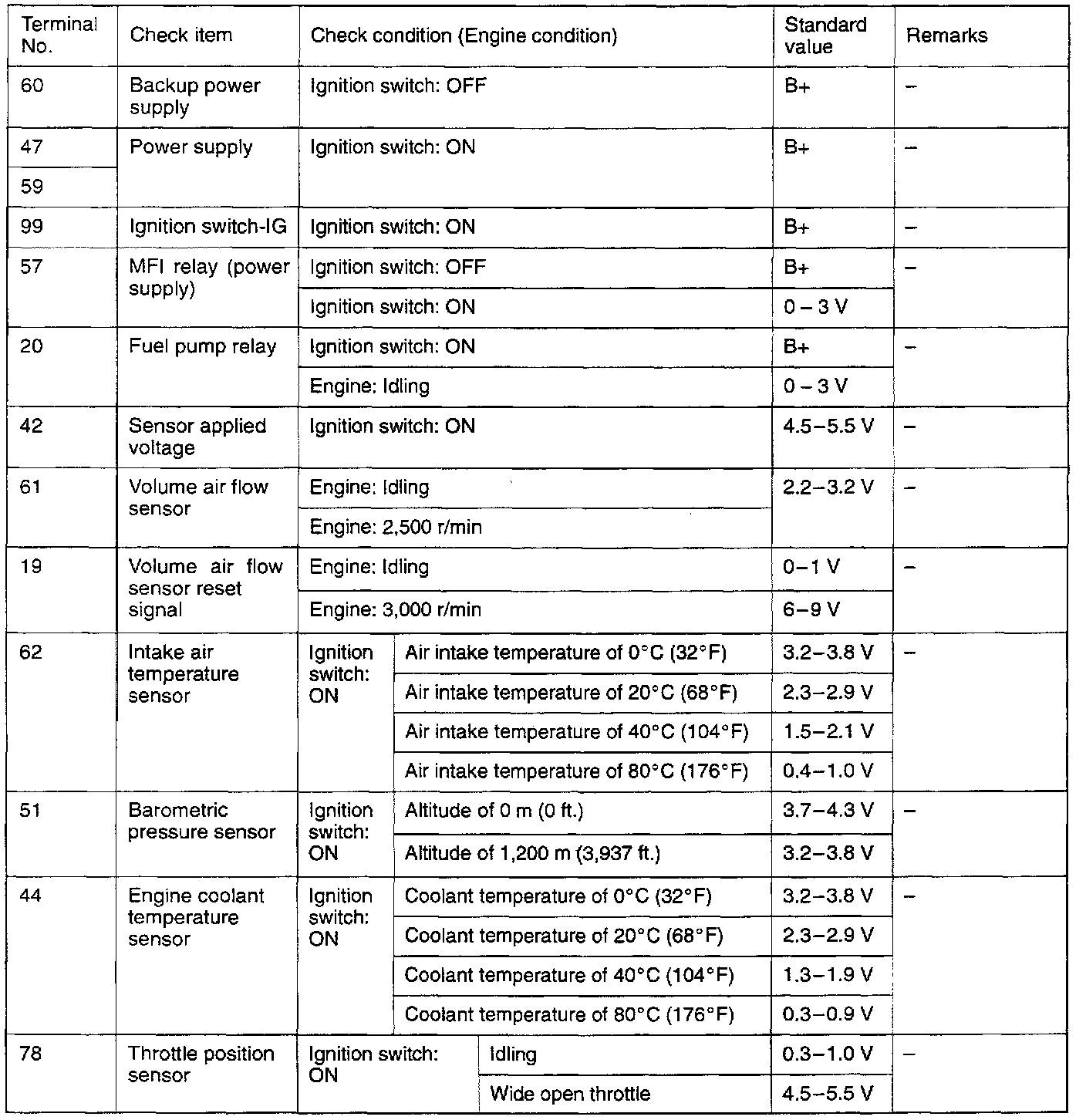

Chart 1 of 5

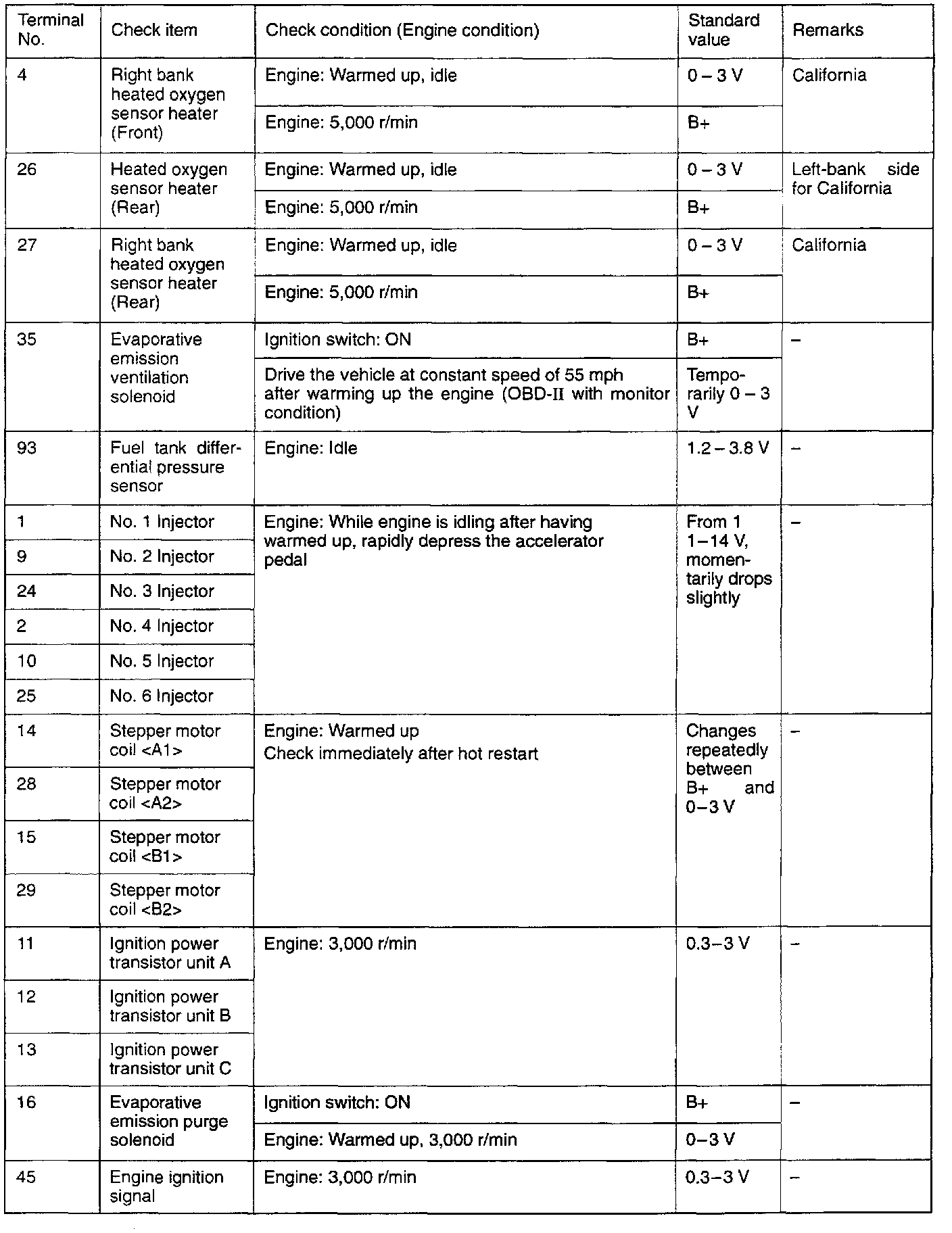

Chart 2 OF 5

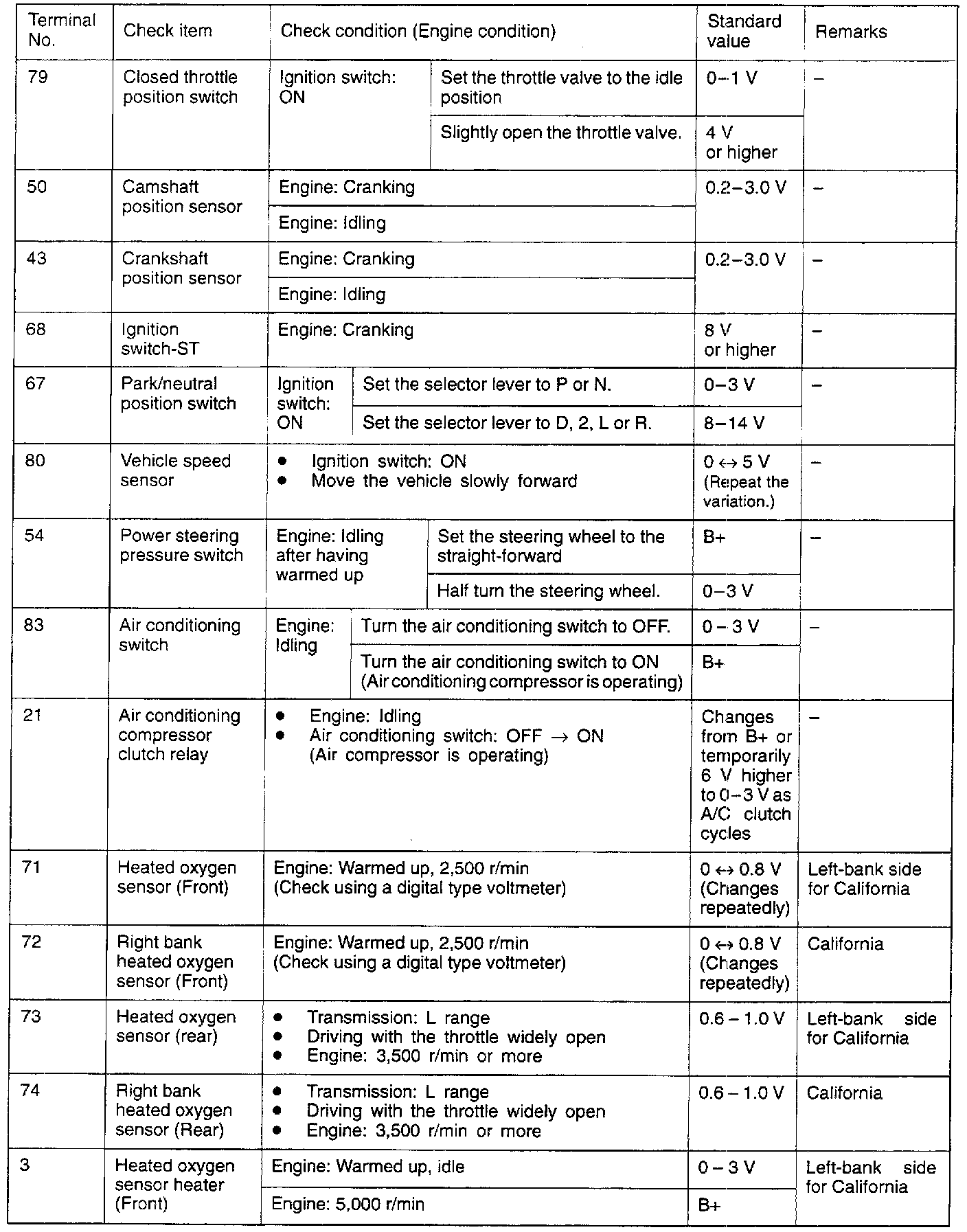

Chart 3 of 5
Chart 4 of 5

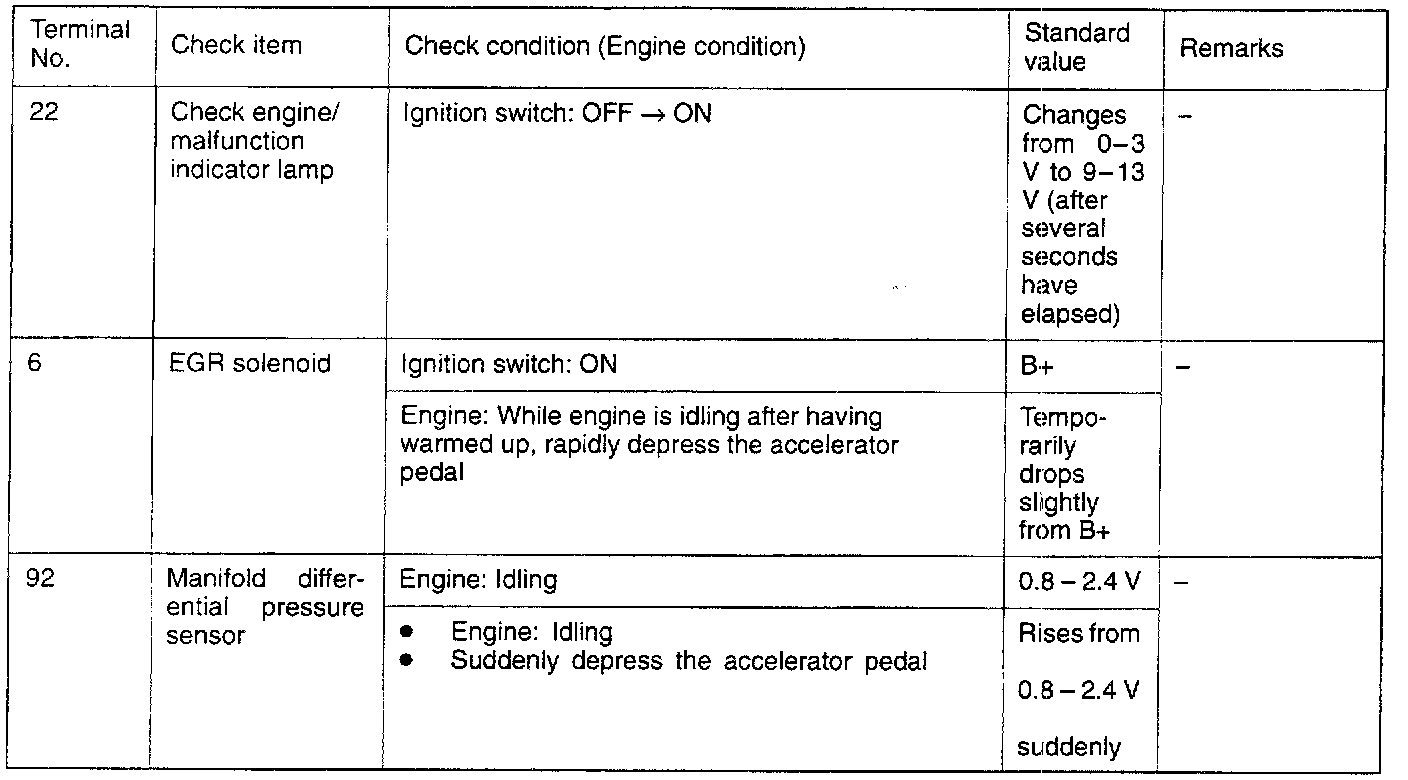

Chart 5 of 5
