Engine Control Module: Locations

Control Unit Location Overall View:

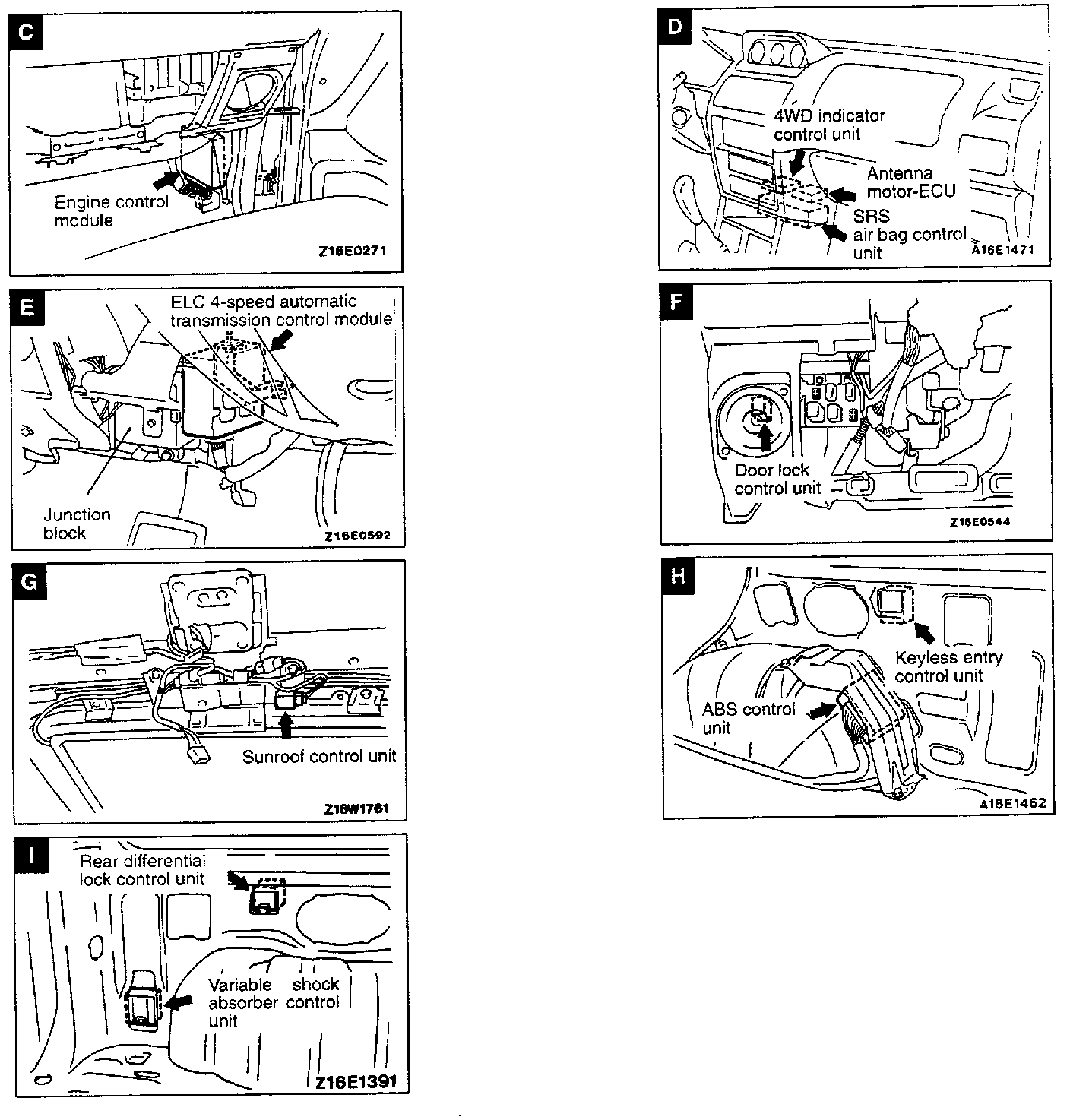

Control Unit Location View C - H:






CONTROL UNIT VIEW
Engine Control Module C
