Engine Control Module

PCM Harness Side Connector Terminal Arrangement:

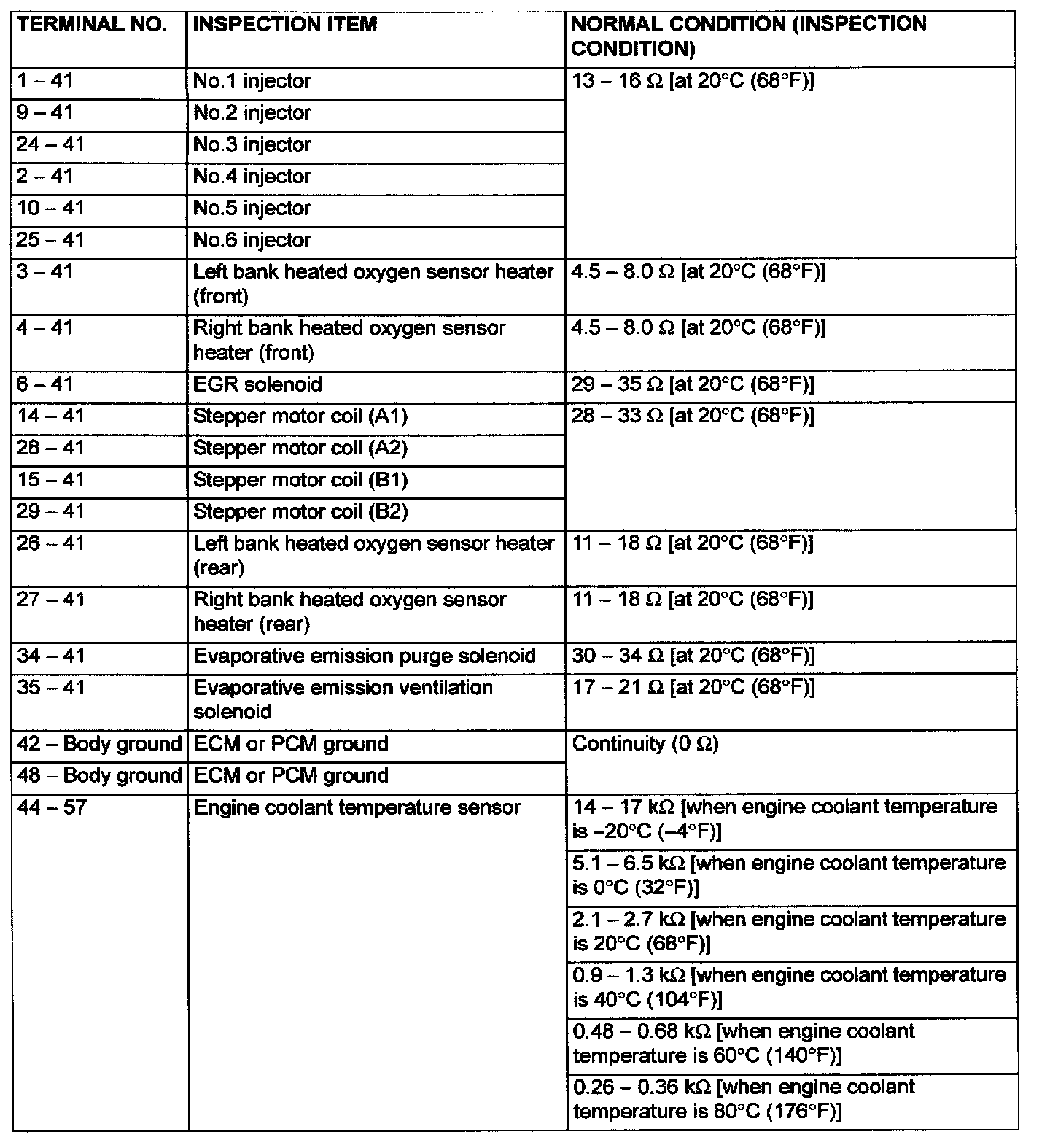

Terminals Part 1:

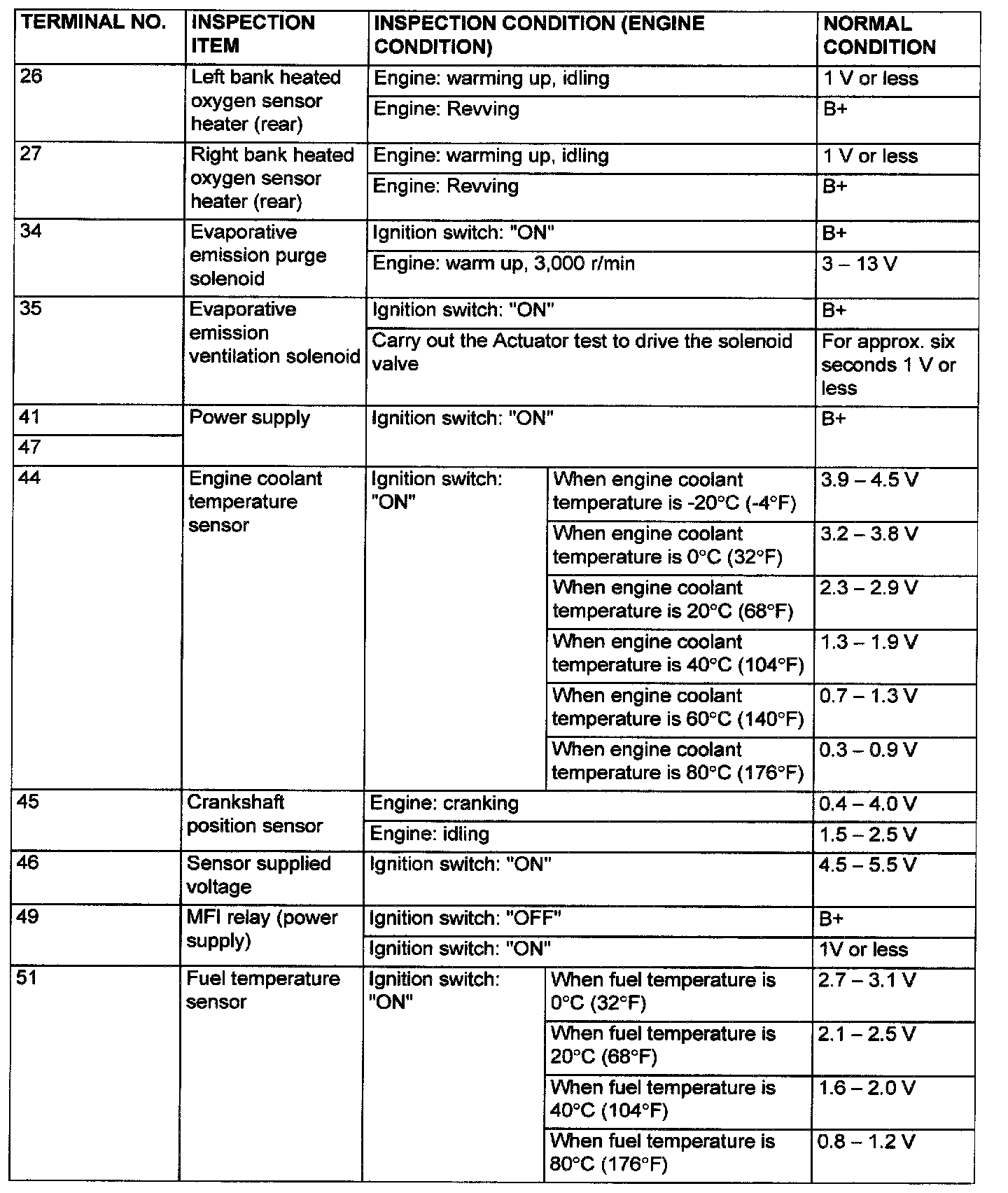

Terminals Part 2:

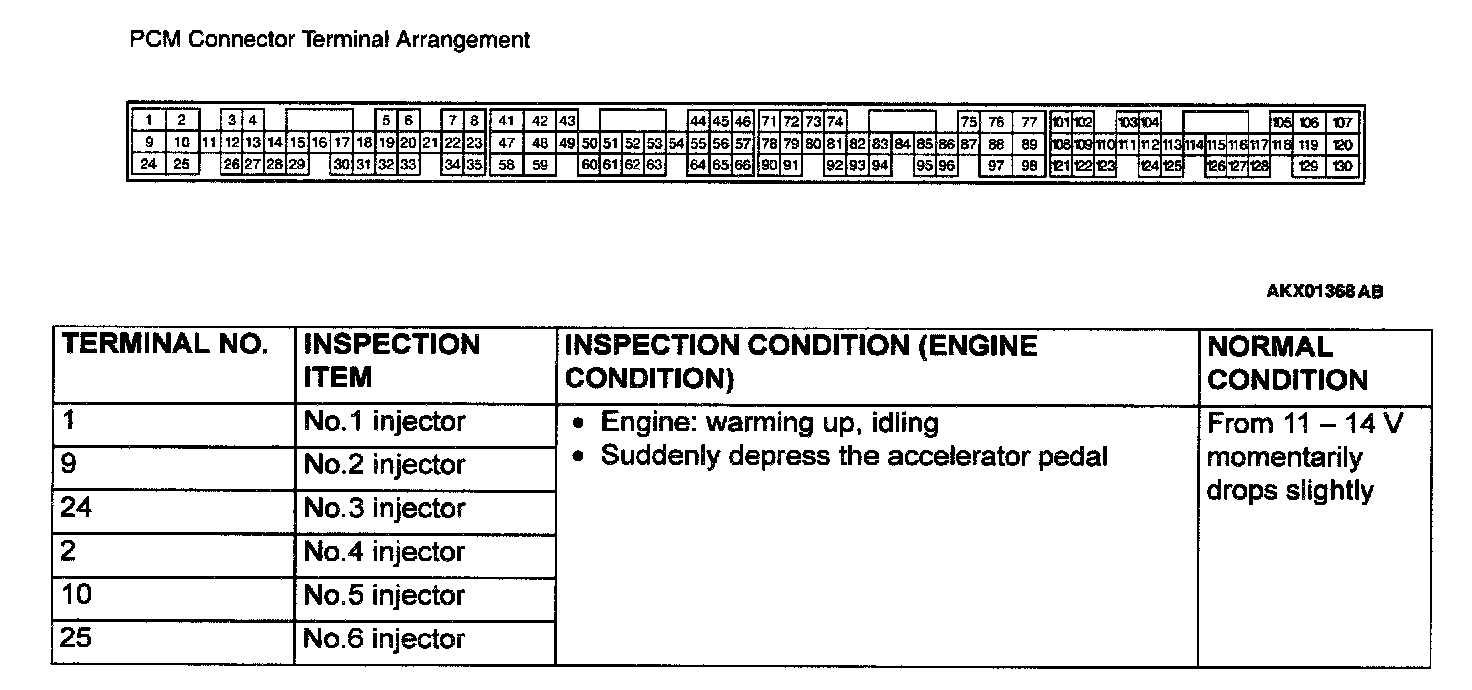

PCM Connector Terminal Arrangement And Terminals Part 1:

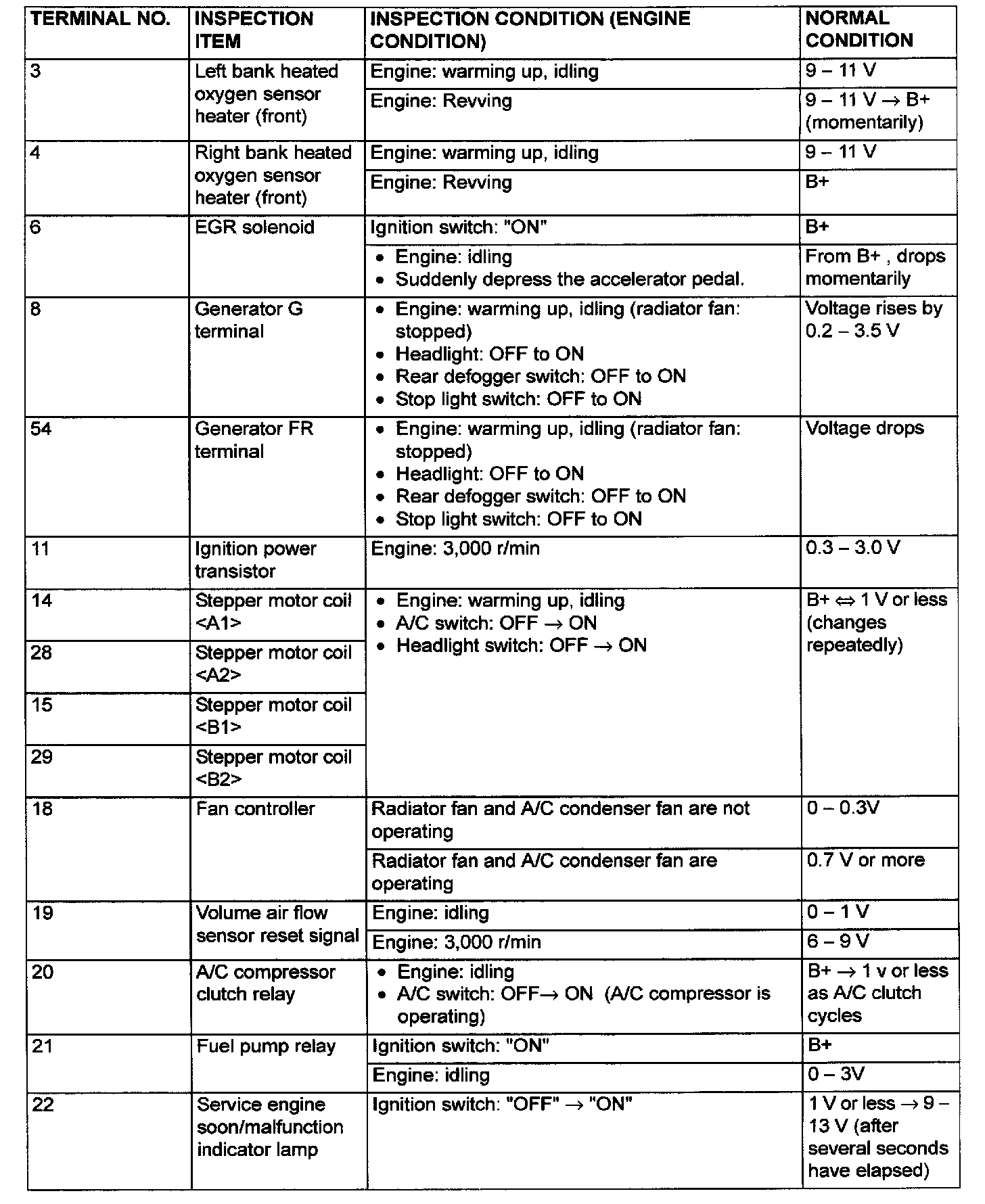

Terminals Part 2:

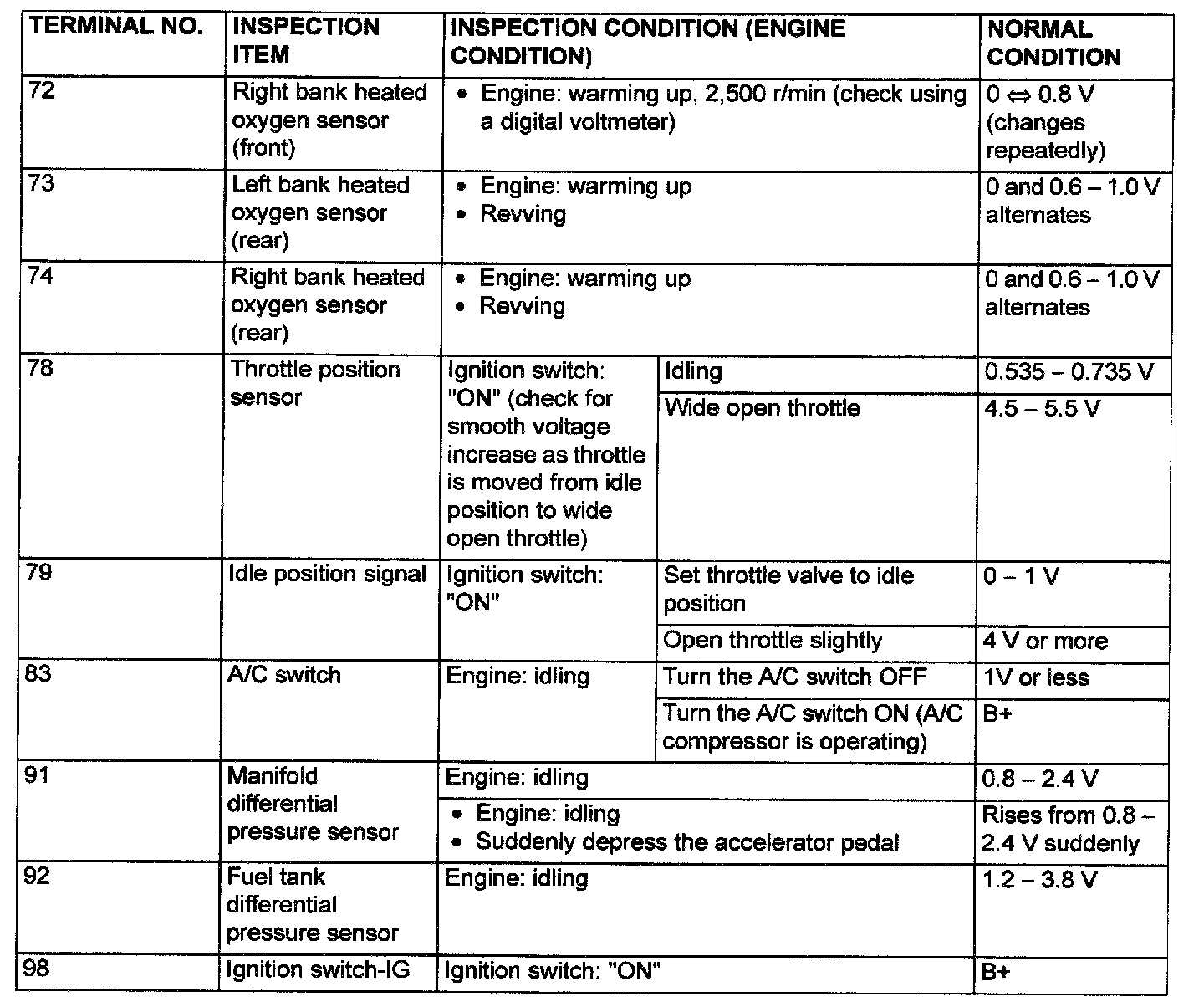

Terminals Part 3:

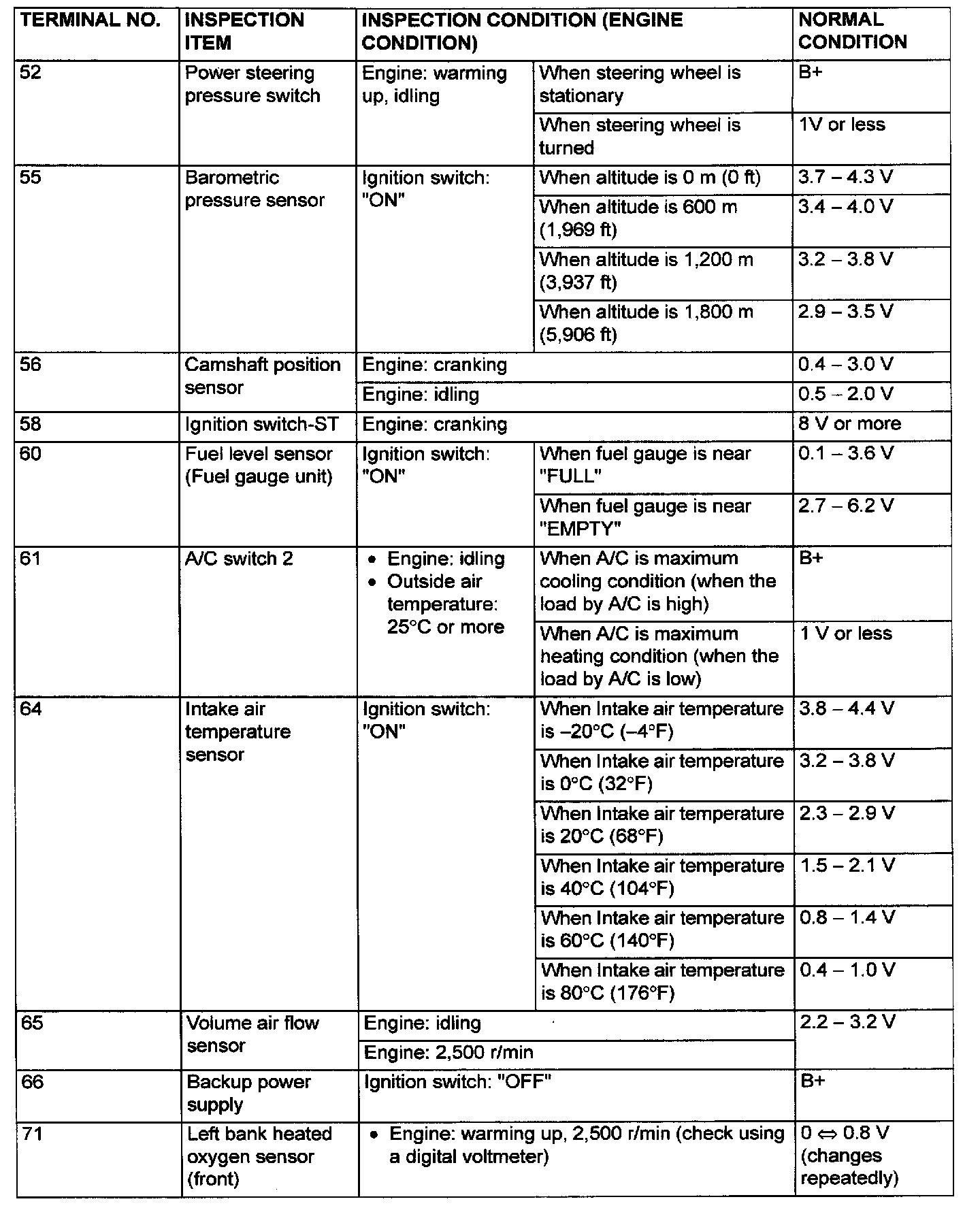

Terminals Part 4:



Terminals Part 5:
