Engine Control Module: Specifications

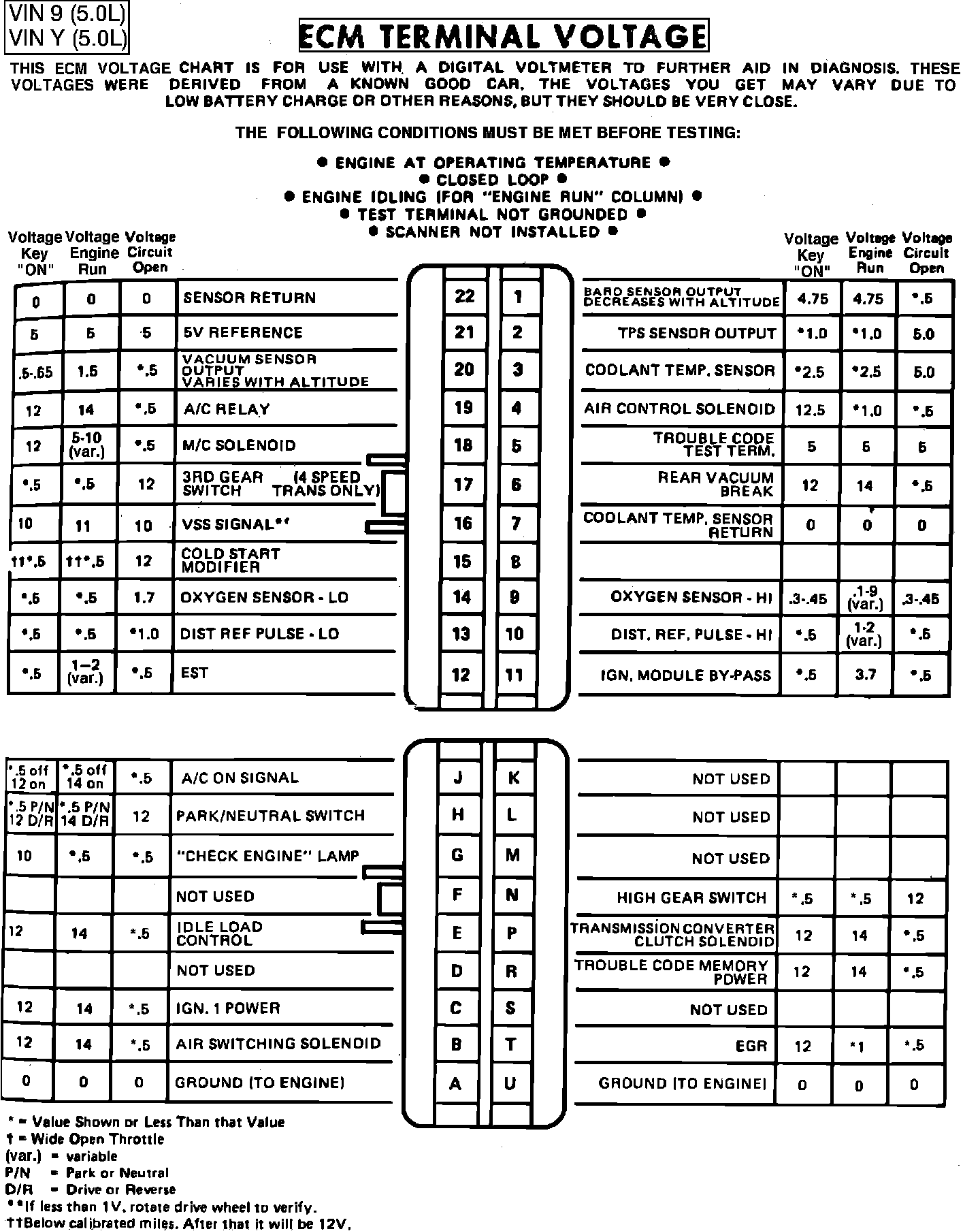

Fig. 010 - ECM Connector Terminal Identification & Voltage Specifications.:
