Engine Control Module

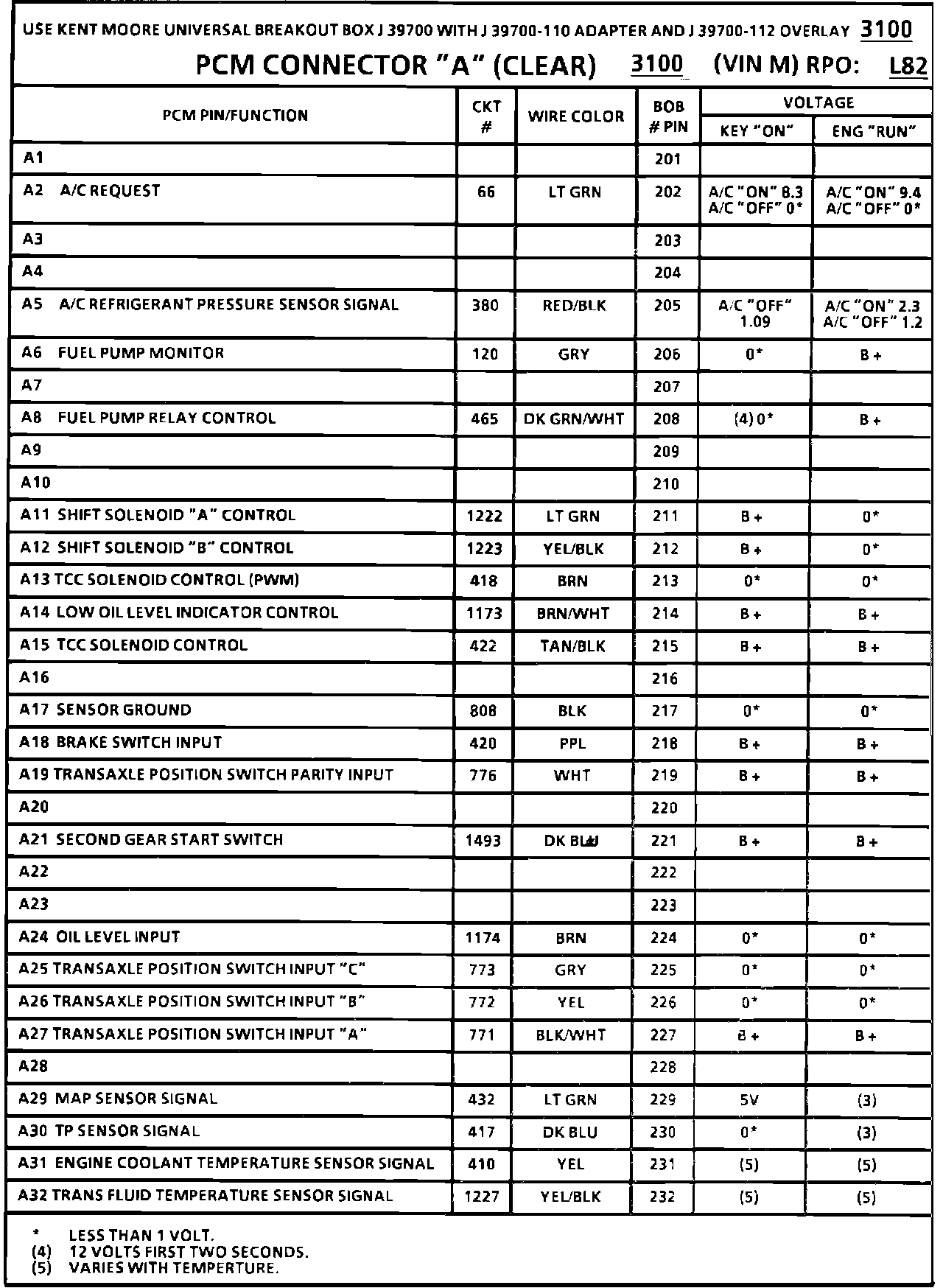

PCM Terminal/Voltage Reference Chart (1 Of 3):





PCM Connector A

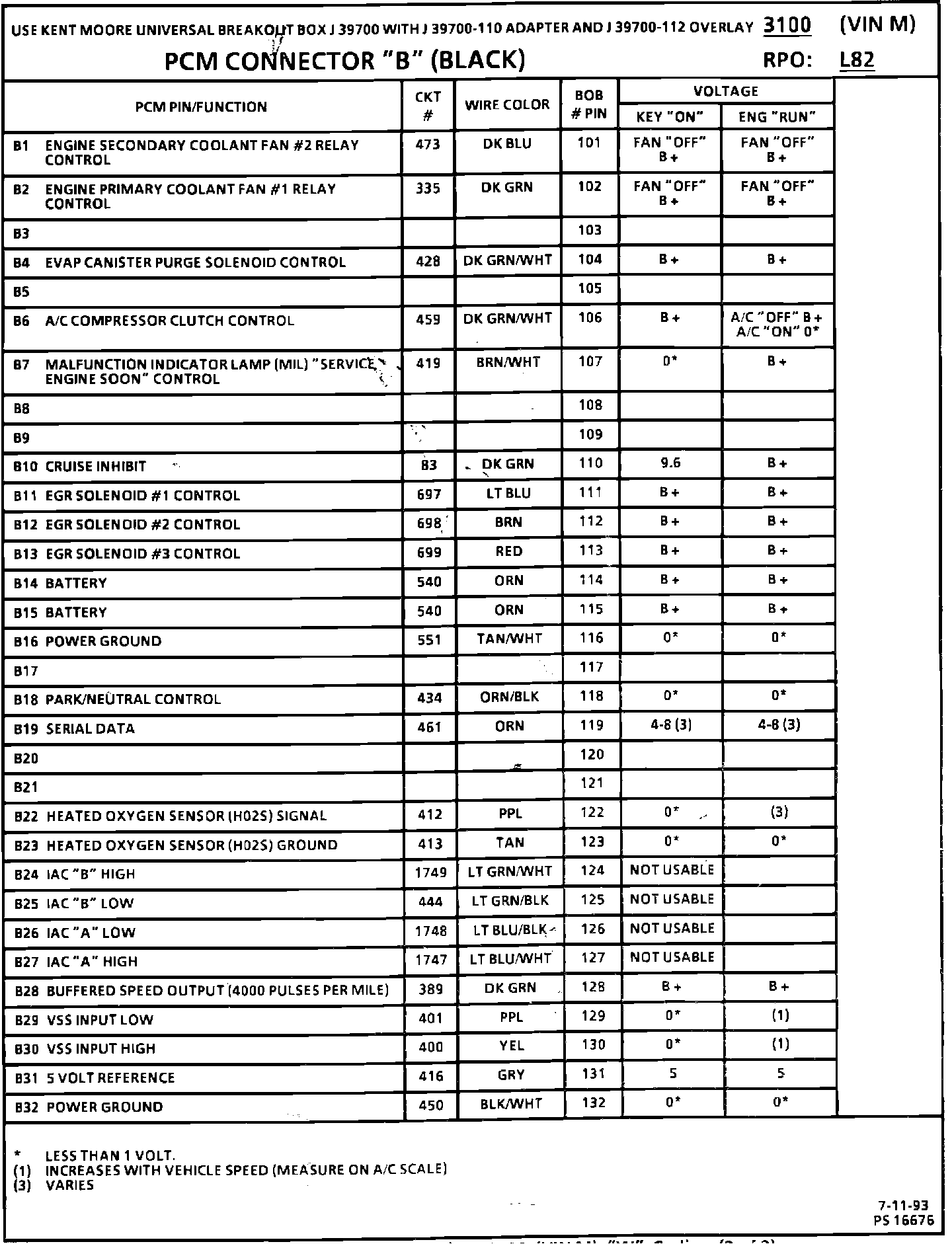

PCM Terminal/Voltage Reference Chart (2 Of 3):





PCM Connector B

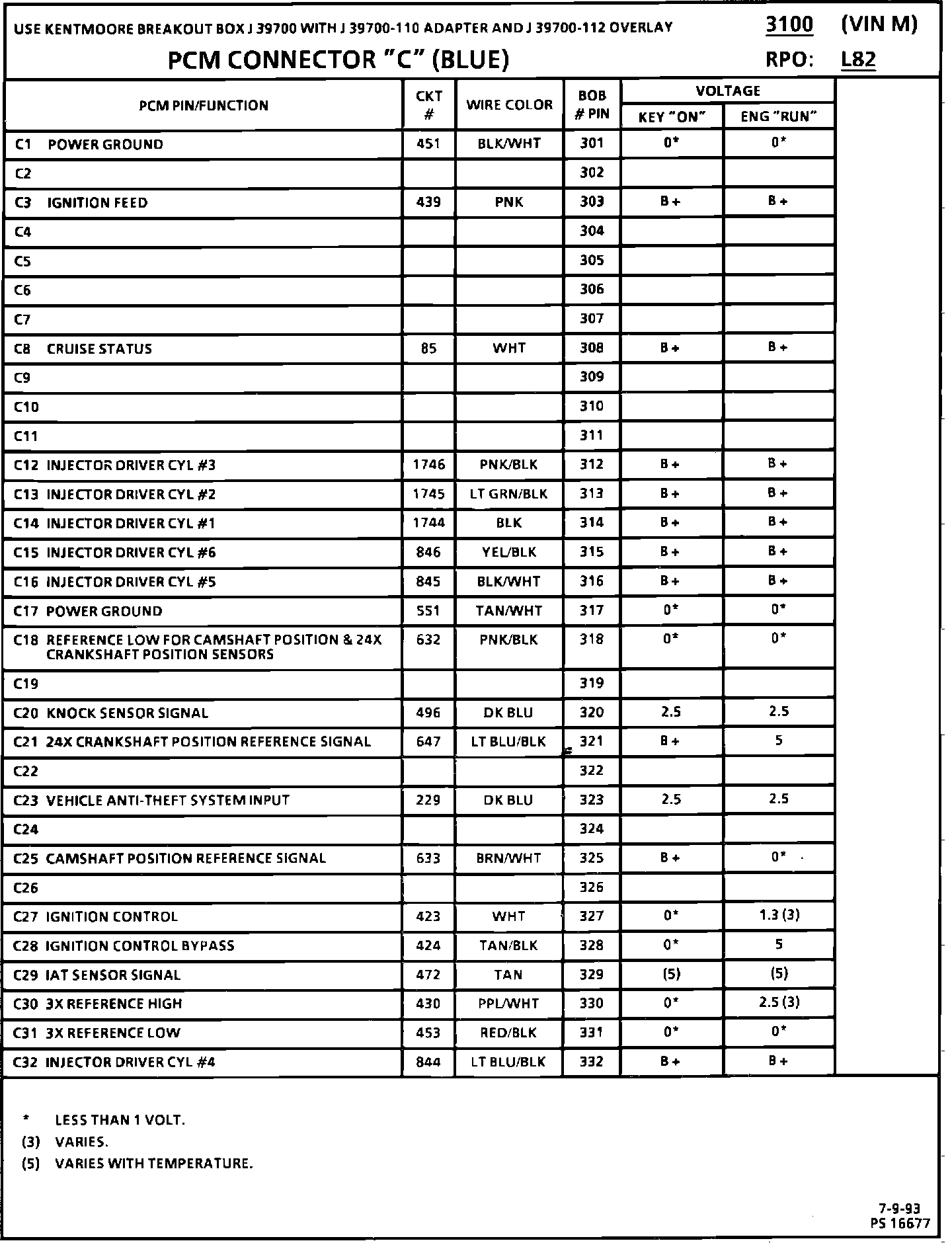

PCM Terminal/Voltage Reference Chart (3 Of 3):





PCM Connector C
