Logic Module Black Connector

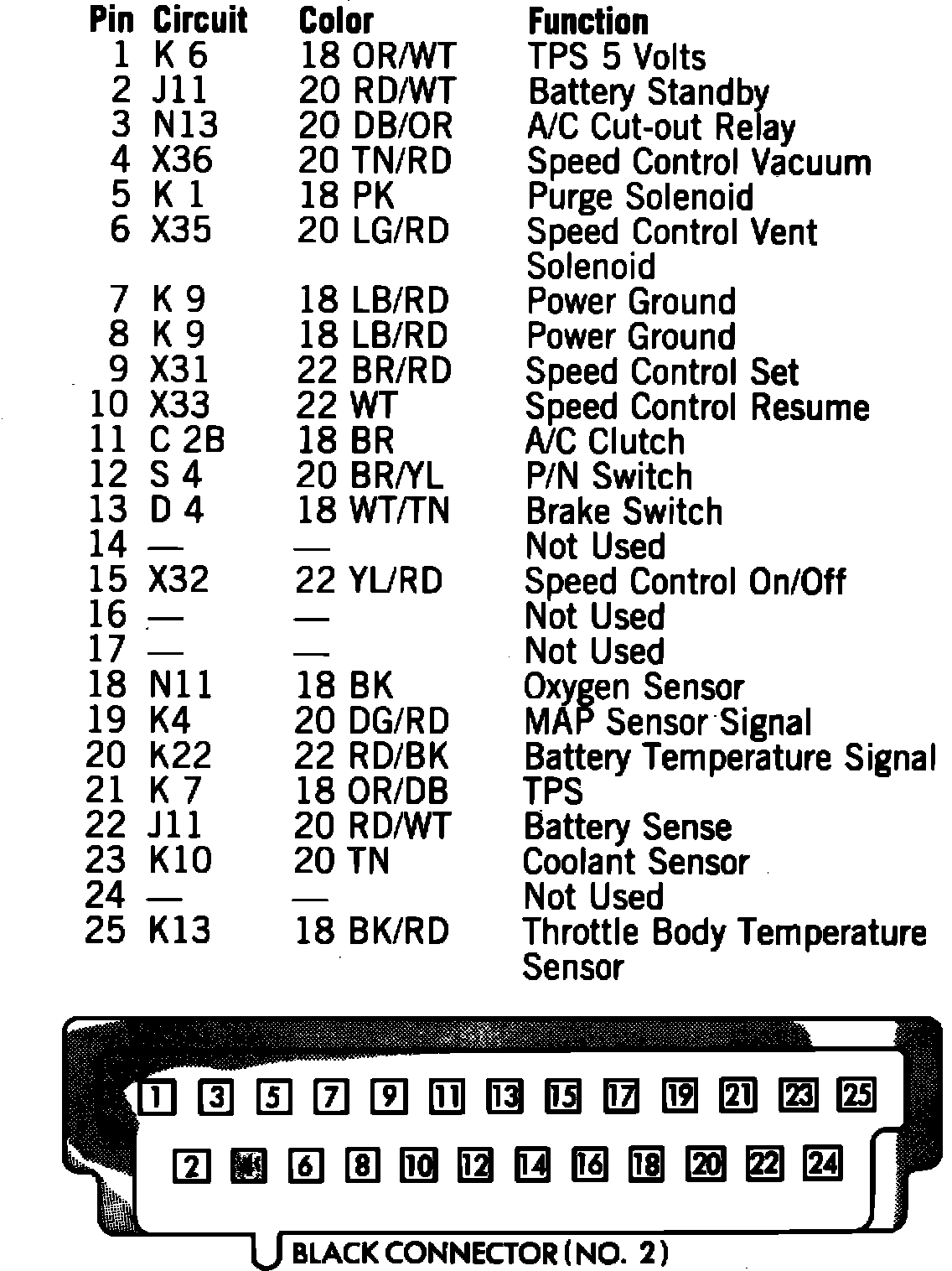

Fig. 10 Logic module black connector terminal identification. 1987 models:
