Logic Module White Connector

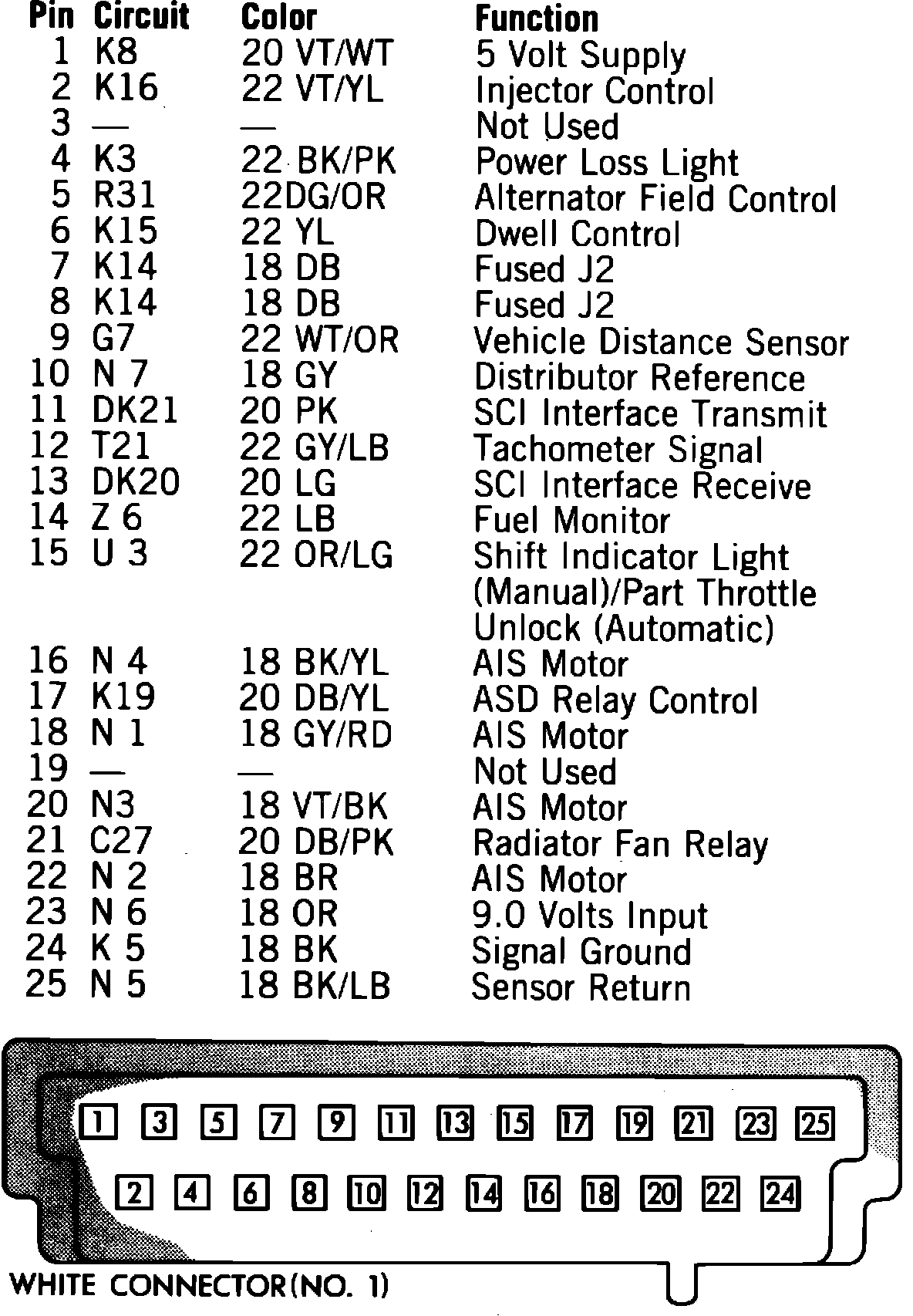

Fig. 8 Logic module white connector terminal identification. 1987 models:
