Home >> Plymouth >> 1987 >> Caravelle L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Logic Module Connector >> Part 1 of 2

Part 1 of 2

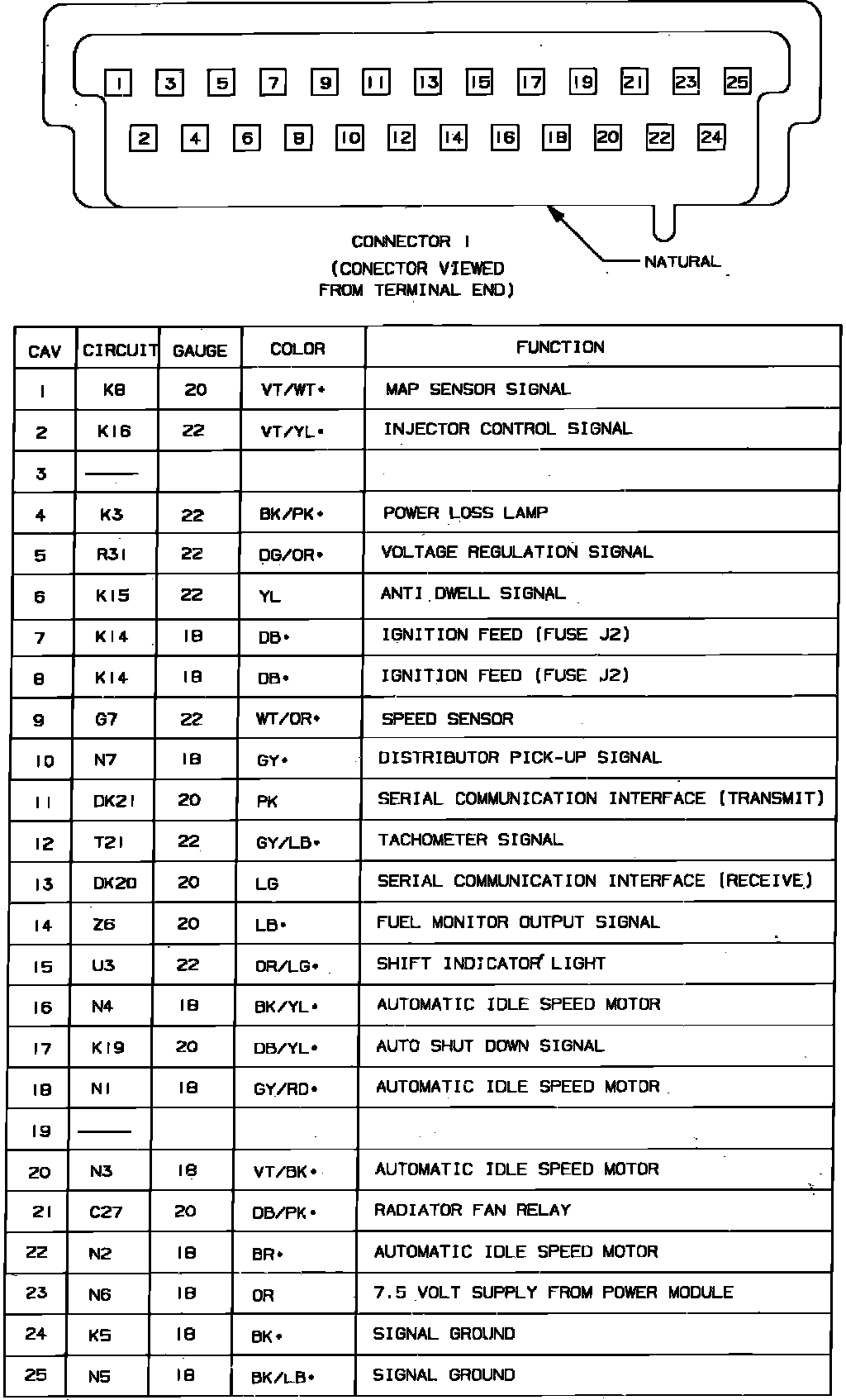

Fig. 11 Logic Module Connectors. Less Turbo (Part 1 Of 2):
