Home >> Plymouth >> 1987 >> Caravelle L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Power Module Connector >> 10-Pin Connector

10-Pin Connector

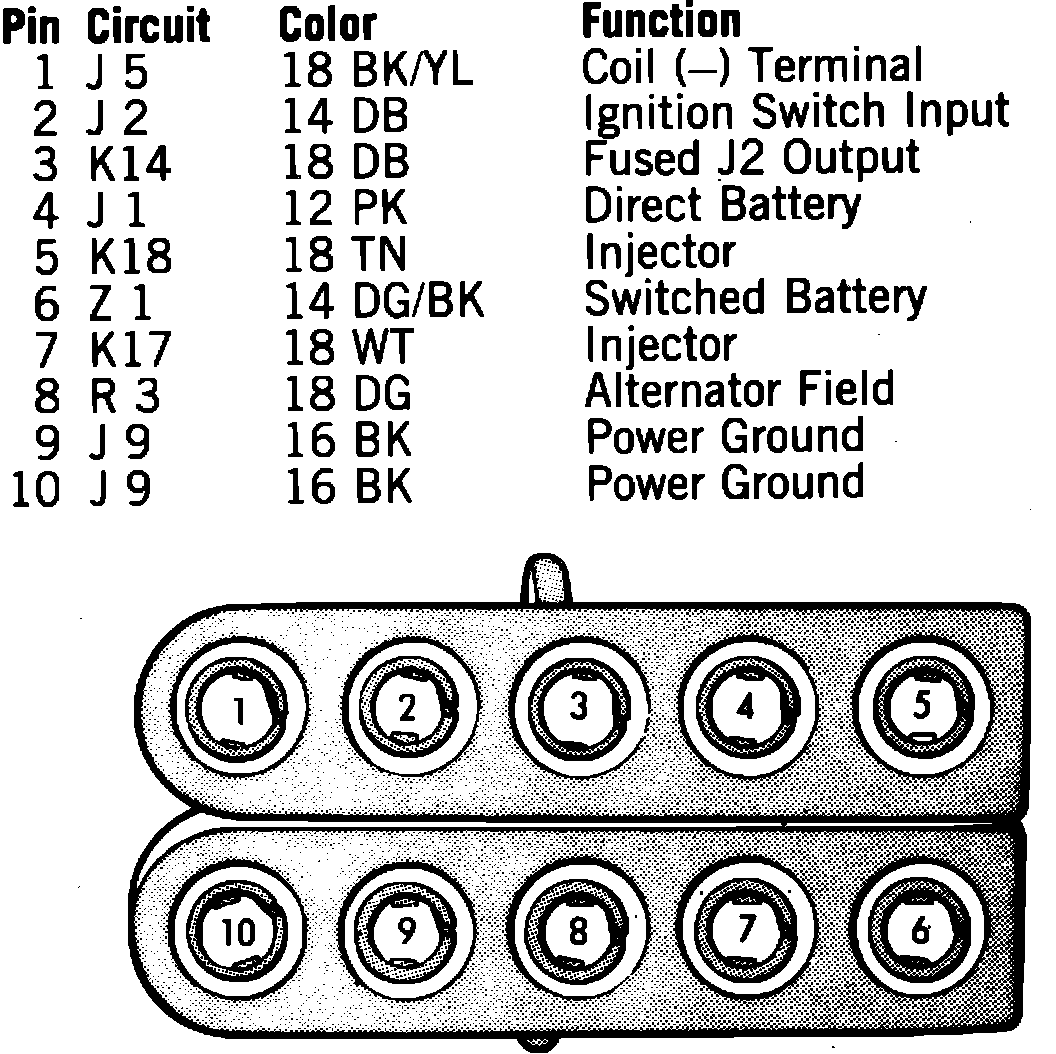

Fig. 12 Power module 10 pin connector terminal identification. 1987 models:
