Body Control Module

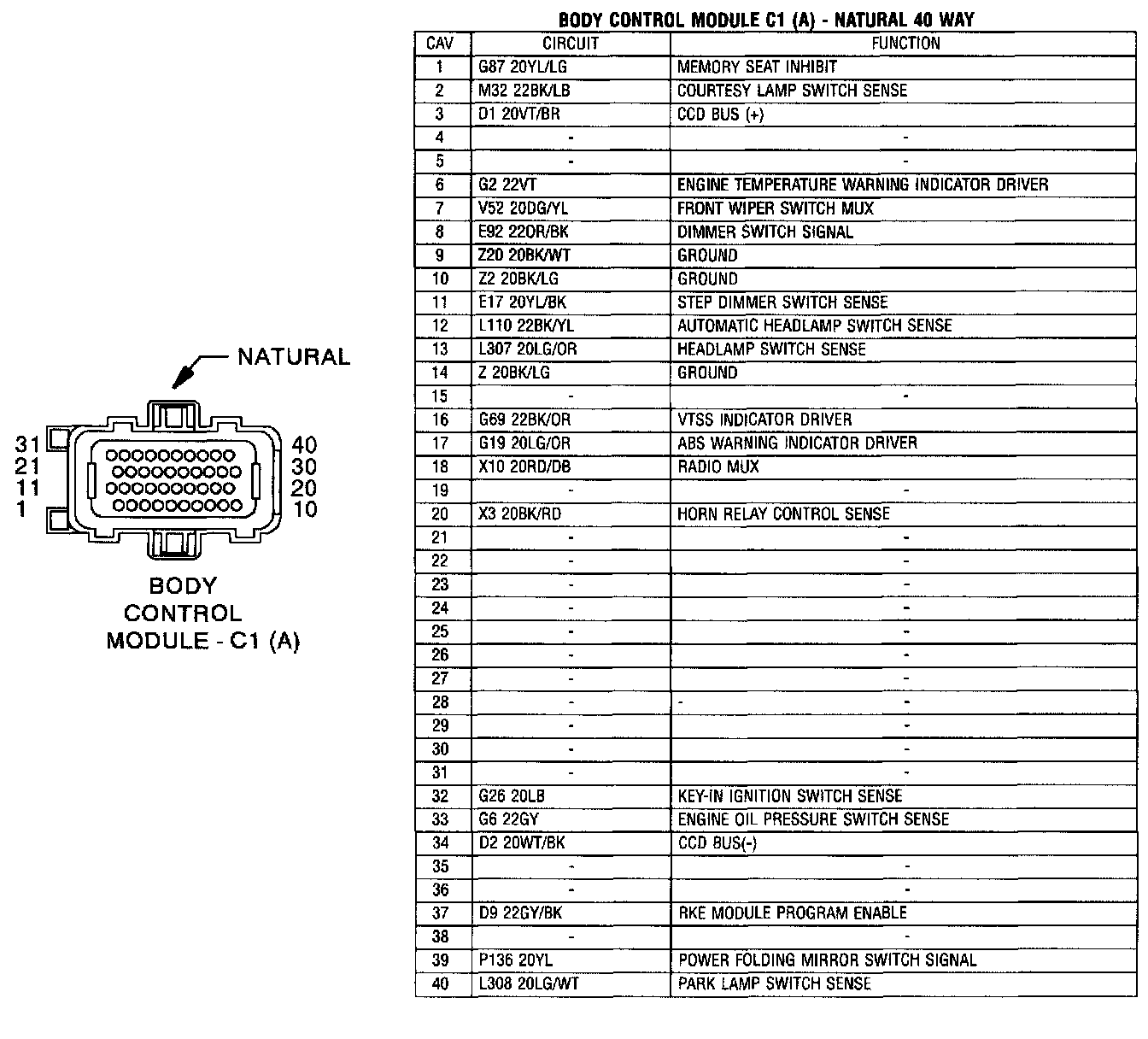

Body Control Module C1 (A):

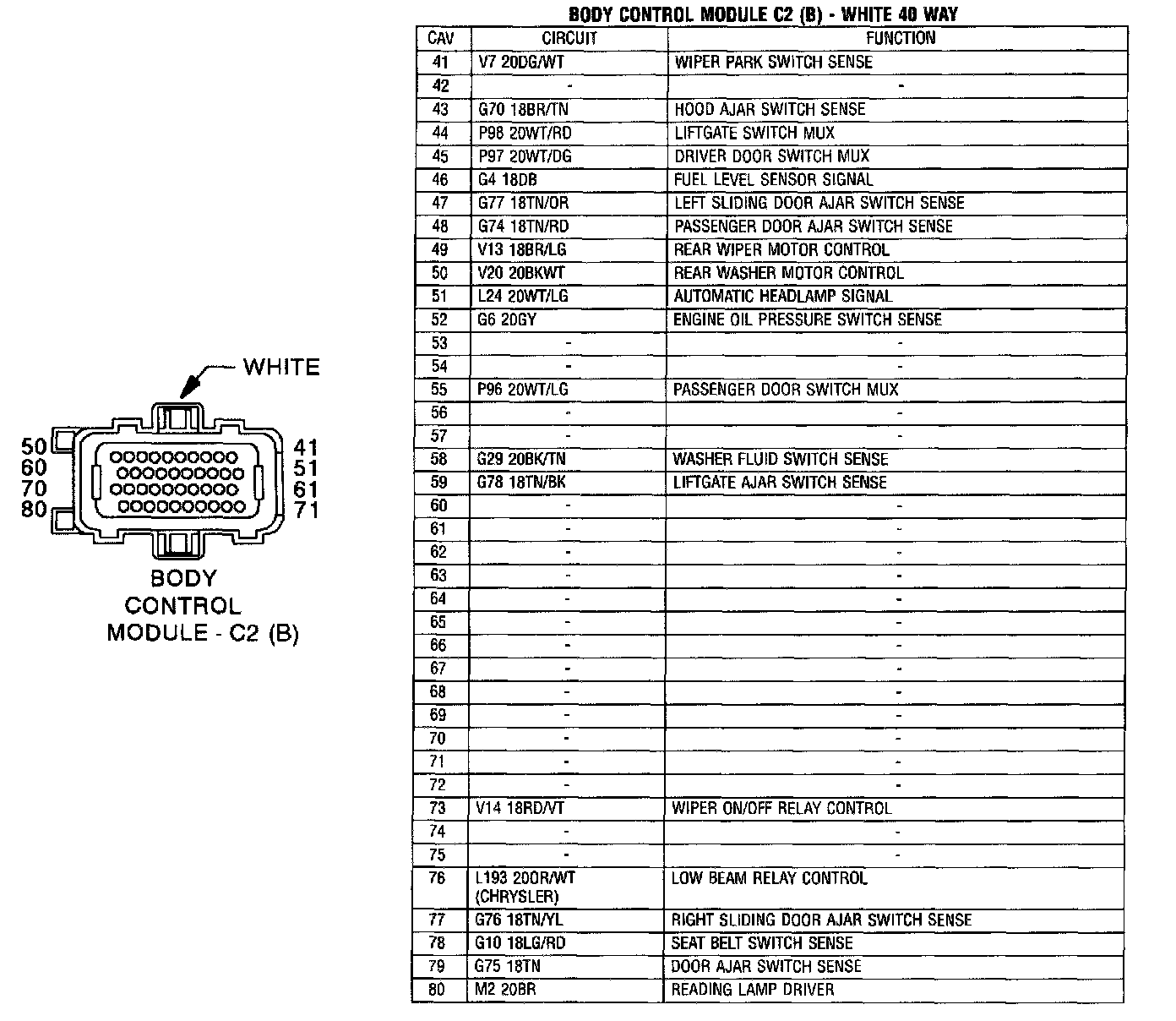

Body Control Module C2 (B):

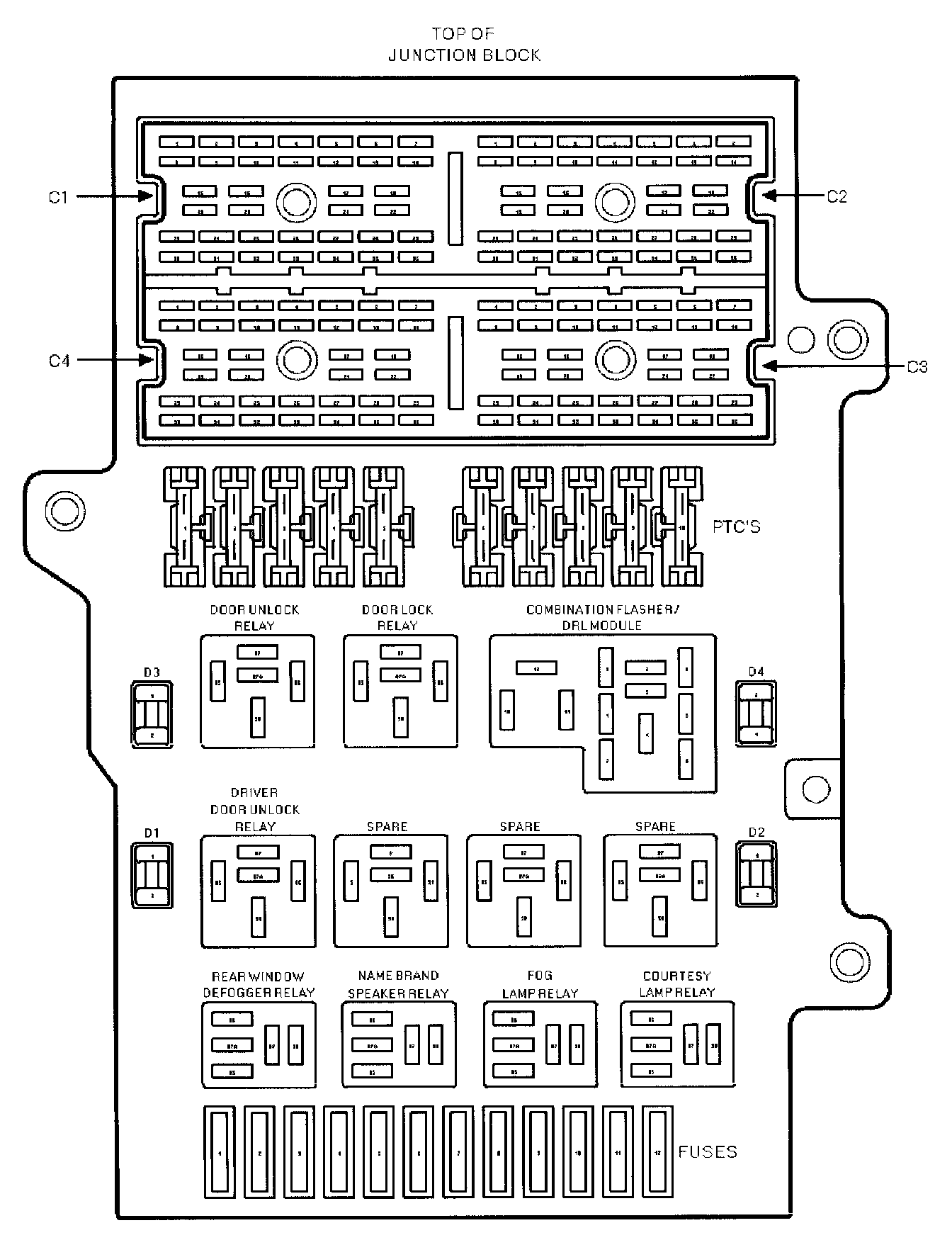

Junction Block:

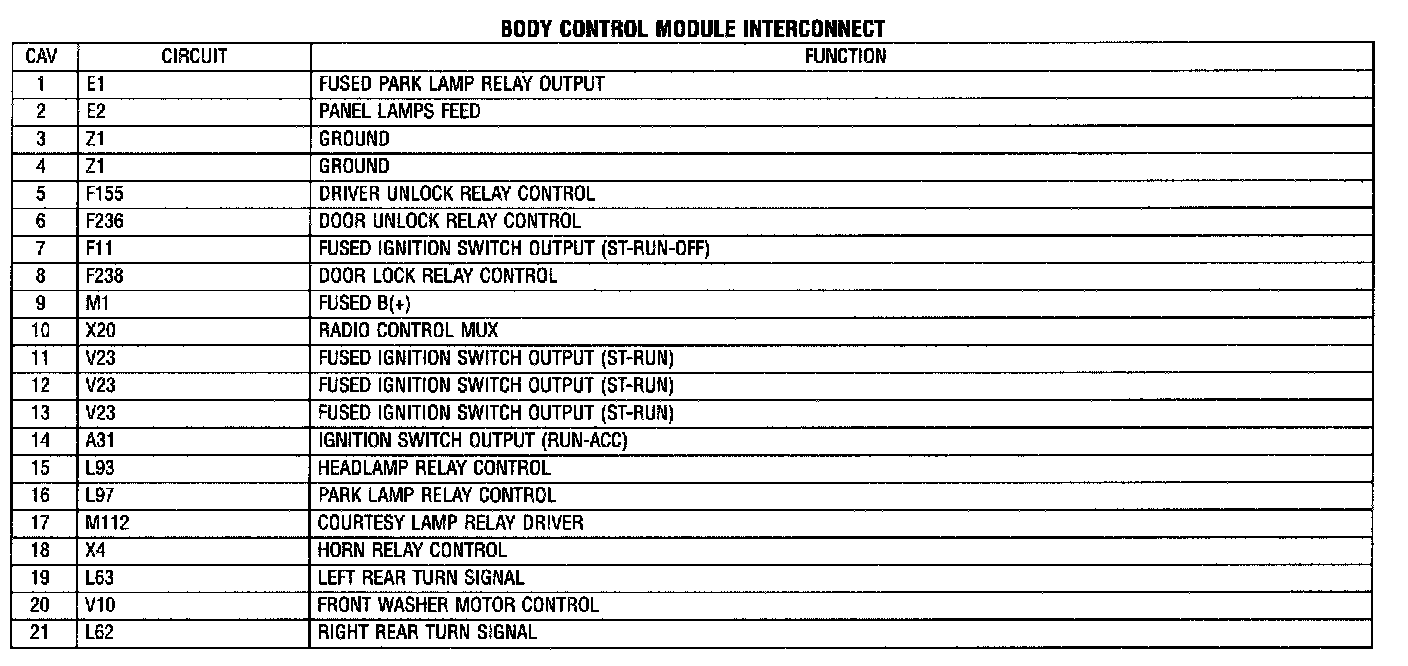

Body Control Module Interconnect:
