Home >> Pontiac >> 1986 >> Bonneville V6-262 4.3L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module

Engine Control Module

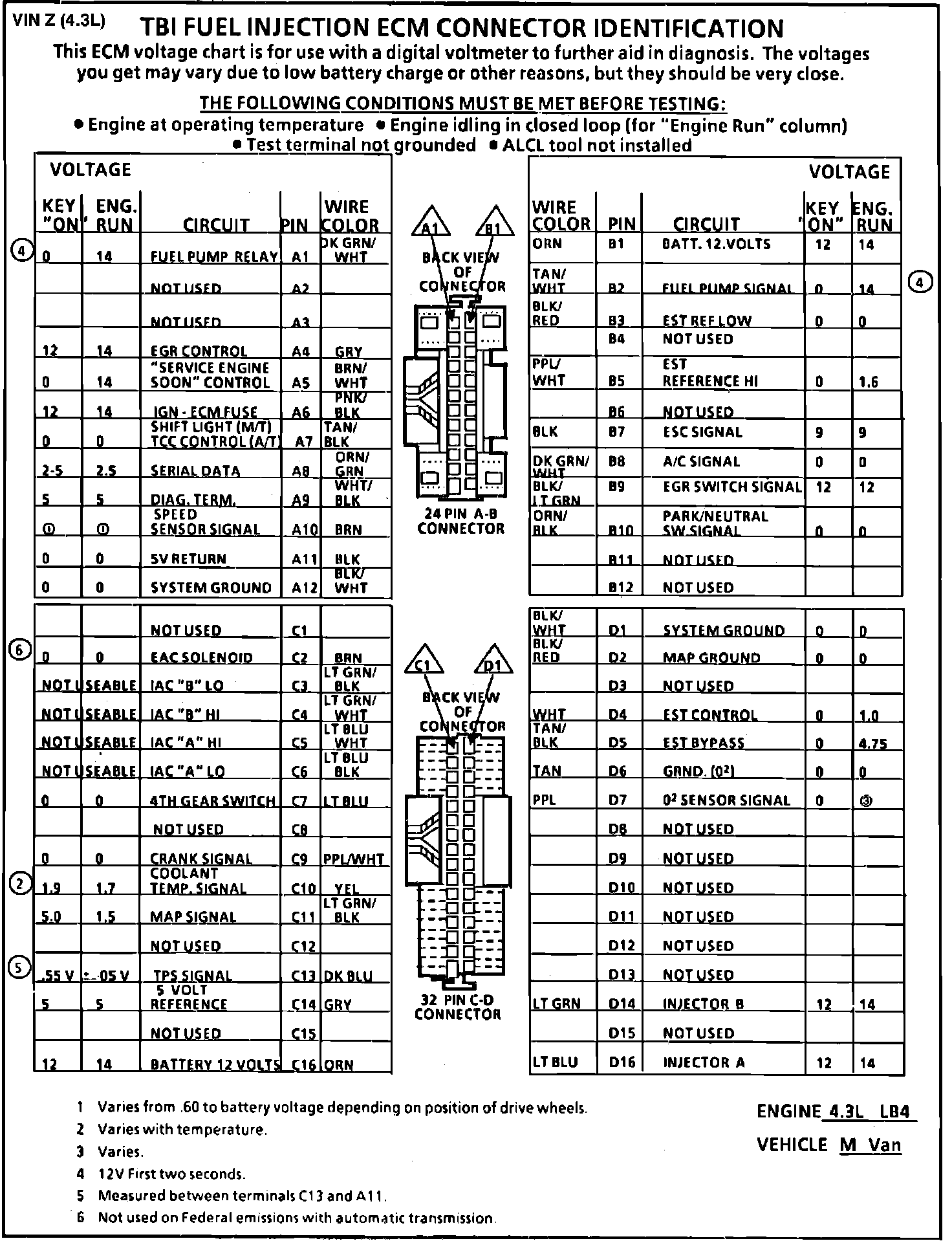

Fig. 009 ECM Connector Terminal I.D. & Volt. Specifications:
