Home >> Subaru >> 1994 >> Impreza Wagon FWD F4-1820cc 1.8L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Engine Control Module

Engine Control Module

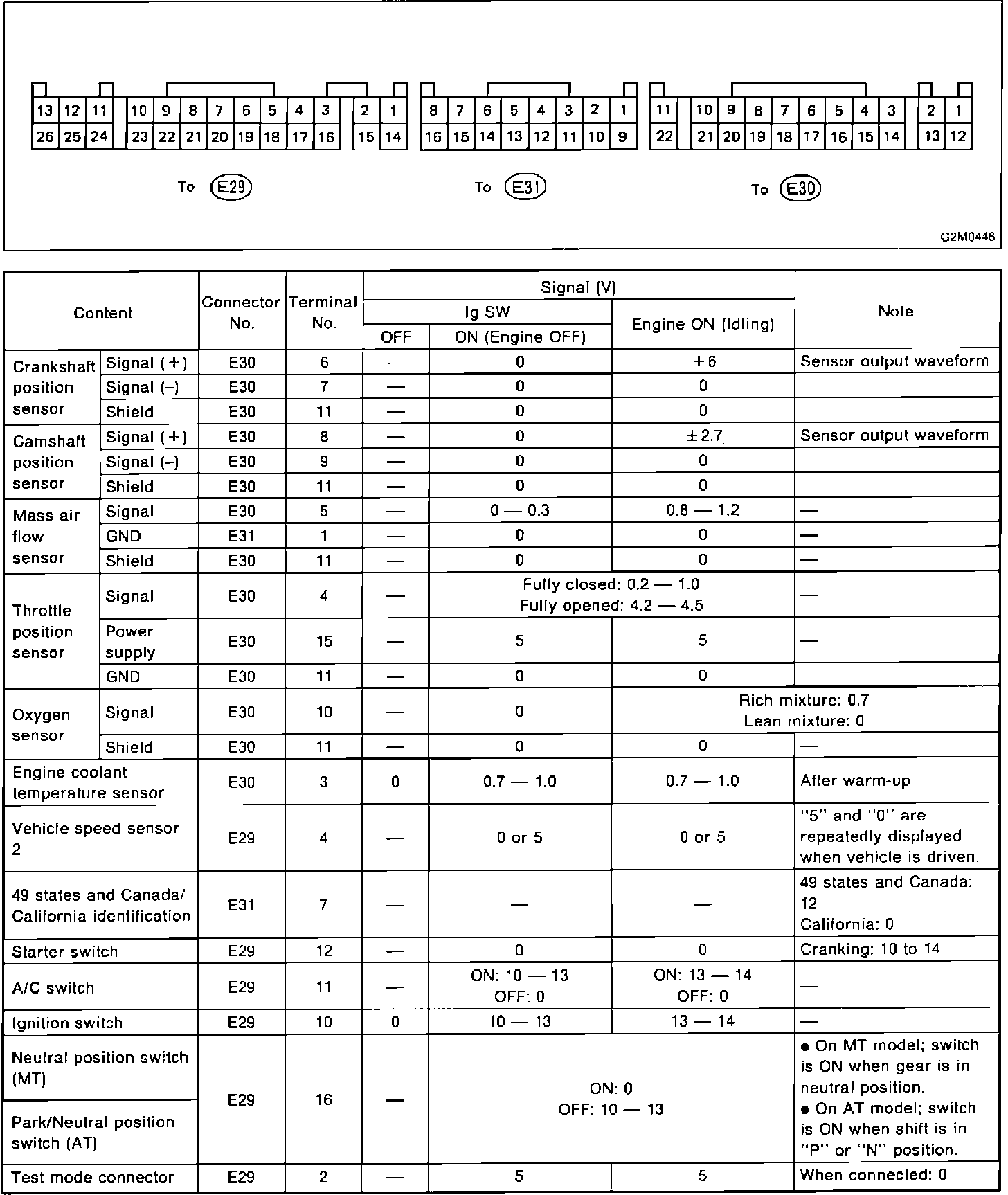

ECM Pin Voltages - Part 1 Of 2:

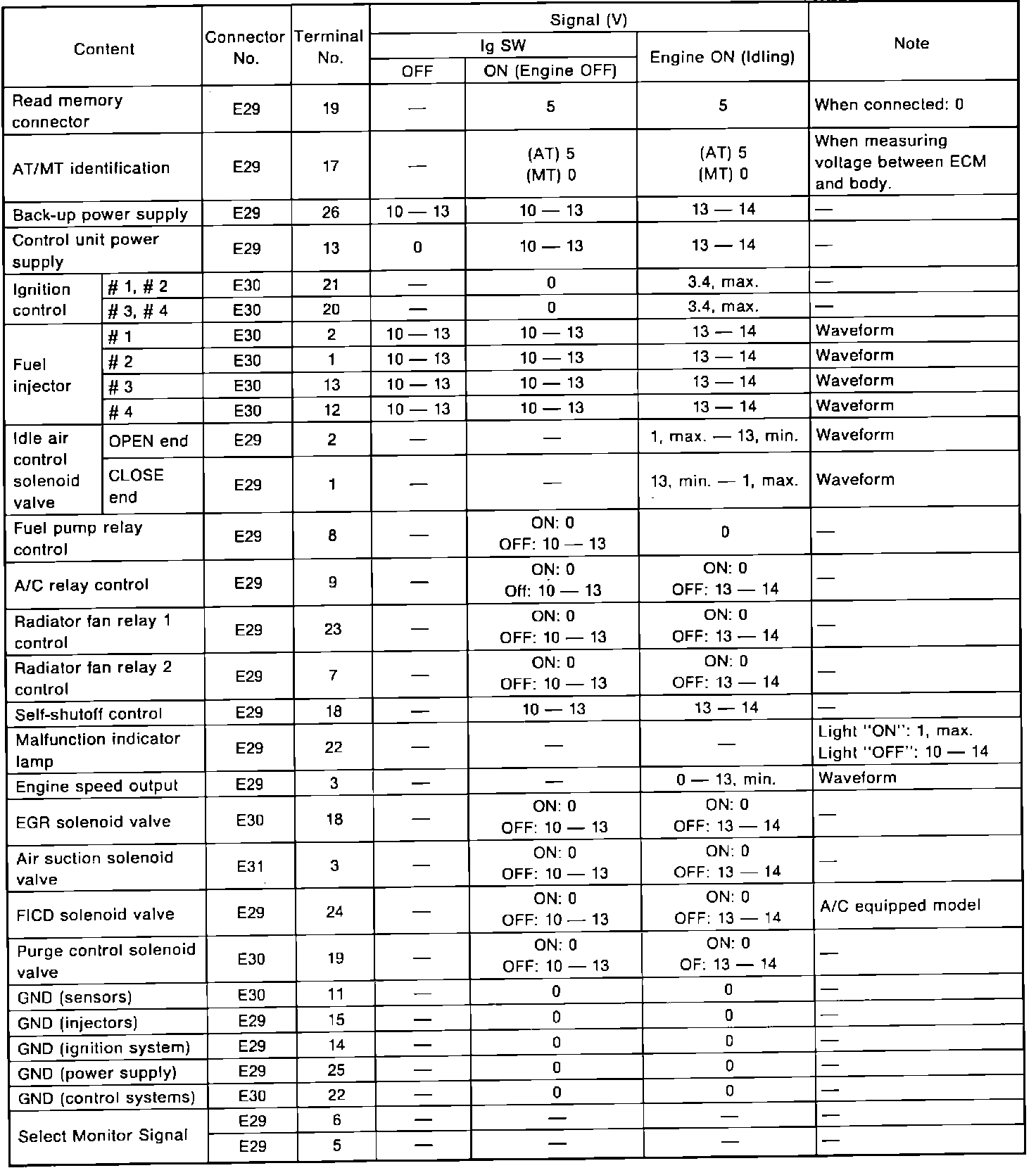

ECM Pin Voltages - Part 2 Of 2:
