Engine Control Module: Testing and Inspection
Connector View:

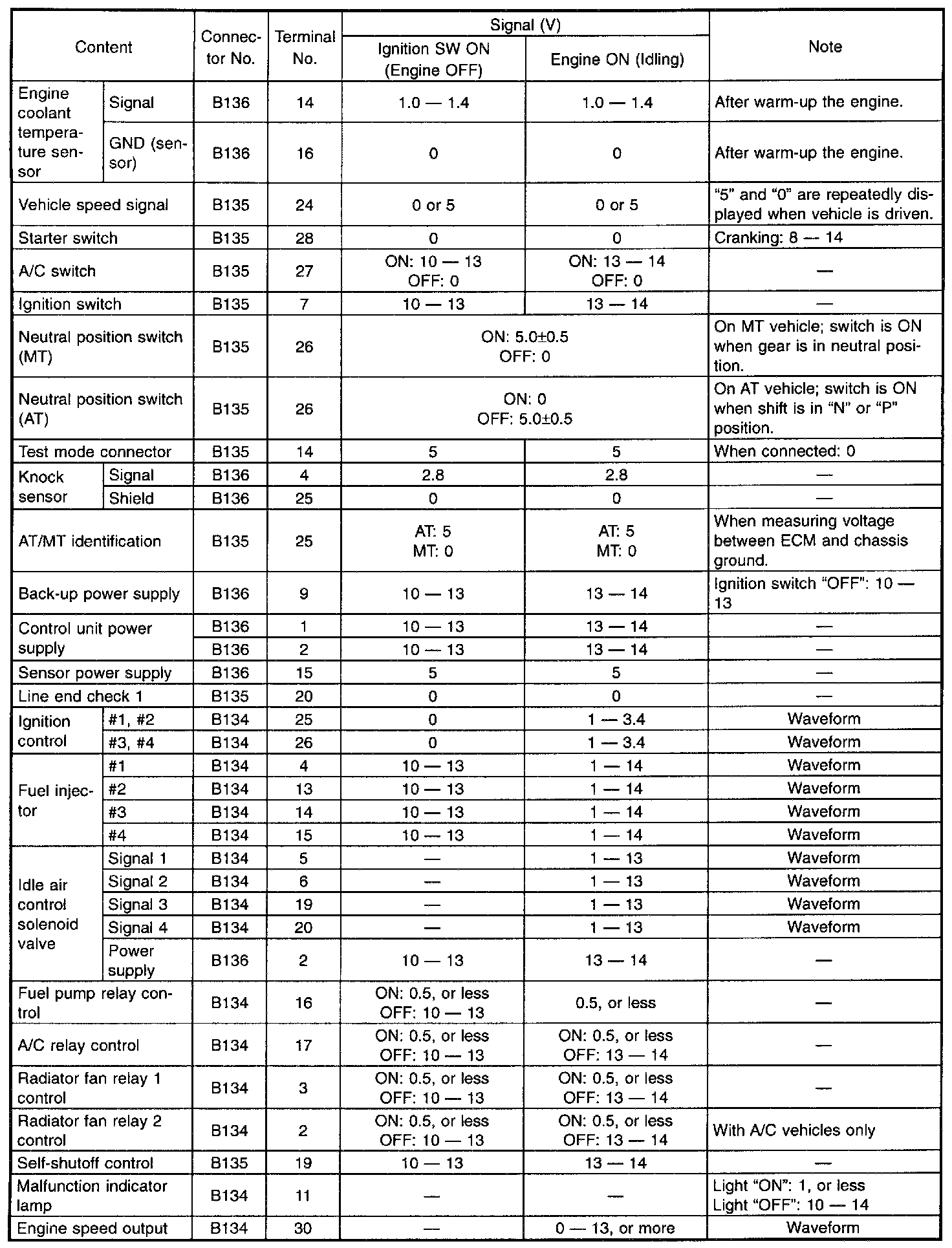

Connector Pin-outs (Part 1 Of 3):

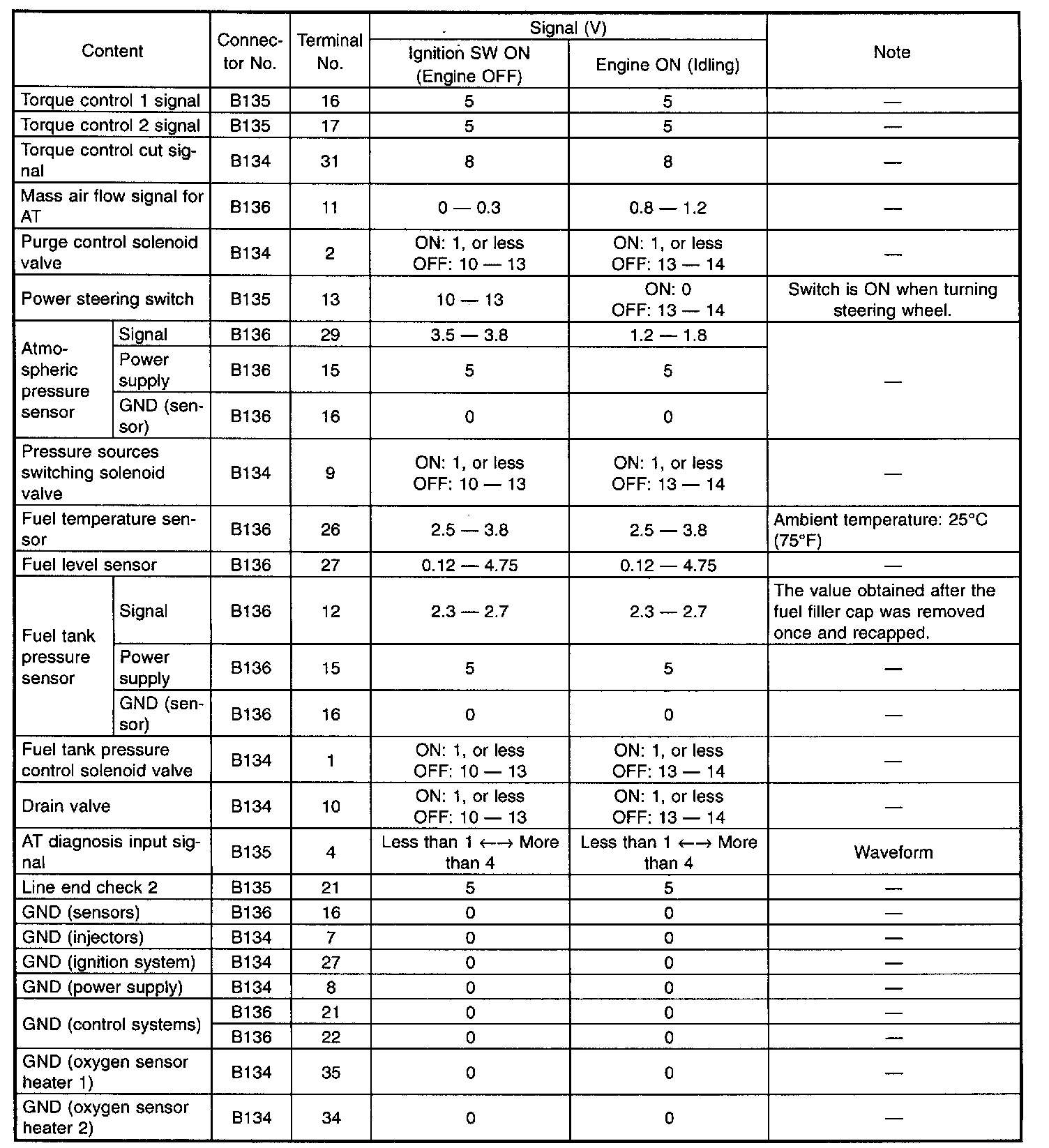

Connector Pin-outs (Part 2 Of 3):

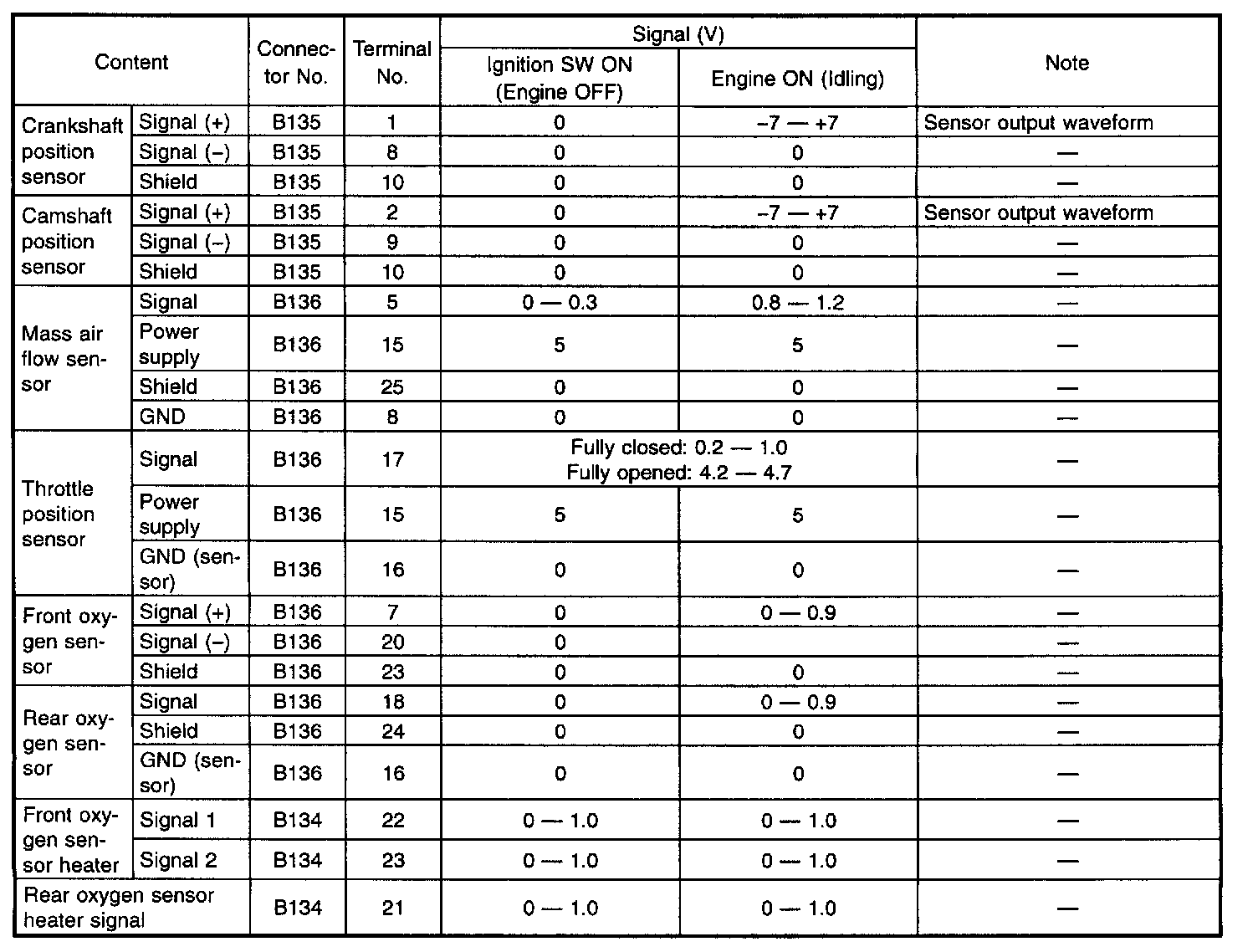

Connector Pin-outs (Part 3 Of 3):
ENGINE CONTROL MODULE
I/O SIGNALS
