Connector Views

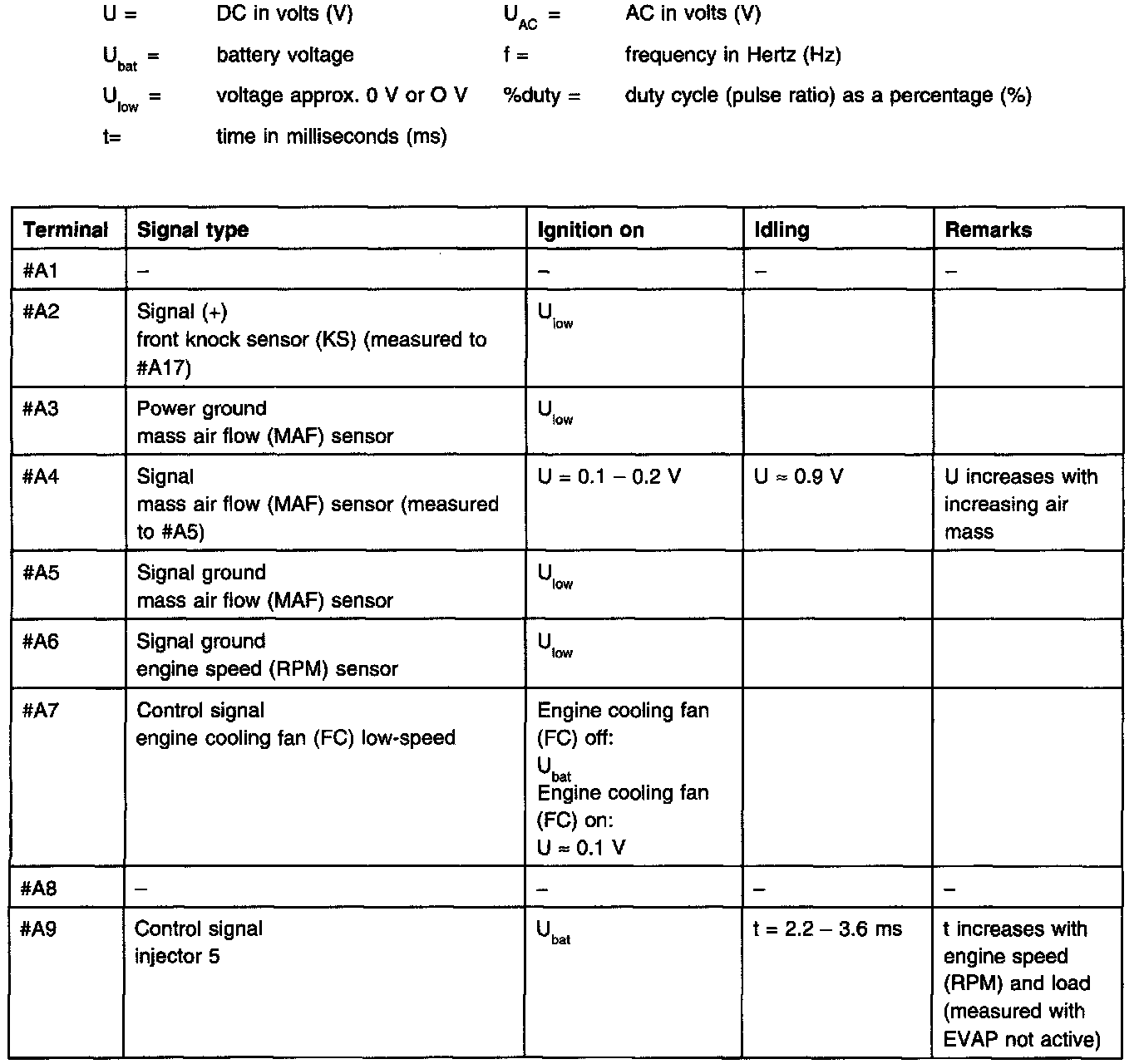

A1-A9:

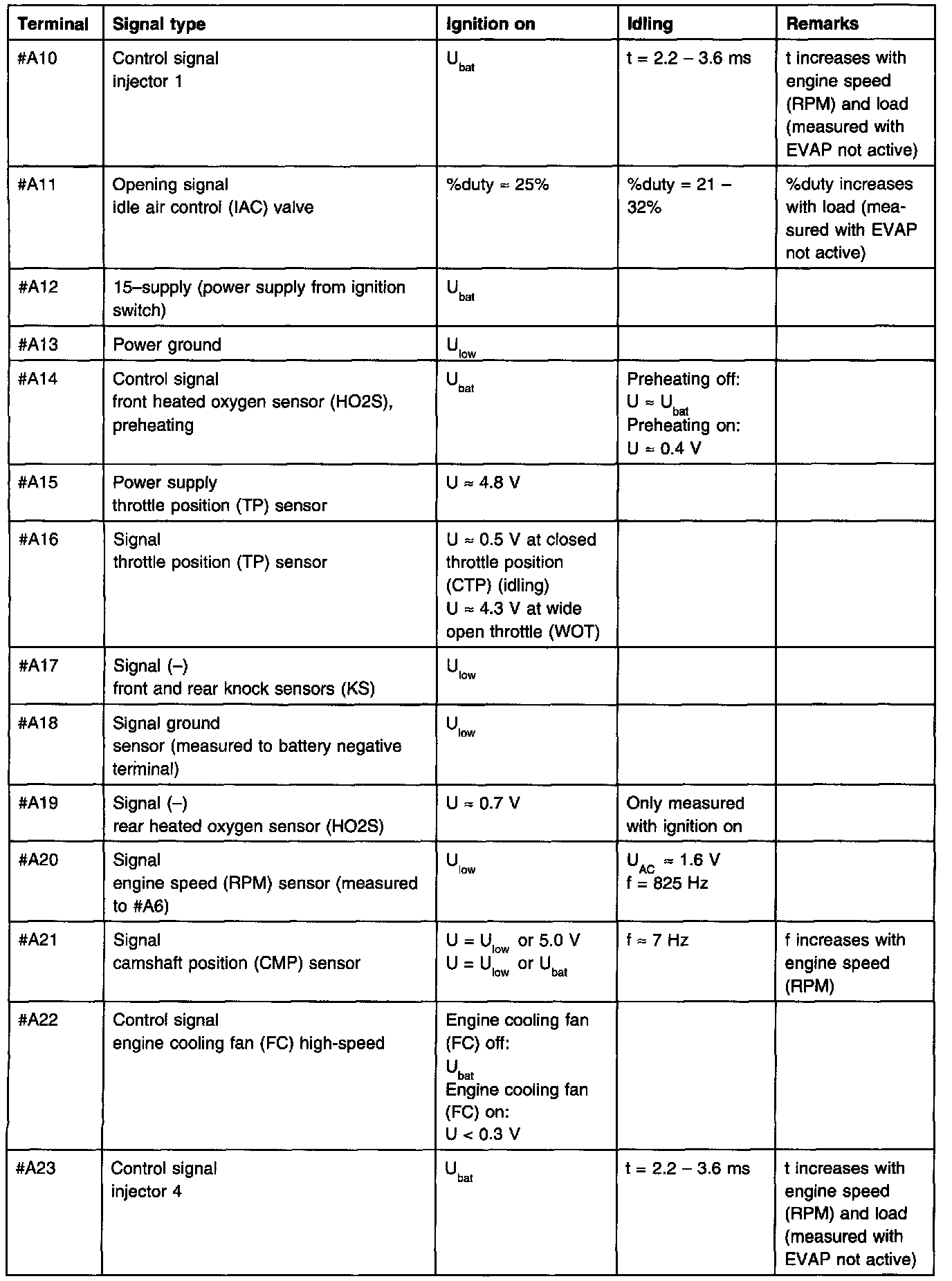

A10-A23:

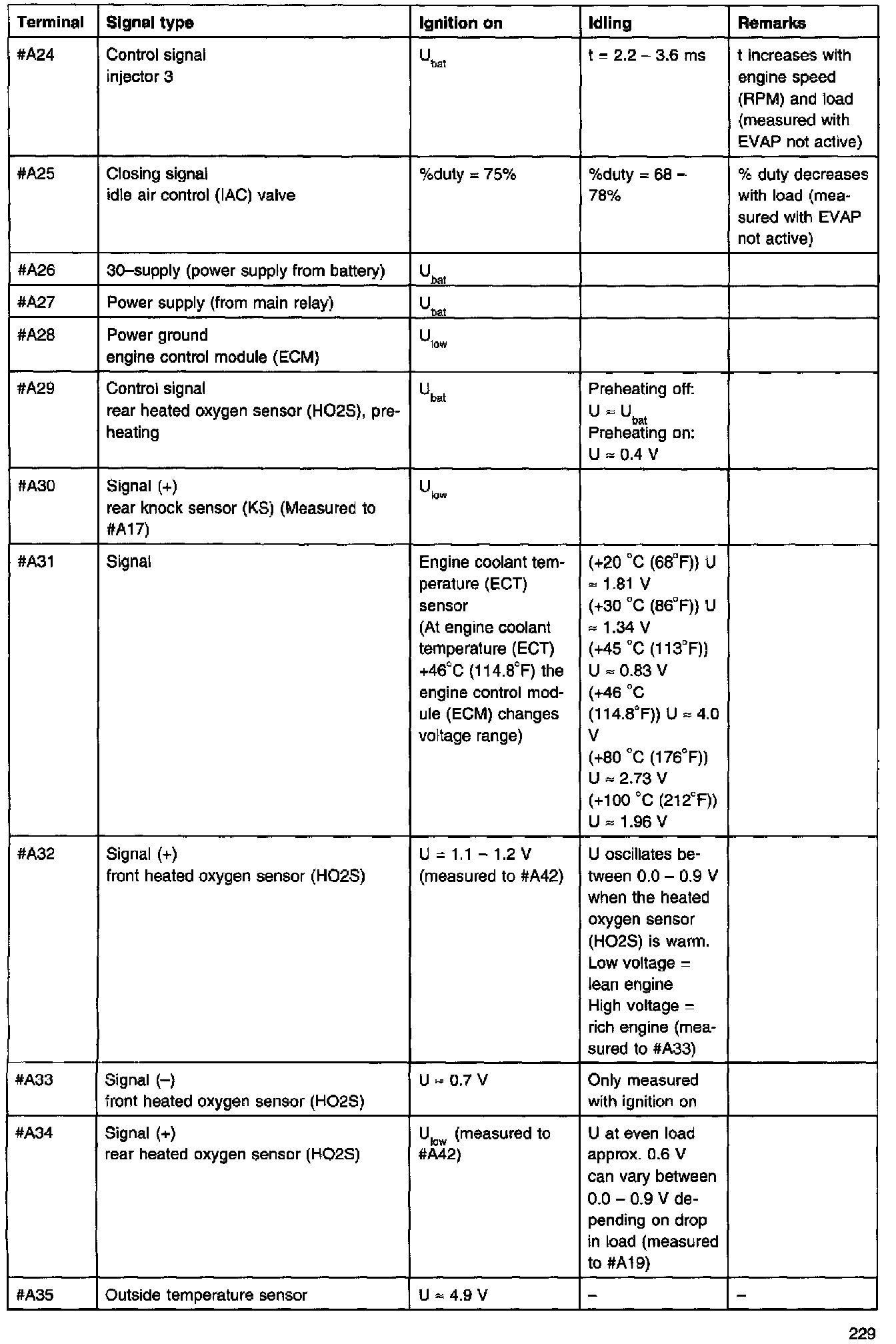

A24-A35:

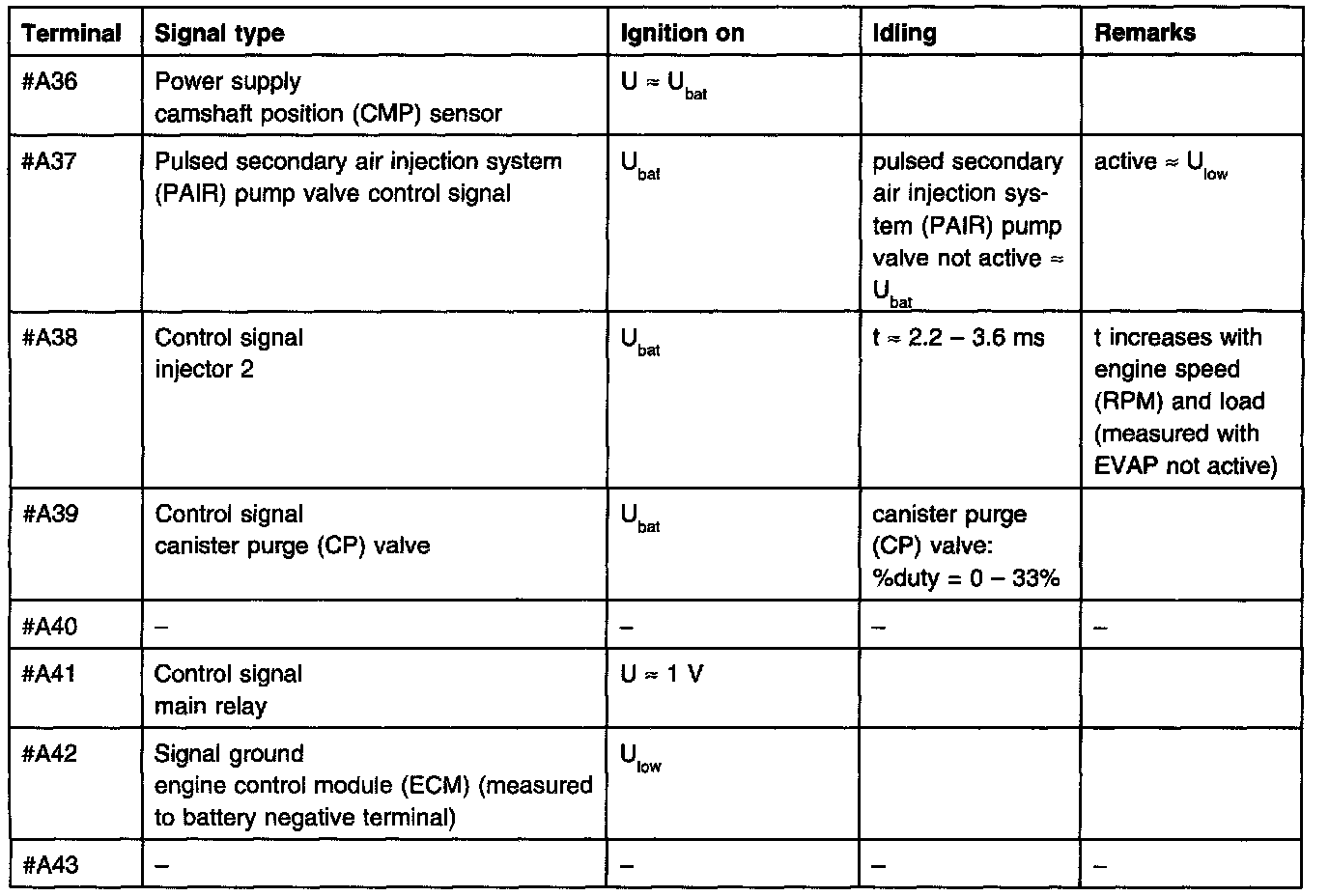

A36-A43:

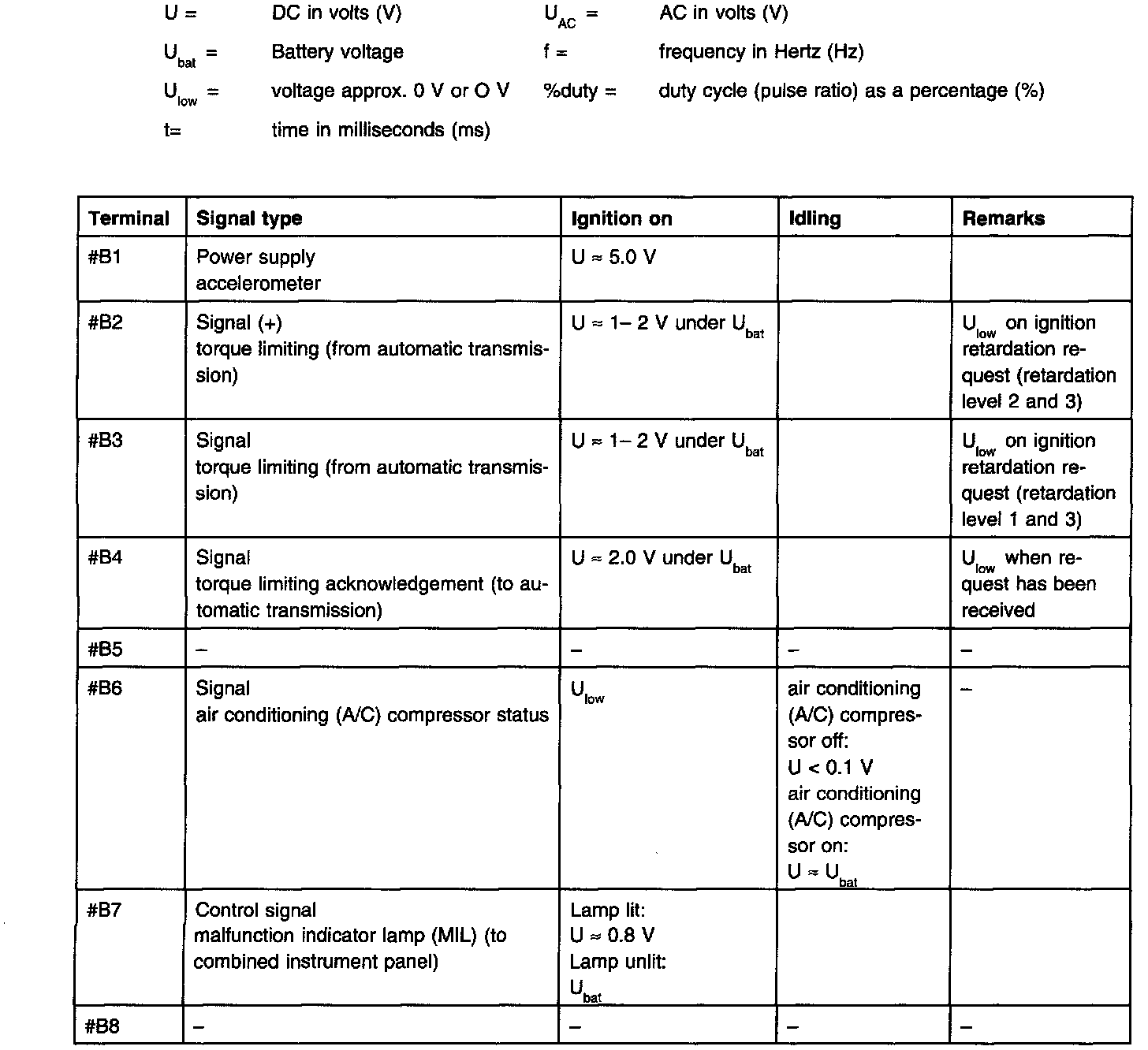

B1-B8:

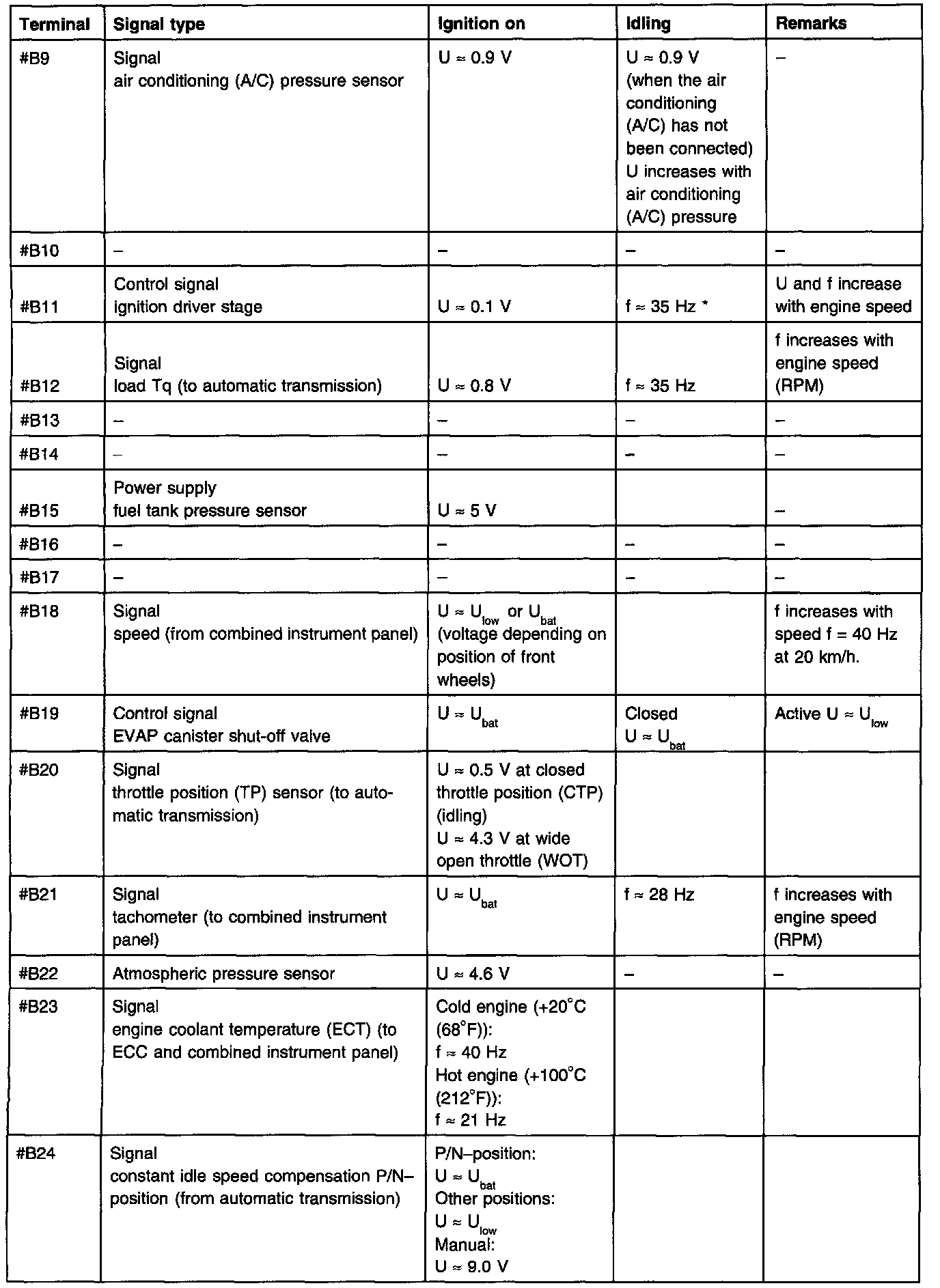

B9-B24:

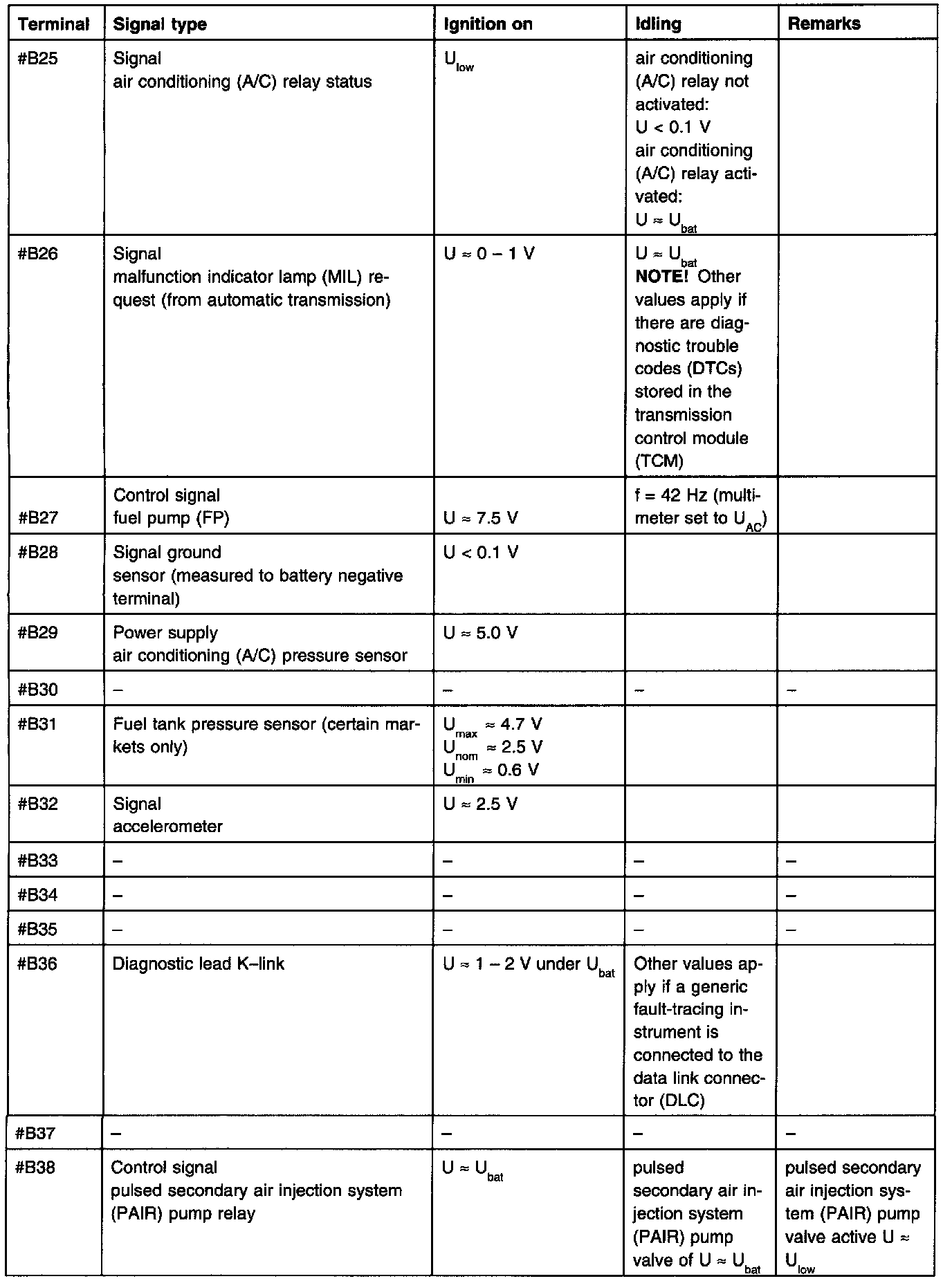

B25-B38:

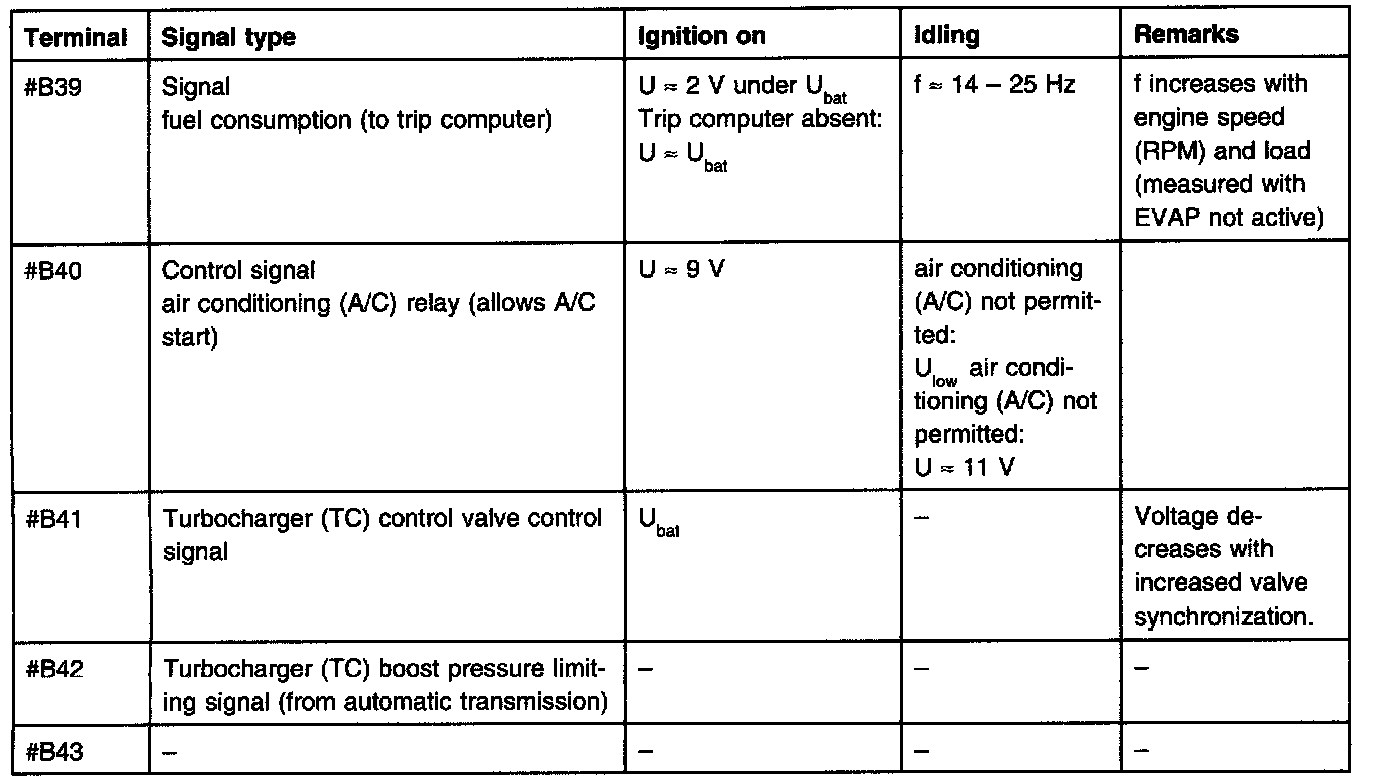

B39-B43:
Connector A:
Connector B:
