Connector Views

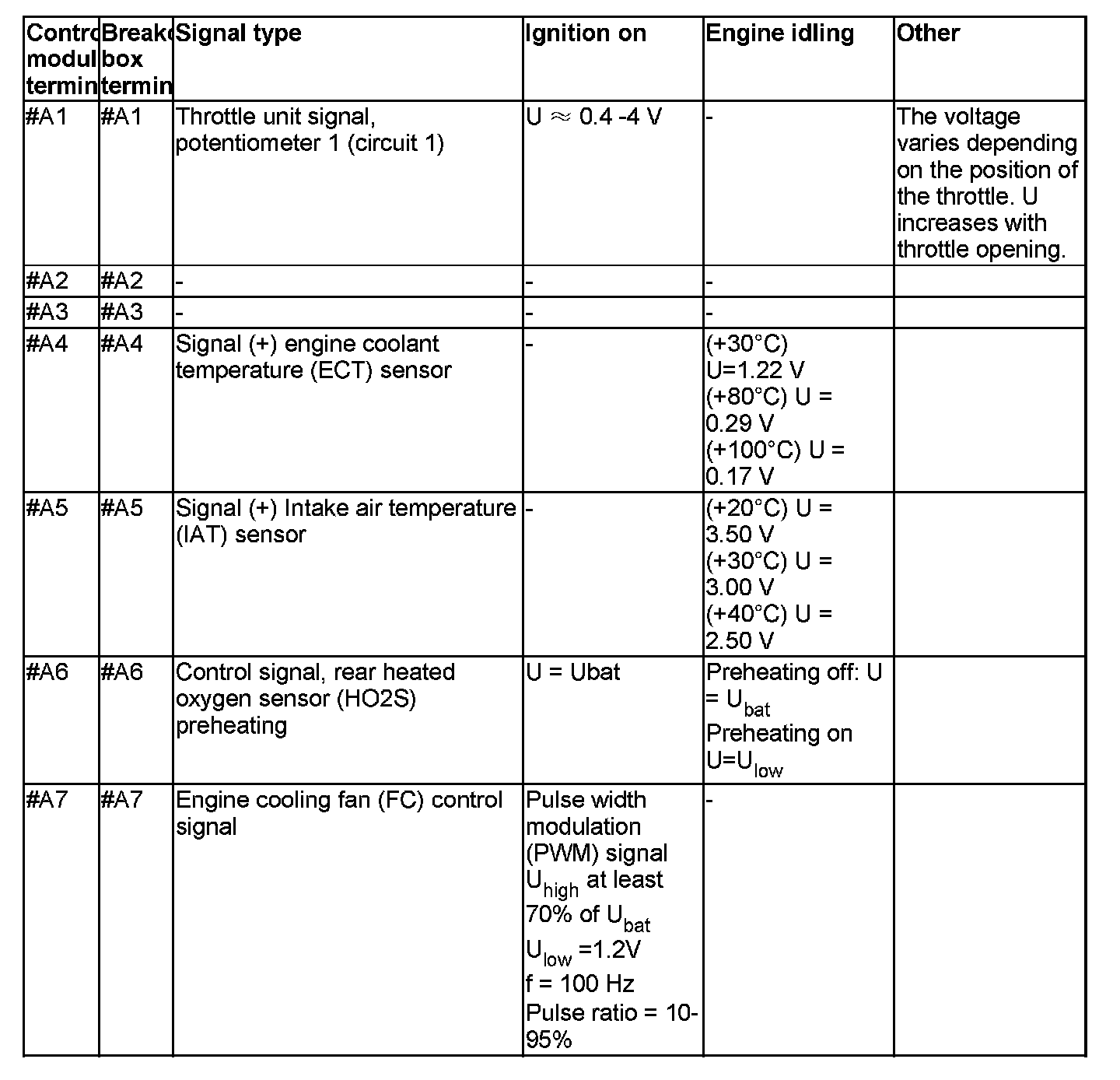

#A1 - #A7:

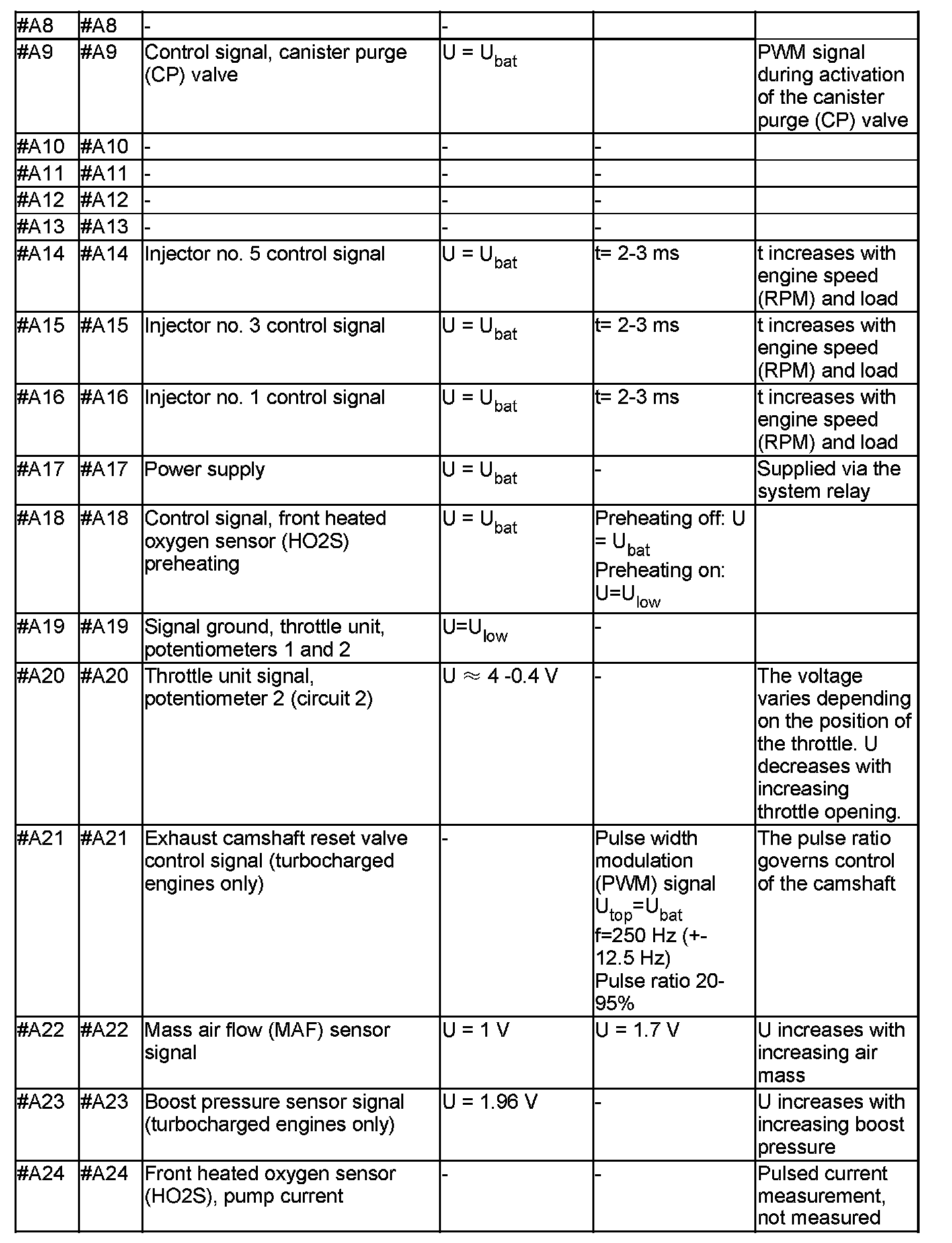

#A8 - #A24:

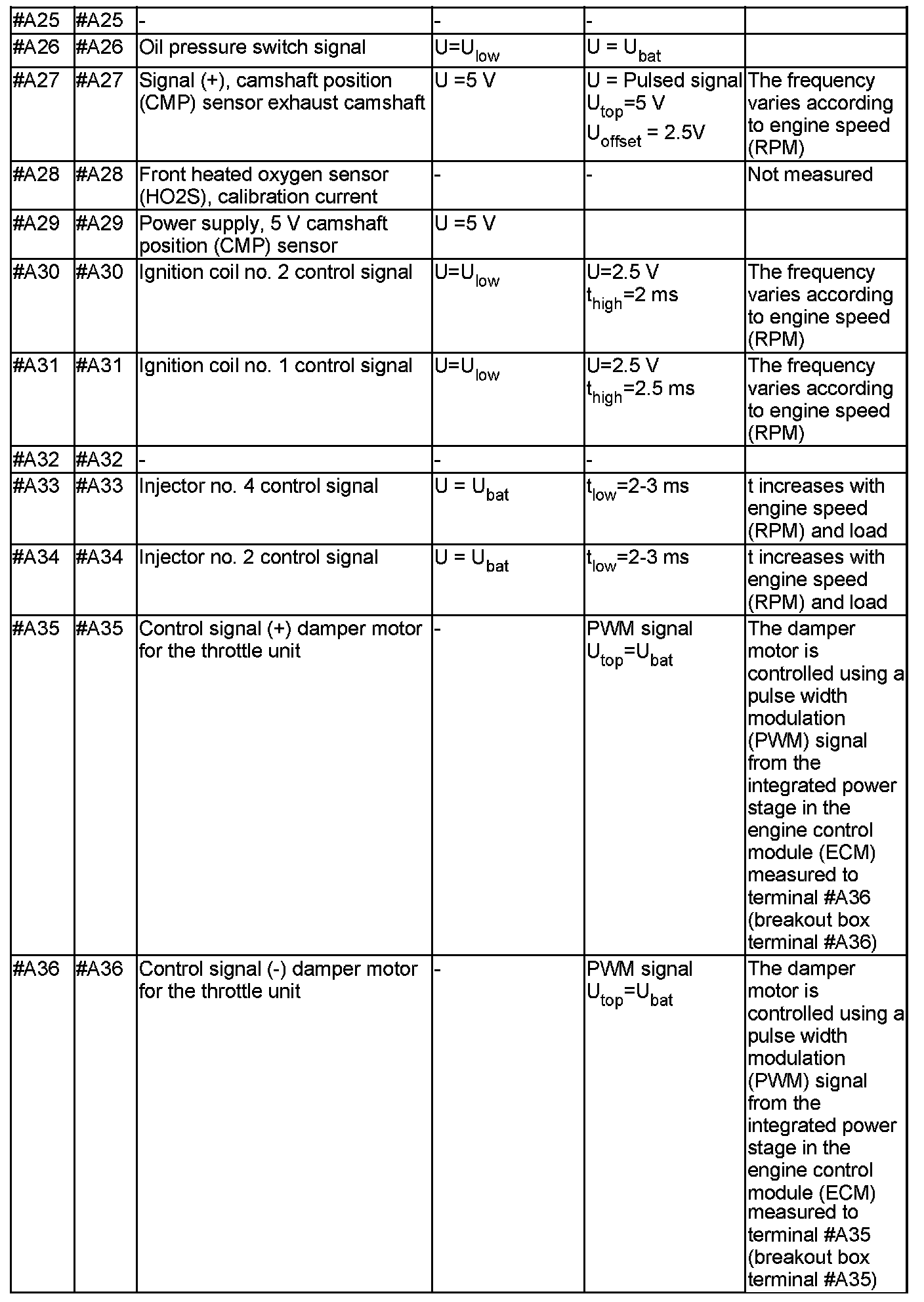

#A25 - #A36:

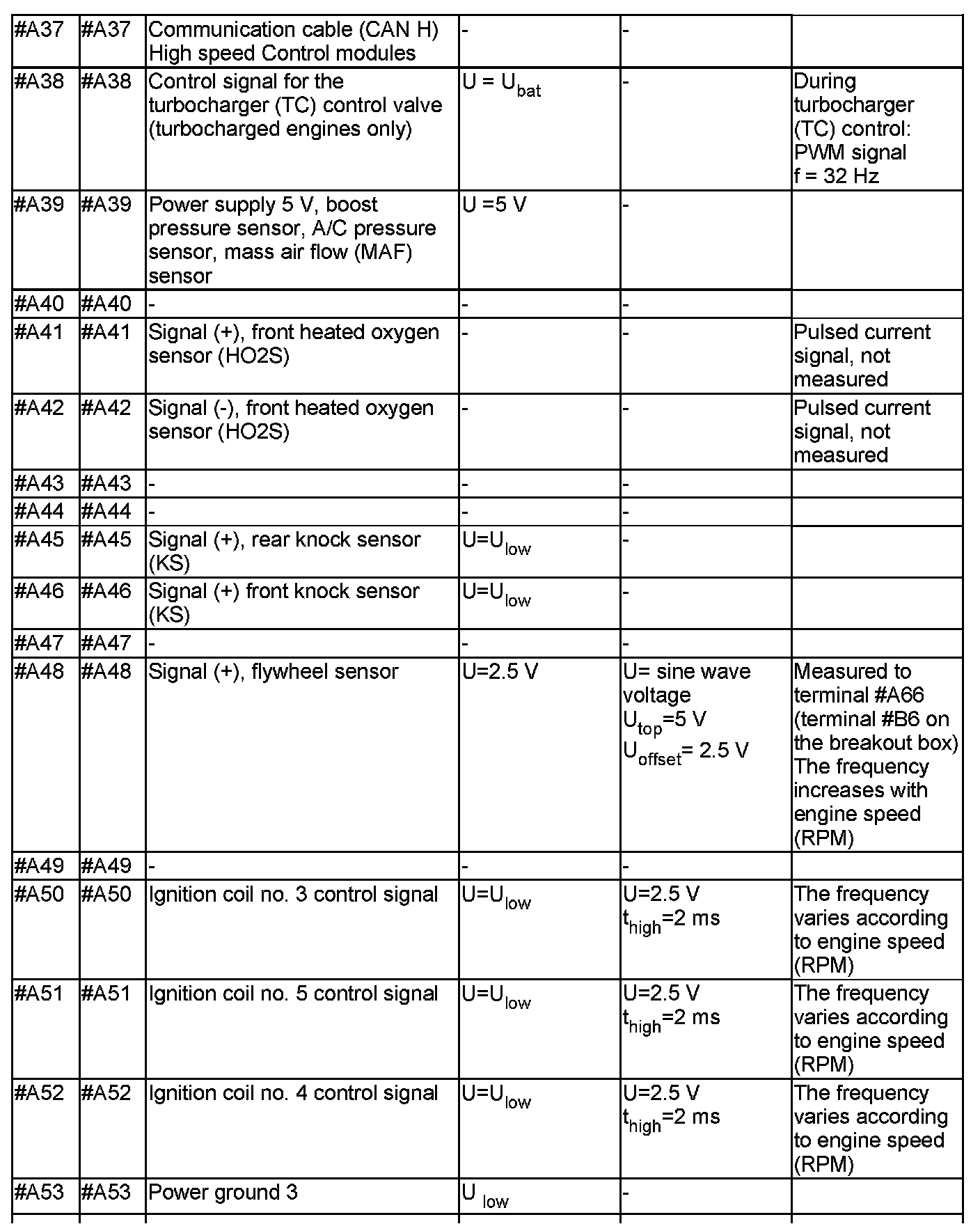

#A37 - #A53:

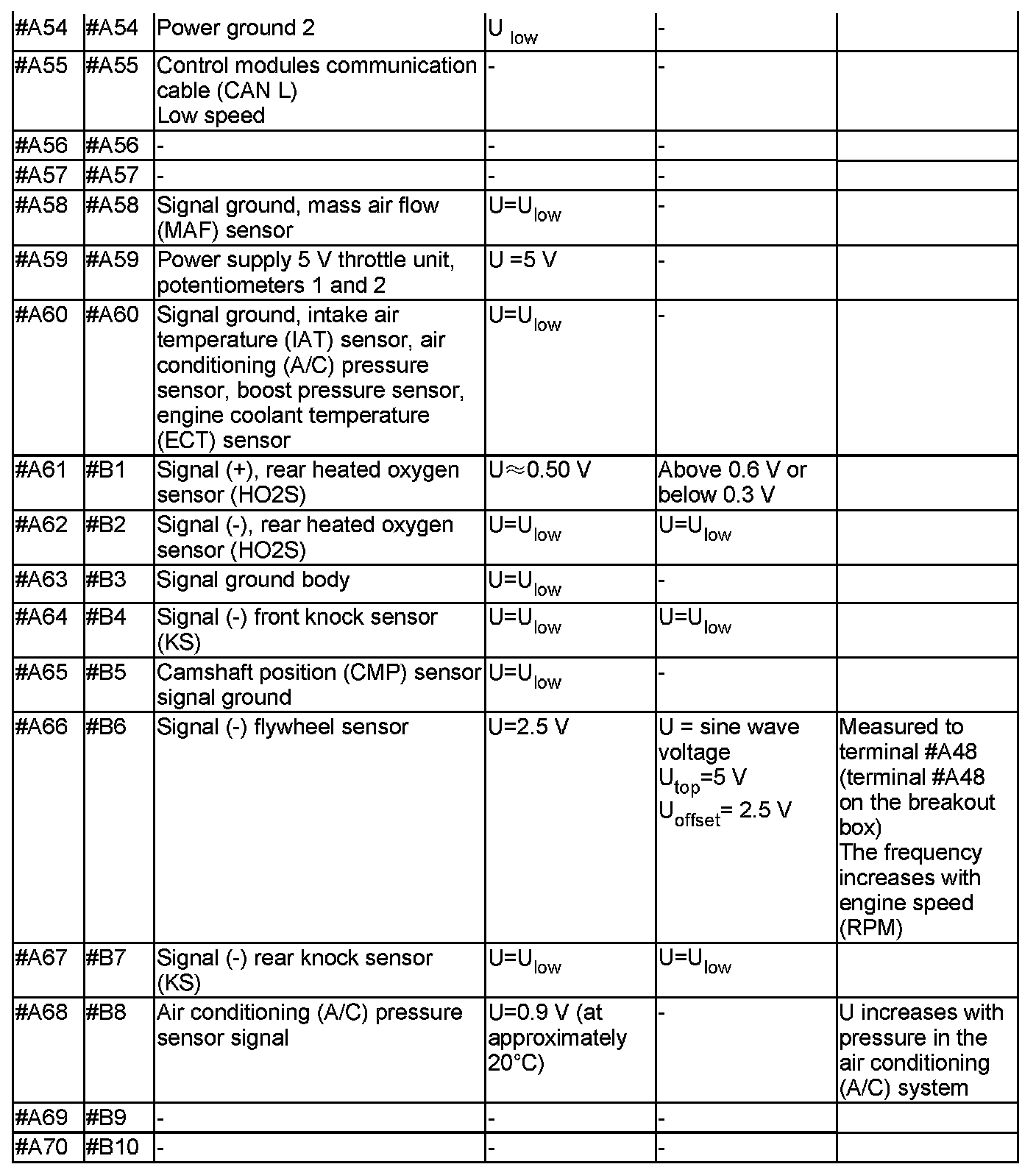

#A54 - #A70:
#B1 - #B3:

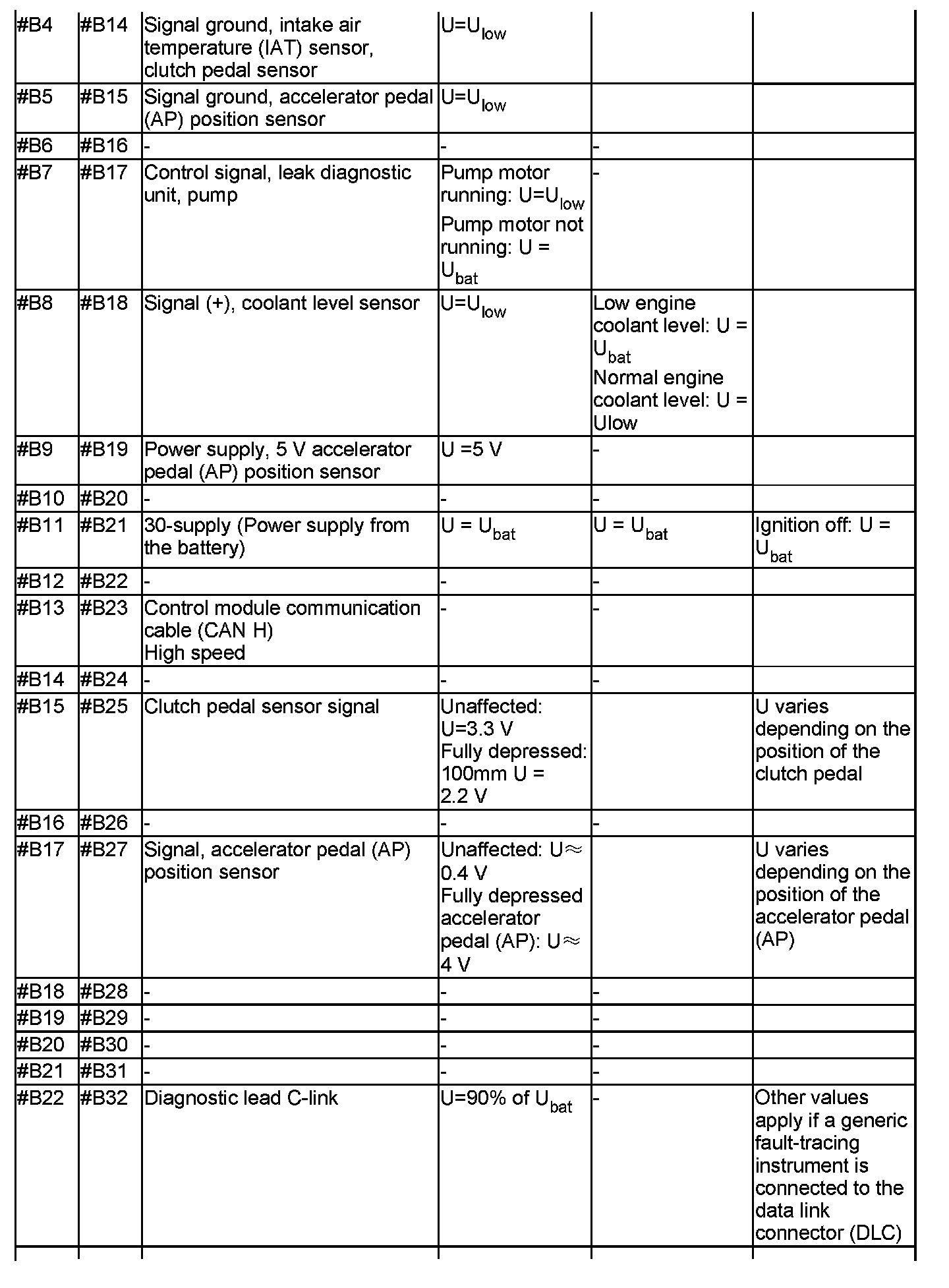

#B4 - #B22:

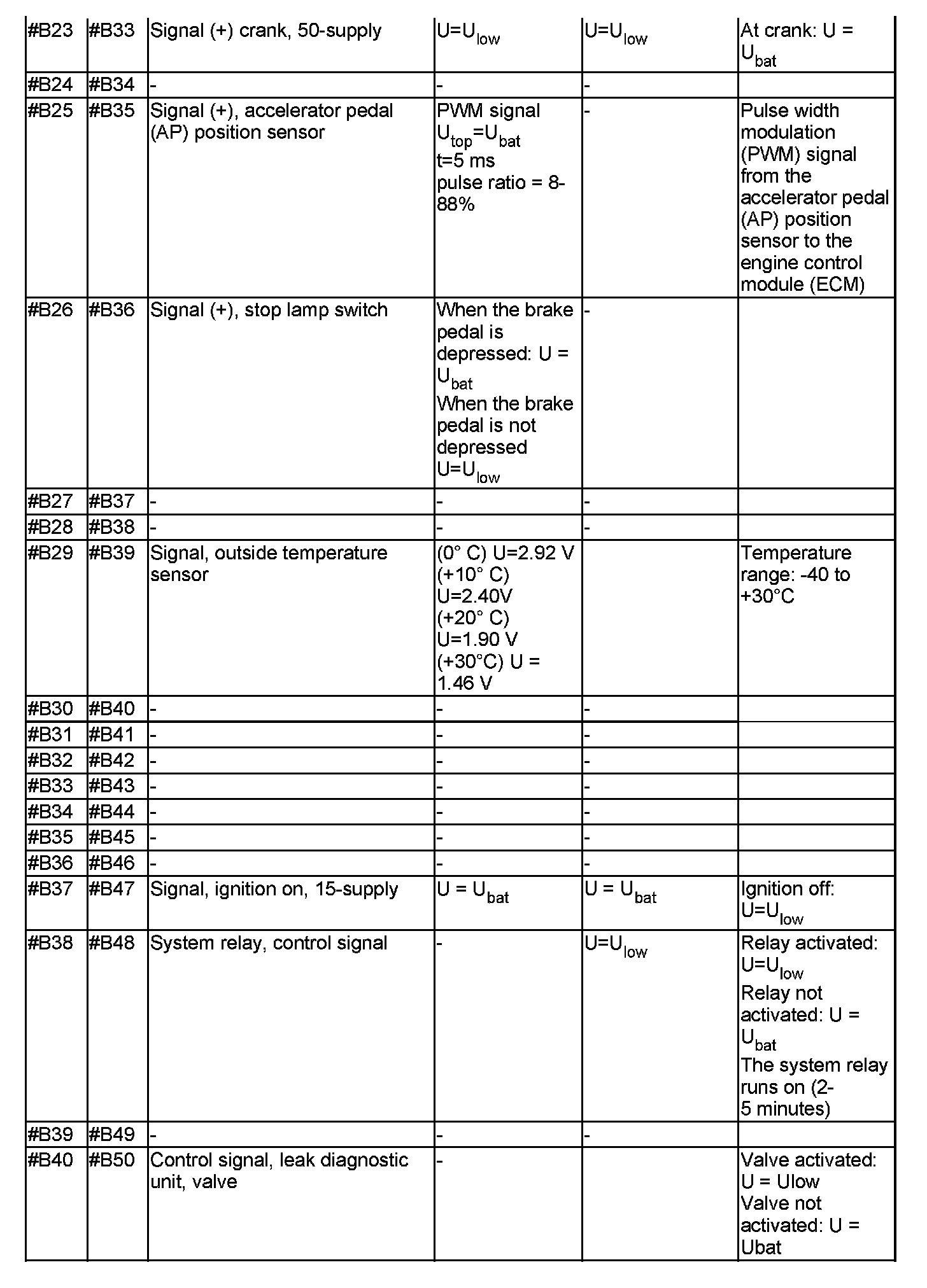

#B23 - #B40:

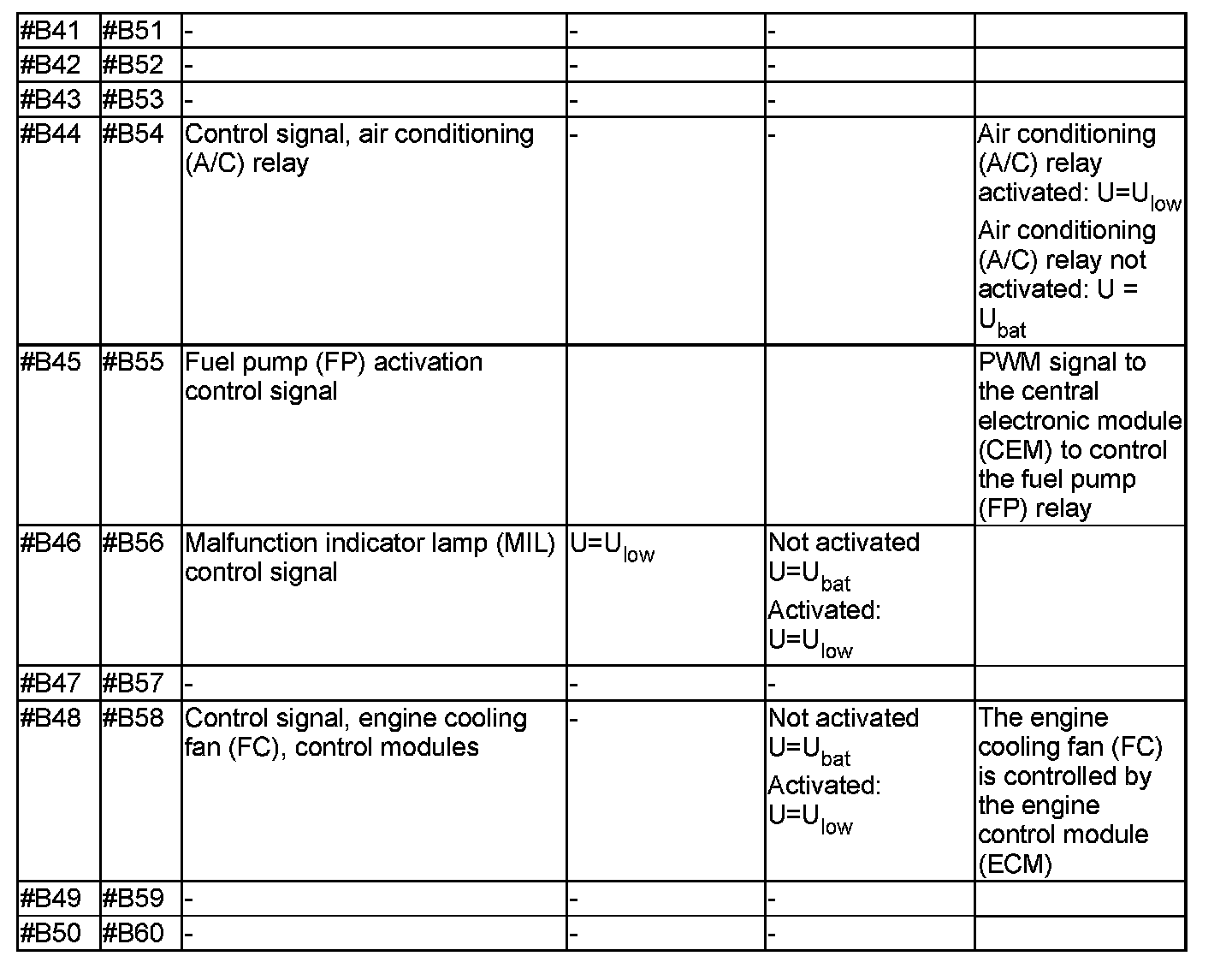

#B41 - #B50:
